LG 580.AWYDSRU

Model: 580.AWYDSRU

Save Part Not Listed?
product name

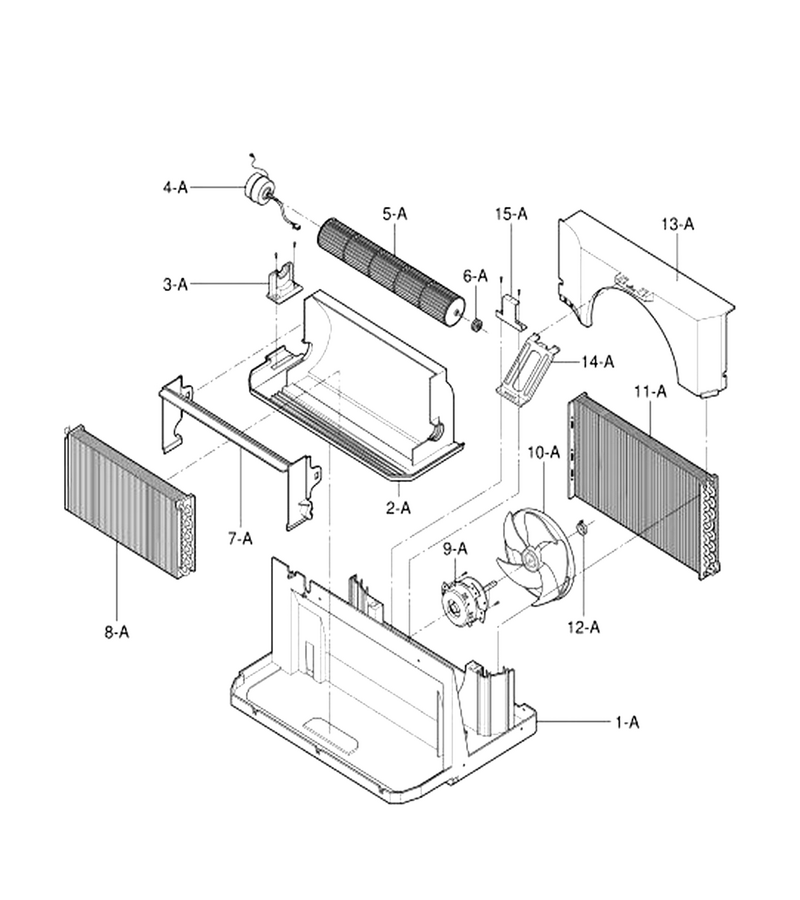

Air Handling & Cycle Parts

...
...
1-A
Base L-G-3041A20041A
...
2-A
Air Guide L-G-5238A20022A
...
3-A
Mount L-G-4960A20045A
...
4-A
Motor L-G-4681A20088A
...
5-A
Fan L-G-5901A20020A
...
6-A
Room Air Conditioner Blower Wheel Bearing L-G-4280A20004A
...
7-A
Air Guide L-G-5238A20021A
...
8-A
Evaporator Tube L-G-5421A20137A
...
9-A
Motor L-G-4681A20089A
...
10-A
Fan L-G-5900A20006A
...
11-A
Condenser L-G-5403A20117A
...
12-A
Room Air Conditioner Fan Blade Clamp L-G-3H02932B
...
13-A
Shroud L-G-4998A20002A
...
14-A
Brace L-G-4800A20004A
...
15-A
Bracket L-G-4810A30218A

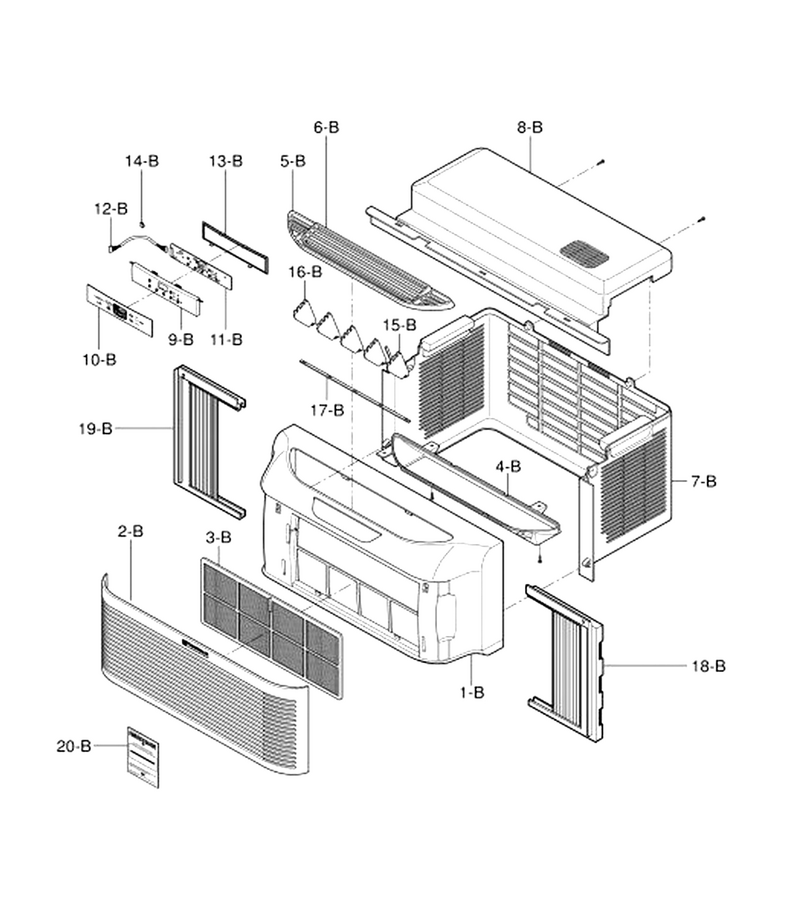

Cabinet & Front Grille Assembly

...
...
1-B
Grille L-G-3530A10153A
...
2-B
Grille,inlet L-G-3530A10152A
...
3-B
Filter L-G-5230A20031A
...
4-B
Guide L-G-4974A20044A
...
5-B
Holder,cover L-G-4930A20041A
...
6-B
Grille L-G-3530A20078A
...
7-B
Cabinet L-G-3091A20017B
...
8-B
Cover L-G-3550A20202B
...
9-B
Room Air Conditioner Display Window L-G-3790A20065A
...
10-B
Escutcheon L-G-3831A20055A
...
11-B
Pcb Assembly,main L-G-6871A20342B
...
12-B
Harness,single L-G-6631A10005B
...
13-B
Display Cover L-G-3550A20200A
...
14-B
Clamp,cord L-G-4H01688E
...
15-B
Louver,vertical L-G-4758A30037A
...
16-B
Louver L-G-4758A30037B
...
17-B
Link L-G-4520A30052A
...
18-B
Curtain Assembly L-G-4959A20001A
...
19-B
Curtain Assembly L-G-4959A20001B
...
20-B
Label,energy L-G-3850A20423Z

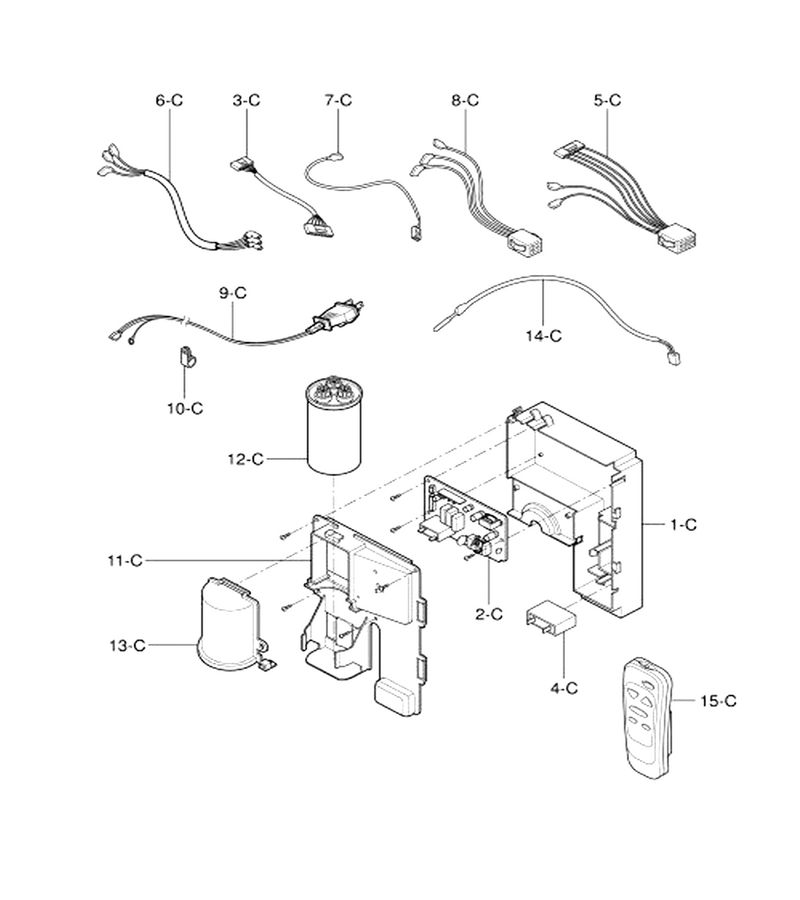

Control Box Assembly

...
...
1-C
Case,control L-G-4994A20063A
...
2-C
Room Air Conditioner Electronic Control Board L-G-6871A20343A
...
3-C
Harness,single L-G-6631A10005A
...
4-C
Capacitor,electric Appliance Film,box L-G-3A02157J
...
5-C
Harness,multi L-G-6631A30012C
...
6-C
Harness,multi L-G-6631A30027B
...
7-C
Harness,multi L-G-6631A30003E
...
8-C
Harness,multi L-G-6631A30012D
...
9-C
Power Cord L-G-6411A20011W
...
10-C
Clip L-G-4H01254A
...
11-C
Cover L-G-3550A20201A
...
12-C
Capacitor L-G-6120AR2359V
...
13-C
Cover L-G-3550A20209A
...
14-C
Room Air Conditioner Thermistor L-G-6323A20004E
...
15-C
Remote Controller Assembly L-G-6711A20056T

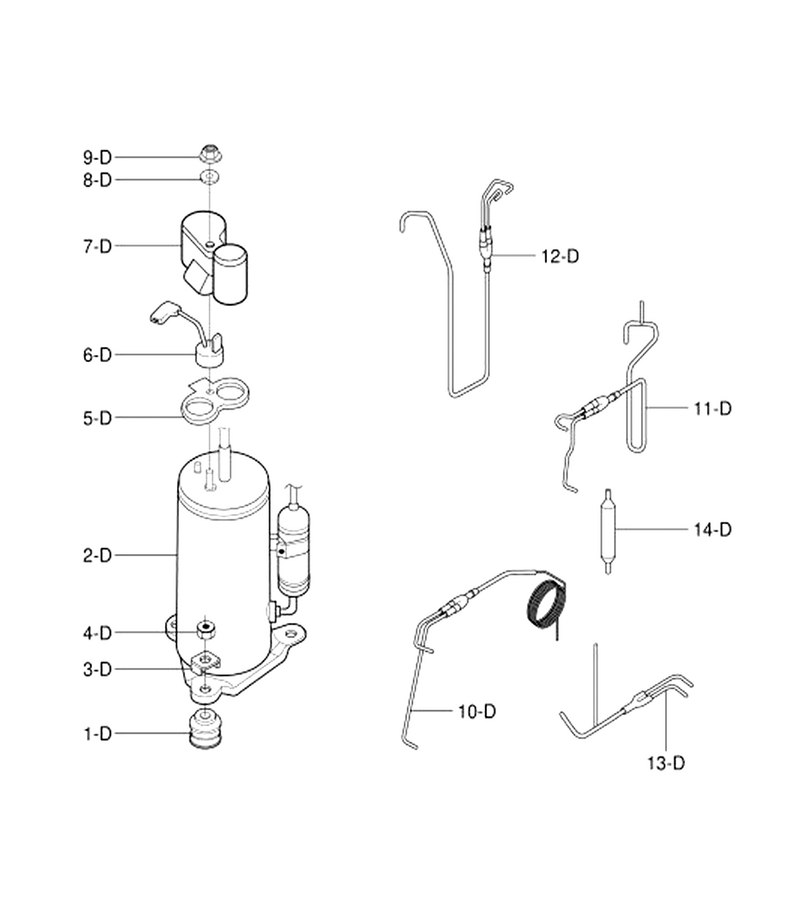

Compressor Parts

...
...
1-D
Room Air Conditioner Compressor Grommet L-G-5040AR4195A
...
2-D
Compressor L-G-2520UABC2JA
...
3-D
Bracket L-G-4810AR4155A
...
4-D
Hex Nut L-G-1NHA0801206
...
5-D
Gasket L-G-4986U-L001G
...
6-D
Overload Protector L-G-6750U3L001A
...
7-D
Cover L-G-3550U-L006A
...
8-D
Gasket Nut L-G-4H01058A
...
10-D
Tube L-G-5211A20834A
...
11-D
Tube L-G-5211A20831A
...
12-D
Tube L-G-5211A20832A
...
13-D
Tube Assembly, Condenser Out L-G-5211A20879A
...
14-D
Drier Assembly L-G-5851A30001M

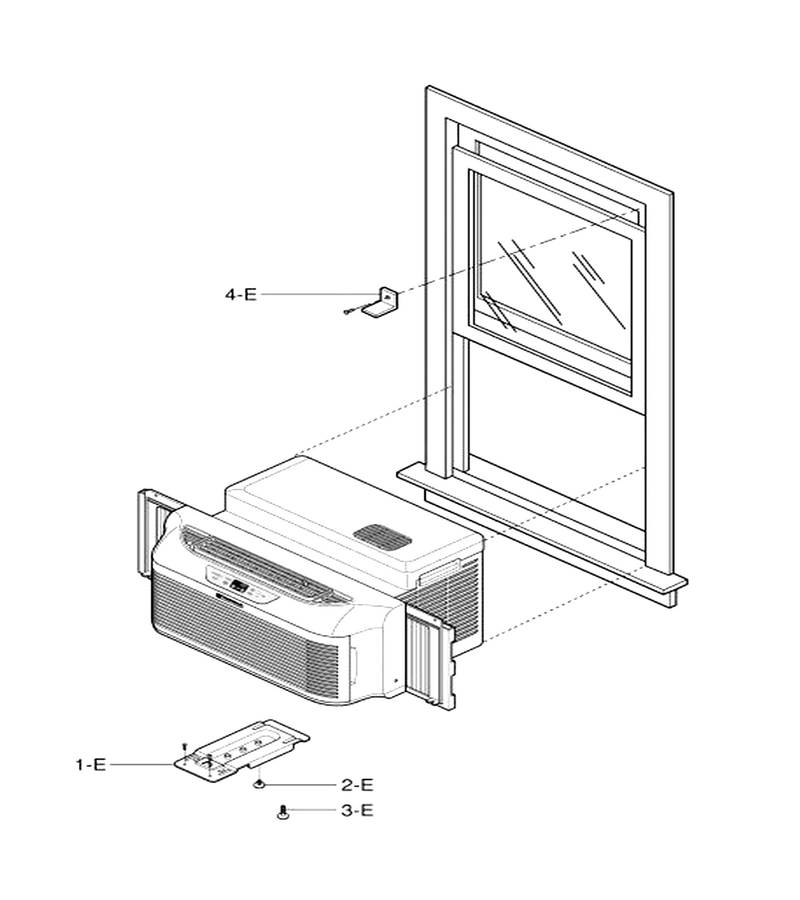

Installation Kit Assembly & Remote Controller

...
...
1-E
Installation L-G-4810A20162A
...
2-E
Bolt,common L-G-1BZZA30005A
...
3-E
Bolt,common L-G-1BZZA30005B
...
4-E
Room Air Conditioner Window Lock Bracket L-G-4H01785B
