LG 580.AWYCSRU

Model: 580.AWYCSRU

Save Part Not Listed?
product name

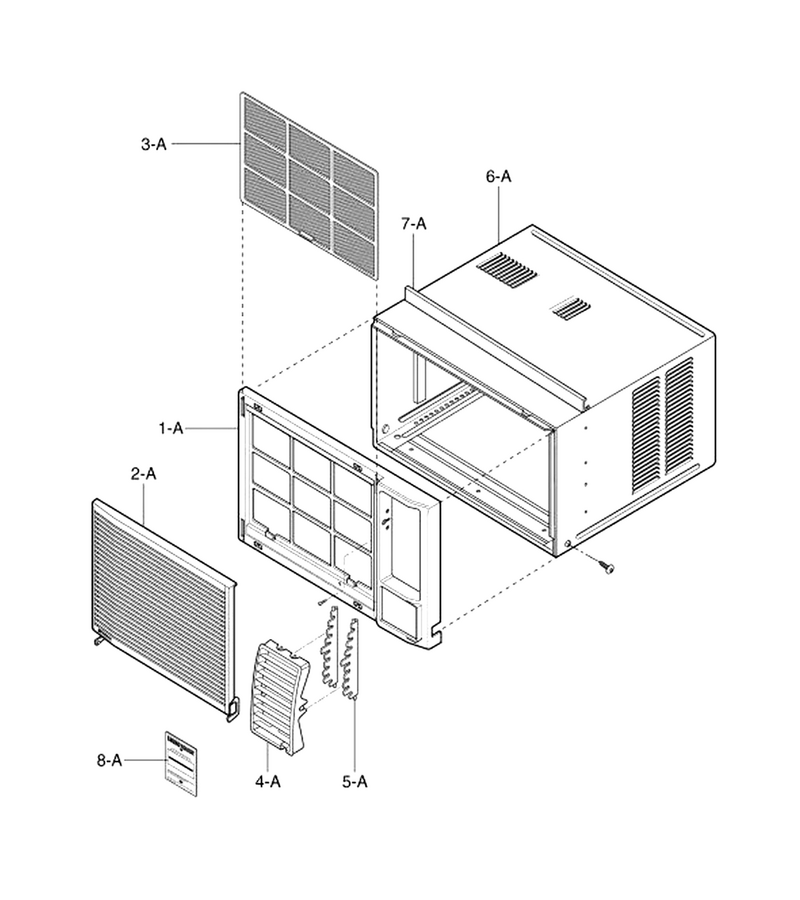

Cabinet & Front Grille Assembly

...
...
1-A
Grille,front L-G-3530A10029A
...
2-A
Grille,inlet L-G-3530A10030A
...
3-A
Room Air Conditioner Air Filter L-G-5231A20004A
...
4-A
Louver,horizontal L-G-4758A20003A
...
5-A
Vane L-G-4758A30008A
...
6-A
Cabinet Assembly,single L-G-3091A30005J
...
7-A
Guide L-G-5210AR3196F
...
8-A
Label,energy L-G-3850A20423E

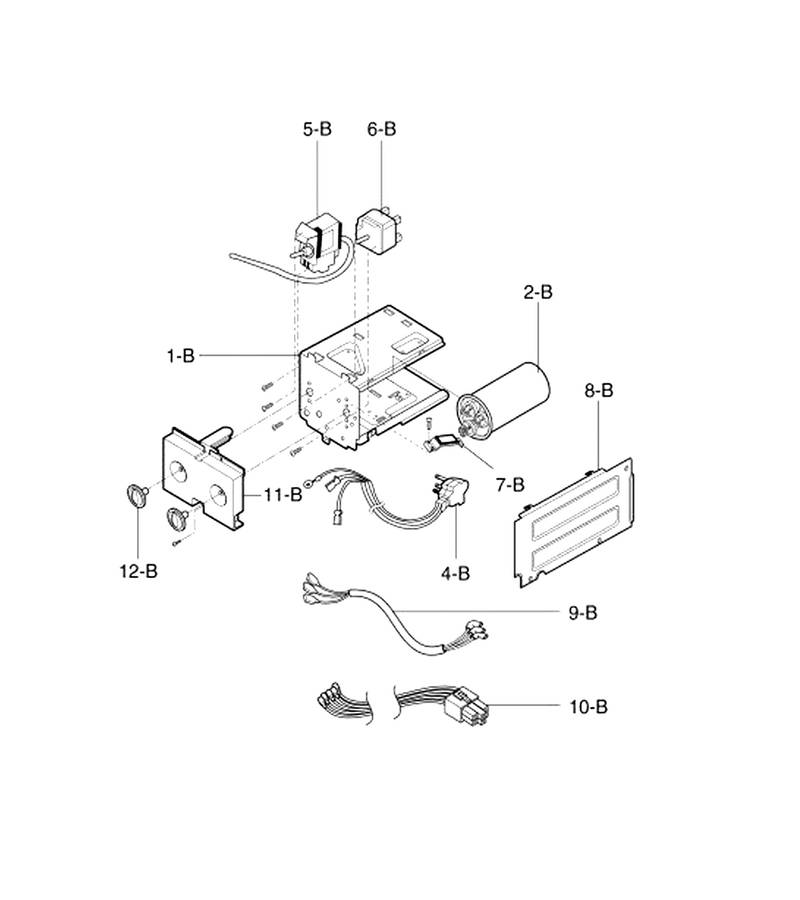

Control Box Assembly

...
...
1-B
Case,control L-G-4994A10006A
...
2-B
Capacitor L-G-6120AR2359V
...
4-B
Power Cord L-G-2H00677P
...
5-B
Room Air Conditioner Thermostat L-G-2H01109L
...
6-B
Rotary Switch L-G-2H00598E
...
7-B
Clip L-G-4H01254A
...
8-B
Cover L-G-3550A30036B
...
9-B
Conductor L-G-6631AR3843N
...
10-B
Harness,multi L-G-6631AR2687A
...
11-B
Panel Assembly,control L-G-3721A10018H
...
12-B
Knob Assembly L-G-4941A30012C

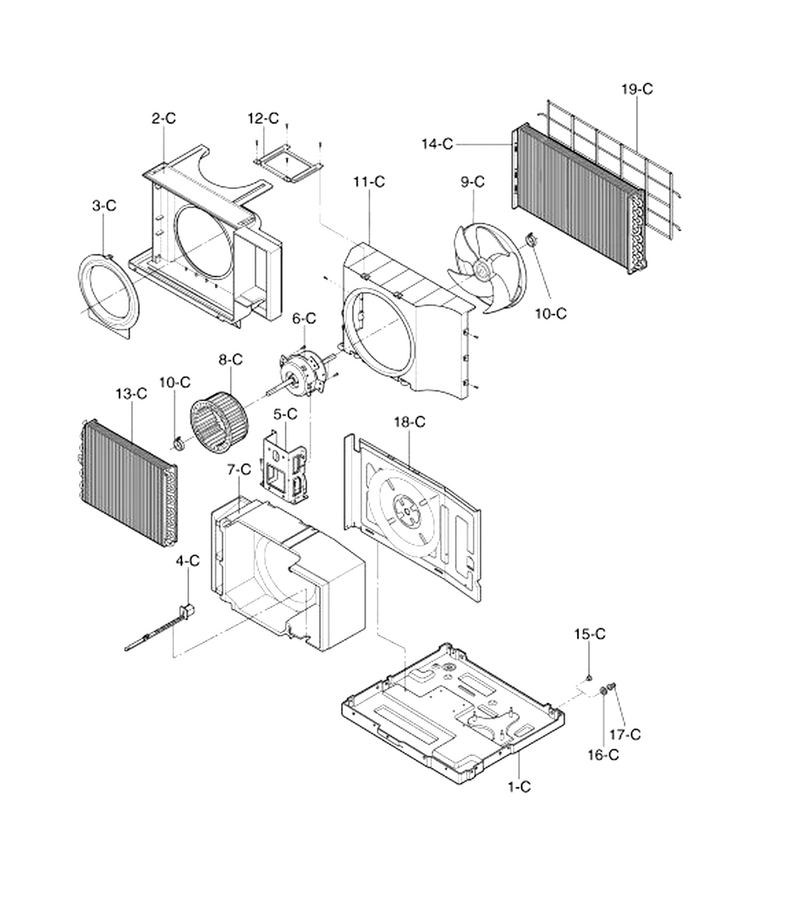

Air Handling & Cycle Parts

...
...
1-C
Weld Assy L-G-3041A30005D
...
2-C
Guide,air L-G-5238A10001A
...
3-C
Orifice L-G-4948A30003B
...
4-C
Damper L-G-4901A30001A
...
5-C
Mount L-G-4960A20002A
...
6-C
Remote Control L-G-4681A20027B
...
7-C
Scroll L-G-3072A10001A
...
8-C
Orifice L-G-5901A10005A
...
9-C
Fan L-G-5900AR1167B
...
10-C
Room Air Conditioner Fan Blade Clamp L-G-3H02932B
...
11-C
Shroud L-G-4998A10001A
...
12-C
Brace L-G-4800A30001A
...
13-C
Evaporator Assembly,first L-G-5421A90035B
...
14-C
Condenser Assembly,first L-G-5403A90043A
...
15-C
Rubber L-G-4H02023A
...
16-C
Washer,common L-G-4H01029D
...
17-C
Room Air Conditioner Drain Pipe L-G-3H02773A
...
18-C
Barrier,single L-G-4790A10008A
...
19-C
Grille Assembly,rear L-G-3530A20009B

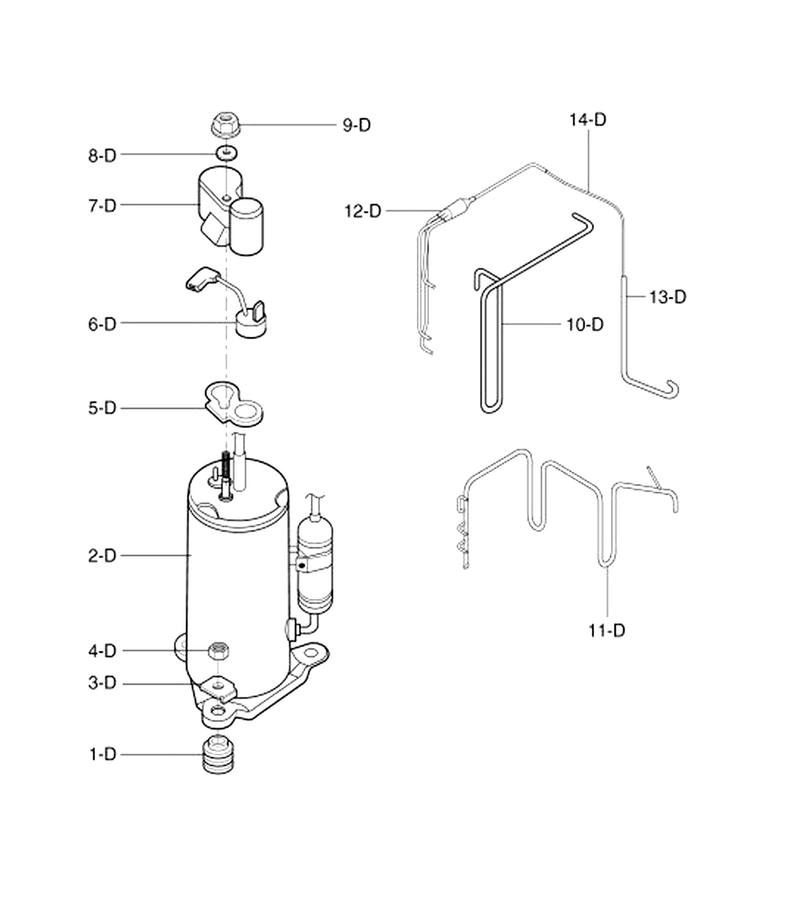

Compressor Parts

...
...
1-D
Room Air Conditioner Compressor Grommet L-G-5040AR4195A
...
2-D
Compressor Assembly L-G-5417A20012B
...
3-D
Bracket L-G-4810AR4155A
...
4-D
Hex Nut L-G-1NHA0801206
...
5-D
Gasket L-G-4986A30001A
...
6-D
Protector L-G-6750A30001A
...
7-D
Terminal Cover L-G-3550A30048A
...
8-D
Gasket Nut L-G-4H01058A
...
10-D
Tube,discharge L-G-5210A20071A
...
11-D
Tube L-G-5211A20130A
...
12-D
Tube L-G-5211A20131A
...
13-D
Tube L-G-5211AR3399A
...
14-D
Tube L-G-5210A30646A

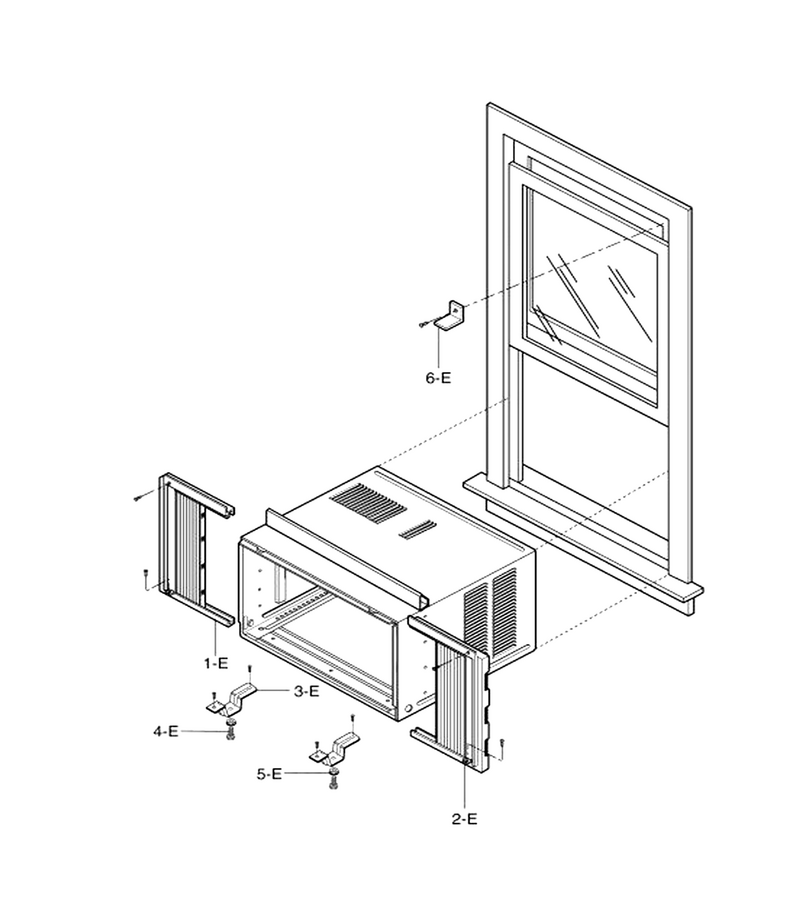

Installation Kit Assembly

...
...
1-E
Curtain Assembly L-G-4959AR3402A
...
2-E
Curtain Assembly L-G-4959AR3402B
...
3-E
Room Air Conditioner Window Support Bracket L-G-4810AR3240A
...
4-E
Bolt,common L-G-1BHD1004006
...
5-E
Nut,common L-G-1NHC1000006
...
6-E
Room Air Conditioner Window Lock Bracket L-G-4H01785B
