product name

LG 580.AWYBSRS

Model: 580.AWYBSRS

Save Part Not Listed?
product name

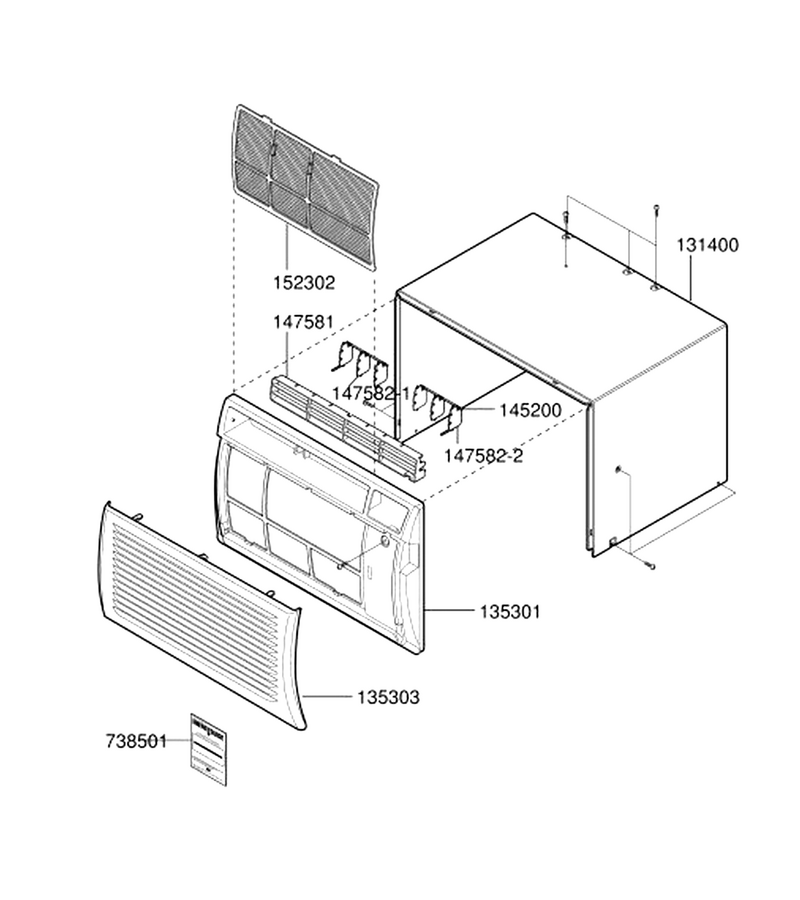

Cabinet & Front Grille Assembly

...
...
131400
Cabinet L-G-3090A20017D
...
135301
Grille,front L-G-3530A20094A
...
135303
Grille,inlet L-G-3530A20095A
...
147581
Louver L-G-4758A20058A
...
147582-1
Louver L-G-4758A30045A
...
147582-2
Louver L-G-4758A30045B
...
152302
Room Air Conditioner Air Filter L-G-5230A20041A
...
738501
Label,energy L-G-3850A24020B

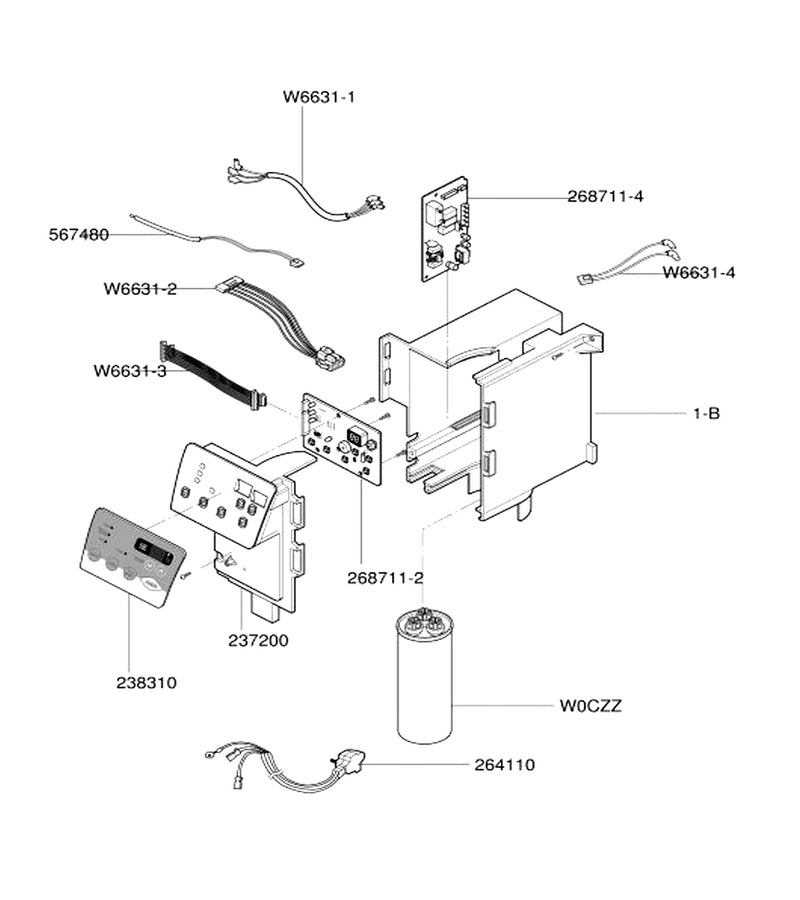

Control Box Assembly

...
...
W6631-1
Harness,single L-G-6631A10011K
...
W6631-2
Harness,multi L-G-6631A30027A
...
W6631-3
Room Air Conditioner Electronic Control Wiring ... L-G-6631A30003A
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-0CZZA20001N
...
1-B
Case,control L-G-MBN35986901
...
237200
Control Panel L-G-3720A20251A
...
238310
Escutcheon L-G-3831A10037B
...
264110
Power Cord Assembly L-G-6411A20028D
...
268711-2
Display Power Board L-G-6871A20448A
...
268711-4
Main Pcb L-G-6871A01001A
...
567480
Room Air Conditioner Thermistor L-G-6323A20004E

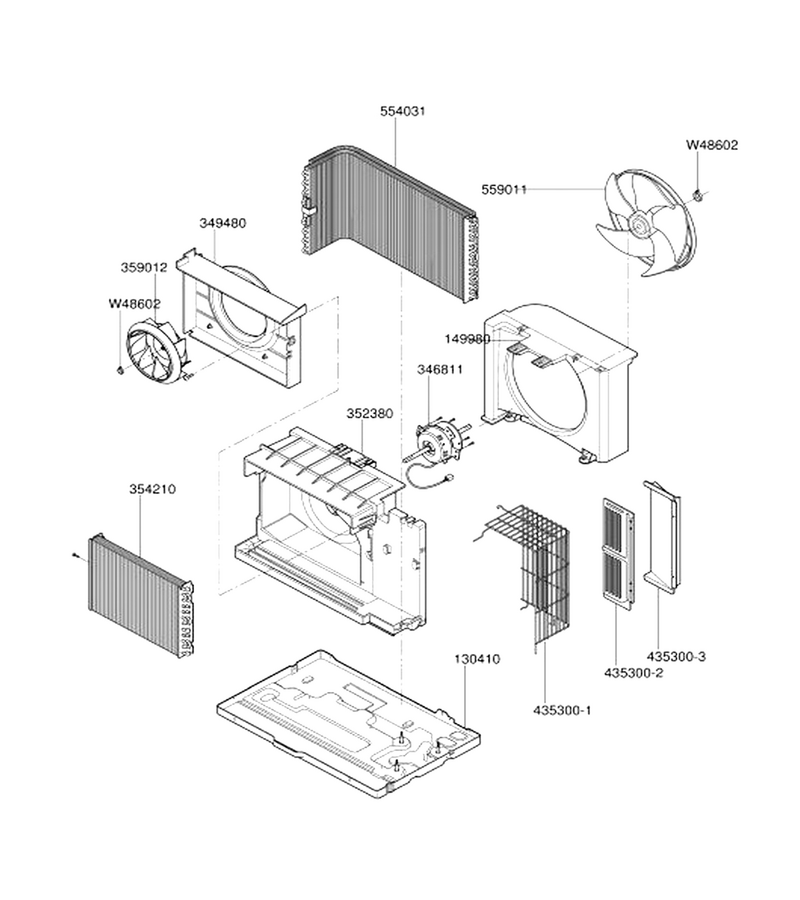

Air Handling & Cycle Parts

...
...
W48602
Room Air Conditioner Fan Blade Clamp L-G-3H02932B
...
130410
Base L-G-3041A10046C
...
149980
Shroud L-G-4998A20003A
...
346811
Ac Motor Assembly L-G-4681A20069W
...
349480
Orifice L-G-4948A20029A
...
352380
Duct L-G-5238A20026A
...
354210
Evaporator Assembly,first L-G-5421A20071F
...
359012
Turbo Fan L-G-5900A20019A
...
435300-1
Rear Grille L-G-3530A30002A
...
435300-2
Grille L-G-3530A20101A
...
554031
Condenser Assembly,bending L-G-5403A20183D
...
559011
Room Air Conditioner Condenser Fan Blade L-G-5900AR1173A

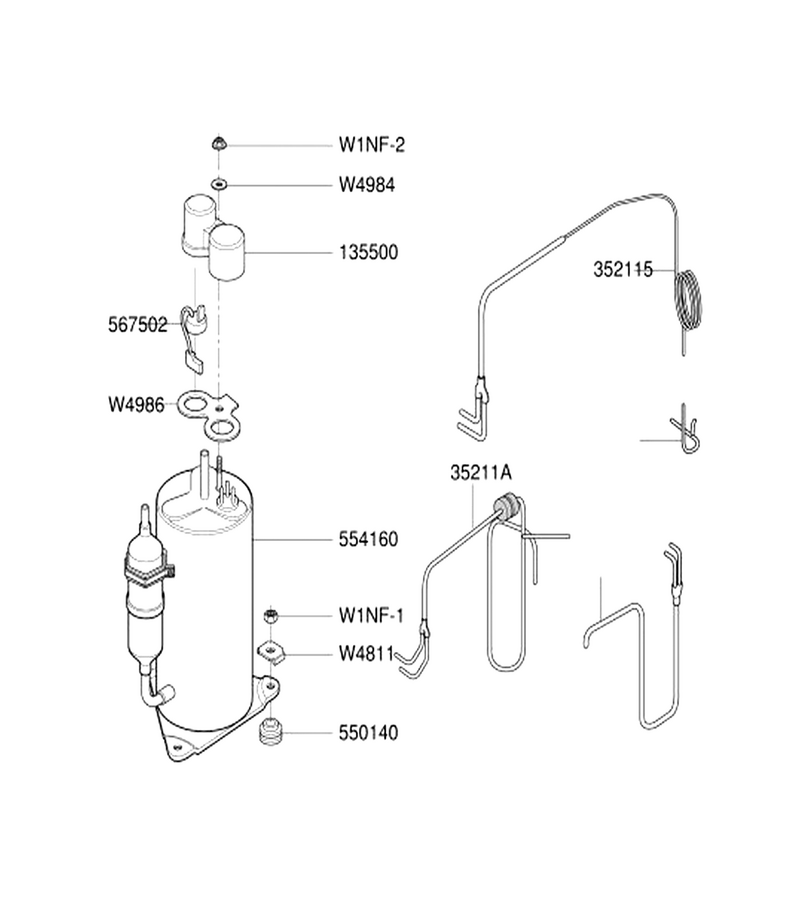

Compressor Parts

...
...
W1NF-1
Hex Nut L-G-1NHA0801206
...
W1NF-2
Nut L-G-4H00947A
...
W4811
Bracket L-G-4810AR4155B
...
W4984
Gasket Nut L-G-4H01058A
...
W4986
Gasket L-G-4986U-L001G
...
35211A
Tube Assembly,suction L-G-5211A20497A
...
135500
Cover L-G-3550U-L004A
...
352115
Tube Assembly,evaporator(in) L-G-5211A20496G
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
554160
Compressor L-G-2520UKGC2BA
...
567502
Overload Protector L-G-6750U-L029A

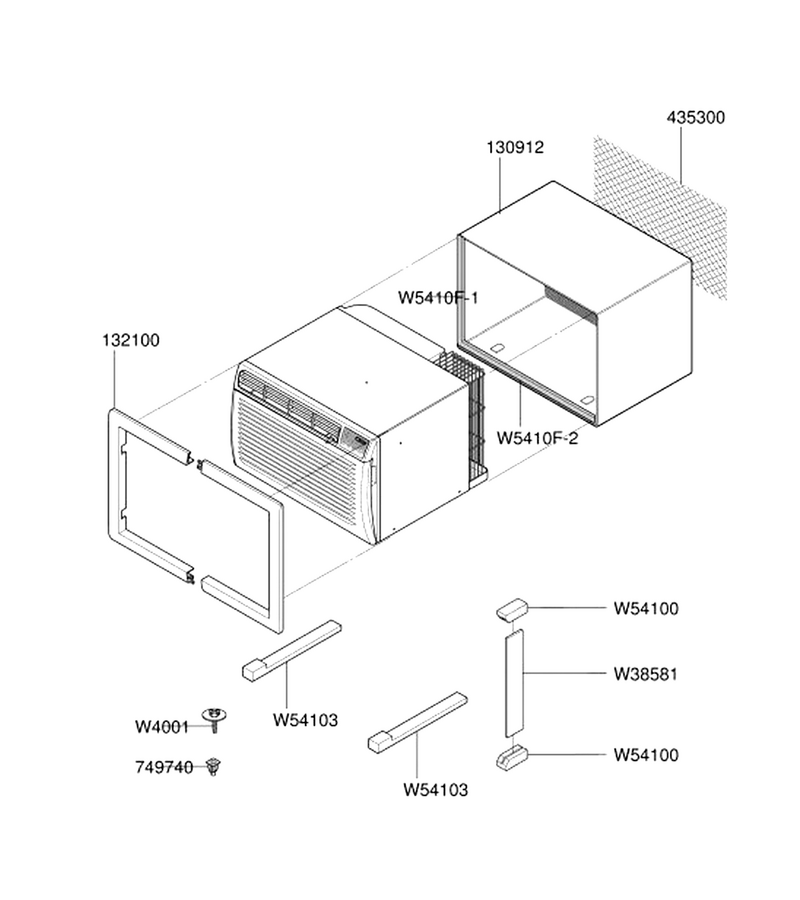

Installation Kit Assembly

...
...
W5410F-1
Insulator L-G-5410A20046Q
...
W5410F-2
Insulator L-G-5410A20046S
...
W38581
Packing,vinyl L-G-3858A20001A
...
W4001
Screw L-G-4001AR4160A
...
W54100
Insulator L-G-5410A20069A
...
W54103
Insulator,foam L-G-5410A20518E
...
130912
Cabinet Assembly,sleeve L-G-3091A10028D
...
132100
Room Air Conditioner Sleeve Front Trim L-G-3210A20075A
...
435300
Grille L-G-3530A20033B
...
749740
Guide L-G-4974A30053A
