LG 580.AWYASRU

Model: 580.AWYASRU

Save Part Not Listed?
product name

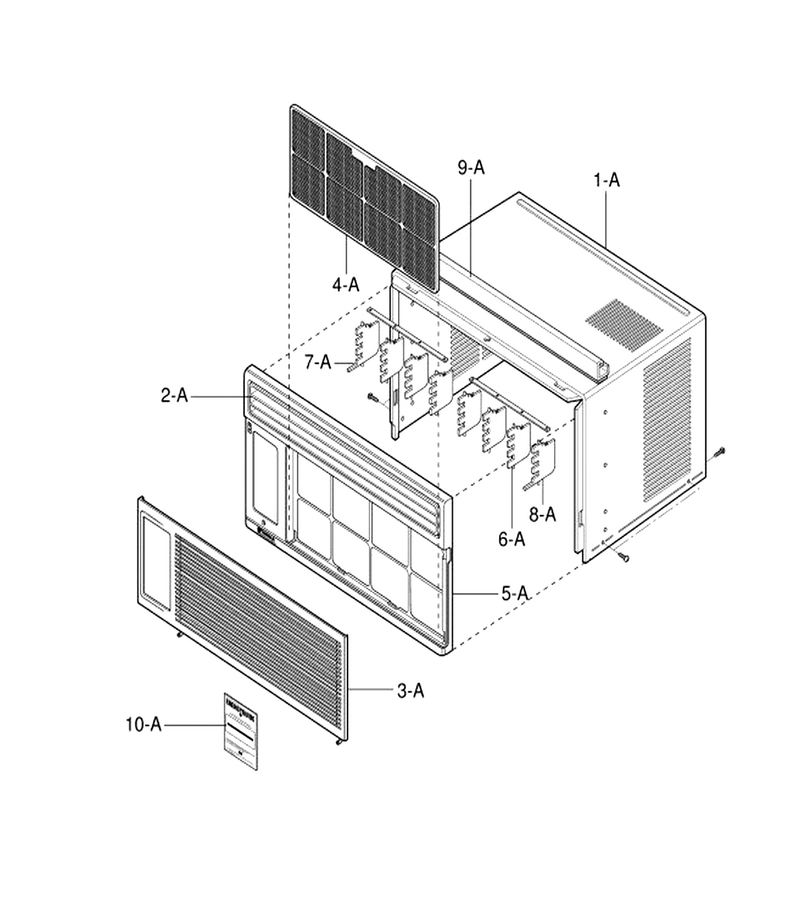

Cabinet & Front Grille Assembly

...
...
1-A
Air Conditioner Grille Front L-G-3530A20055A
...
2-A
Inlet Grille L-G-3530A20056A
...
3-A
Room Air Conditioner Air Filter L-G-5231A20012A
...
4-A
Louver L-G-4758A20032A
...
5-A
Louvr Vert L-G-4758A20017A
...
6-A
Louvr Vert L-G-4758A20017B
...
7-A
Link L-G-4520A30036A
...
8-A
Cabinet L-G-3091A20014A
...
9-A
Guide L-G-4974A20028A
...
10-A
Guide L-G-4974A30052B
...
11-A
Label,energy L-G-3850A20423T

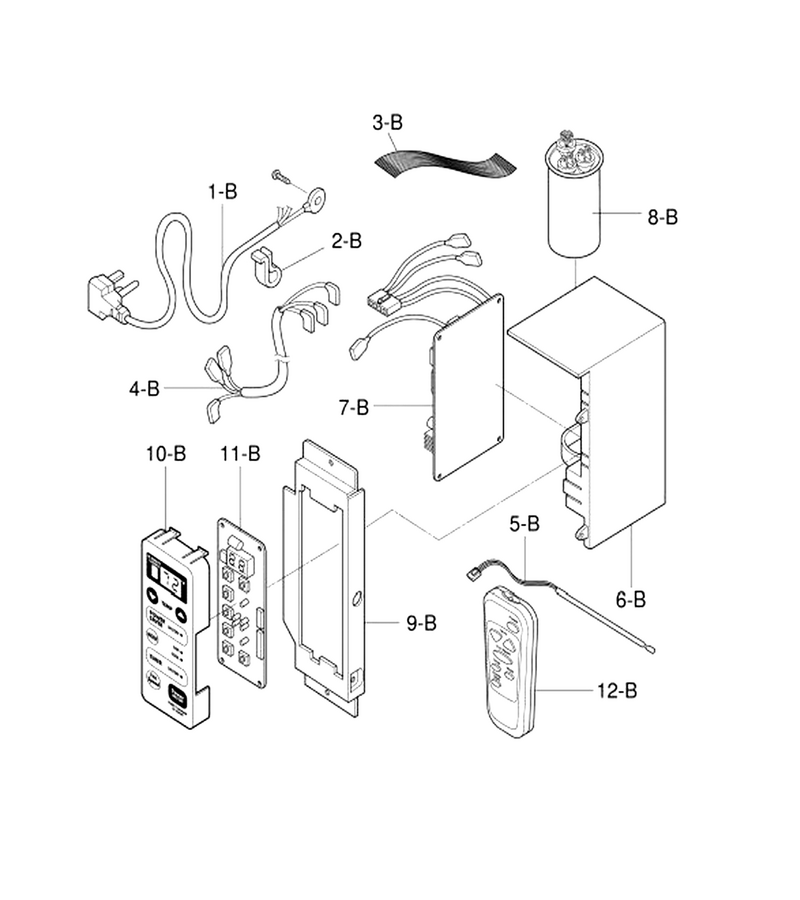

Control Box Assembly

...
...
1-B
Case,control L-G-4994A20048A
...
2-B
Room Air Conditioner Fan Motor Capacitor L-G-0CZZA20001N
...
3-B
Clamp L-G-4H00442F
...
4-B
Power Cord L-G-6411A20011P
...
5-B
Thermostat Assembly L-G-2H01109Q
...
6-B
Rotary Switch L-G-2H00598E
...
7-B
Clip L-G-4H01762A
...
8-B
Harness,multi L-G-6631A20049A
...
9-B
Harness,multi L-G-6631AR2687A
...
10-B
Panel Assembly,control L-G-3721A20102C
...
11-B
Knob Assembly L-G-4941A30016A

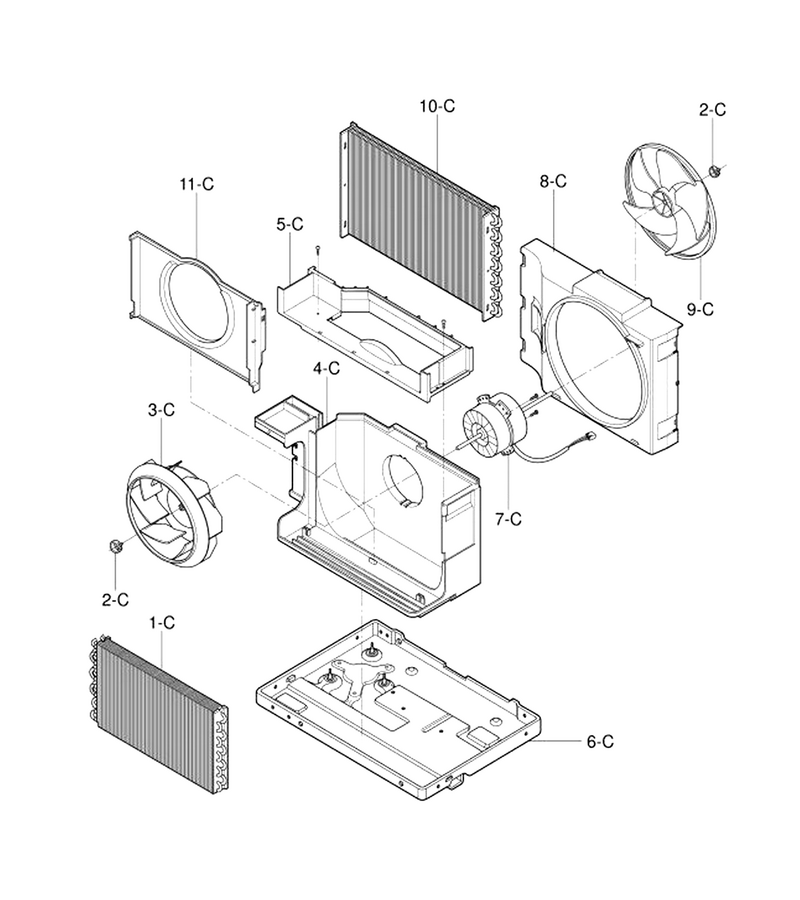

Air Handling & Cycle Parts

...
...
1-C
Pan Base L-G-3041A20033N
...
2-C
Air Guide L-G-5239A20007A
...
3-C
Air Guide L-G-5239A20008A
...
4-C
Orifice L-G-4948A20012A
...
5-C
Damper L-G-4900A20006A
...
6-C
Room Air Conditioner Fan Motor L-G-4681A20069C
...
7-C
Turbo Fan L-G-5900A20019A
...
8-C
Axial Fan L-G-5900A20026A
...
9-C
Room Air Conditioner Fan Blade Clamp L-G-3H02932B
...
10-C
Shroud Assembly L-G-4999A20002A
...
11-C
Brace L-G-4800A20001A
...
12-C
Evaporator L-G-5421A20115D
...
13-C
Condenser L-G-5403A20082B
...
14-C
Rubber L-G-4H02023A
...
15-C
Washer,common L-G-4H01029D
...
16-C
Room Air Conditioner Drain Pipe L-G-3H02773A
...
17-C
Motor Mount L-G-4960A20034A

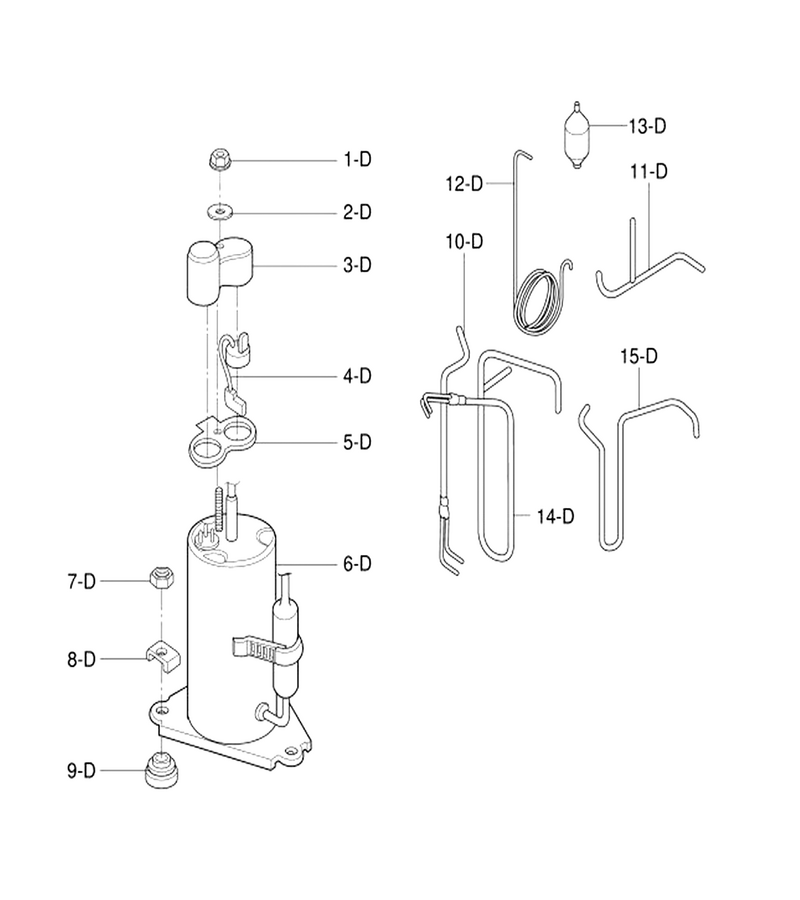

Compressor Parts

...
...
1-D
Bushing L-G-4830AR4335A
...
2-D
Compressor L-G-2520UKGC2DA
...
3-D
Bracket L-G-4H01811E
...
4-D
Hex Nut L-G-1NHA0801206
...
5-D
Gasket L-G-4986U-L001G
...
6-D
Overload Protector L-G-6750U-L029A
...
7-D
Cover L-G-3550U-L004A
...
8-D
Gasket Nut L-G-4H01058A
...
10-D
Tube L-G-5211A20558C
...
11-D
Tube Assembly,suction L-G-5211A20579C
...
12-D
Tube L-G-5211A20575C
...
13-D
Tube Assembly,capillary L-G-5211A20557J

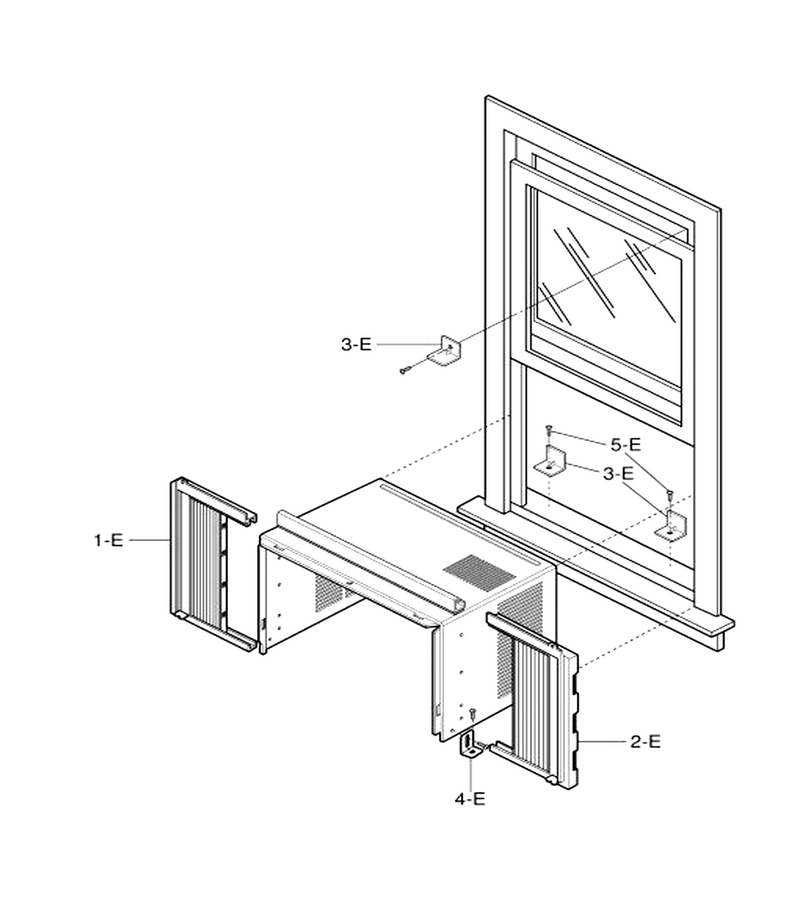

Installation Kit Assembly

...
...
1-E
Curtain L-G-3790A20040A
...
2-E
Frame L-G-3210A20043B
...
3-E
Bracket L-G-4810A30164B
...
4-E
Bracket L-G-4810A30213B
...
5-E
Bolt,common L-G-1BZZA30004D
...
6-E
Nut,common L-G-1NHC1000006
...
7-E
Room Air Conditioner Window Lock Bracket L-G-4H01785B
