LG 580.AWYASRS

Model: 580.AWYASRS

Save Part Not Listed?
product name

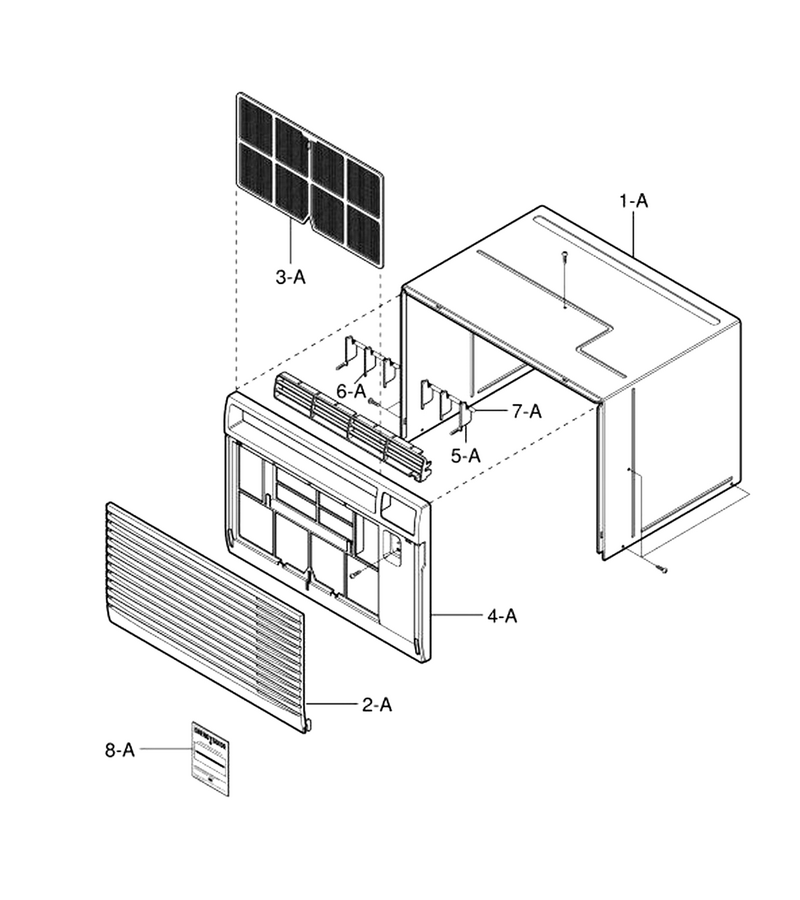

Cabinet & Front Grille Assembly

...
...
1-A
Cabinet L-G-3090A20003B
...
2-A
Grille,inlet L-G-3530A20054A
...
3-A
Room Air Conditioner Air Filter L-G-5230A20007A
...
4-A
Grille L-G-3530A20019B
...
5-A
Vane L-G-4758A20009A
...
6-A
Vane L-G-4758A20009B
...
7-A
Link L-G-4520A20003A
...
8-A
Label,energy L-G-3850A20928F

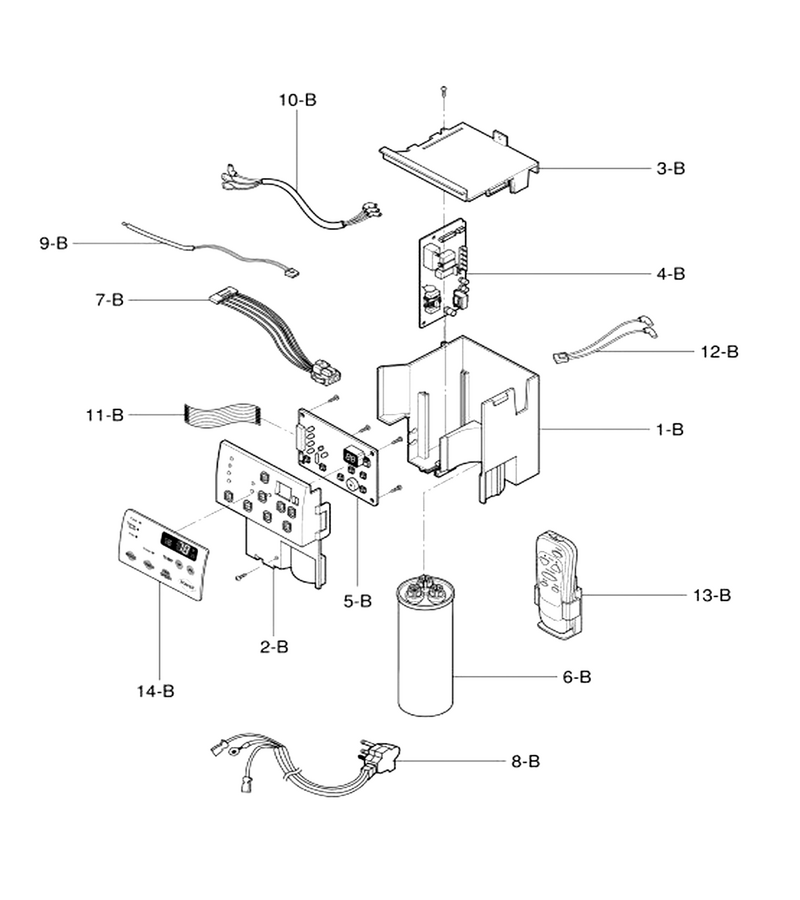

Control Box Assembly

...
...
1-B
Base L-G-4994A10051A
...
2-B
Panel,control L-G-3720A10128A
...
3-B
Cover Assembly,control L-G-3551A20092A
...
4-B
Room Air Conditioner Electronic Control Board L-G-6871A20343A
...
5-B
Pcb Assembly,main L-G-6871A20344B
...
6-B
Capacitor L-G-6120AR2194P
...
7-B
Harness,multi L-G-6631A30012E
...
8-B
Power Cord Assembly L-G-6411A20028A
...
9-B
Room Air Conditioner Thermistor L-G-6323A20004E
...
10-B
Harness,multi L-G-6631A30027A
...
11-B
Harness,single L-G-6631A10005C
...
12-B
Room Air Conditioner Electronic Control Wiring ... L-G-6631A30003A
...
13-B
Remote Controller Assembly L-G-6711A90028T
...
14-B
Escutcheon L-G-3831A10027A

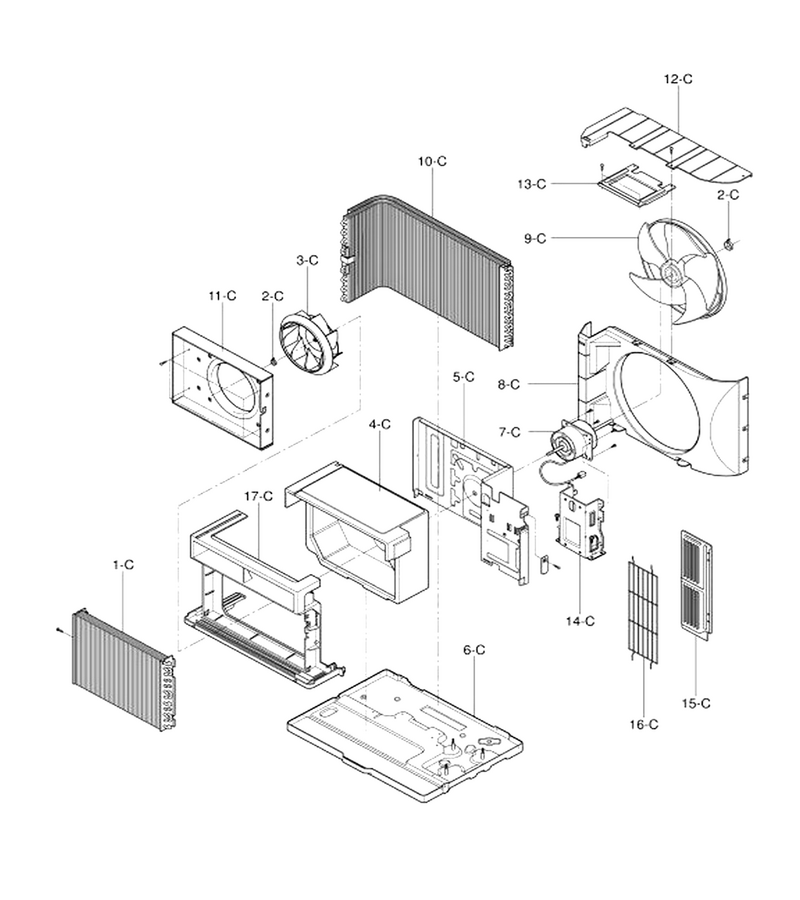

Air Handling & Cycle Parts

...
...
1-C
Evaporator Assembly, First L-G-5421A90037B
...
2-C
Room Air Conditioner Fan Blade Clamp L-G-3H02932B
...
3-C
Room Air Conditioner Evaporator Fan Blade L-G-5900A20009A
...
4-C
Scroll L-G-3072A20003B
...
5-C
Barrier L-G-4790A20024B
...
6-C
Base Assembly L-G-3041A10014X
...
7-C
Motor Assembly,ac,single L-G-4681A20044G
...
8-C
Room Air Conditioner Condenser Fan Shroud L-G-4998A10007B
...
9-C
Room Air Conditioner Condenser Fan Blade L-G-5900AR1173A
...
10-C
Condenser Assembly,bending L-G-5403A20040M
...
11-C
Orifice L-G-4948A10006A
...
12-C
Cover L-G-3550A20030B
...
13-C
Brace L-G-4800A30002A
...
14-C
Mount L-G-4960A20005A
...
15-C
Rear Grille L-G-3530A30002A
...
16-C
Grille L-G-3530A30007A
...
17-C
Air Guide L-G-5238A20005A

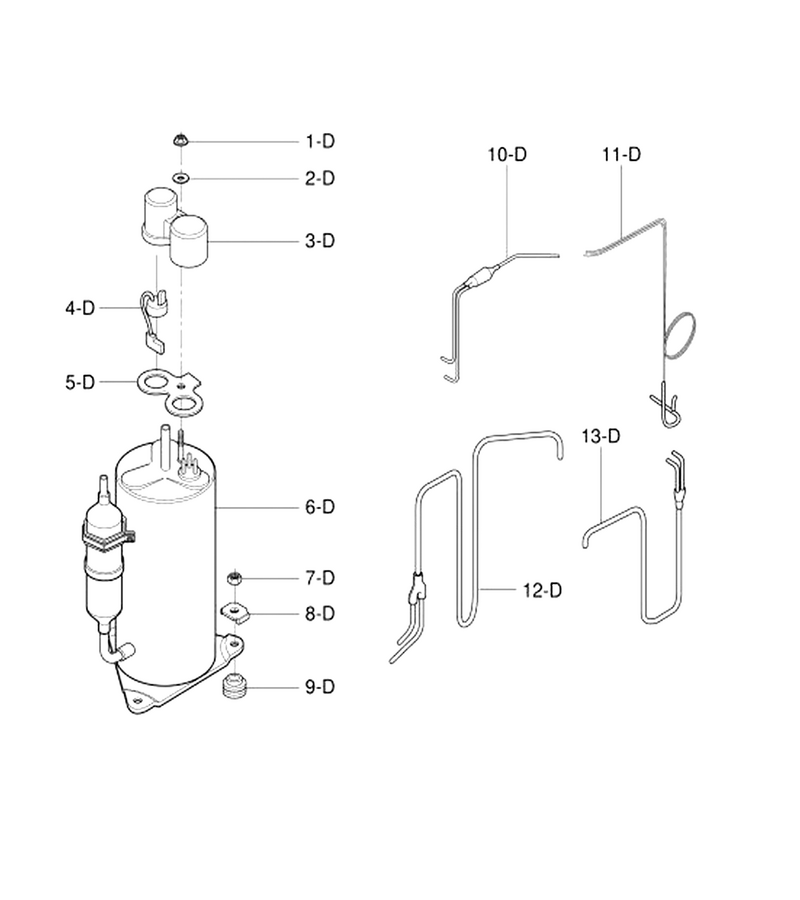

Compressor Parts

...
...
1-D
Nut L-G-4H00947A
...
2-D
Gasket Nut L-G-4H01058A
...
3-D
Cover L-G-3550U-L004A
...
4-D
Protector L-G-6750U-L005A
...
5-D
Gasket L-G-4986U-L001G
...
6-D
Compressor Set,korea L-G-2520UAFC2AC
...
7-D
Hex Nut L-G-1NHA0801206
...
8-D
Bracket L-G-4810AR4155B
...
9-D
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
10-D
Evaporator Tube L-G-5211A20289C
...
11-D
Tube Assembly,capillary L-G-5211A20214N
...
12-D
Tube Assembly,suction L-G-5211A20498A
...
13-D
Tube Assembly,discharge L-G-5211A30588C

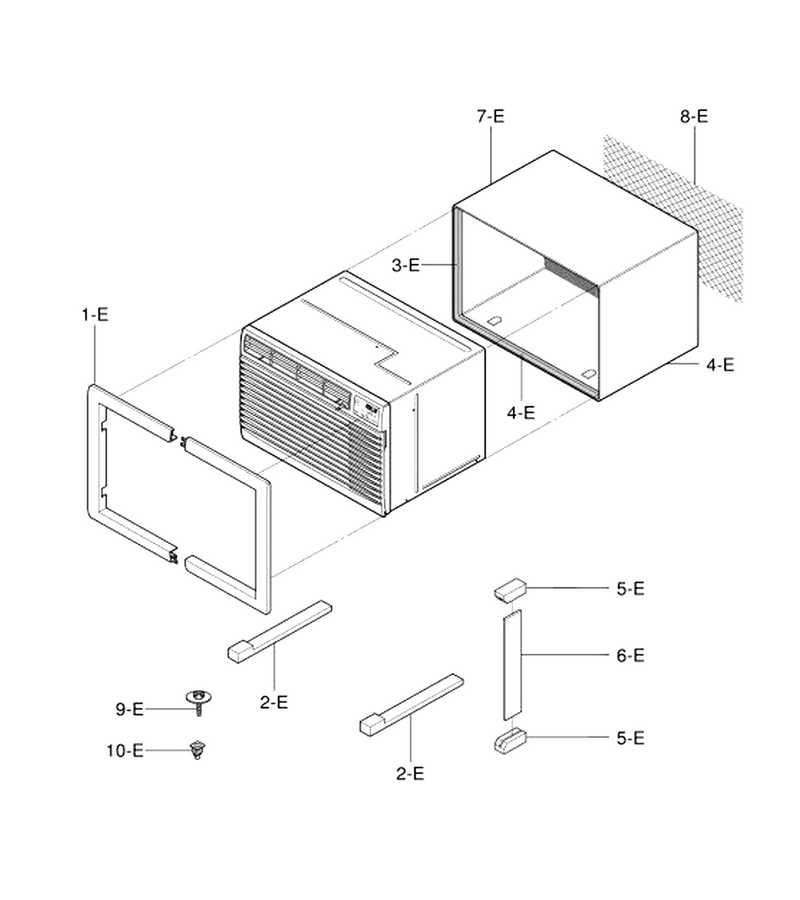

Installation Kit Assembly

...
...
1-E
Room Air Conditioner Front Trim Kit L-G-4918A20001A
...
2-E
Insulator,foam L-G-5410A20518C
...
3-E
Insulator L-G-5410A20046M
...
4-E
Insulator L-G-5410A20046K
...
5-E
Insulator L-G-5410A20069A
...
6-E
Packing,vinyl L-G-3858A20001A
...
7-E
Cabinet Assembly,sleeve L-G-3091A10028A
...
8-E
Grille,rear L-G-3530A20033A
...
10-E
Guide L-G-4974A30053A
