LG 580.AWYASRK

Model: 580.AWYASRK

Save Part Not Listed?
product name

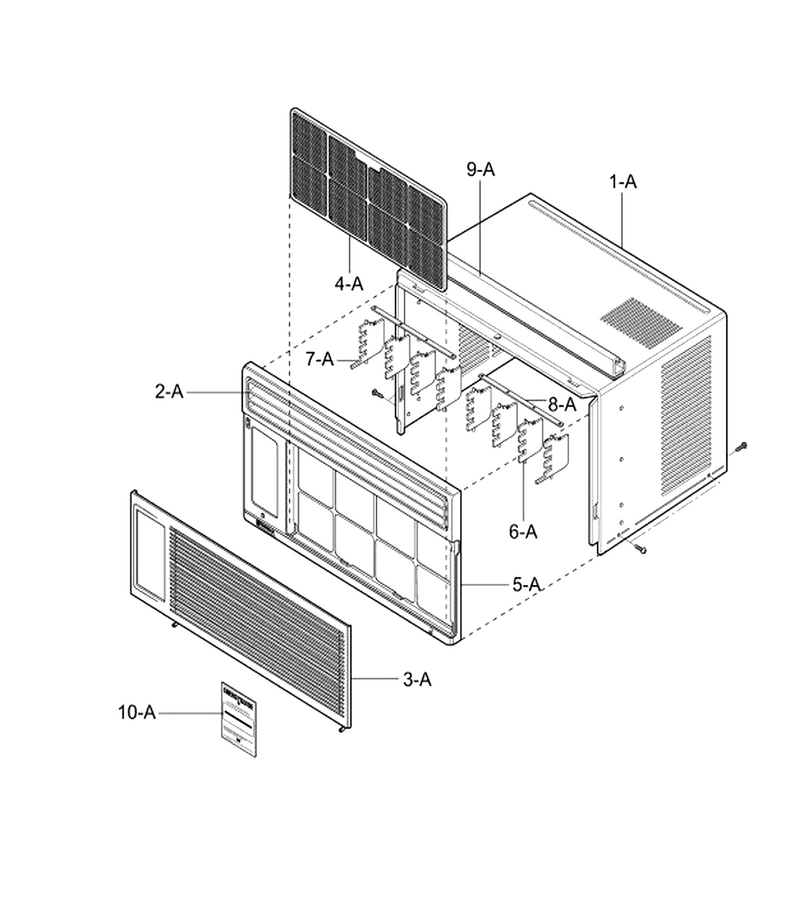

Cabinet & Front Grille Assembly

...
...
1-A
Cabinet L-G-3091AR6055M
...
2-A
Louver,horizontal L-G-5990A20001A
...
3-A
Grille,inlet L-G-3530A10010D
...
4-A
Room Air Conditioner Air Filter L-G-5231AR2148A
...
5-A
Grille,front L-G-3530A10009E
...
6-A
Louver,vertical L-G-5990A30005D
...
7-A
Louver,vertical L-G-5990A30005C
...
8-A
Holder L-G-4520AR3191A
...
9-A
Guide L-G-5210AR3196C
...
10-A
Label,energy L-G-MEZ51175901

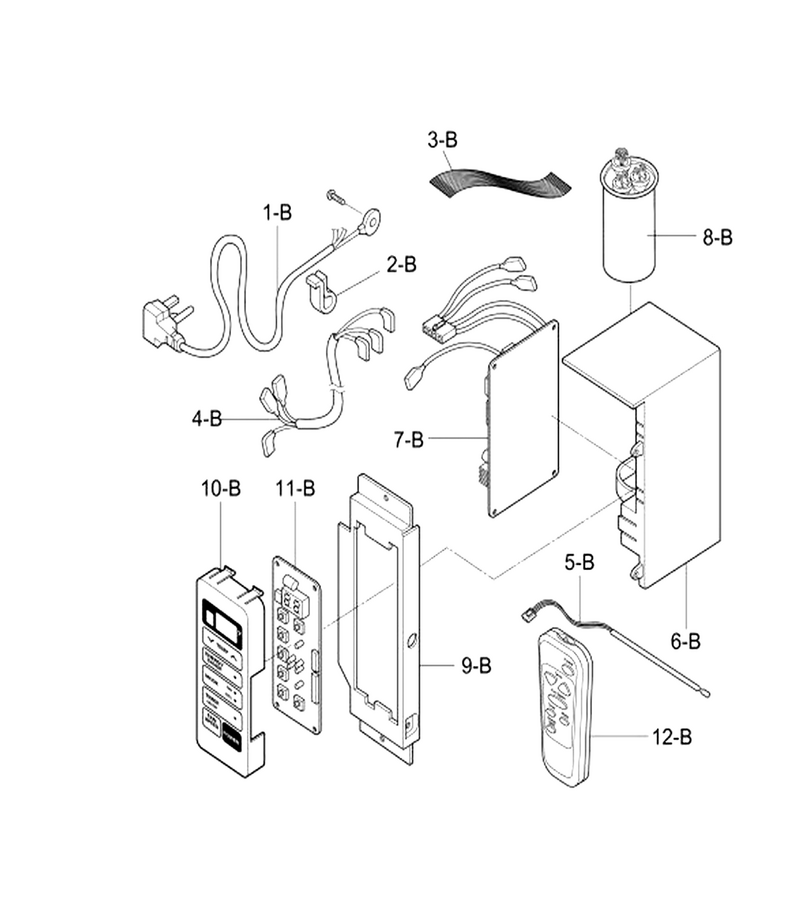

Control Box Assembly

...
...
1-B
Room Air Conditioner Power Cord L-G-6411A20056A
...
2-B
Clip L-G-4H01254A
...
3-B
Lead Wire L-G-6850A90001F
...
4-B
Multi Harness L-G-6631A30027E
...
5-B
Room Air Conditioner Thermistor L-G-6323A20003S
...
6-B
Case,control L-G-MBN34751301
...
7-B
Pcb Assembly,main L-G-EBR39266510
...
8-B
Capacitor,film,box L-G-0CZZA20007Y
...
9-B
Cover L-G-MCK47374101
...
10-B
Control Panel L-G-3720A20017A
...
11-B
Pcb Assembly,display L-G-6871A20432C
...
12-B
Remote Controller Assembly L-G-6711A20035E

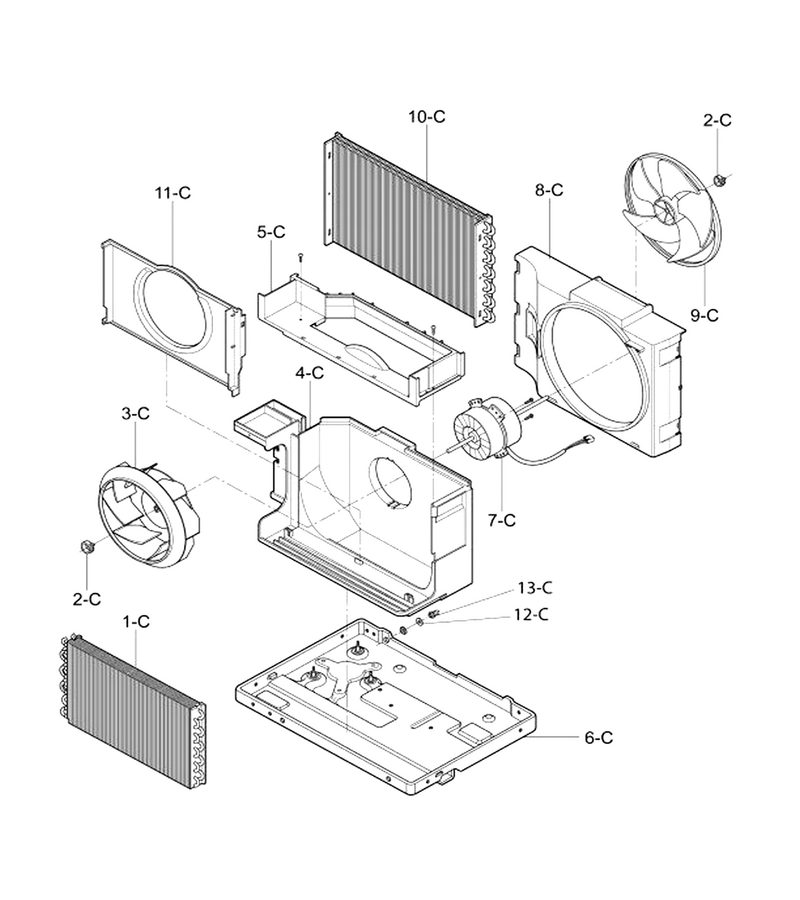

Air Handling & Cycle Parts

...
...
1-C
Evaporator L-G-5421A20016L
...
2-C
Room Air Conditioner Fan Blade Clamp L-G-3H02932B
...
3-C
Turbo Fan L-G-5900A10005B
...
4-C
Air Guide L-G-5239A30003G
...
5-C
Air Guide L-G-5238A20013A
...
6-C
Base Assy,we L-G-3041A20036N
...
7-C
Motor Assembly,ac,single L-G-4681A10016N
...
8-C
Shroud L-G-4998AR1608A
...
9-C
Axial Fan L-G-5901A20011B
...
10-C
Condenser L-G-5403A20009N
...
11-C
Orifice L-G-4948A10016B
...
12-C
Washe L-G-4H01029E
...
13-C
Room Air Conditioner Drain Pipe L-G-3H02773A

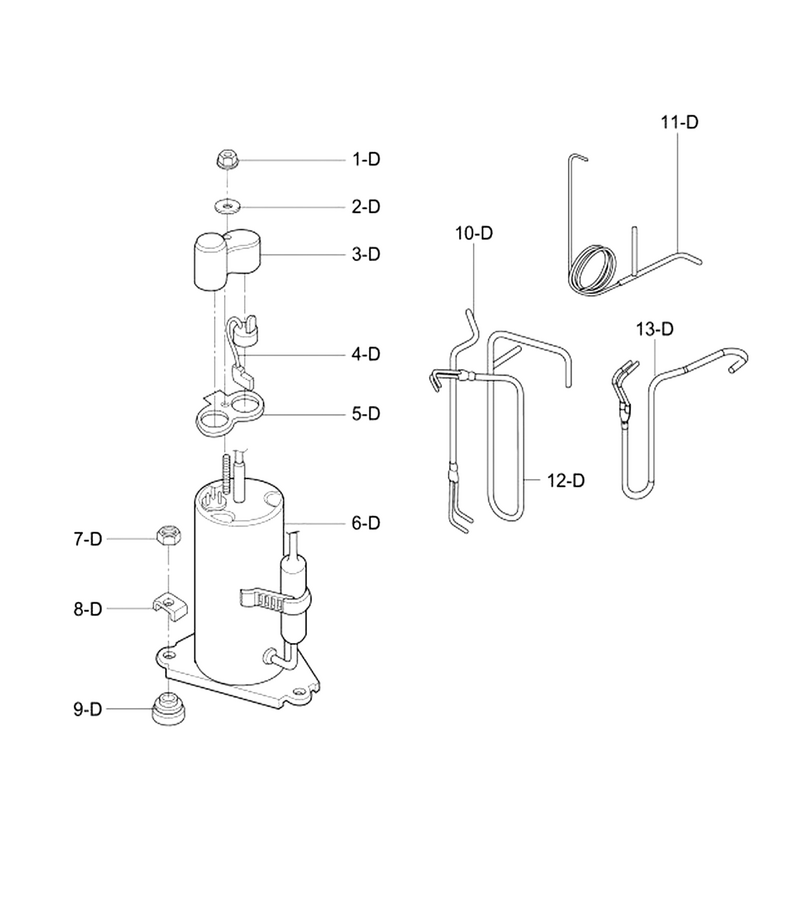

Compressor Parts

...
...
1-D
Nut,common L-G-1NZZUTL001A
...
2-D
Washer,customized L-G-1WZZUTL001A
...
3-D
Terminal Cover L-G-3550UTL006A
...
4-D
Overload Protect L-G-6750U-L010C
...
5-D
Gasket L-G-4986U-L001G
...
6-D
Compressor Set,china L-G-TBZ32611801
...
7-D
Hex Nut L-G-1NHA0801206
...
8-D
Bracket L-G-4810AR4155C
...
10-D
Evaporator L-G-5211A10063E
...
11-D
Tube Assembly,capillary L-G-5211AR3332N
...
12-D
Tube Assembly,suction L-G-5211A10062R
...
13-D
Tube Assembly,discharge L-G-5211A10129K

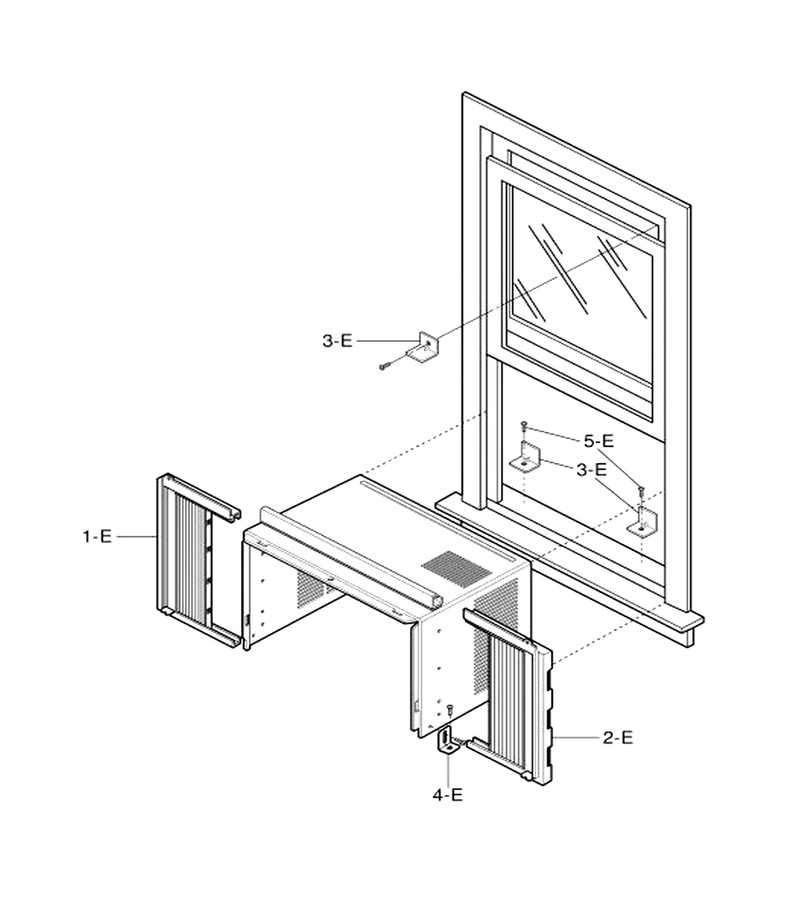

Installation Kit Assembly

...
...
1-E
Room Air Conditioner Accordion Fillter Assembly.. L-G-3211AR3239B
...
2-E
Room Air Conditioner Accordion Fillter Assembly.. L-G-3211AR3239A
...
3-E
Room Air Conditioner Window Lock Bracket L-G-4810A30113A
...
4-E
Bracket L-G-4810A30152A
...
5-E
Screw,tapping L-G-1TTG0402618
