LG 51869.AWBCSE2

Model: 51869.AWBCSE2

Save Part Not Listed?
product name

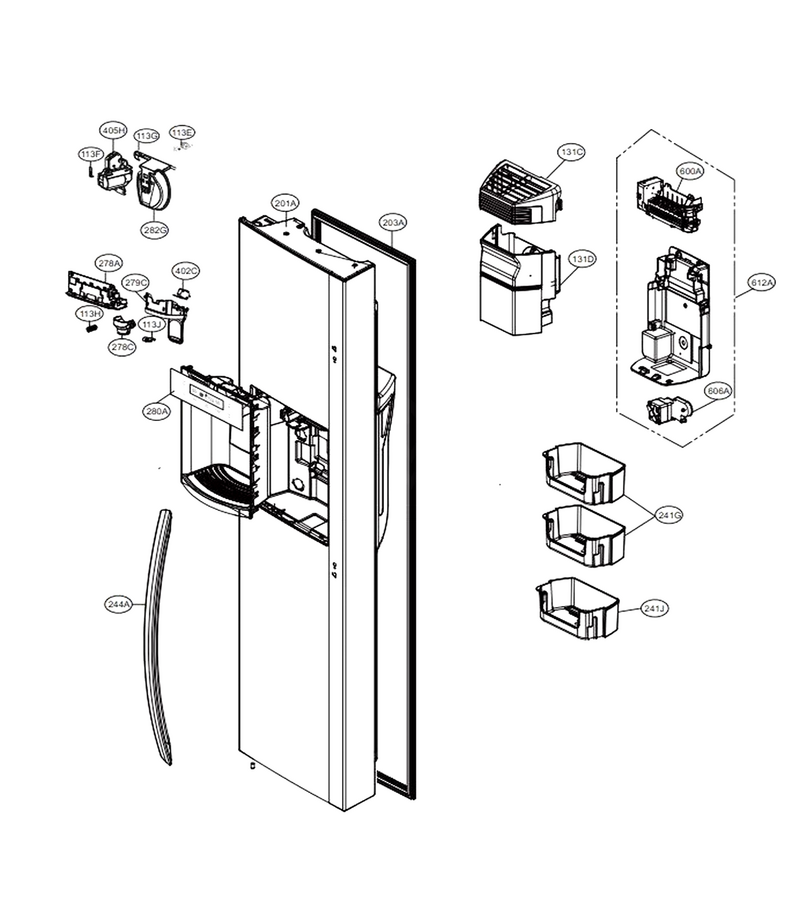

Freezer Door

...
...
113E
Spring,lever L-G-MHY62603707
...
113F
Refrigerator Dispenser Lever Bracket L-G-4930JA3043A
...
113G
Supporter,housing L-G-MJH64514501
...
113H
Spring L-G-MHY62644407
...
113J
Link L-G-MFF63343001
...
131D
Bucket Assembly,ice L-G-AKC73029305
...
201A
Door Foam Assembly,freezer L-G-ADD74296459
...
203A
Gasket Assembly,door L-G-4987JJ1010W
...
241J
Basket,door L-G-MAN62569801
...
244A
Handle Assembly,refrigerator L-G-AED72952821
...
278A
Frame,funnel L-G-MDQ64176605
...
278C
Funnel L-G-MDR62502201
...
279C
Button Assembly L-G-ABH75139701
...
280A
Cover Assembly,display L-G-ACQ87420622
...
282G
Cap Assembly,duct L-G-ABN72938908
...
402C
Refrigerator Dispenser Switch L-G-6600JB3001C
...
405H
Refrigerator Dispenser Ice Chute Door Motor L-G-EAU59551204
...
600A
Ice Maker Assembly,kit L-G-AEQ73209906
...
612A
Motor, Ac Dispenser L-G-EAU61004412

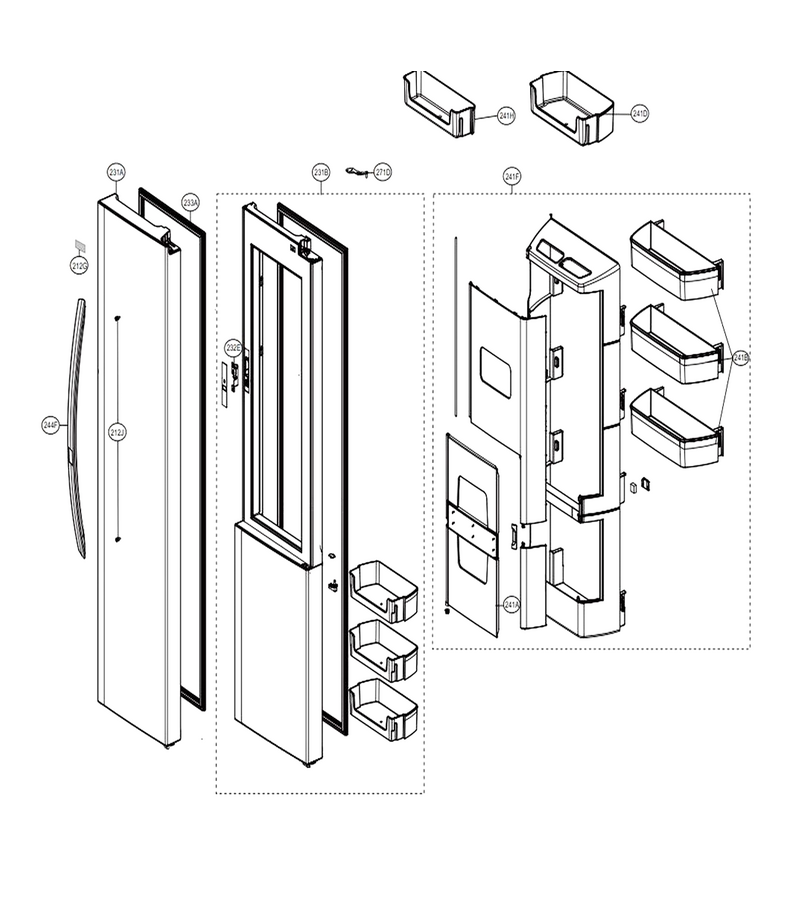

Refrigerator Door

...
...
212G
Name Plate L-G-MFT61866217
...
231A
Door Foam Assembly,refrigerator L-G-ADD74296509
...
231B
Door Assembly,home Bar L-G-ADC74625513
...
232E
Holder Assembly,bracket L-G-AEJ73440302
...
233A
Gasket Assembly,door L-G-4987JJ1010X
...
241A
Cover Assembly,front L-G-ACQ85695406
...
241F
Case Assembly,home Bar L-G-ABQ74662102
...
244F
Handle Assembly,refrigerator L-G-AED72952832
...
271D
Hinge Assembly,upper L-G-AEH72957216

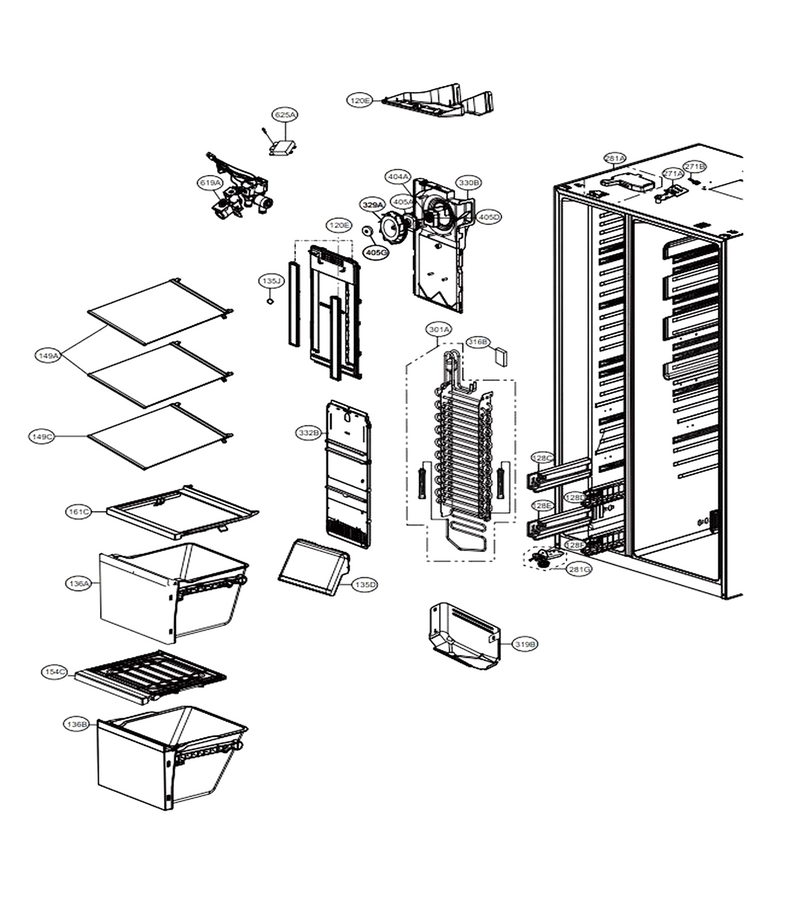

Freezer Compartment

...
...
120E
Duct Assembly,multi L-G-ADJ73152217
...
128C
Guide,rail L-G-MEA63033301
...
128D
Guide,rail L-G-MEA63033302
...
128E
Guide,rail L-G-MEA63033401
...
128F
Guide,rail L-G-MEA63033402
...
135J
Refrigerator Duct Cap L-G-5006JA3123A
...
136A
Tray Assembly,drawer L-G-AJP73595170
...
136B
Tray Assembly,drawer L-G-AJP73595171
...
149A
Shelf Assembly,freezer L-G-AHT73493944
...
149C
Shelf Assembly,freezer L-G-AHT73493945
...
154C
Cover Assembly,tray L-G-ACQ85968603
...
161C
Cover Assembly,tray L-G-ACQ76211724
...
271A
Hinge Assembly,upper L-G-AEH74176704
...
271B
Refrigerator Door Hinge Pin L-G-4510JA3004A
...
281A
Cover Assembly,hinge L-G-ACQ87309252
...
281G
Hinge Assembly,lower L-G-AEH75176311
...
301A
Evaporator Assembly L-G-ADL73901318
...
316B
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003M
...
319B
Tray Assembly,drain L-G-AJP73014604
...
329A
Fan Assembly L-G-ADP74753501
...
330B
Shroud,freezer L-G-MHN61882004
...
332B
Grille Assembly,fan L-G-AEB72984718
...
404A
Motor,dc L-G-EAU63103201
...
405A
Bracket,motor L-G-MAZ65353201
...
405D
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405G
Refrigerator Motor Support Damper L-G-5040JA2004B
...
619A
Valve Assembly,water L-G-AJU34125558
...
625A
Cover,tube L-G-MCK69290701

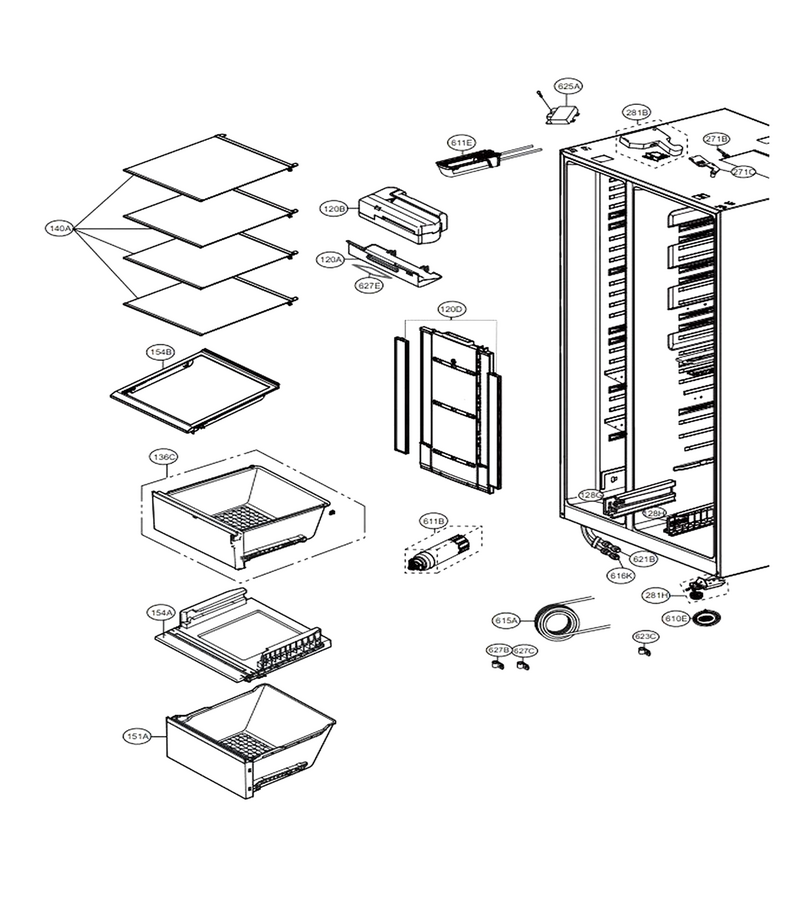

Refrigerator Compartment

...
...
120A
Case Assembly,control Refrigerator L-G-ABQ73984012
...
120D
Duct Assembly,multi L-G-ADJ73292113
...
128G
Guide,rail L-G-MEA63110002
...
128H
Guide,rail L-G-MEA63110001
...
136C
Tray Assembly,drawer L-G-AJP73815126
...
140A
Shelf Assembly,refrigerator L-G-AHT73493839
...
151A
Tray Assembly,vegetable L-G-AJP73595020
...
154A
Cover Assembly,tray L-G-ACQ85968602
...
154B
Cover Assembly,tv L-G-ACQ76008430
...
271B
Refrigerator Door Hinge Pin L-G-4510JA3004A
...
271C
Hinge Assembly,upper L-G-AEH73957102
...
281B
Cover Assembly,hinge L-G-ACQ87309246
...
281H
Hinge Assembly,lower L-G-AEH75176202
...
610E
Refrigerator Freezer Temperature Sensor Cover L-G-3550JA2035D
...
611B
Filter Assembly,water L-G-ADQ73613402
...
615A
Refrigerator Water Tank L-G-MJM61904704
...
621B
Refrigerator Water Tube Fitting L-G-4932JA3002C
...
623C
Refrigerator Water Tubing Holder L-G-4770JA3001A
...
625A
Cover,tube L-G-MCK69290701
...
627B
Refrigerator Water Tubing Holder L-G-4770JA3001E
...
627C
Refrigerator Band L-G-4770JA3001B
...
627E
Gasket,foam L-G-5400JA2042N

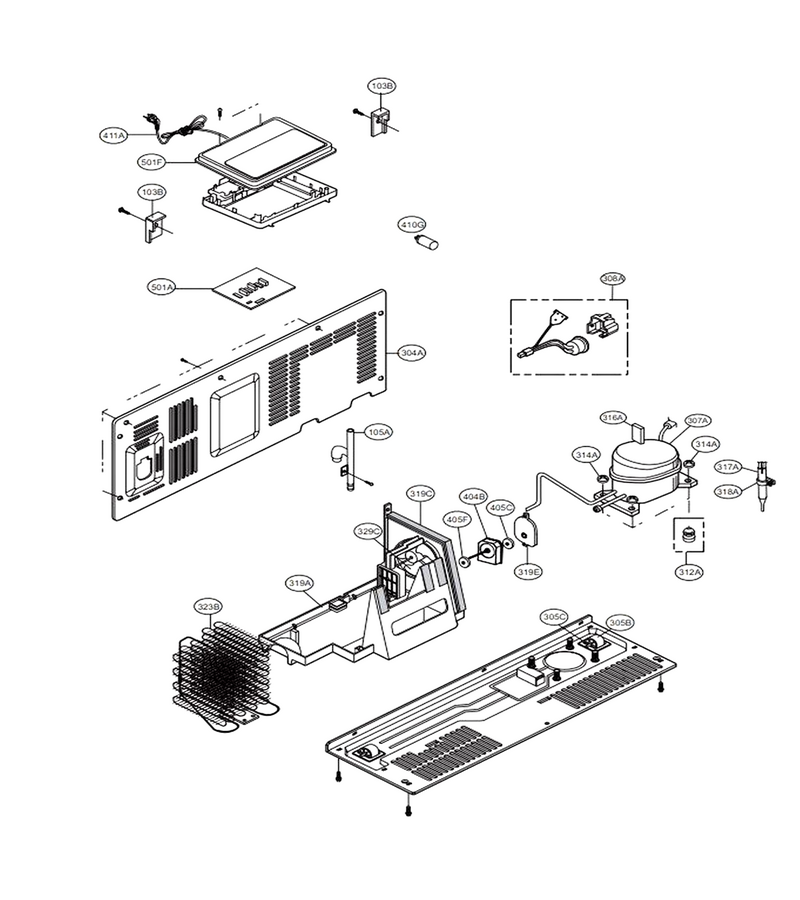

Machine Compartment

...
...
103B
Refrigerator Door Handle L-G-MEB64014305
...
105A
Refrigerator Drain Tube Assembly L-G-5251JA3004E
...
304A
Cover Assembly,machinery(rear) L-G-ACQ86284806
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
307A
Refrigerator Compressor L-G-TCA36691603
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
316A
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003F
...
318A
Drier Holder L-G-MEG64900401
...
319A
Tray,drip L-G-MJS61873304
...
319C
Guide,fan L-G-MEA64710501
...
319E
Cover,motor L-G-MCK69232001
...
329C
Fan Assembly L-G-ADP74753302
...
404B
Motor,dc L-G-EAU63103207
...
405C
Refrigerator Condenser Fan Motor Damper L-G-5040JA2004A
...
405F
Refrigerator Motor L-G-5040JA2009A
...
410G
Refrigerator Run Capacitor L-G-EAE32501017
...
411A
Power Cord Assembly L-G-EAD61857359
...
501A
Pcb Assembly,main L-G-EBR87145140
...
501F
Cover Assembly,pcb L-G-ACQ85612409
