LG 51839.AWBCSE1

Model: 51839.AWBCSE1

Save Part Not Listed?
product name

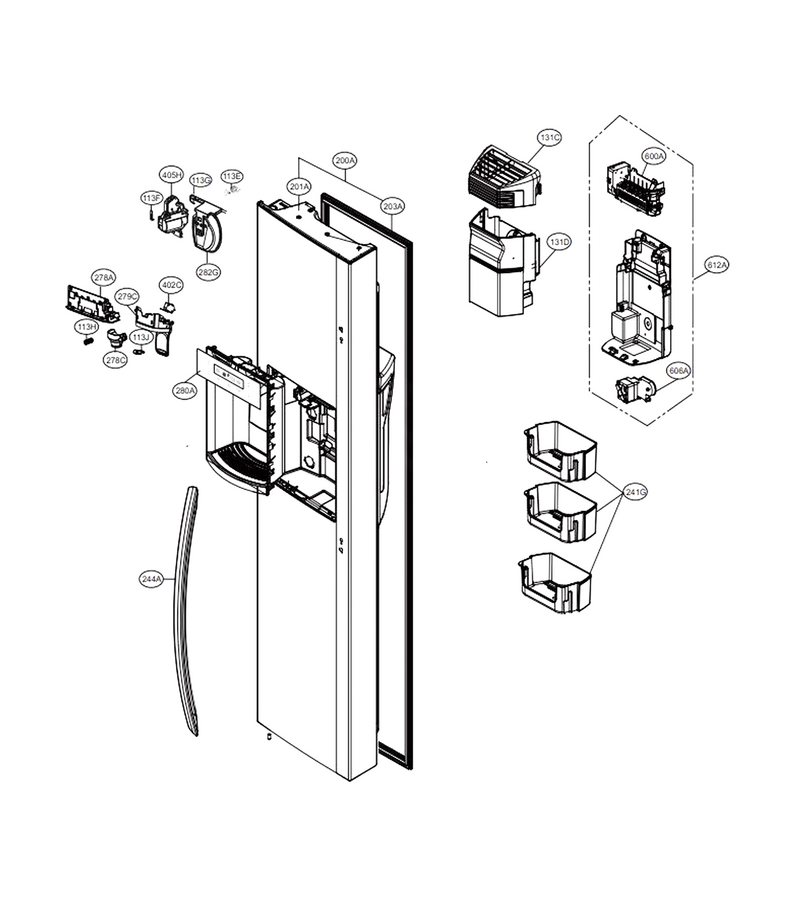

Freezer Door

...
...
113E
Spring,lever L-G-MHY62603707
...
113F
Refrigerator Dispenser Lever Bracket L-G-4930JA3043A
...
113G
Supporter,housing L-G-MJH64514501
...
113H
Spring L-G-MHY62644407
...
113J
Link L-G-MFF63343001
...
131D
Bucket Assembly,ice L-G-AKC73029305
...
200A
Door Assembly,freezer L-G-ADC74646423
...
201A
Door Foam Assembly,freezer L-G-ADD74296418
...
203A
Gasket Assembly,door L-G-4987JJ1010W
...
244A
Handle Assembly,refrigerator L-G-AED74053002
...
278A
Frame,funnel L-G-MDQ64176605
...
278C
Funnel L-G-MDR62502201
...
279C
Button Assembly L-G-ABH75139701
...
280A
Cover Assembly,display L-G-ACQ87420615
...
282G
Cap Assembly,duct L-G-ABN72938908
...
402C
Refrigerator Dispenser Switch L-G-6600JB3001C
...
405H
Refrigerator Dispenser Ice Chute Door Motor L-G-EAU59551204
...
600A
Ice Maker Assembly,kit L-G-AEQ73209904
...
606A
Motor, Ac Indoor L-G-EAU60784231
...
612A
Motor, Ac Dispenser L-G-EAU61004410

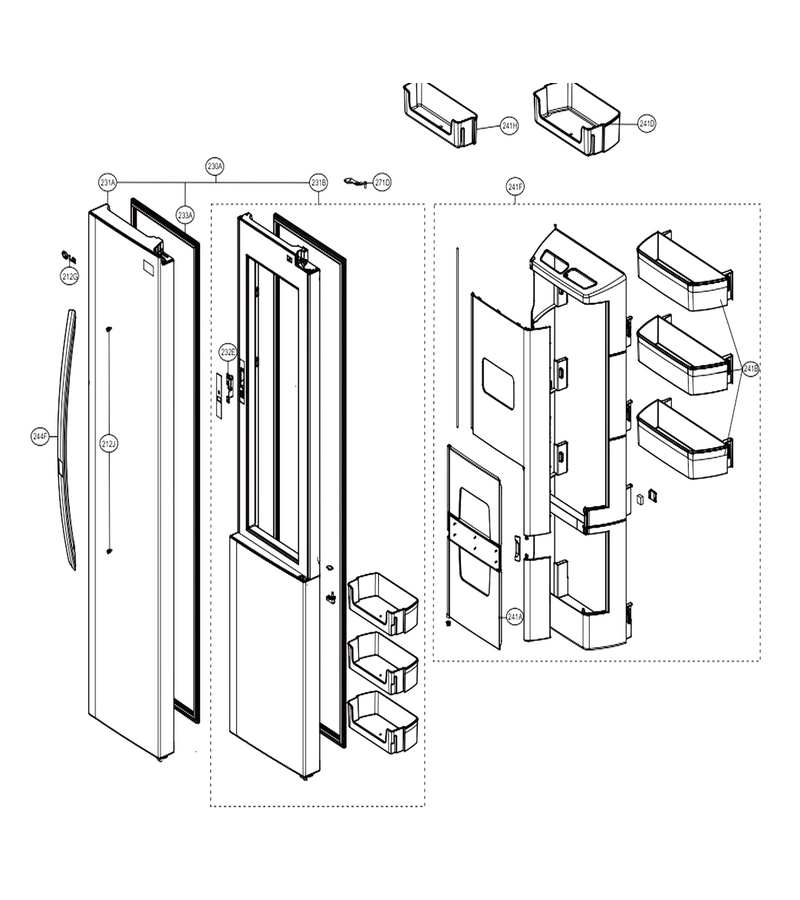

Refrigerator Door

...
...
212G
Name Plate L-G-MFT61866218
...
230A
Door Assembly,refrigerator L-G-ADC74646308
...
231A
Door Foam Assembly,refrigerator L-G-ADD74296504
...
231B
Door Assembly,home Bar L-G-ADC74625504
...
232E
Holder Assembly,bracket L-G-AEJ73440302
...
233A
Gasket Assembly,door L-G-4987JJ1010X
...
241A
Cover Assembly,front L-G-ACQ85695406
...
241F
Case Assembly,home Bar L-G-ABQ74662102
...
244F
Handle Assembly,refrigerator L-G-AED74053007
...
271D
Hinge Assembly,upper L-G-AEH72957210

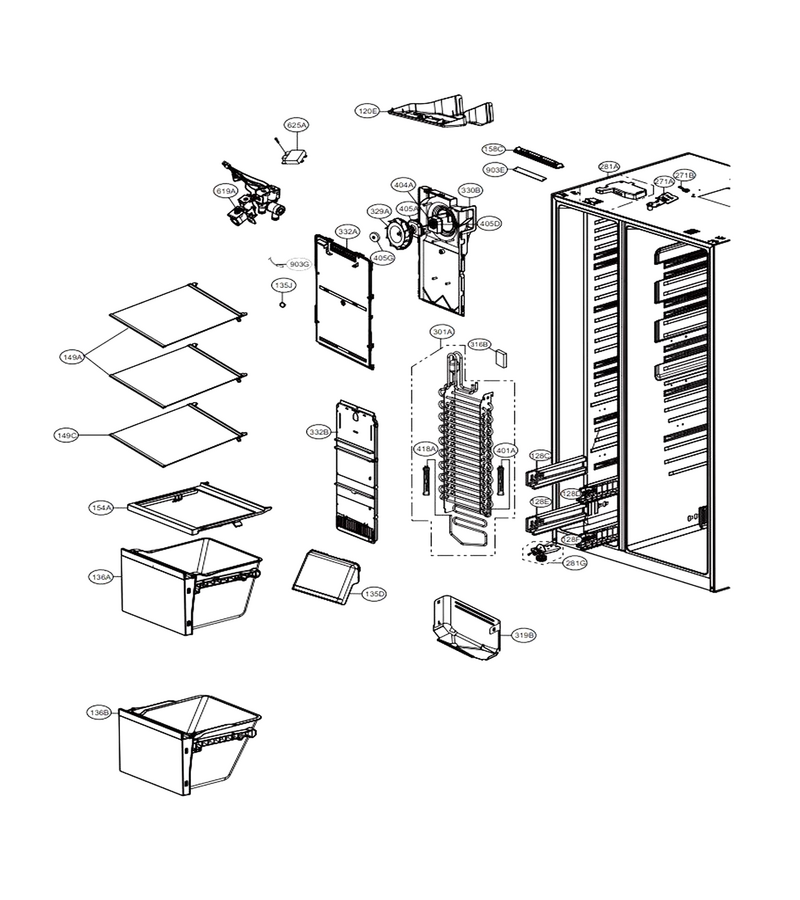

Freezer Compartment

...
...
128C
Guide,rail L-G-MEA64670701
...
128D
Guide,rail L-G-MEA64670702
...
128E
Guide,rail L-G-MEA64670801
...
128F
Guide,rail L-G-MEA64670802
...
135J
Refrigerator Duct Cap L-G-5006JA3123A
...
136A
Tray Assembly,drawer L-G-AJP73595146
...
136B
Tray Assembly,drawer L-G-AJP73595147
...
158C
Cover,led L-G-MCK63331702
...
271A
Hinge Assembly,upper L-G-AEH74176704
...
271B
Refrigerator Door Hinge Pin L-G-4510JA3004A
...
281A
Cover Assembly,hinge L-G-ACQ87309252
...
281G
Hinge Assembly,lower L-G-AEH75176311
...
301A
Evaporator Assembly L-G-ADL74760901
...
316B
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003M
...
319B
Tray Assembly,drain L-G-AJP73014604
...
329A
Fan Assembly L-G-ADP74753501
...
330B
Shroud,freezer L-G-MHN61882004
...
332A
Grille Assembly,fan L-G-AEB75404501
...
401A
Sensor Assembly L-G-EBD61246710
...
404A
Motor,dc L-G-EAU63103201
...
405A
Bracket,motor L-G-MAZ65353201
...
405D
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405G
Refrigerator Motor Support Damper L-G-5040JA2004B
...
418A
Heater,sheath L-G-5300JB1114Z
...
619A
Valve Assembly,water L-G-AJU34125568
...
625A
Cover,tube L-G-MCK69290701
...
903E
Led Assembly L-G-EAV61875814
...
903G
Sensor,temperature L-G-6500JB1008D

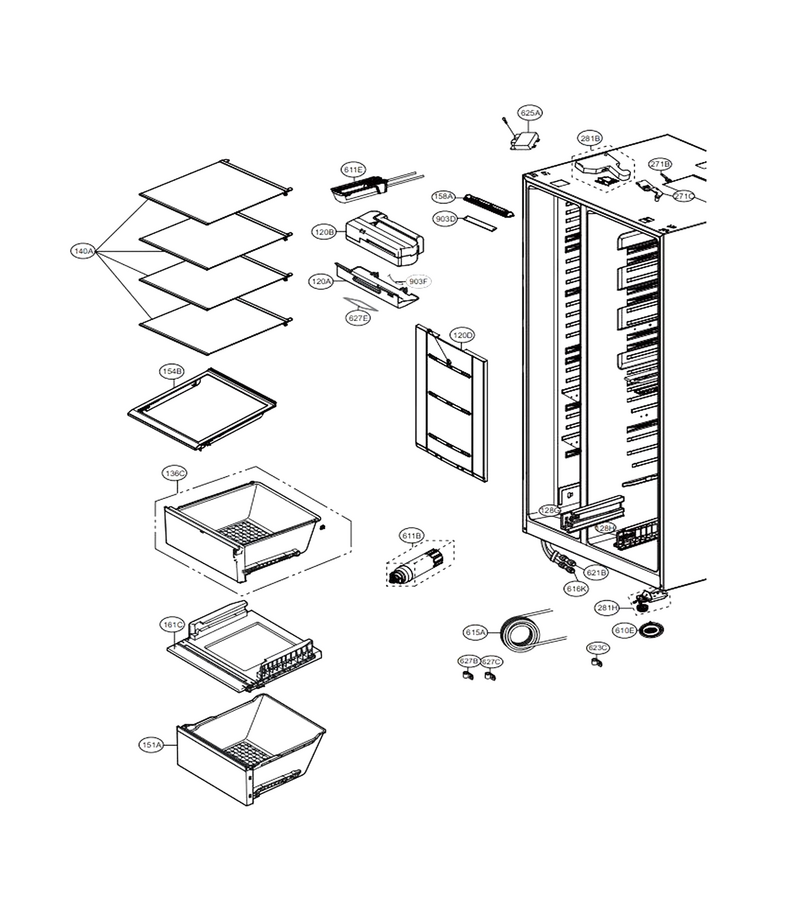

Refrigerator Compartment

...
...
120D
Duct Assembly,multi L-G-ADJ73012206
...
128G
Guide,rail L-G-MEA64710402
...
128H
Guide,rail L-G-MEA64710401
...
136C
Tray Assembly,drawer L-G-AJP73815119
...
140A
Shelf Assembly,refrigerator L-G-AHT73493833
...
151A
Tray Assembly,vegetable L-G-AJP73595013
...
158A
Cover,led L-G-MCK63331802
...
271B
Refrigerator Door Hinge Pin L-G-4510JA3004A
...
271C
Hinge Assembly,upper L-G-AEH73957102
...
281B
Cover Assembly,hinge L-G-ACQ87309246
...
281H
Hinge Assembly,lower L-G-AEH75176202
...
610E
Cover,sensor L-G-3550JQ2073E
...
611B
Filter Assembly,water L-G-ADQ73613402
...
615A
Refrigerator Water Tank L-G-MJM61904704
...
621B
Refrigerator Water Tube Fitting L-G-4932JA3002C
...
623C
Refrigerator Water Tubing Holder L-G-4770JA3001A
...
625A
Cover,tube L-G-MCK69290701
...
627B
Refrigerator Water Tubing Holder L-G-4770JA3001E
...
627C
Refrigerator Band L-G-4770JA3001B
...
627E
Gasket,foam L-G-5400JA2042N
...
903D
Led Assembly L-G-EAV61875815
...
903F
Sensor,temperature L-G-6500JB2008Z

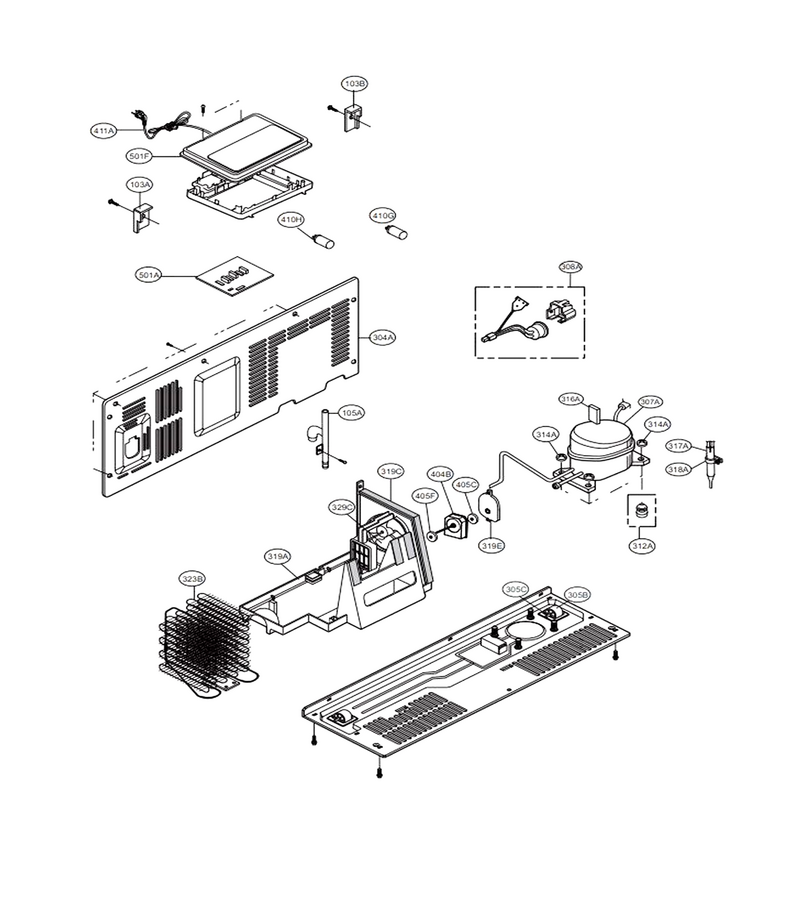

Machine Compartment

...
...
103B
Refrigerator Door Handle L-G-MEB64014305
...
105A
Refrigerator Drain Tube Assembly L-G-5251JA3004E
...
304A
Cover Assembly,machinery(rear) L-G-ACQ86284806
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
307A
Refrigerator Compressor L-G-TCA36691603
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
316A
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003F
...
318A
Drier Holder L-G-MEG64900401
...
319A
Tray,drip L-G-MJS61873304
...
319C
Guide,fan L-G-MEA64710501
...
319E
Cover,motor L-G-MCK69232001
...
323B
Condenser Assembly,wire L-G-ACG73064501
...
329C
Fan Assembly L-G-ADP74753302
...
404B
Motor,dc L-G-EAU63103207
...
405C
Refrigerator Condenser Fan Motor Damper L-G-5040JA2004A
...
405F
Refrigerator Motor L-G-5040JA2009A
...
410G
Refrigerator Run Capacitor L-G-EAE32501017
...
410H
Refrigerator Run Capacitor L-G-0CZZJB2010G
...
411A
Power Cord Assembly L-G-EAD61857344
...
501A
Pcb Assembly,main L-G-EBR80977511
...
501F
Cover Assembly,pcb L-G-ACQ85612409
