LG 51314.ABI3SER

Model: 51314.ABI3SER

Save Part Not Listed?
product name

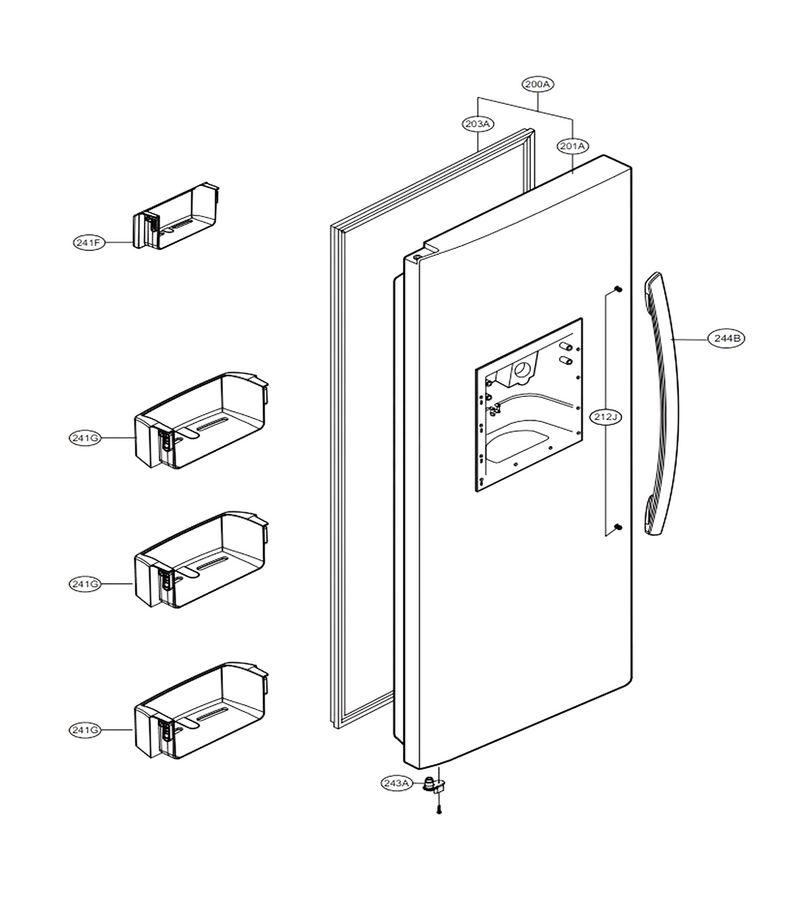

Freezer Door

...
...
200A
Door Assembly,freezer L-G-ADC72986408
...
201A
Door Foam Assembly,freezer L-G-ADD72912806
...
203A
Refrigerator Freezer Door Gasket L-G-4987JJ1010N
...
212J
Refrigerator Stopper L-G-4620JJ3007B
...
241F
Refrigerator Door Basket L-G-MAN61845501
...
241G
Refrigerator Freezer Door Bin L-G-MAN61844701
...
243A
Refrigerator Door Stop L-G-4621JA3003A
...
244B
Refrigerator Door Stop L-G-4621JA3002H

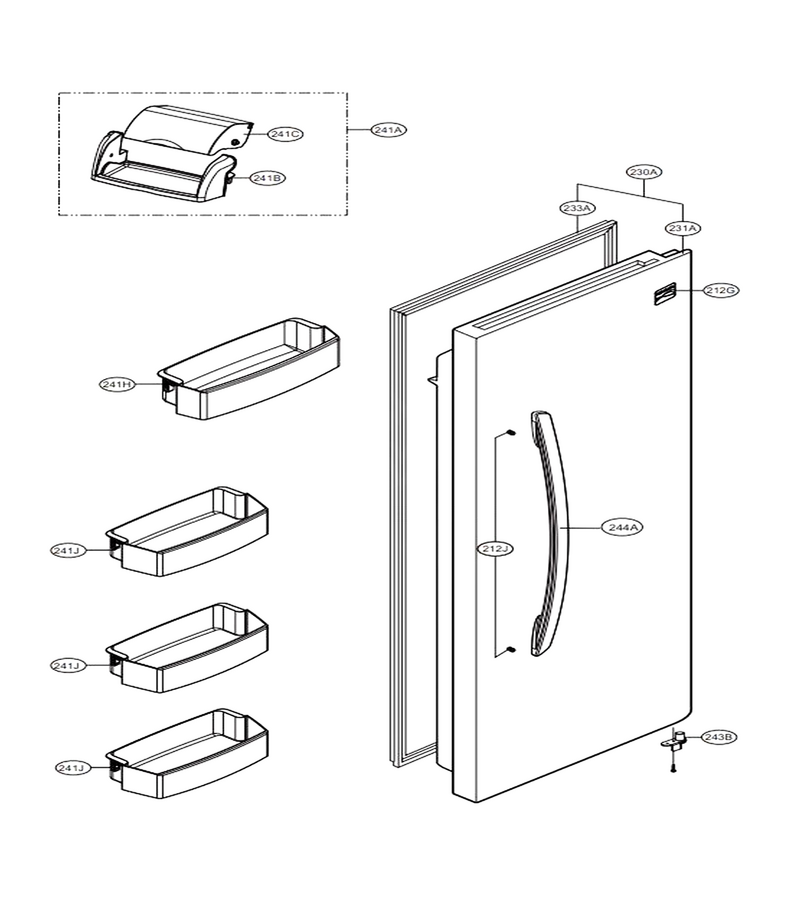

Refrigerator Door

...
...
212G
Name Plate L-G-MFT61866216
...
212J
Refrigerator Stopper L-G-4620JJ3007B
...
230A
Door Assembly,refrigerator L-G-ADC72986506
...
231A
Door Foam Assembly,refrigerator L-G-ADD72912606
...
233A
Refrigerator Door Gasket L-G-4987JJ1010P
...
241A
Refrigerator Dairy Bin And Cover L-G-AKC72909202
...
241B
Refrigerator Dairy Bin L-G-MKK61841701
...
241C
Refrigerator Dairy Bin Cover L-G-MCK62272301
...
241H
Refrigerator Door Bin L-G-MAN61844601
...
241J
Refrigerator Door Bin L-G-MAN61844401
...
243B
Refrigerator Door Stop L-G-4621JA3002H
...
244A
Handle Assembly,refrigerator L-G-AED72912506

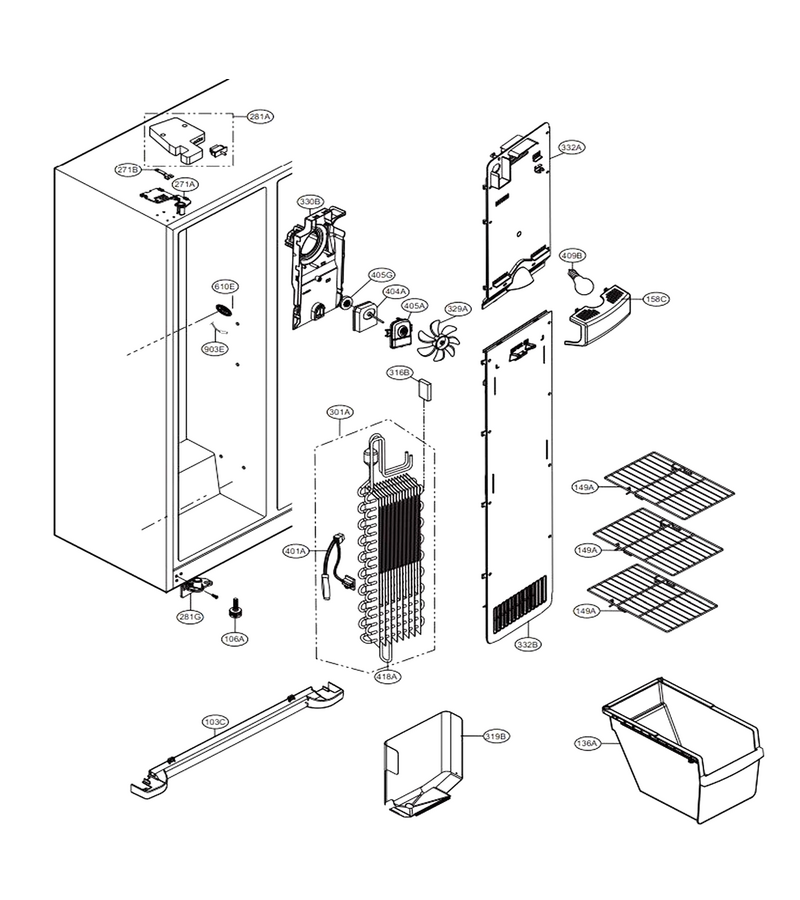

Freezer Compartment

...
...
103C
Cover,lower L-G-MCK62214903
...
106A
Refrigerator Leveling Leg L-G-4779JA3001E
...
136A
Refrigerator Freezer Drawer L-G-MJS61847401
...
149A
Refrigerator Wire Shelf L-G-MHL61848502
...
158C
Refrigerator Lamp Cover L-G-MCK62215201
...
271A
Hinge Assembly,upper L-G-4775JA2105B
...
271B
Refrigerator Door Hinge Pin L-G-4510JA3004A
...
281A
Cover Assembly,hinge L-G-ACQ77080308
...
281G
Refrigerator Door Hinge L-G-4775JA2104A
...
301A
Refrigerator Evaporator L-G-ADL72941002
...
316B
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003F
...
319B
Drain Tray Assembly L-G-AJP72913401
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JA1022A
...
330B
Refrigerator Freezer Shroud Assembly L-G-4999JJ2004C
...
332A
Refrigerator Fan Grille Assembly L-G-3531JJ1010G
...
332B
Grille Assembly,fan L-G-3531JJ1011F
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2002R
...
404A
Motor,dc L-G-EAU60694507
...
405A
Refrigerator Motor Bracket L-G-MAZ61976201
...
405G
Refrigerator Motor Support Damper L-G-5040JA2004B
...
409B
Refrigerator Light Bulb L-G-6912JK2002E
...
418A
Refrigerator Defrost Heater L-G-MEE61843904
...
610E
Refrigerator Freezer Temperature Sensor Cover L-G-3550JA2035D
...
903E
Refrigerator Temperature Sensor L-G-6500JK1004A

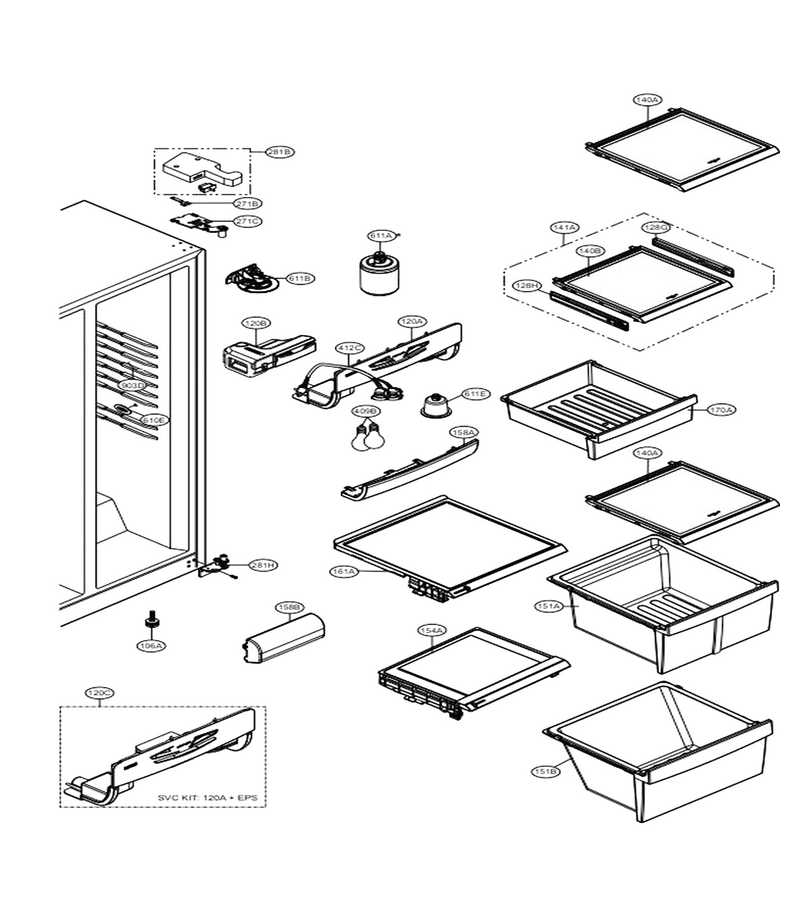

Refrigerator Compartment

...
...
106A
Refrigerator Leveling Leg L-G-4779JA3001E
...
120A
Refrigerator Light Housing Assembly L-G-ABQ72954502
...
120B
Refrigerator Air Damper L-G-ADJ72911501
...
120C
Kit Assembly L-G-AEY73232002
...
128G
Refrigerator Crisper Drawer Slide Rail L-G-MEA40002601
...
128H
Refrigerator Drawer Slide Rail L-G-MEA40002602
...
140A
Shelf,refrigerator L-G-MHL61848903
...
140B
Shelf,refrigerator L-G-MHL61848904
...
141A
Shelf Assembly,refrigerator L-G-AHT72913502
...
151A
Refrigerator Crisper Drawer L-G-AJP72994801
...
151B
Refrigerator Crisper Drawer L-G-AJP72994802
...
154A
Cover Assembly,tray L-G-ACQ74897402
...
158A
Refrigerator Light Cover L-G-MCK62215001
...
158B
Refrigerator Light Cover L-G-3550JA1496A
...
161A
Cover Assembly,tray L-G-ACQ74897303
...
170A
Refrigerator Deli Drawer L-G-MJS61846501
...
271B
Refrigerator Door Hinge Pin L-G-4510JA3004A
...
271C
Hinge Assembly,upper L-G-4775JA2084B
...
281B
Cover Assembly,hinge L-G-ACQ77080315
...
281H
Refrigerator Door Hinge L-G-4775JA2113A
...
409B
Refrigerator Light Bulb L-G-6912JK2002E
...
412C
Refrigerator Socket L-G-6620JB1001P
...
610E
Refrigerator Freezer Temperature Sensor Cover L-G-3550JA2035D
...
611A
Filter Assembly,water L-G-ADQ72910907
...
611B
Refrigerator Water Filter Head L-G-ADQ72911002
...
611E
Refrigerator Water Filter Bypass L-G-5007JA3007C
...
903D
Refrigerator Temperature Sensor Cover L-G-6500JK1003A

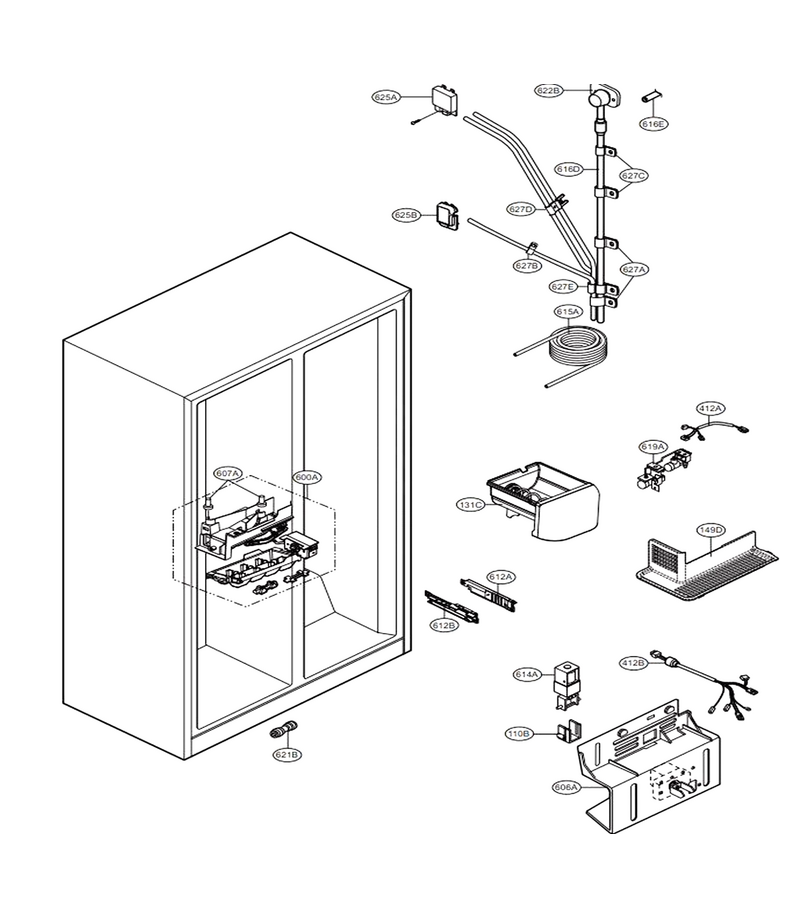

Ice & Water Part

...
...
110B
Refrigerator Ice Guide L-G-4974JA3028A
...
131C
Bucket Assembly,ice L-G-5075JJ1003E
...
149D
Shelf,freezer L-G-MHL61849201
...
412A
Refrigerator Wire Harness L-G-6877JB3019F
...
412B
Refrigerator Drawing Assembly L-G-6877JB2039G
...
600A
Refrigerator Ice Maker Assembly L-G-5989JA1002D
...
606A
Refrigerator Auger Motor L-G-4681JJ1001E
...
607A
Refrigerator Holder Assembly L-G-AEJ73579702
...
612A
Refrigerator Guide Rail L-G-MEA61990401
...
612B
Refrigerator Guide Rail L-G-MEA61990301
...
614A
Refrigerator Ice Dispenser Solenoid L-G-6421JA3001L
...
615A
Refrigerator Water Reservoir L-G-MJM61904702
...
616D
Refrigerator Water Tubing L-G-5211JA2003C
...
616E
Tube,inject L-G-5210JA2006C
...
619A
Refrigerator Water Inlet Valve L-G-AJU34125533
...
621B
Refrigerator Water Tube Fitting L-G-MCD61866802
...
622B
Refrigerator Water Tubing Guide L-G-MJH36429401
...
625A
Refrigerator Water Supply Tube Cover L-G-3550JA2184A
...
625B
Refrigerator Water Tubing Guide L-G-ACQ85694901
...
627A
Refrigerator Band L-G-4770JA3001B
...
627B
Refrigerator Water Tubing Holder L-G-4770JA3001E
...
627C
Refrigerator Water Tubing Holder L-G-4770JA3001A
...
627D
Refrigerator Water Filter Housing Water Supply ... L-G-MEG42758601
...
627E
Refrigerator Clamp L-G-4930JA3054A

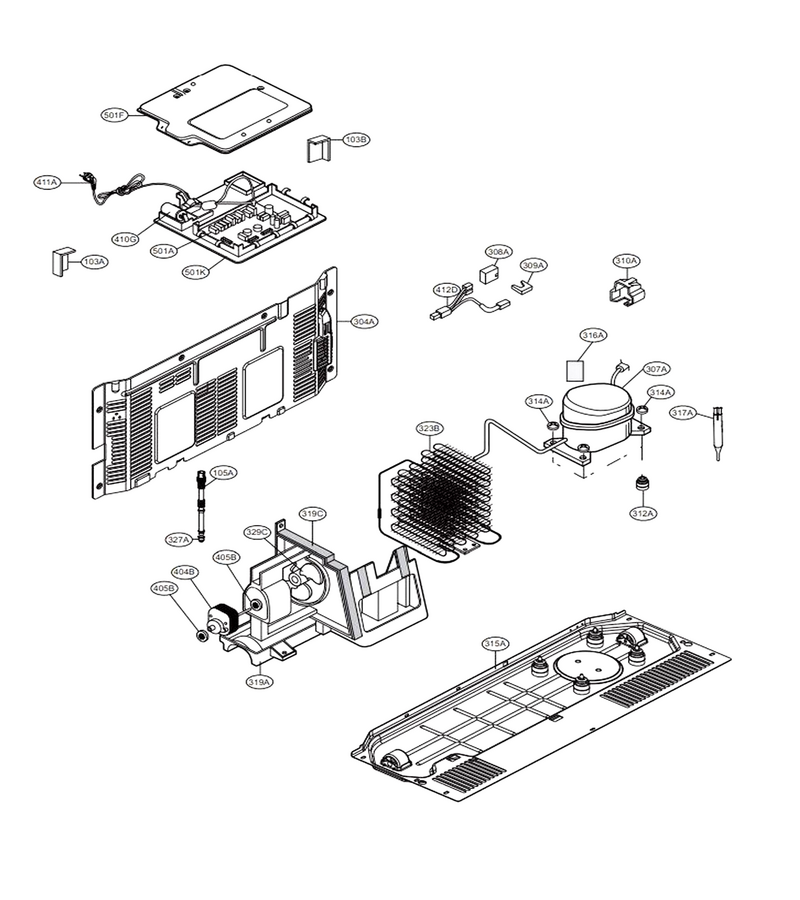

Mechanical Compartment

...
...
103A
Handle,rear L-G-3650JA3032W
...
103B
Handle,rear L-G-3650JA3032X
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
304A
Cover Asy,ma L-G-ACQ76219906
...
307A
Compressor,set Assembly L-G-TCA31748014
...
308A
Refrigerator Temperature Sensor L-G-EBG42993601
...
309A
Refrigerator Compressor Overload Protector L-G-6750CR0004S
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550C-0042C
...
312A
Refrigerator Compressor Grommet L-G-5040JA3031A
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Refrigerator Compressor Base Assembly L-G-3103JJ1001X
...
316A
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003F
...
317A
Refrigerator Filter Dryer L-G-5851JA2007E
...
319A
Refrigerator Drip Tray L-G-MJS61848401
...
319C
Refrigerator Fan Guide L-G-MEA41997401
...
323B
Refrigerator Wire Condenser Assembly L-G-ACG72921001
...
327A
Refrigerator Drain Cap L-G-5006JA3049A
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665702
...
404B
Refrigerator Evaporator Fan Motor L-G-4681JB1029S
...
405B
Refrigerator Fan Motor Grommet L-G-5040JJ2001A
...
410G
Refrigerator Run Capacitor L-G-0CZZJB2010G
...
411A
Power Cord Assembly L-G-EAD56779013
...
412D
Refrigerator Wire Harness L-G-6877JB2040M
...
501A
Pcb Assembly,main L-G-EBR64585307
...
501F
Cover Assembly,pcb L-G-ACQ85612407
...
501K
Refrigerator Electronic Control Board Housing L-G-3110JA1071A

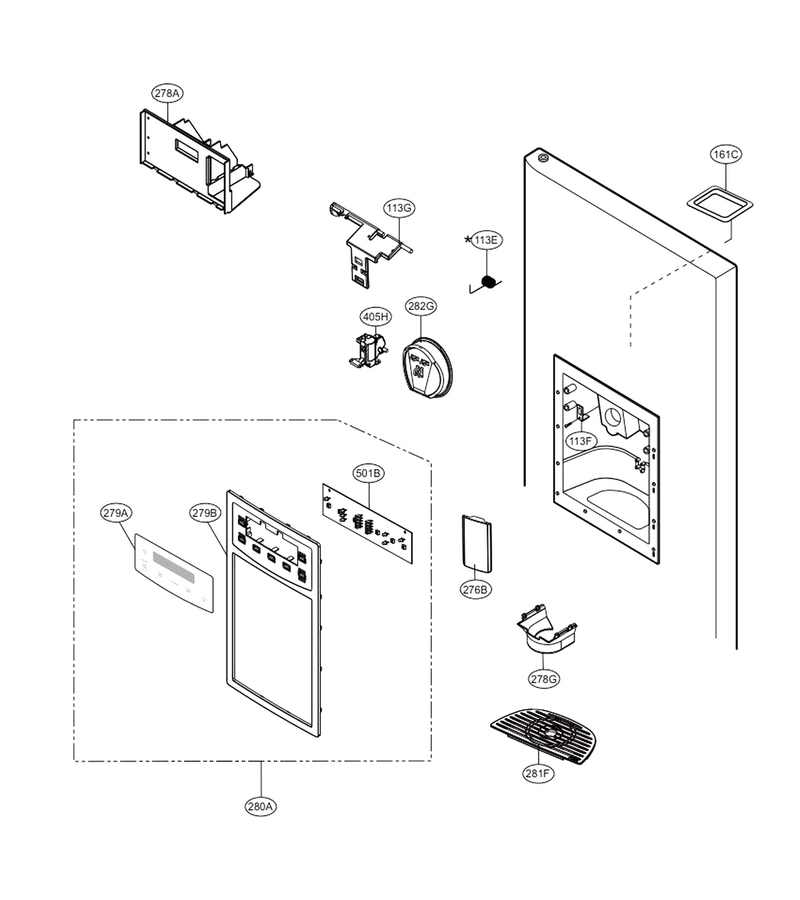

Dispenser Parts

...
...
113E
Refrigerator Spring L-G-4970JA3011C
...
113F
Refrigerator Dispenser Lever Bracket L-G-4930JA3043A
...
113G
Refrigerator Dispenser Lever L-G-MFC62049501
...
161C
Refrigerator Ice Dispenser Funn L-G-3550JJ2074A
...
276B
Button,lever L-G-MBG62102103
...
278A
Refrigerator Dispenser Ice Chute Funnel Assembly L-G-ADW34028006
...
278G
Funnel L-G-MDR61882403
...
279A
Decor,control L-G-MCR62192408
...
279B
Cover,display L-G-MCK62546803
...
280A
Cover Assembly,display L-G-ACQ75198213
...
281F
Decor,drain L-G-MCR61988503
...
282G
Refrigerator Dispenser Ice Chute Door L-G-ABN72909904
...
405H
Refrigerator Auger Motor Run Capacitor L-G-EAU59551201
...
501B
Pcb Assembly,display L-G-EBR61526804
