LG 51099.AWBCSE0

Model: 51099.AWBCSE0

Save Part Not Listed?
product name

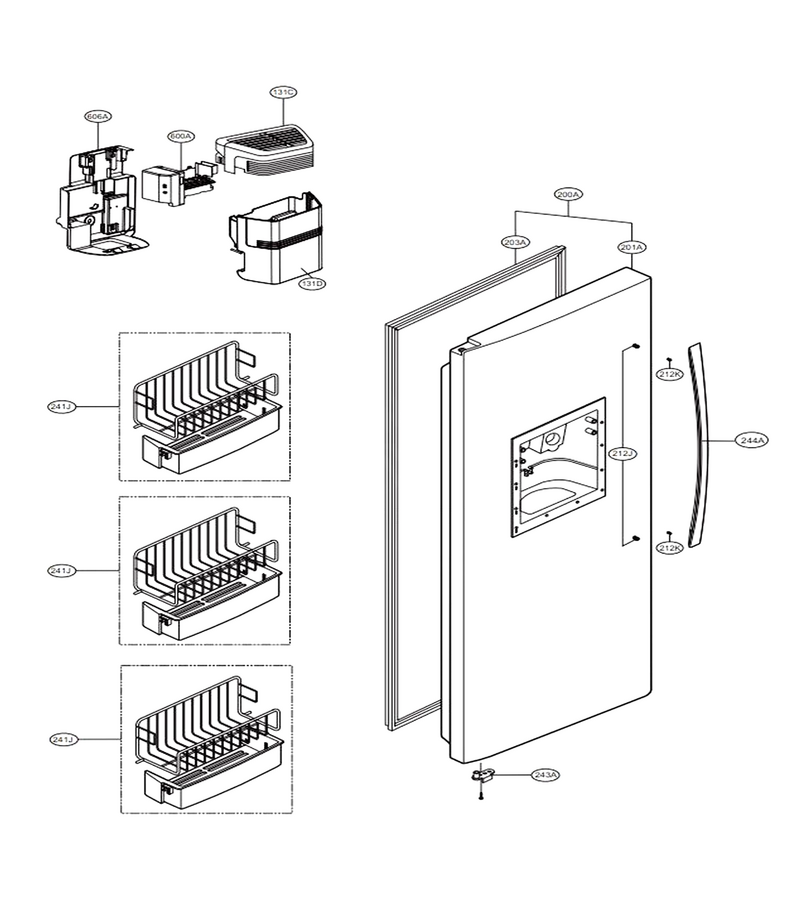

Freezer Door Part

...
...
131C
Refrigerator Ice Container Cover L-G-ACQ55756501
...
131D
Bucket Assembly,ice L-G-AKC73009301
...
200A
Door Assembly,freezer L-G-ADC72986438
...
201A
Door Foam Assembly,freezer L-G-ADD72955904
...
203A
Refrigerator Door Gasket Assembly L-G-4987JJ1010J
...
212J
Refrigerator Door Handle Mounting Bolt L-G-4620JJ2010C
...
212K
Refrigerator Handle Mount Set Screw L-G-FAB30138101
...
241J
Refrigerator Basket Assembly L-G-5005JJ1003A
...
243A
Refrigerator Door Stop L-G-4621JA3003A
...
244A
Handle Assembly,refrigerator L-G-AED72912002
...
600A
Ice Maker Assembly,kit L-G-AEQ36756917
...
606A
Motor, Ac Dispenser L-G-EAU61004401

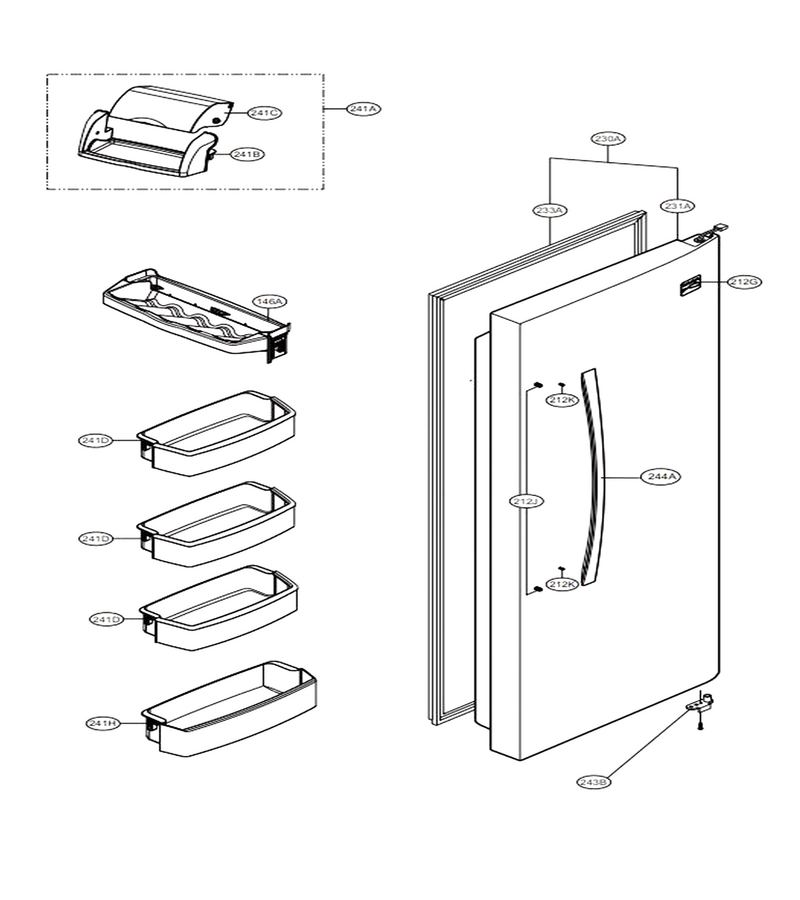

Refrigerator Door

...
...
146A
Basket Assembly,door L-G-AAP72911301
...
212G
Name Plate L-G-MFT61866205
...
212J
Refrigerator Door Handle Mounting Bolt L-G-4620JJ2010C
...
212K
Refrigerator Handle Mount Set Screw L-G-FAB30138101
...
230A
Door Assembly,refrigerator L-G-ADC30116651
...
231A
Door Foam Assembly,refrigerator L-G-ADD30170747
...
233A
Refrigerator Door Gasket L-G-4987JJ1010K
...
241A
Refrigerator Dairy Bin And Cover L-G-AKC72909202
...
241B
Refrigerator Dairy Bin L-G-MKK61841701
...
241C
Refrigerator Dairy Bin Cover L-G-MCK62272301
...
241D
Basket Assembly,door L-G-AAP72911202
...
241H
Refrigerator Door Bin L-G-MAN61844601
...
243B
Refrigerator Door Stop L-G-4621JA3002H
...
244A
Handle Assembly,refrigerator L-G-AED72912002

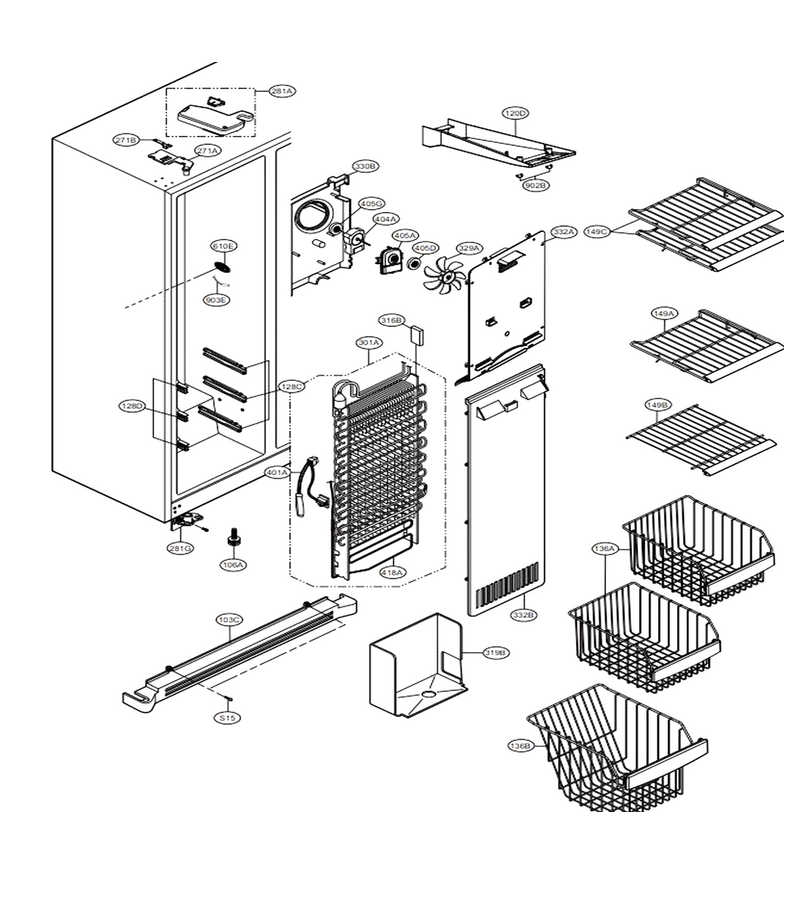

Freezer Compartment

...
...
S15
Refrigerator Screw L-G-4J00415D
...
103C
Refrigerator Toe Grille L-G-3550JJ0073D
...
106A
Refrigerator Leveling Leg L-G-4779JA3001E
...
120D
Refrigerator Multi Duct L-G-ADJ56976201
...
128C
Guide,rail L-G-4974JA1084D
...
128D
Guide,rail L-G-4974JA1084C
...
136A
Tray Assembly,drawer L-G-AJP73034602
...
136B
Tray Assembly,drawer L-G-AJP73034601
...
149A
Shelf Assembly,freezer L-G-AHT73014002
...
149B
Shelf Assembly,freezer L-G-5027JJ1100M
...
149C
Shelf Assembly,freezer L-G-AHT73014001
...
271A
Refrigerator Door Hinge, Upper L-G-4775JA2105A
...
271B
Refrigerator Door Hinge Pin L-G-4510JA3004A
...
281A
Cover Assembly,hinge L-G-ACQ77080305
...
281G
Refrigerator Door Hinge L-G-4775JA2104A
...
301A
Refrigerator Evaporator Assembly L-G-ADL72916201
...
316B
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003M
...
319B
Refrigerator Freezer Evaporator Drip Tray L-G-3391JA2036A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JA1022A
...
330B
Freezer Shroud Assembly L-G-4999JJ2004D
...
332A
Grille Assembly,fan L-G-3531JJ1010E
...
332B
Refrigerator Evaporator Cover L-G-3531JJ1011E
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2002R
...
404A
Refrigerator Evaporator Fan Motor L-G-4681JB1029A
...
405A
Resin,pp L-G-8PPP6400001
...
405D
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405G
Refrigerator Motor Support Damper L-G-5040JA2004B
...
418A
Refrigerator Defrost Heater L-G-5300JB1102D
...
610E
Refrigerator Freezer Temperature Sensor Cover L-G-3550JA2035D
...
902B
Refrigerator Duct Cap L-G-5006JA3123A
...
903E
Refrigerator Temperature Sensor L-G-6500JK1004A

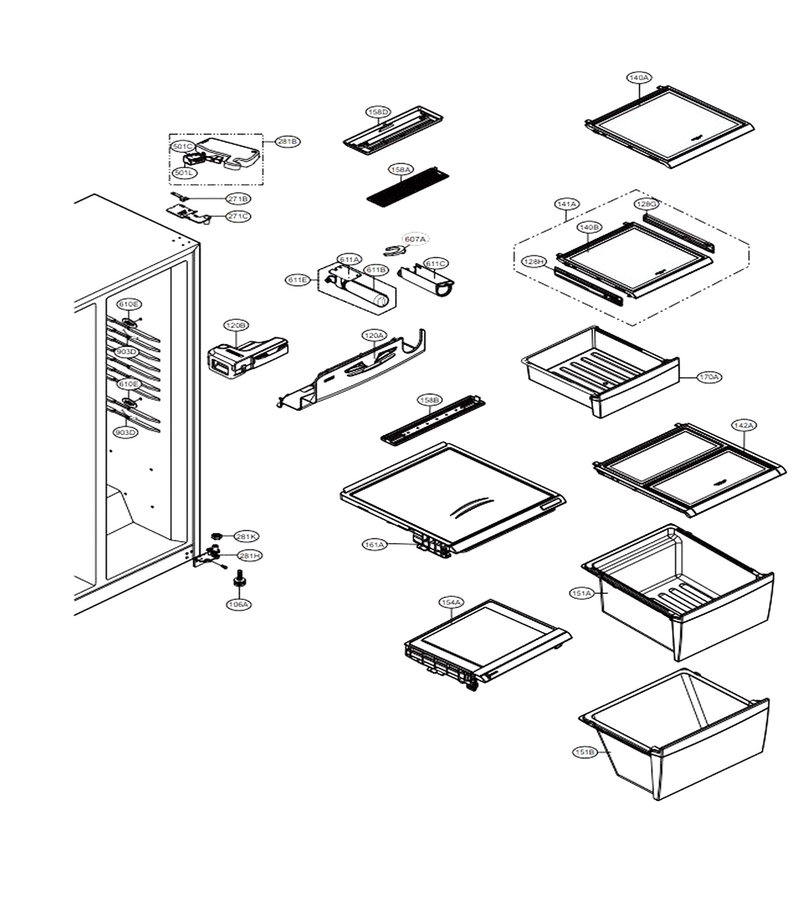

Refrigerator Compartment

...
...
106A
Refrigerator Leveling Leg L-G-4779JA3001E
...
120A
Case Assembly,control Refrigerator L-G-ABQ73205301
...
120B
Duct Assembly,insulation L-G-ADJ73052301
...
128G
Refrigerator Crisper Drawer Slide Rail L-G-MEA40002601
...
128H
Refrigerator Drawer Slide Rail L-G-MEA40002602
...
140A
Shelf,refrigerator L-G-MHL61848903
...
140B
Shelf,refrigerator L-G-MHL61848904
...
141A
Shelf Assembly,refrigerator L-G-AHT72913502
...
142A
Shelf Assembly,refrigerator L-G-AHT72913602
...
151A
Tray Assembly,vegetable L-G-AJP72913602
...
151B
Tray Assembly,vegetable L-G-AJP72913703
...
154A
Cover Assembly,tray L-G-ACQ74897404
...
158A
Cover,lamp L-G-MCK37764501
...
158B
Cover Assembly,lamp L-G-ACQ77095901
...
158D
Cover Assembly,lamp L-G-ACQ33351007
...
161A
Cover Assembly,tray L-G-ACQ74897302
...
170A
Tray Assembly,snack L-G-AJP72913502
...
271B
Refrigerator Door Hinge Pin L-G-4510JA3004A
...
271C
Refrigerator Door Hinge L-G-4775JA2084A
...
281B
Cover Assembly,hinge L-G-ACQ77080306
...
281H
Refrigerator Door Hinge L-G-4775JA2113A
...
281K
Refrigerator Nut L-G-1NZZJA3023A
...
501C
Pcb Assembly,sub L-G-EBR64730402
...
501L
Case,pcb L-G-MBN62085601
...
607A
Refrigerator Water Tubing Clip L-G-4930JA3091A
...
610E
Refrigerator Freezer Temperature Sensor Cover L-G-3550JA2035D
...
611A
Refrigerator Water Filter Head L-G-5230JA2003A
...
611B
Filter Assembly,water L-G-5231JA2006E
...
611C
Cover,filter L-G-3550JL1008G
...
611E
Filter Assembly,head L-G-5231JA2005E
...
903D
Refrigerator Temperature Sensor Cover L-G-6500JK1003A

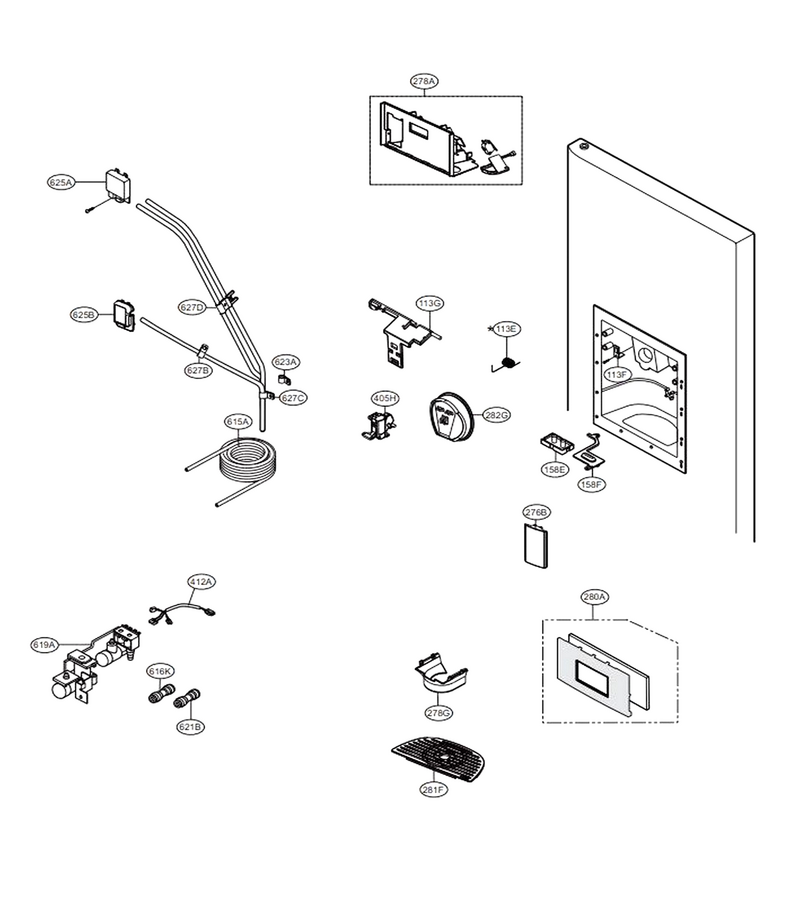

Ice & Water Part

...
...
113E
Refrigerator Spring L-G-4970JA3011C
...
113F
Refrigerator Dispenser Lever Bracket L-G-4930JA3043A
...
113G
Refrigerator Dispenser Lever L-G-MFC62049501
...
158E
Case Assembly,pcb L-G-ABQ73082002
...
158F
Cover,led L-G-MCK62545801
...
276B
Button,lever L-G-MBG62102105
...
278A
Refrigerator Dispenser Ice Chute Funnel Assembly L-G-ADW34028006
...
278G
Refrigerator Dispenser Ice Chute Funnel L-G-MDR61841905
...
280A
Cover Assembly,display L-G-ACQ76909402
...
281F
Decor,drain L-G-MCR61988605
...
282G
Refrigerator Dispenser Ice Chute Door L-G-ABN72909904
...
405H
Refrigerator Auger Motor Run Capacitor L-G-EAU59551201
...
412A
Refrigerator Wire Harness L-G-6877JB3053D
...
615A
Refrigerator Water Tank L-G-MJM61904704
...
616K
Connector,tube L-G-MCD61866801
...
619A
Valve Assembly,water L-G-AJU34125535
...
621B
Refrigerator Water Tube Fitting L-G-MCD61866802
...
623A
Refrigerator Water Tubing Holder L-G-4770JA3001A
...
625A
Refrigerator Water Supply Tube Cover L-G-3550JA2184A
...
625B
Refrigerator Water Tubing Guide L-G-ACQ85694901
...
627B
Refrigerator Water Tubing Holder L-G-4770JA3001E
...
627C
Refrigerator Band L-G-4770JA3001B
...
627D
Refrigerator Water Filter Housing Water Supply ... L-G-MEG42758601

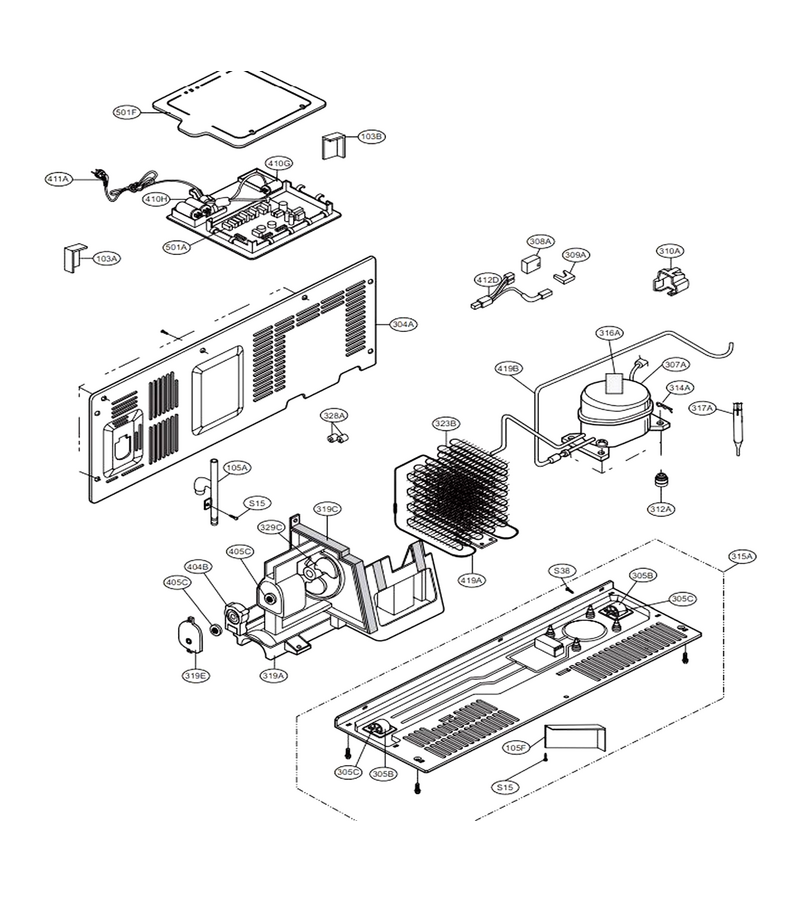

Machine Compartment

...
...
S15
Refrigerator Screw L-G-4J00415D
...
S38
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
103A
Refrigerator Handle L-G-3650JA3041Y
...
103B
Refrigerator Door Handle L-G-MEB64014305
...
105A
Refrigerator Handle L-G-3650JA3041Z
...
105F
Refrigerator Lower Skirt L-G-5070JJ3004C
...
304A
Refrigerator Cover Assembly L-G-3551JA1071A
...
305B
Refrigerator Roller L-G-4580JA3024B
...
305C
Refrigerator Roller Wheel Pin L-G-1PZZJA3013A
...
307A
Refrigerator Compressor L-G-TCA31748011
...
308A
Refrigerator Thermistor L-G-EBG42993602
...
309A
Refrigerator Compressor Overload Protector L-G-EAF39584205
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550C-0042C
...
312A
Refrigerator Compressor Grommet L-G-5040JA3031A
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Compressor Base Assembly L-G-3103JJ1004B
...
316A
Refrigerator Refrigerant Line Noise Damper L-G-5072JA3003F
...
317A
Refrigerator Filter Dryer L-G-5851JA2007A
...
319A
Refrigerator Drain Pan L-G-3390JJ1109A
...
319C
Refrigerator Fan Guid L-G-4974JJ1053A
...
319E
Refrigerator Motor Cover L-G-3550JA2147A
...
323B
Condenser Assembly,wire L-G-5403JA1003C
...
328A
Refrigerator Condenser Fan Motor Damper L-G-4J03020A
...
329C
Refrigerator Evaporator Fan Blade L-G-5901JA1022A
...
404B
Refrigerator Condenser Fan L-G-4681JB1029B
...
405C
Refrigerator Condenser Fan Motor Damper L-G-5040JA2004A
...
410G
Refrigerator Run Capacitor L-G-J513-00012P
...
410H
Refrigerator Run Capacitor L-G-0CZZJB2010H
...
411A
Refrigerator Power Cord L-G-EAD56779012
...
412D
Refrigerator Compressor Harness Connector L-G-6877JB2040H
...
419A
Pipe Joint L-G-5200JA1019A
...
419B
Pipe,joint L-G-MGE58810303
...
501A
Pcb Assembly,main L-G-EBR64734401
...
501F
Cover Assembly,pcb L-G-ACQ85612406
