LG 495934.ASTCNA7

Model: 495934.ASTCNA7

Save Part Not Listed?
product name

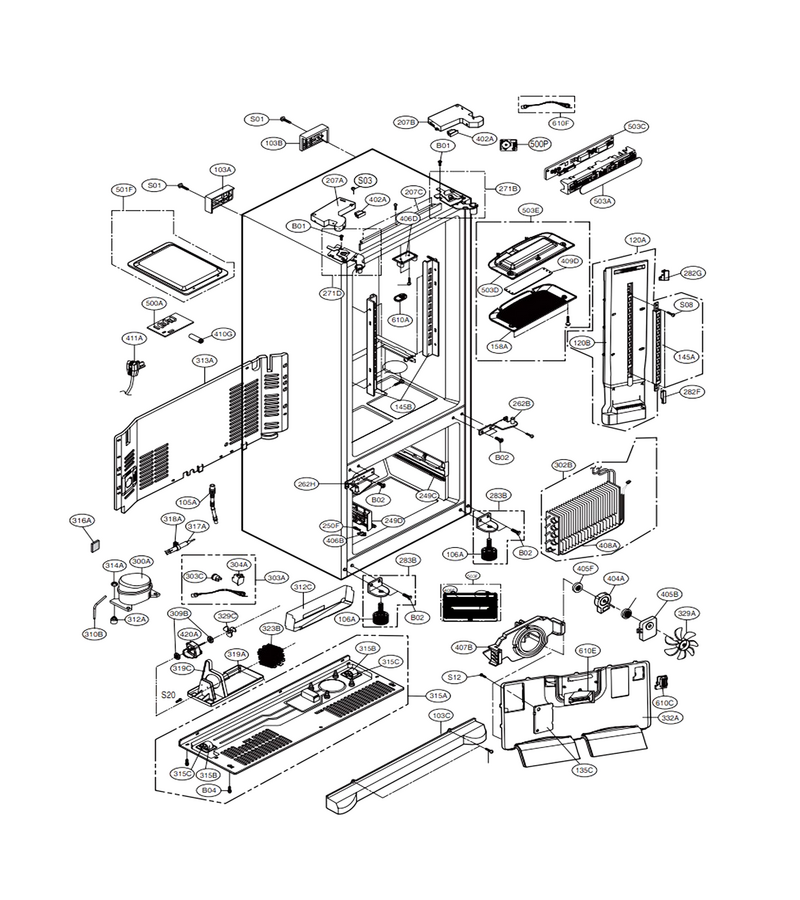

Case Parts

...
...
B01
Screw,customized L-G-1SZZJQ3009A
...
B02
Screw,customized L-G-1SZZJQ3002R
...
B04
Bolt,common L-G-1BZZJQ2001H
...
S03
Refrigerator Screw L-G-1SZZJQ2002B
...
103A
Refrigerator Rear Handle L-G-3650JA2061X
...
103B
Refrigerator Rear Handle L-G-3650JA2061W
...
103C
Cover Assembly,lower L-G-ACQ85891306
...
105A
Tube Assembly L-G-AJR74125001
...
106A
Refrig Leg L-G-AFC73349801
...
120A
Duct Assembly,multi L-G-ADJ73852108
...
120B
Refrigerator Multi Duct L-G-MCZ42230901
...
135C
Refrigerator Grille Cover L-G-3550JA2263B
...
145A
Refrigerator Shelf Holder L-G-MEG63100001
...
145B
Refrigerator Shelf Holder L-G-MEG63060501
...
158A
Refrigerator Light Cover L-G-MCK38019301
...
207A
Cover,hinge L-G-MCK68187602
...
207B
Cover,hinge L-G-MCK68412401
...
207C
Case Assembly,display L-G-ABQ74229101
...
249C
Holder,rail L-G-MEG61878402
...
249D
Holder,rail L-G-MEG61878401
...
250F
Harness Assembly L-G-EAD62089801
...
262B
Hinge Assembly,center L-G-AEH71135365
...
262H
Hinge Assembly,center L-G-AEH71135372
...
271B
Refrigerator Door Hinge, Upper L-G-AEH74216502
...
271D
Refrigerator Hinge Assembly, Upper L-G-AEH74216501
...
282F
Refrigerator Duct Cap L-G-5006JA3111A
...
282G
Refrigerator Duct Cap L-G-MBL38019501
...
283B
Hinge Assembly,lower L-G-AEH74216601
...
300A
Compressor,set Assembly L-G-TCA35893202
...
302B
Evaporator Assembly L-G-ADL73741411
...
303A
Thermistor Assembly,ptc L-G-EBG61486618
...
303C
Refrigerator Overload Protector L-G-6750CL0001C
...
304A
Cover,ptc L-G-3550JA2110D
...
309B
Refrigerator Damper Motor L-G-MCQ65884301
...
310B
Pipe Joint L-G-5200JQ3002E
...
312A
Damper,compressor L-G-MCQ67247501
...
312C
Tray Assembly,drain L-G-AJP73574402
...
313A
Refrigerator Machine Compartment Cover L-G-ACQ85930901
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Refrigerator Base Assembly L-G-AAN74109204
...
315B
Refrigerator Roller L-G-MHA62513601
...
315C
Pin L-G-1PZZJQ3018D
...
316A
Damper,noise L-G-5072JQ3002F
...
317A
Refrigerator Filter Dryer L-G-ADH69749103
...
318A
Drier Holder L-G-4930JQ3020F
...
319A
Refrigerator Defrost Drain Pan L-G-MJS62591901
...
319C
Refrigerator Fan Guide L-G-MEA63170401
...
323B
Refrigerator Condenser Coil L-G-ACG73784701
...
329A
Fan Assembly L-G-ADP73694301
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665701
...
332A
Grille Assembly,fan L-G-AEB74004904
...
404A
Motor,dc L-G-EAU63103209
...
405B
Refrigerator Evaporator Fan Motor Bracket L-G-4810JA2129B
...
405C
Refrigerator Evaporator Fan Motor Grommet L-G-5040JQ2002B
...
406B
Refrigerator Push Button Switch L-G-6600JR1002L
...
406D
Refrigerator Door Closure L-G-MEG61899901
...
407B
Refrigerator Bracket L-G-4810JJ0003B
...
408A
Heater,sheath L-G-5300JK1005Z
...
409D
Led Assembly L-G-EAV62052204
...
410G
Refrigerator Capacitor L-G-EAE32501010
...
420A
Motor,dc L-G-EAU63103202
...
500A
Pcb Assembly,main L-G-EBR83845034
...
501F
Refrigerator Power Control Board Cover L-G-ACQ86388101
...
503A
Decor,control L-G-MCR63407301
...
503C
Pcb Assembly,display L-G-EBR42479321
...
503D
Refrigerator Light Housing L-G-MBN38018601
...
503E
Cover Assembly,lamp L-G-ACQ85930606
...
503F
Cover Assembly,lamp L-G-ACQ87128801
...
610A
Refrigerator Temperature Sensor Cover L-G-3550JA2247A
...
610C
Refrigerator Temperature Sensor L-G-6500JB2002X
...
610E
Refrigerator Evaporator Cover L-G-3530JJ0007A
...
610F
Pcb Assembly L-G-EBR71326804

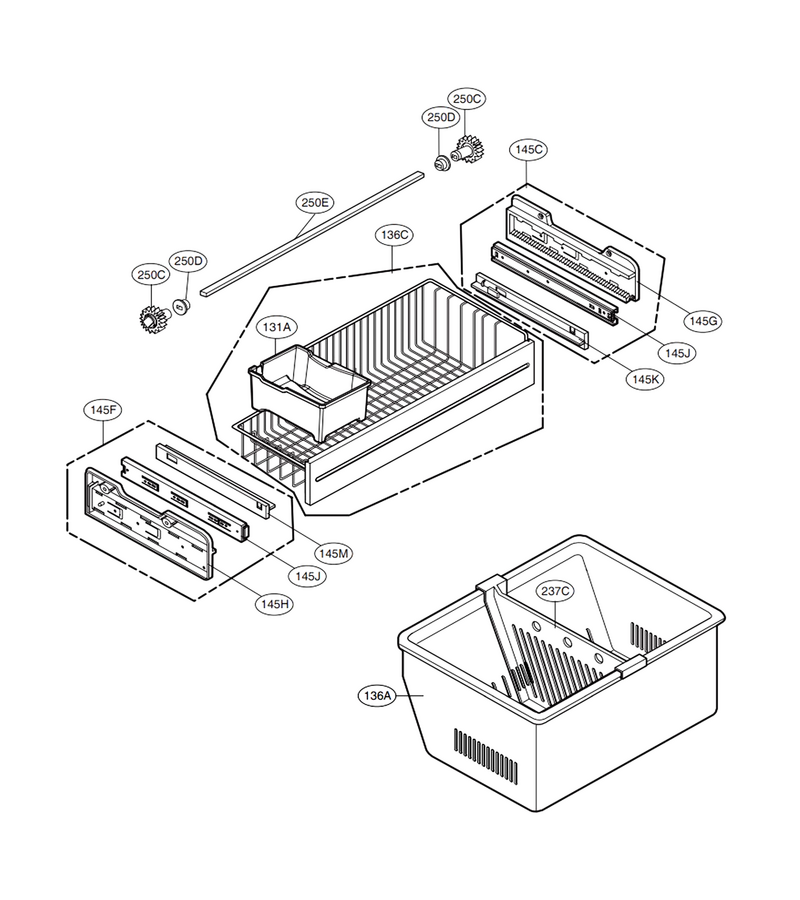

Freezer Parts

...
...
131A
Bucket,ice L-G-MKK61841901
...
136A
Tray Assembly,drawer L-G-AJP73934402
...
136C
Tray Assembly,drawer L-G-AJP73934506
...
145C
Guide Assembly,rail L-G-AEC73877609
...
145F
Guide Assembly,rail L-G-AEC73877608
...
145G
Guide,rail L-G-4974JA1153B
...
145H
Guide,rail L-G-4974JA1153A
...
145J
Rail,slide L-G-5218JA1008B
...
145K
Connector,rail L-G-MCD63627402
...
145M
Connector,rail L-G-MCD63627401
...
237C
Refrigerator Dispenser Drip Tray L-G-4974JJ1032A
...
250C
Gear,ice L-G-4470JA2008A
...
250D
Cap,cover L-G-5006JA2069A
...
250E
Bar L-G-MAK62707101

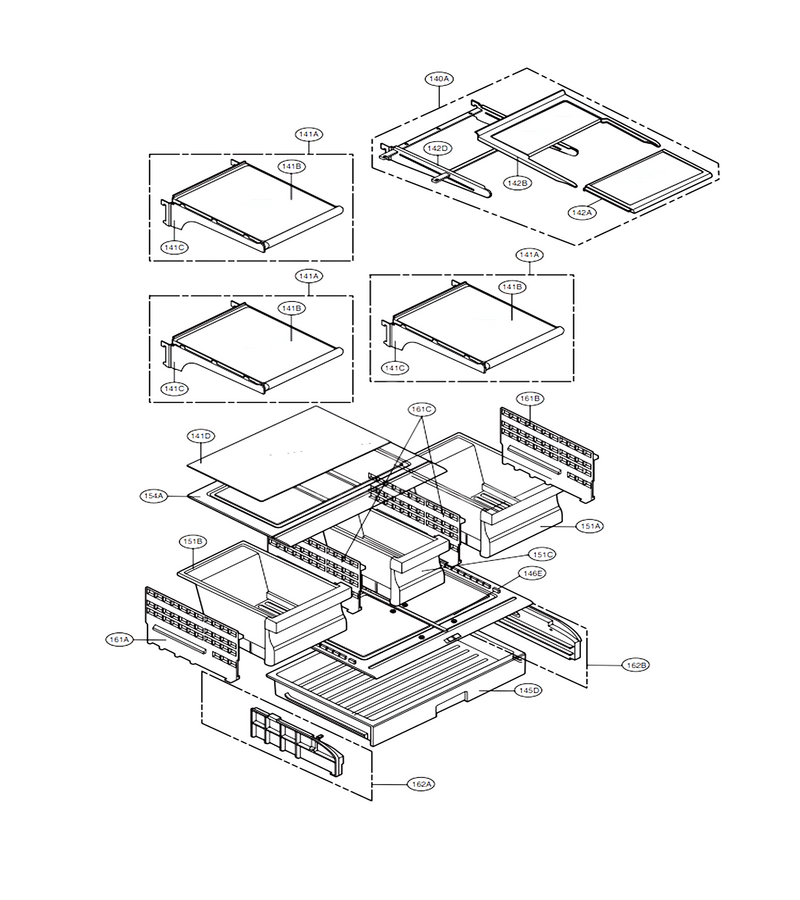

Refrigerator Parts

...
...
140A
Shelf Assembly,refrigerator L-G-AHT73773803
...
141A
Shelf Assembly,refrigerator L-G-AHT73734105
...
141B
Shelf Assembly,refrigerator L-G-AHT73733906
...
141C
Shelf Assembly,net L-G-AHT73734003
...
141D
Shelf,glass L-G-MHL62931403
...
142A
Shelf Assembly,refrigerator L-G-AHT73753904
...
142B
Shelf Assembly,refrigerator L-G-AHT73734301
...
142D
Shelf Assembly,net L-G-AHT73734002
...
145D
Tray Assembly,fresh Room L-G-AJP73874602
...
146E
Cover Assembly,tray L-G-ACQ86509719
...
151A
Tray Assembly,vegetable L-G-AJP73914507
...
151B
Tray Assembly,vegetable L-G-AJP73914508
...
151C
Tray Assembly,vegetable L-G-AJP73914506
...
154A
Cover Assembly,tv L-G-ACQ86549514
...
161A
Guide Assembly,tv L-G-AEC73877405
...
161B
Guide Assembly,tv L-G-AEC73877404
...
161C
Roller Assembly L-G-AHJ71691009
...
162A
Guide Assembly,rail L-G-AEC73857403
...
162B
Guide Assembly,rail L-G-AEC73857404

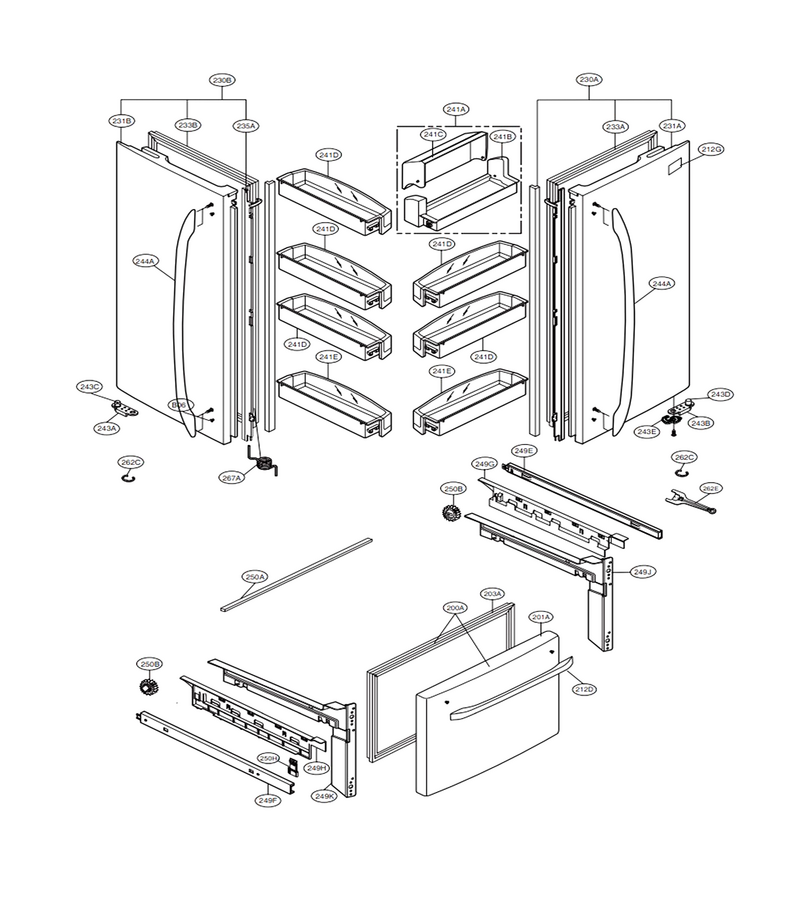

Door Parts

...
...
B06
Refrigerator Door Handle Mounting Bolt L-G-MJB63190001
...
200A
Door Assembly,freezer L-G-ADC74125617
...
201A
Door Foam Assembly,freezer L-G-ADD73995802
...
203A
Gasket,door L-G-MDS64172922
...
212D
Handle Assembly,freezer L-G-AED37133142
...
212G
Refrigerator Nameplate L-G-MFT62346511
...
230A
Door Assembly,refrigerator(right) L-G-ADC74185513
...
230B
Door Assembly,refrigerator(left) L-G-ADC74186211
...
231A
Door Foam Assembly,refrigerator L-G-ADD73995920
...
231B
Door Foam Assembly,refrigerator L-G-ADD73996510
...
233A
Gasket Assembly,door L-G-ADX73550627
...
233B
Gasket Assembly,door L-G-ADX73550628
...
235A
Plate Assembly,front L-G-AGU74110901
...
241A
Basket Assembly,door L-G-AAP73631301
...
241B
Basket,door L-G-MAN62608201
...
241C
Basket,window L-G-MAN62608301
...
241D
Basket Assembly,door L-G-AAP73871501
...
241E
Basket Assembly,door L-G-AAP73871601
...
243A
Stopper Assembly,door L-G-AJC73112302
...
243B
Refrigerator Door Stop L-G-AJC73112301
...
243C
Hinge Assembly,center L-G-AEH36821905
...
243D
Refrigerator Hinge Cam L-G-MBJ62121901
...
243E
Refrigerator Door Stop L-G-4620JJ2009A
...
244A
Handle Assembly,refrigerator L-G-AED73593202
...
249E
Rail,slide L-G-5218JA1009E
...
249F
Rail,slide L-G-5218JA1009F
...
249G
Cover,connector L-G-3550JA1456C
...
249H
Cover,connector L-G-3550JA1456D
...
249J
Connector,rail L-G-MCD38084204
...
249K
Connector,rail L-G-MCD38084203
...
250A
Bar L-G-MAK62627102
...
250B
Gear,ice L-G-MDT62647901
...
250H
Button,lever L-G-MBG62013801
...
262C
Refrigerator Ring L-G-MGZ62766901
...
262E
Refrigerator Spanner L-G-MHU61981201
...
267A
Refrigerator Spring L-G-MHY62044106

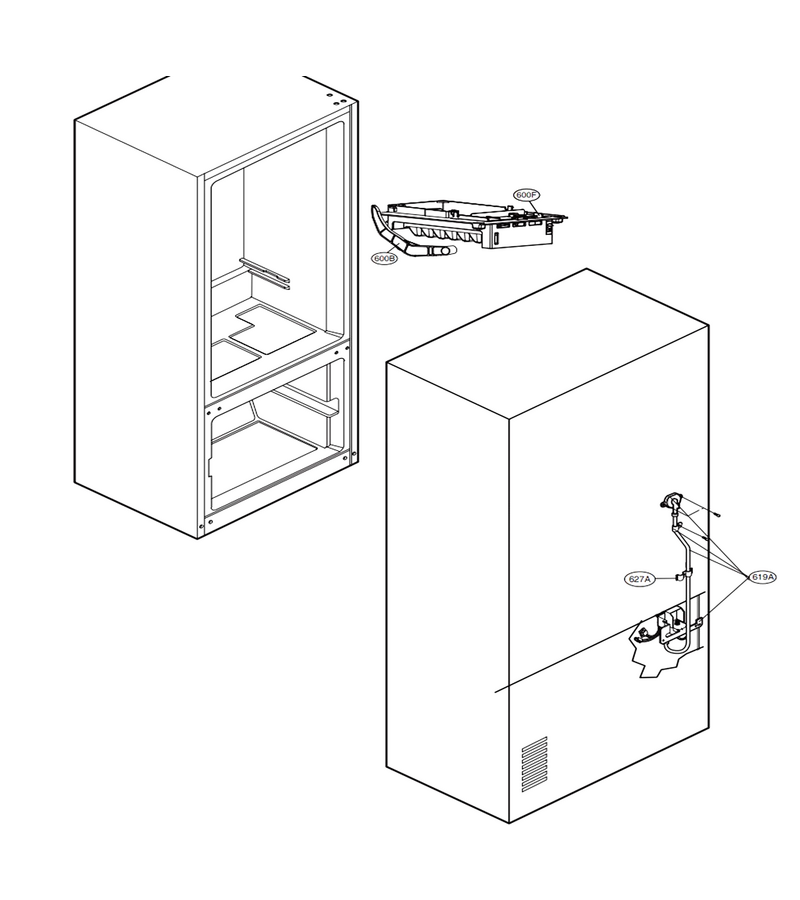

Water And Icemaker Parts

...
...
600B
Refrigerator Ice Maker Shut-Off Arm L-G-4510JA3003D
...
600F
Ice Maker Assembly,kit L-G-AEQ72909604
...
619A
Valve Assembly,water L-G-AJU72911105
...
627A
Holder Pipe L-G-MEG63263001
