product name

LG 48231015899.ALBEEUS

Model: 48231015899.ALBEEUS

Save Part Not Listed?

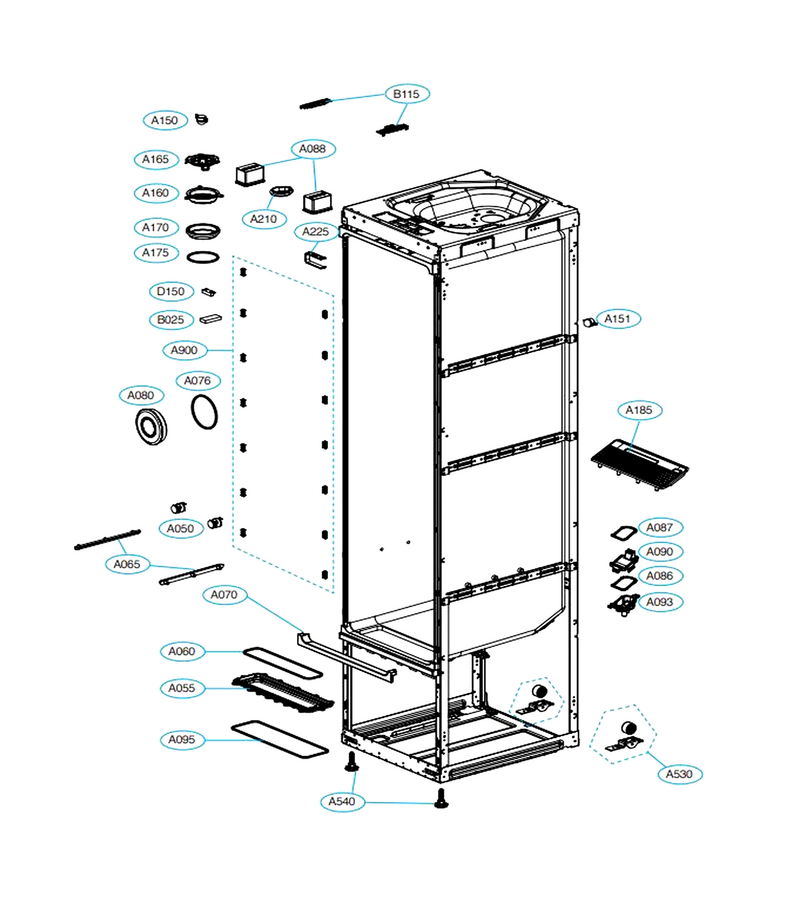

product name

Main 1

...
...
A050
Holder L-G-MEG62039101
...
A055
Guide Cover L-G-MCK67968901
...
A060
Gasket L-G-MDS62912128
...
A065
Supporter,holder L-G-MJH61958901
...
A070
Water Guide L-G-MEA63510101
...
A076
Gasket L-G-MDS62912104
...
A080
Display Window L-G-MKC64799302
...
A088
Supporter,holder L-G-MJH63294201
...
A095
Gasket L-G-MDS62912127
...
A150
Lamp,incandescent L-G-EAQ60660308
...
A151
Incandescent Lamp L-G-EAQ60660303
...
A160
Lamp Cover L-G-MCK62185601
...
A165
Supporter,holder L-G-MJH62014301
...
A170
Decor,guard L-G-MCR62353101
...
A175
Gasket L-G-MDS62912101
...
A185
Grille L-G-MDX63132402
...
A210
Gasket L-G-MDS62133701
...
A225
Cap Cover L-G-MBL65896901
...
A530
Refrigerator Roller L-G-4J03500A
...
A540
Laundry Appliance Pedestal Leveling Leg Assembly L-G-AFC72755402
...
A900
Holder Assembly L-G-AEJ75520601
...
B025
Magnet,ndfeb L-G-5016EA4002C
...
B115
Holder L-G-MEG61963201
...
D150
Multi Harness L-G-6601EA2001N

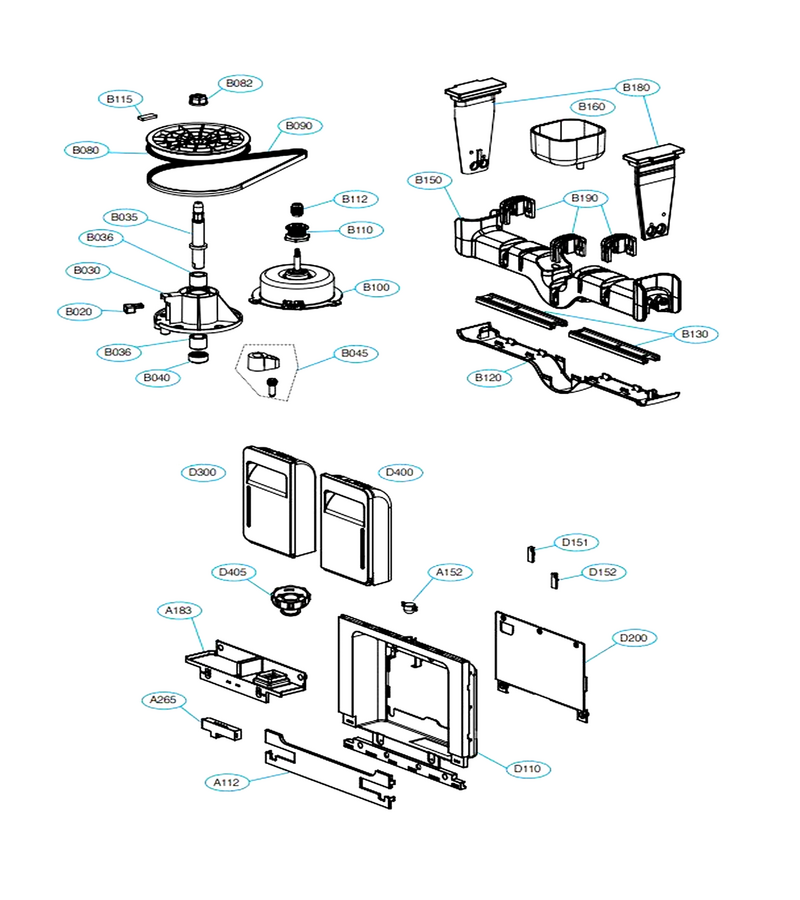

Main 2

...
...
A112
Decor,door L-G-MCR68148801
...
A152
Lamp,incandescent L-G-EAQ60660309
...
A183
Lower Cover L-G-MCK67969001
...
B020
Sensor Assembly L-G-6501ED4001G
...
B030
Bearing Housing Assembly L-G-AEN72911401
...
B035
Spin Shaft L-G-MHJ61847501
...
B036
Ring,c L-G-4W50523A
...
B040
Gasket L-G-4036EA3003A
...
B045
Roller Shaft L-G-MHJ61847601
...
B080
Idle Pulley L-G-MGN61841301
...
B082
Drawer Nut L-G-4020FA3041B
...
B090
Belt,v L-G-MAS61863901
...
B100
Dryer Blower Motor L-G-4681ER1007A
...
B110
Motor Pulley L-G-MGN61841401
...
B112
Common Nut L-G-1NZZER3001A
...
B115
Holder L-G-MEG61963201
...
B120
Decor,frame L-G-MCR65328301
...
B130
Frame,body L-G-MDQ63759302
...
B150
Hanger,upper L-G-MEC62664901
...
B160
Guide,roller Supporter L-G-MEA63510001
...
B180
Holder Assembly L-G-AEJ72914601
...
B190
Holder L-G-MEG63678701
...
D110
Decor,frame L-G-MCR65328501
...
D151
Lid Switch Assembly L-G-6601EA2001X
...
D152
Lid Switch Assembly L-G-6601EA2001W
...
D200
Rear Cover Assembly L-G-ACQ87474002
...
D300
Water Tank Assembly L-G-AJL74012002
...
D400
Water Tank Assembly L-G-AJL74011902
...
D405
Connector,hose L-G-MCD61843101

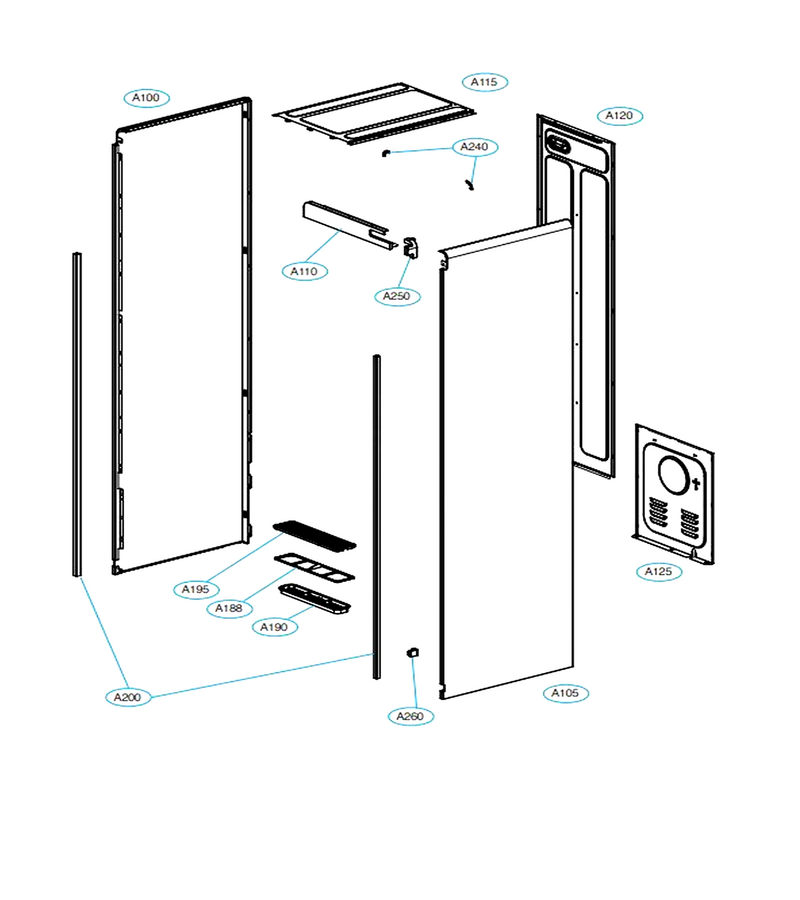

Main 3

...
...
A100
Cabinet Assembly L-G-ABJ74427605
...
A105
Cabinet Assembly L-G-ABJ74427706
...
A110
Bracket Assembly L-G-ABA74988701
...
A115
Top Cover L-G-MCK67969401
...
A120
Cover Assembly, Rear L-G-ACQ87264801
...
A125
Rear Cover L-G-MCK67969301
...
A188
Filter Assembly,mesh L-G-ADQ74073201
...
A190
Connector Duct L-G-MCZ63191701
...
A195
Grille L-G-MDX63113001
...
A200
Decor,side L-G-MCR65328402
...
A240
Cap Cover L-G-MBL65818001
...
A250
Cap Cover L-G-MBL65817801
...
A260
Cap Cover L-G-MBL65817901

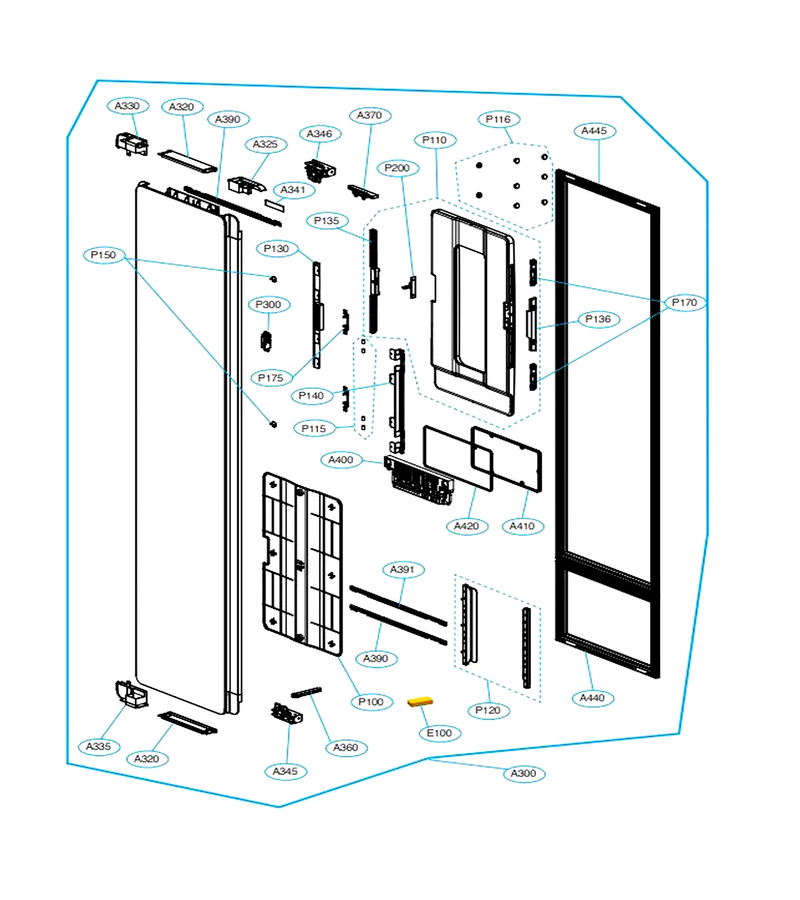

Main 4

...
...
A300
Door Assembly L-G-ADC74546003
...
A320
Protect Cover L-G-MCK68025901
...
A325
Cap Cover L-G-MBL66337401
...
A330
Cap Cover L-G-MBL66337101
...
A335
Cap Cover L-G-MBL66337201
...
A341
Decor,frame L-G-MCR68187501
...
A345
Hinge L-G-MEF62482401
...
A346
Hinge L-G-MEF62482501
...
A360
Slider L-G-MHS62222301
...
A370
Cap Cover L-G-MBL65778001
...
A390
Holder L-G-MEG63659001
...
A391
Holder L-G-MEG63658901
...
A400
Display Pcb Assembly L-G-EBR78555615
...
A410
Guide Cover L-G-MCK68026001
...
A420
Gasket L-G-MDS62912109
...
A440
Gasket L-G-MDS64510903
...
A445
Gasket L-G-MDS64510904
...
E100
Magnet,ndfeb L-G-5016EA4001B
...
P100
Side Plate L-G-MGJ64121501
...
P110
Door Assembly L-G-ADC74585502
...
P115
Bush L-G-4830ER4002A
...
P116
Cap Screw L-G-MBL64820202
...
P120
Guide Cover L-G-MCK68026101
...
P130
Cap Cover L-G-MBL65997001
...
P135
Lock Holder L-G-MEG63818601
...
P136
Lock Holder L-G-MEG64178801
...
P140
Cap Cover L-G-MBL65997101
...
P150
Cap Screw L-G-MBL65478502
...
P170
Hinge L-G-MEF63022001
...
P175
Hinge Bracket L-G-MAZ64264101
...
P200
Hook Locker L-G-MFG63358601
...
P300
Door Catch L-G-AFK73529601

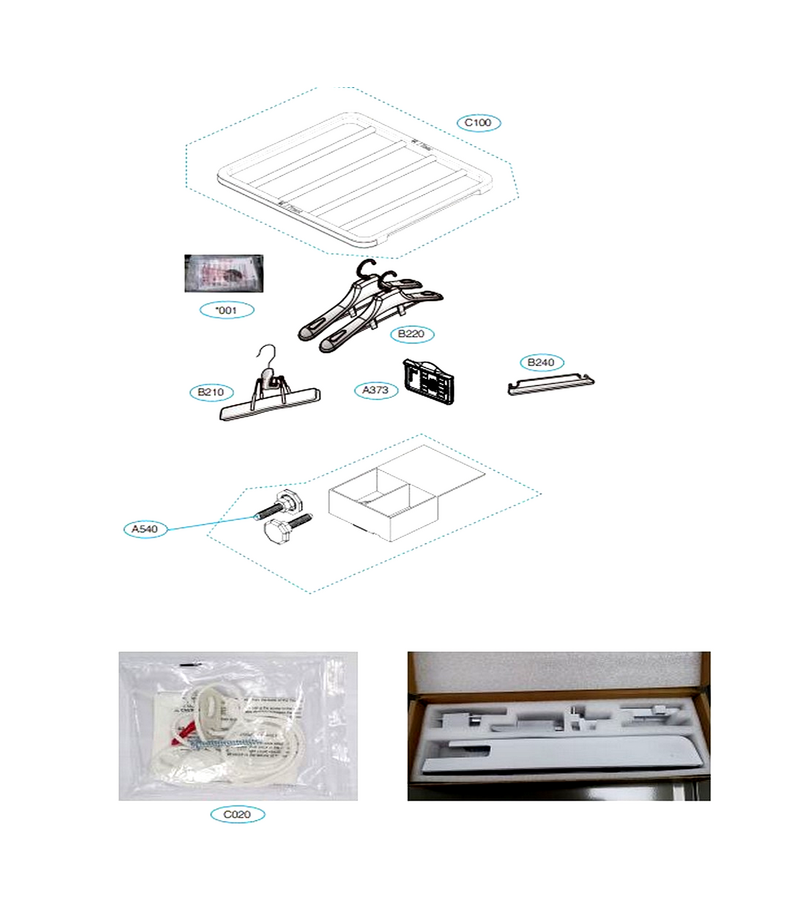

Main 5

...
...
*001
Manual Assembly,owners L-G-AFN77812835
...
A373
Holder Assembly L-G-AEJ74219501
...
A540
Laundry Appliance Pedestal Leveling Leg Assembly L-G-AFC72755402
...
B210
Hanger Assembly L-G-AEE73189701
...
B220
Hanger Assembly L-G-AEE73009504
...
B240
Lower Cover L-G-MCK67970603
...
C020
Assembly Accessory L-G-AAA75904804
...
C100
Shelf Assembly L-G-AHT74073801

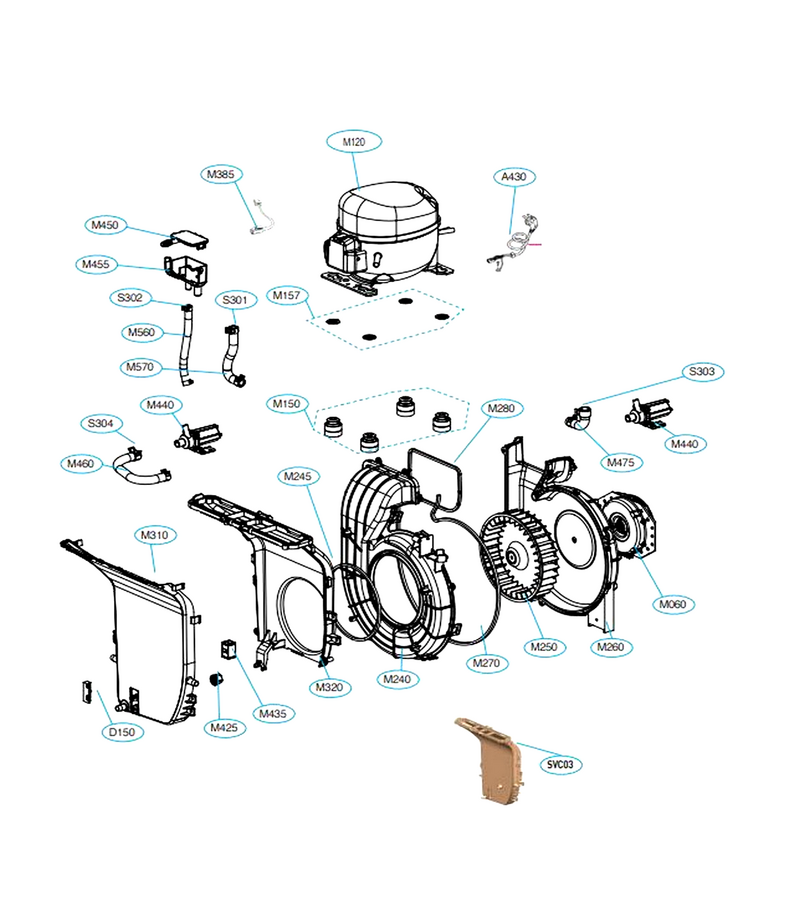

Main 6

...
...
A430
Power Cord Assembly L-G-EAD40521498
...
D150
Multi Harness L-G-6601EA2001N
...
M060
Dishwasher Pump Motor L-G-4681ED1004D
...
M120
Compressor,set Assembly L-G-TCA37511303
...
M150
Refrigerator Compressor Grommet L-G-5040JA3031A
...
M157
Stopper L-G-4J03277A
...
M240
Blower Housing L-G-MEK62926601
...
M245
Gasket L-G-MDS62912114
...
M250
Impeller,blower L-G-MER61841501
...
M260
Blower Housing L-G-MEK62946801
...
M270
Gasket L-G-MDS62912123
...
M280
Gasket L-G-MDS62912122
...
M310
Duct,inlet L-G-MCZ63171701
...
M320
Duct,inlet L-G-MCZ63132001
...
M385
Multi Harness L-G-EAD61029003
...
M425
Filter L-G-MDJ62664301
...
M435
Float Assembly L-G-ADS73089101
...
M440
Motor Assembly,dc,pump L-G-EAU61503501
...
M450
Connector,nozzle L-G-MCD61843001
...
M455
Holder L-G-MEG61870601
...
M460
Hose Connector L-G-MEJ61904915
...
M475
Hose,pump L-G-MEJ61904812
...
M560
Pump Hose L-G-MEJ61904808
...
M570
Pump Hose L-G-MEJ61904809
...
S301
Washer Hose Clamp L-G-4861FR3068A
...
S302
Clamp L-G-4861FR3068R
...
S303
Clamp L-G-4861FR3068T
...
S304
Clamp L-G-4861FR3068F
...
SVC03
Duct Assembly L-G-ADJ75052301

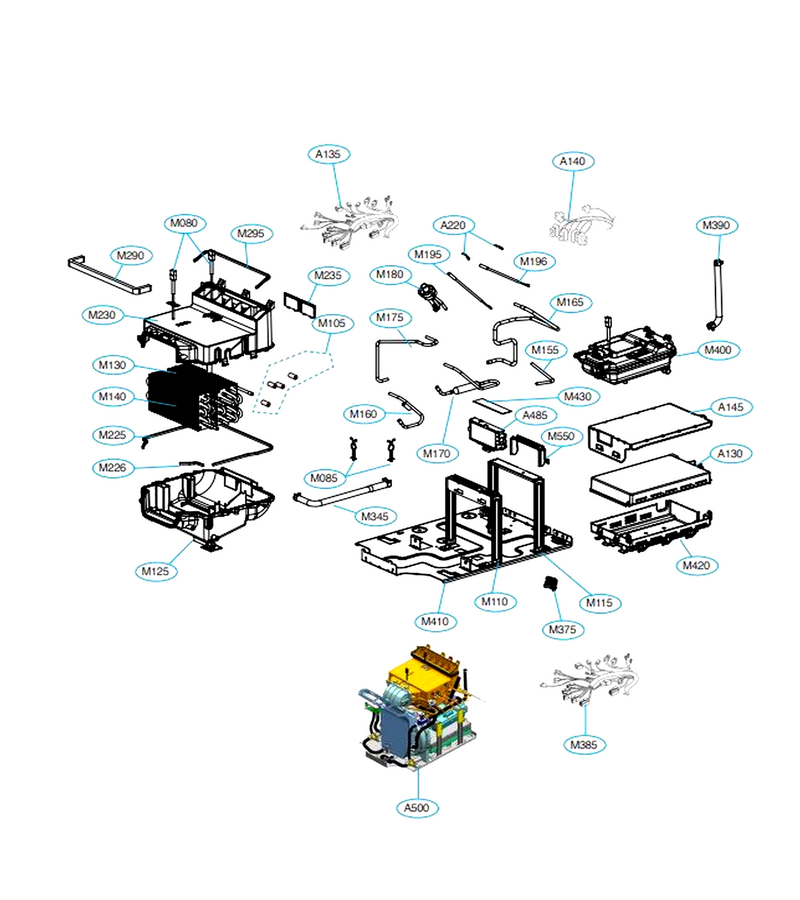

Main 7

...
...
A130
Main Pcb Assembly L-G-EBR79528102
...
A135
Multi Harness L-G-EAD61028707
...
A140
Multi Harness L-G-EAD61028504
...
A145
Protect Cover L-G-MCK67986601
...
A220
Holder Sensor L-G-4930A20053B
...
A485
Filter Assembly L-G-EAM62492305
...
A500
Cycle Assembly L-G-ACT74354602
...
M080
Heater L-G-6323ER2001A
...
M085
Holder L-G-4W40115B
...
M105
Damper L-G-MCQ68026101
...
M110
Frame,body L-G-MDQ63776701
...
M115
Frame,body L-G-MDQ63736601
...
M125
Lower Cover L-G-MCK68007401
...
M130
Condenser Assembly L-G-ACG73125307
...
M140
Evaporator Assembly L-G-ADL72941707
...
M155
Pipe L-G-MGE62212601
...
M160
Washer,common L-G-MGE62212602
...
M165
Pipe L-G-MGE62131402
...
M170
Pipe L-G-MGE62131602
...
M175
Pipe L-G-MGE62131502
...
M180
Valve Assembly,ga L-G-AJU72910202
...
M195
Thermistor L-G-EBG60806202
...
M196
Thermistor L-G-EBG60806203
...
M225
Gasket L-G-MDS62912120
...
M226
Gasket L-G-MDS62912121
...
M230
Top Cover L-G-MCK68007501
...
M235
Inner Lid L-G-MFD62041401
...
M290
Damper L-G-3940EA3001U
...
M295
Gasket L-G-MDS62912124
...
M345
Hose,overflow L-G-MEJ61905003
...
M375
Holder L-G-MEG63618901
...
M385
Multi Harness L-G-EAD61029003
...
M390
Hose Connector L-G-MEJ61904913
...
M400
Generator Assembly L-G-3111ER1001J
...
M410
Lower Frame L-G-MDQ63776601
...
M420
Protect Cover L-G-MCK67986701
...
M430
Safety Cover L-G-3550ER2010G
...
M550
Handle L-G-MEB62154201
