product name

LG 43LM5700PUA.BUSYLJM

Model: 43LM5700PUA.BUSYLJM

Save Part Not Listed?
product name

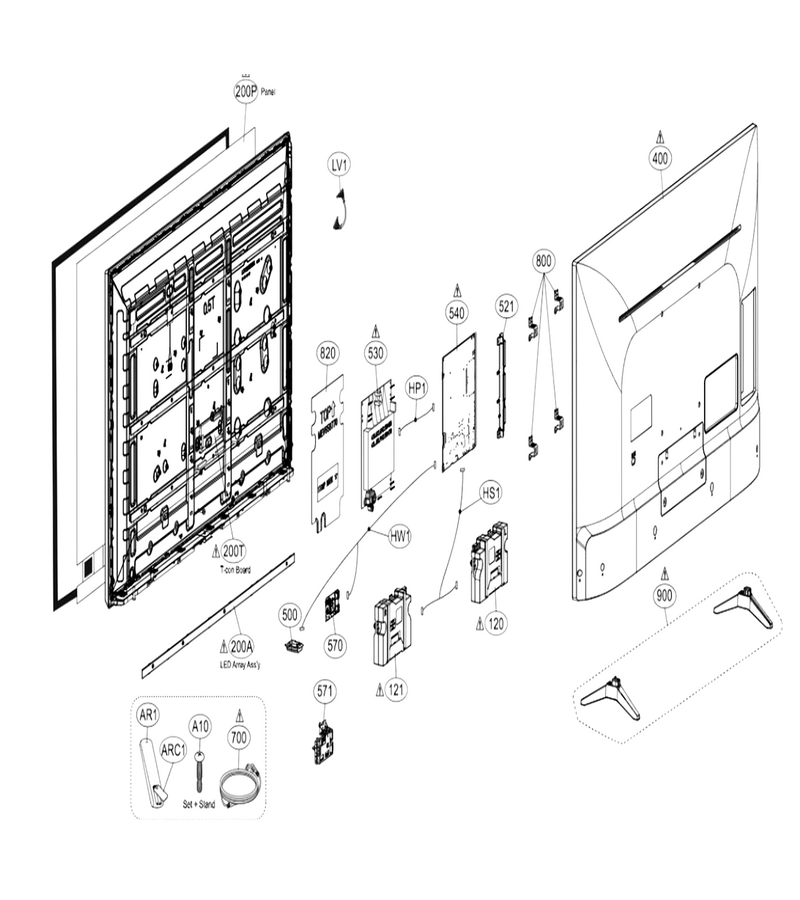

Main 1

...
...
A10
Screw,taptite L-G-FAB30006309
...
AR1
Package Assembly L-G-AGF76631076
...
ARC1
Cover L-G-MCK67552801
...
HP1
Harness,single L-G-EAD63647312
...
HS1
Harness,multi L-G-EAD64548101
...
HW1
Cable,ffc L-G-EAD65505201
...
LV1
Cable,ffc L-G-EAD63990507
...
120
Speaker Assembly L-G-EAB64488701
...
121
Speaker Assembly L-G-EAB64488702
...
200A
Package Assembly,led Array L-G-AGF78899502
...
200P
Lcd,panel-Tft L-G-EAJ63708501
...
200T
Time Control L-G-EAT63053701
...
400
Cover Assembly,rear L-G-ACQ90810107
...
500
Pcb Assembly,ir Key L-G-EBR83592701
...
521
Bracket L-G-MAZ66165223
...
530
Power Supply Assembly L-G-EAY64530001
...
540
Bpr Total Assembly L-G-EBU65672508
...
570
Module,wifi Module L-G-EAT64113202
...
571
Bracket L-G-MAZ65405104
...
700
Power Cord L-G-EAD64108402
...
800
Supporter,vesa L-G-MJH64333101
...
820
Insulator L-G-MEV66492401
...
900
Base Assembly L-G-AAN76009358

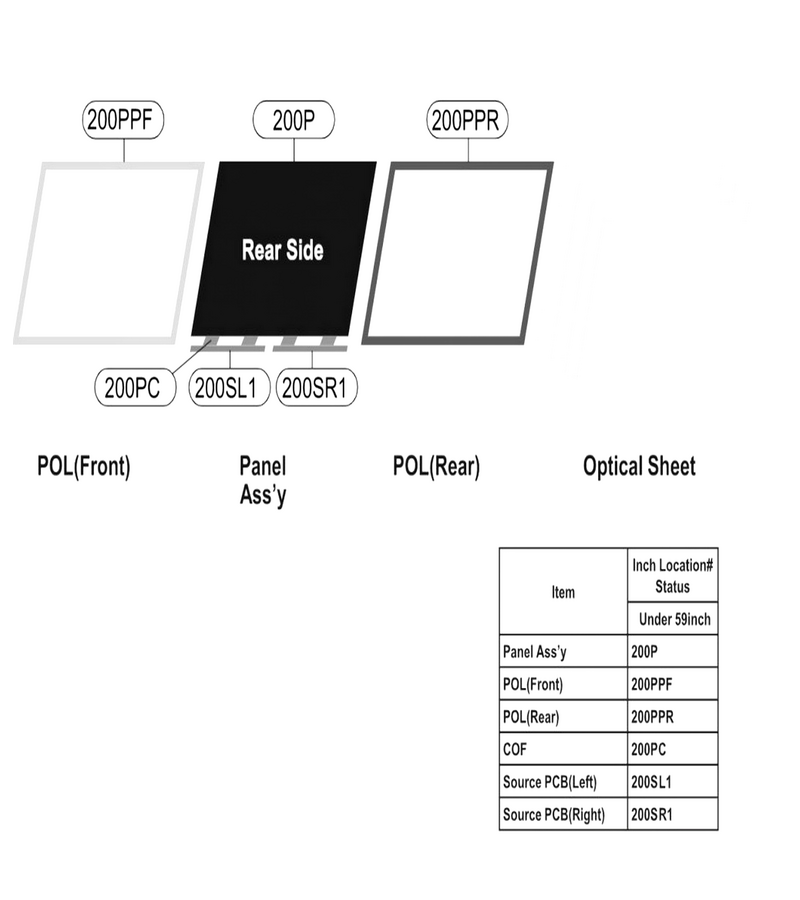

Main 2

...
...
200P
Lcd,panel-Tft L-G-EAJ63708501
...
200PC
Cof,local Sourcing Parts L-G-CLS31200601
...
200PPF
Polarizer,local Sourcing Parts L-G-CLS31283101
...
200PPR
Polarizer,local Sourcing Parts L-G-CLS31261501
...
200SL1
Source Pcb,local Sourcing Parts L-G-CLS31200401
...
200SR1
Source Pcb,local Sourcing Parts L-G-CLS31261801
