product name

LG 3WM-2533E.HM1QBAL

Model: 3WM-2533E.HM1QBAL

Save Part Not Listed?
product name

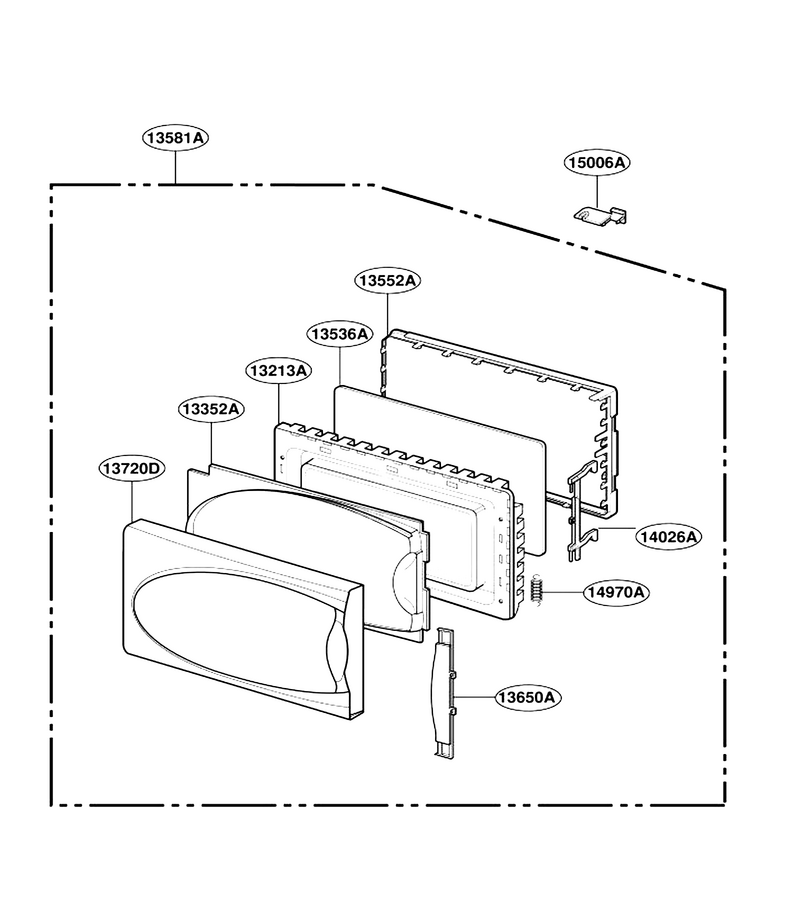

Door Parts

...
...
13213A
Frame Assembly,door L-G-3213W1A032H
...
13352A
Window,screen L-G-3352W1A101B
...
13536A
Seal Tape L-G-3536WRA001N
...
13552A
Cover,choke L-G-3552W1A029A
...
13581A
Door Assy L-G-3581W1A256A
...
13650A
Handle,door L-G-3650W1A031A
...
13720D
Panel,[door] L-G-3720W0D133X
...
14026A
Microwave Door Latch Hook L-G-4026W2A015A
...
14970A
Spring L-G-4970WRA001B
...
15006A
Cap L-G-5006W3A010A

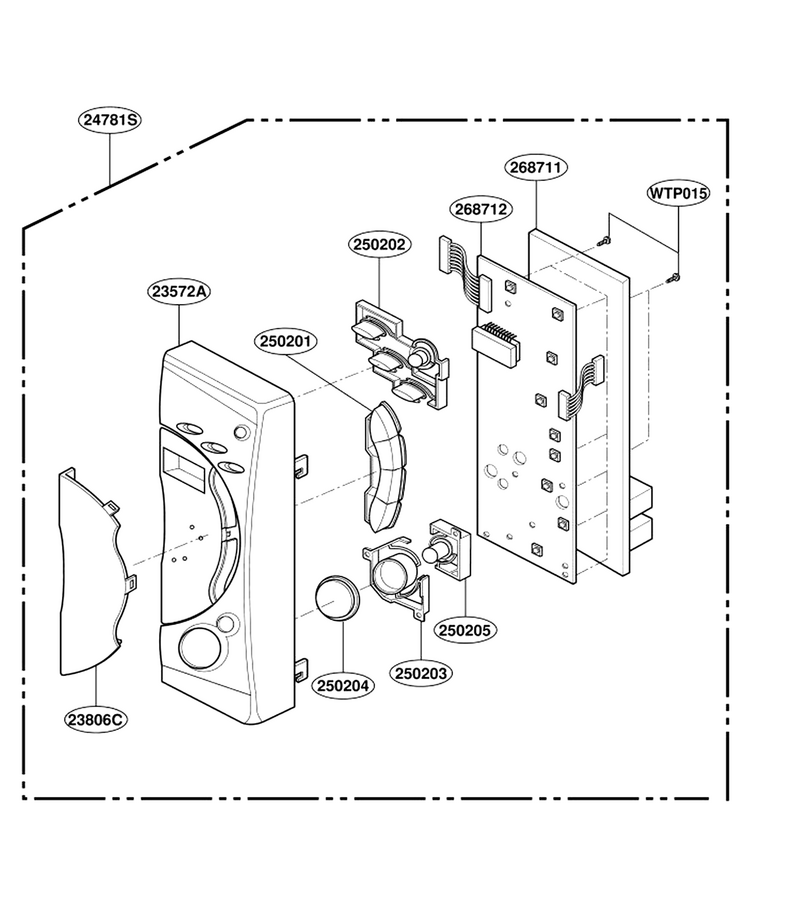

Controller Parts

...
...
23572A
Panel,control L-G-3572W0A151B
...
23806C
Decor,control Panel L-G-3806W1A003B
...
24781S
Controller Assy,[semi Micom] L-G-4781W1S060C
...
250201
Button L-G-5020W1A006B
...
250202
Button L-G-5020W2A105F
...
250203
Button L-G-5020W3A104B
...
250204
Button L-G-5020W3A097B
...
250205
Button L-G-5020W3A105B
...
268711
Pcb Assembly,sub L-G-6871W1S091N
...
268712
Pcb Assembly,sub L-G-6871W2S134B

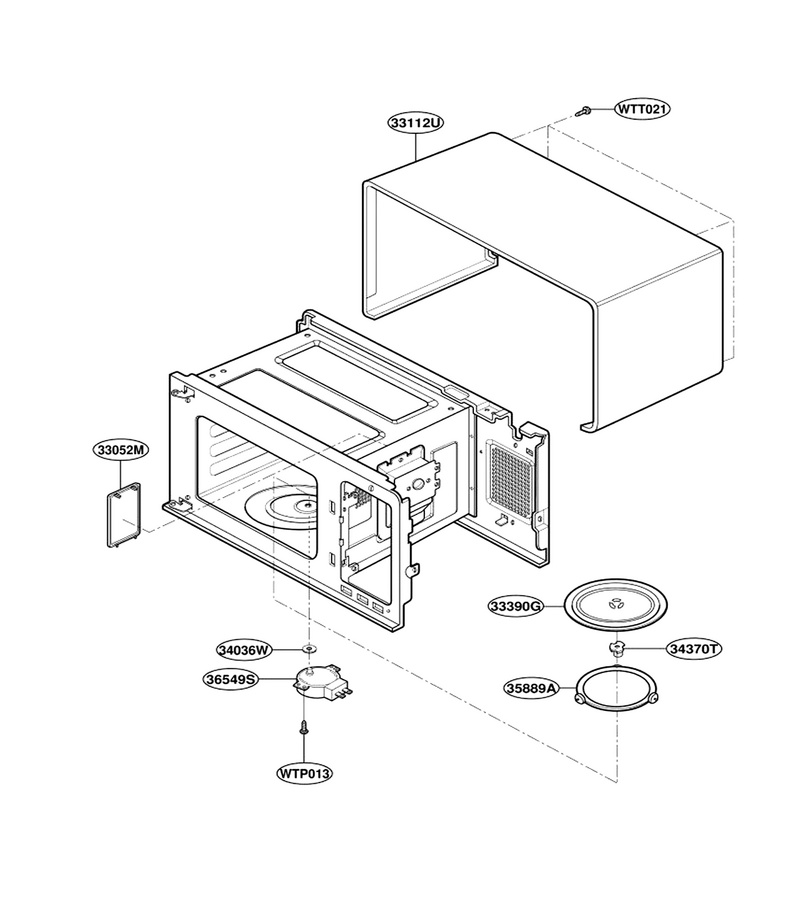

Oven Cavity Parts

...
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
33052M
Cover,insulator L-G-3052W3M021A
...
33390G
Tray,glass L-G-3390W1G010A
...
34370T
Microwave Turntable Motor Coupler L-G-4370W3A001A
...
35889A
Microwave Turntable Tray Support L-G-5889W2A005J
...
36549S
Motor, Ac Synchronous L-G-6549W1S002A

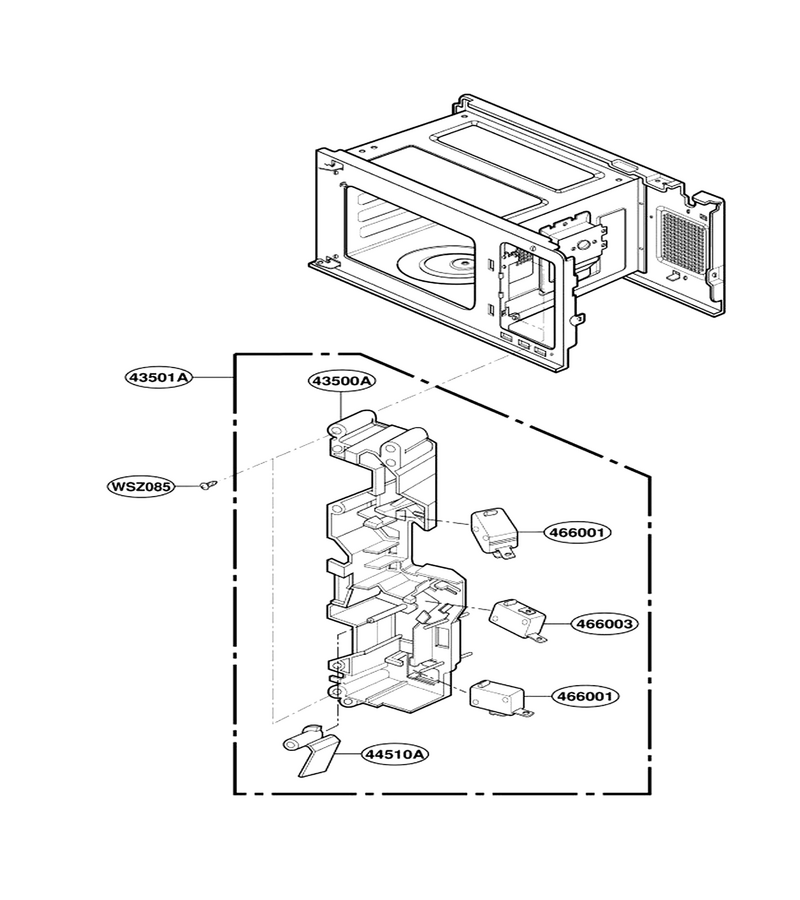

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43501A
Latch Board L-G-3501W1A016F

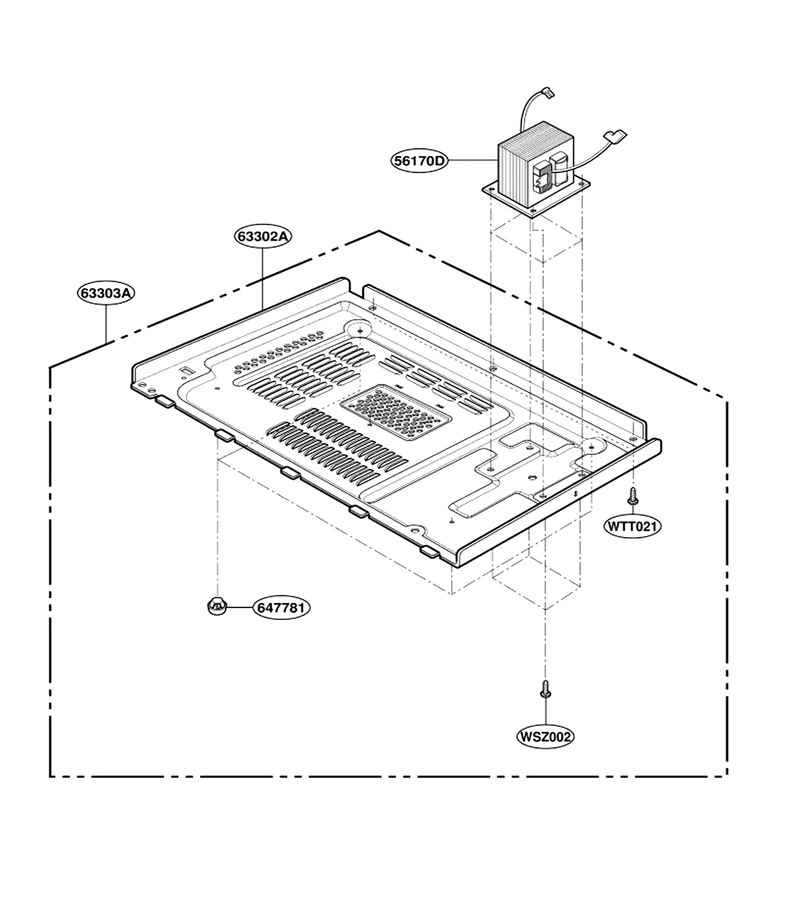

Base Plate Parts

...
...
WTT021
Microwave Screw L-G-1TTL0402418
...
56170D
Transformer,high Voltage L-G-6170W1D029F
...
63302A
Plate,base L-G-3302W1A053B
...
63303A
Plate Assembly,base L-G-3303W1A013H
...
647781
Foot L-G-4B75290A
