LG 3WG-2532.HM1QBAL

Model: 3WG-2532.HM1QBAL

Save Part Not Listed?
product name

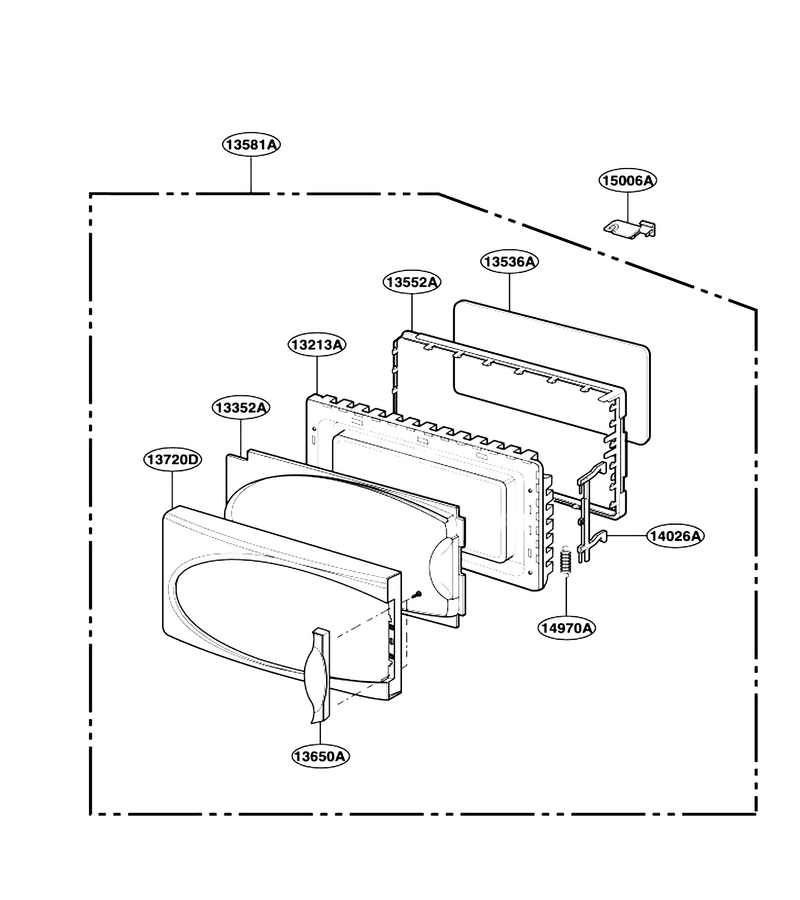

Door Parts

...
...
13213A
Frame Assembly,door L-G-3213W1A032H
...
13352A
Window,screen L-G-3352W1A101B
...
13536A
Seal Tape L-G-3536WRA001N
...
13552A
Cover,choke L-G-3552W1A029A
...
13581A
Door Assembly L-G-3581W1A186Y
...
13650A
Handle,door L-G-3650W1A031A
...
13720D
Panel,door L-G-3720W0D133W
...
14026A
Microwave Door Latch Hook L-G-4026W2A015A
...
14970A
Spring L-G-4970WRA001B
...
15006A
Cap L-G-5006W3A010A

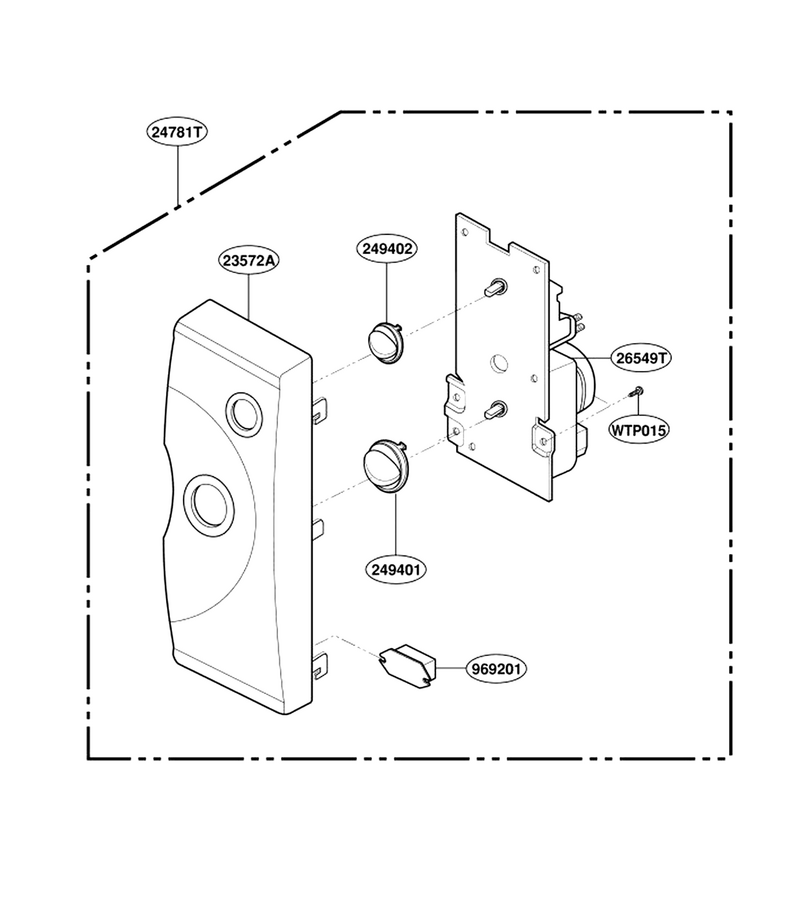

Control Panel Parts

...
...
WTP015
Microwave Screw L-G-1TPL0402618
...
23572A
Panel,control L-G-3572W0A168C
...
24781T
Controller Assembly,mechanical L-G-4781W1T074B
...
26549T
Module,timer L-G-6549W2T008A
...
249401
Knob L-G-4940W2A016B
...
249402
Knob L-G-4940W2A017B
...
969201
Relay,contact L-G-6920W3A002A

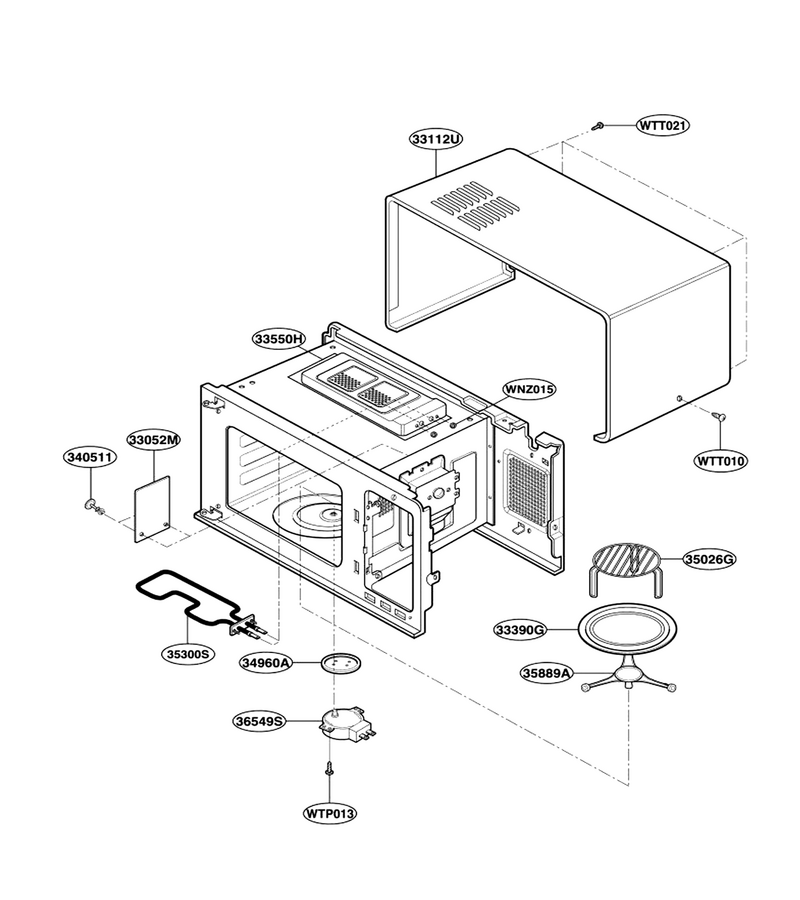

Oven Cavity Parts

...
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT010
Microwave Screw L-G-1TTG0402422
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WNZ015
Drawer Nut L-G-4B71028B
...
33052M
Cover,insulator L-G-3052W3M021A
...
33390G
Tray,glass L-G-3390W1G010A
...
33550H
Cover,heater L-G-3550W1A084B
...
34960A
Plate L-G-4960W3G005A
...
35026G
Shelf L-G-5026W1A037E
...
35300S
Heater,sheath L-G-5300W1S002E
...
35889A
Microwave Turntable Tray Support L-G-5889W2A005J
...
36549S
Motor, Ac Synchronous L-G-6549W1S002A

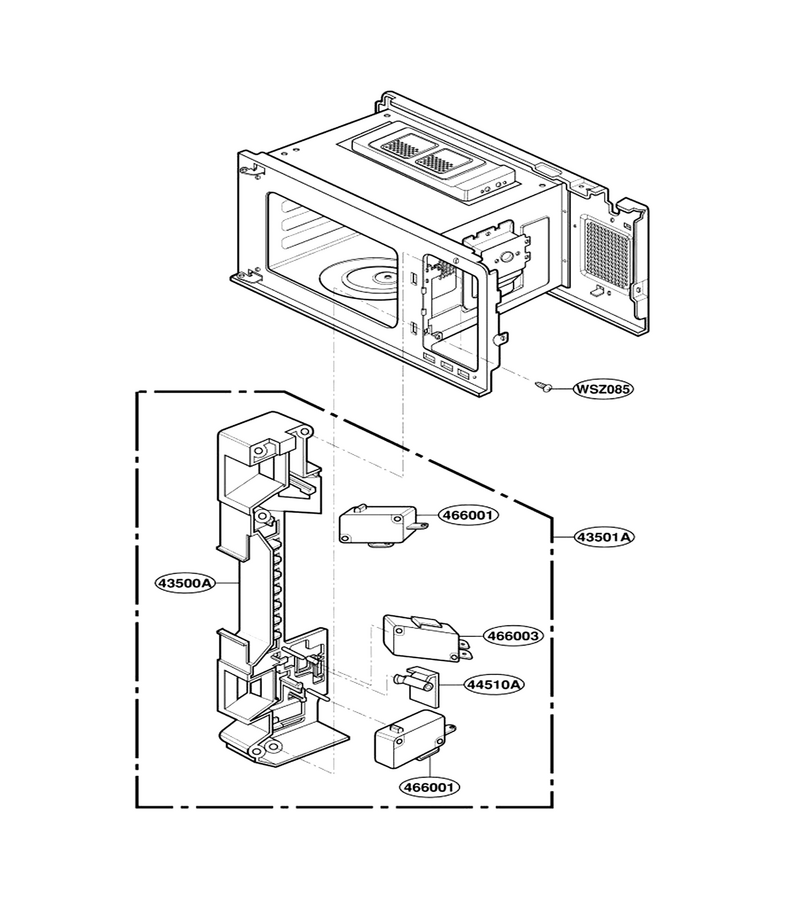

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Microwave Latch Body L-G-3500W1A005A
...
43501A
Latch Board L-G-3501W1A016F
...
44510A
Lever L-G-4510W4A005A
...
466001
Microwave Micro Switch L-G-3B73362F
...
466003
Switch Micro L-G-3B73361E

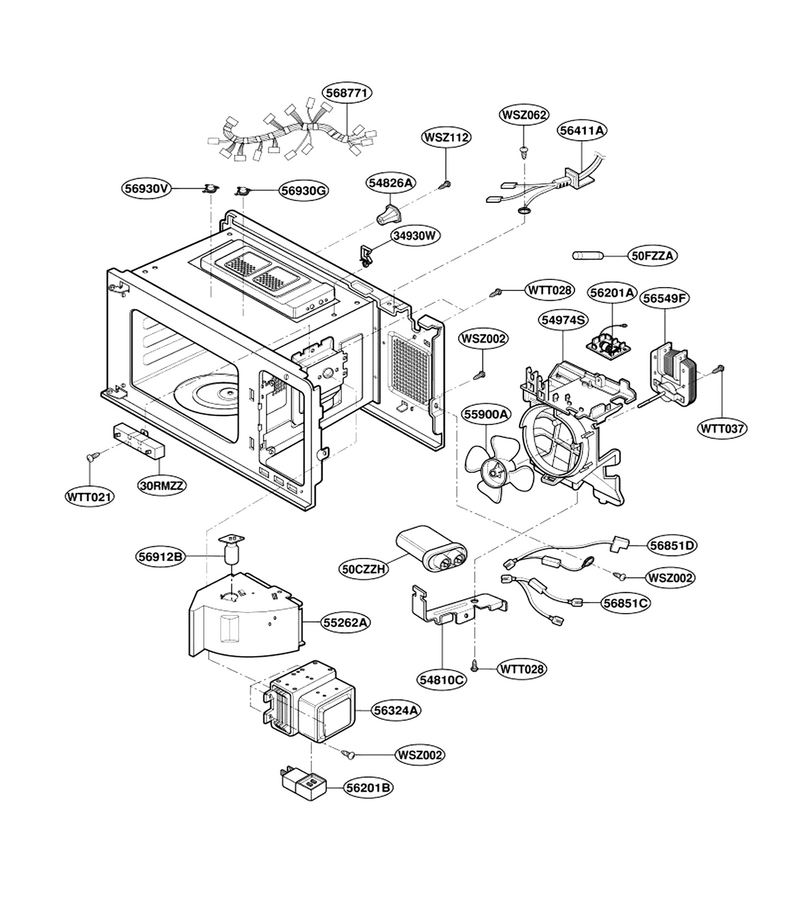

Interior Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WSZ062
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
WSZ112
Screw,customized L-G-4B71169A
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
30RMZZ
Resistor,cement L-G-3B71807A
...
50CZZH
Capacitor,drawing[high Voltage] L-G-0CZZW1H001F
...
50FZZA
Fuse,time Delay L-G-3B70856K
...
34930W
Lug (circ) L-G-4B72510F
...
54810C
Bracket L-G-4810W4C003A
...
54826A
Insulation L-G-4B70774A
...
54974S
Guide,suction L-G-4974W1S016A
...
55900A
Microwave Cooling Fan Blade L-G-2B72125A
...
56201B
Choke Filter L-G-6201W2A019A
...
56201A
Filter,ac Line L-G-6201W2A018B
...
56324A
Magnetron L-G-6324W2A003A
...
56411A
Power Cord Assembly L-G-2B73671K
...
56549F
Motor,ac Fan L-G-6549W1F005A
...
56851C
Cable,assembly L-G-3B74428D
...
56851D
Cable,assembly L-G-3B73348B
...
56912B
Cable,assembly L-G-6912W3B002D
...
56930V
Thermostat L-G-6930WRT001C
...
56930G
Thermostat L-G-6930W1A001F
...
568771
Harness,single L-G-6877W1A223A

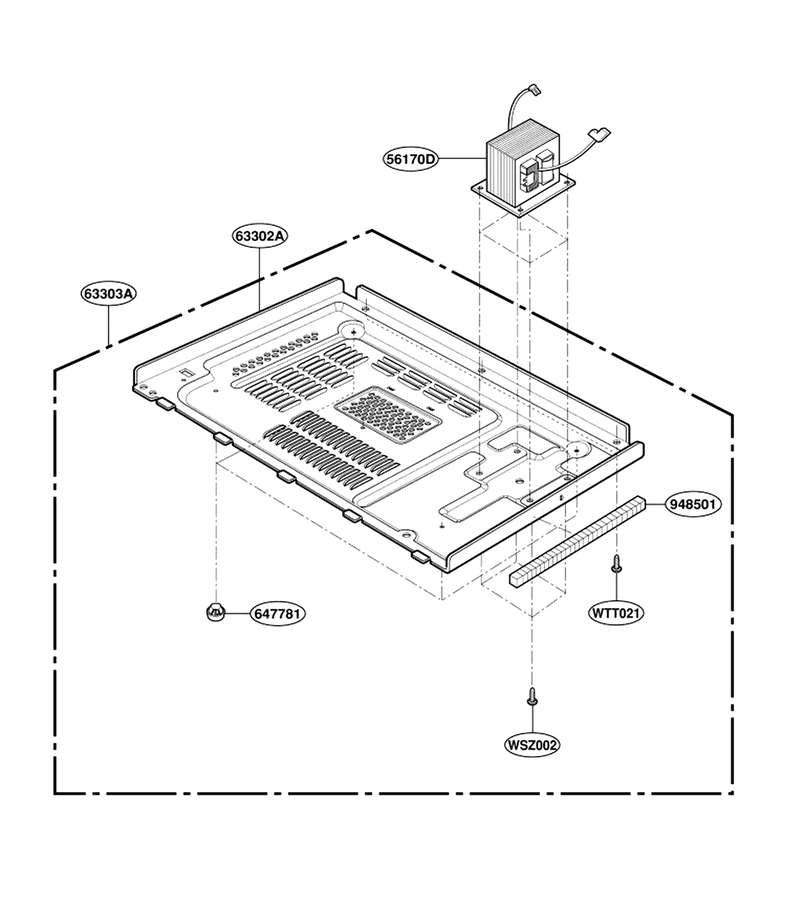

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
56170D
Transformer,high Voltage L-G-6010W2H098A
...
63302A
Plate,base L-G-3302W1A053B
...
63303A
Plate Assembly,base L-G-3303W1A013H
...
647781
Foot L-G-4B75290A
...
948501
Cushion L-G-3B72244G
