product name

LG 35909.AWYASRC

Model: 35909.AWYASRC

Save Part Not Listed?
product name

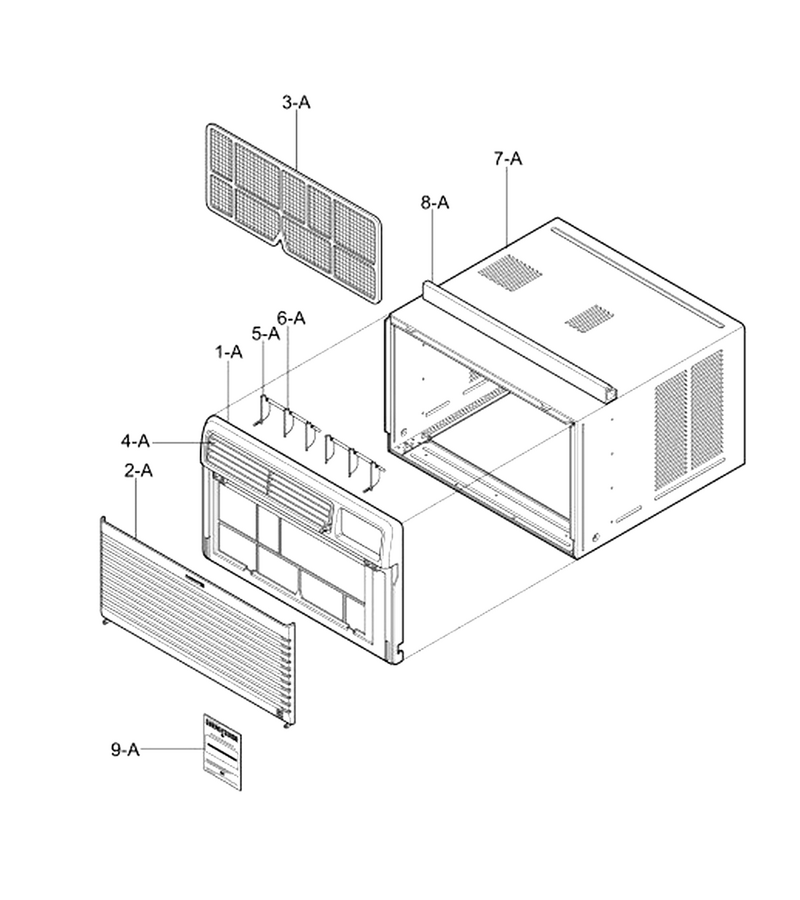

Cabinet & Front Grille Assembly

...
...
1-A
Grille,front L-G-3530A20043E
...
2-A
Grille,inlet L-G-3530A20046B
...
3-A
Room Air Conditioner Air Filter L-G-5231A20006A
...
4-A
Louver L-G-4758A20019A
...
5-A
Room Air Conditioner Louver L-G-4758A20040A
...
6-A
Louver,ver L-G-4758A20040B
...
7-A
Cabinet Assembly,single L-G-3091AR2317P
...
8-A
Guide L-G-4974AR3328B
...
9-A
Label,energy L-G-MEZ62031602

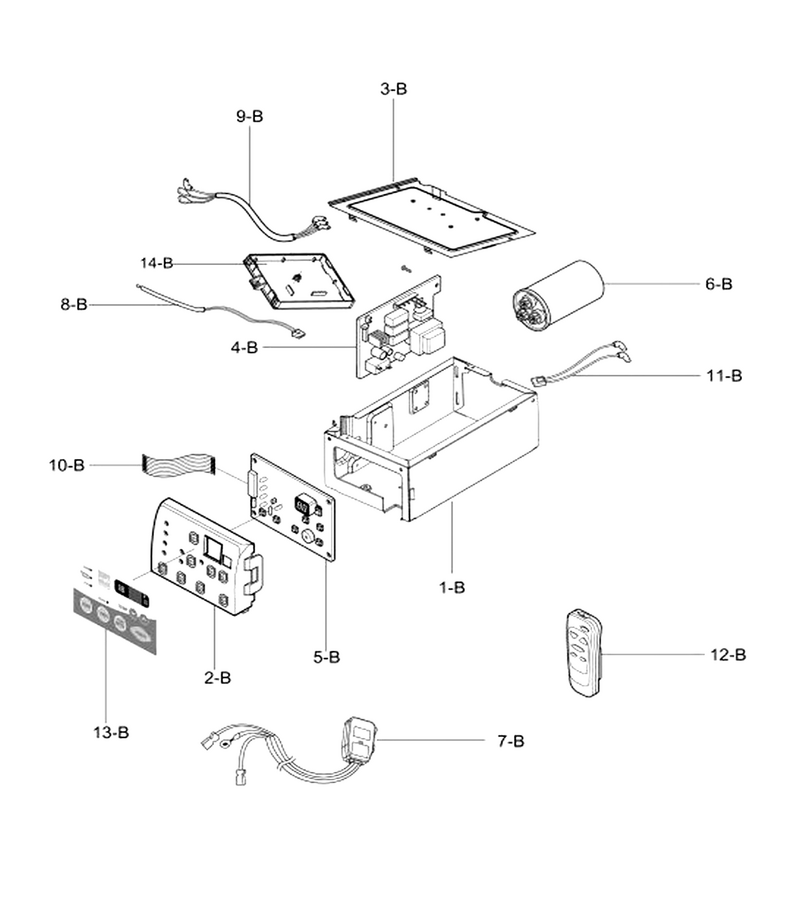

Control Box Assembly

...
...
1-B
Case,control L-G-MBN35980901
...
2-B
Room Air Conditioner Control Panel L-G-3720A10111C
...
3-B
Cover L-G-MCK35983901
...
4-B
Room Air Conditioner Electronic Control Board A... L-G-EBR39283902
...
5-B
Pcb Assembly,display L-G-6871A20418F
...
6-B
Room Air Conditioner Fan Motor Capacitor L-G-2H01451M
...
7-B
Room Air Conditioner Power Cord L-G-6411A20056A
...
8-B
Room Air Conditioner Thermistor L-G-6323A20004P
...
9-B
Connector Assembly L-G-6631A20123A
...
10-B
Cable,ffc L-G-6850A90001R
...
11-B
Room Air Conditioner Electronic Control Wiring ... L-G-6631A30003A
...
12-B
Remote Controller Assembly L-G-6711A20056T
...
13-B
Escutcheon L-G-MDD42355802
...
14-B
Cover,disply L-G-ACQ31027901

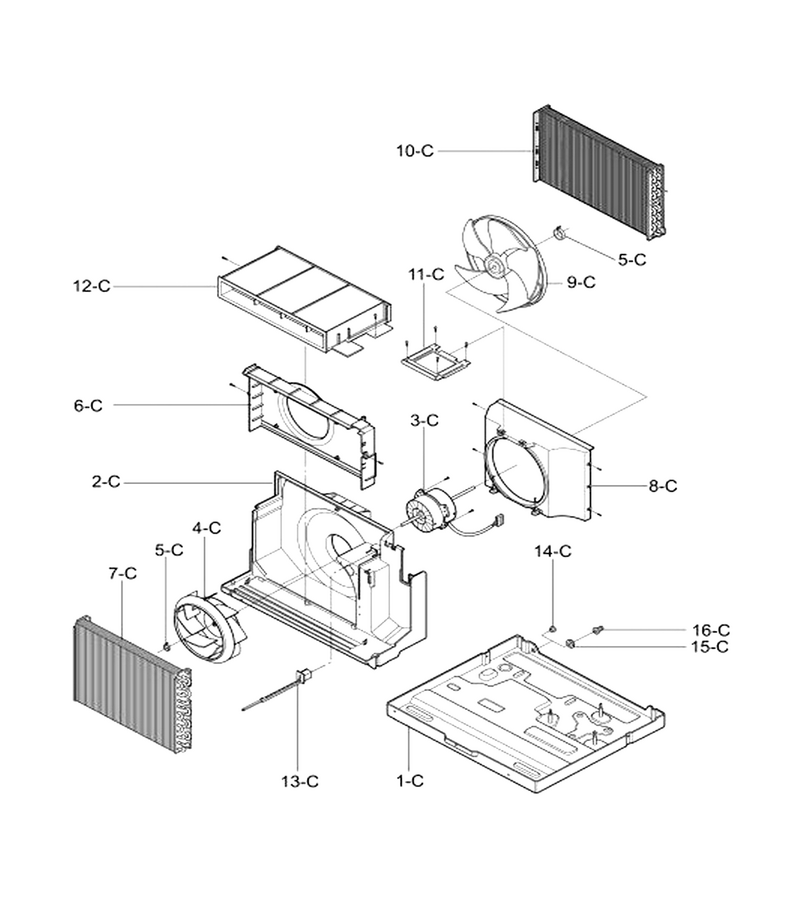

Air Handling & Cycle Parts

...
...
1-C
Base Assembly L-G-3041A20021V
...
2-C
Duct L-G-5238A20007A
...
3-C
Motor L-G-4681A20069H
...
4-C
Turbo Fan L-G-5900A20020A
...
5-C
Room Air Conditioner Fan Blade Clamp L-G-3H02932B
...
6-C
Orifice L-G-4948A10014A
...
7-C
Evaporator Assembly,first L-G-ADL54054901
...
8-C
Shroud L-G-4998A10023C
...
9-C
Fan L-G-5900AR1167B
...
10-C
Condenser L-G-ACG32514901
...
11-C
Brace L-G-4800A30002C
...
12-C
Duct L-G-5238A20009A
...
13-C
Vent Damper L-G-4900A20003A
...
14-C
Rubber L-G-4H02023A
...
15-C
Washe L-G-4H01029E
...
16-C
Room Air Conditioner Drain Pipe L-G-3H02773A

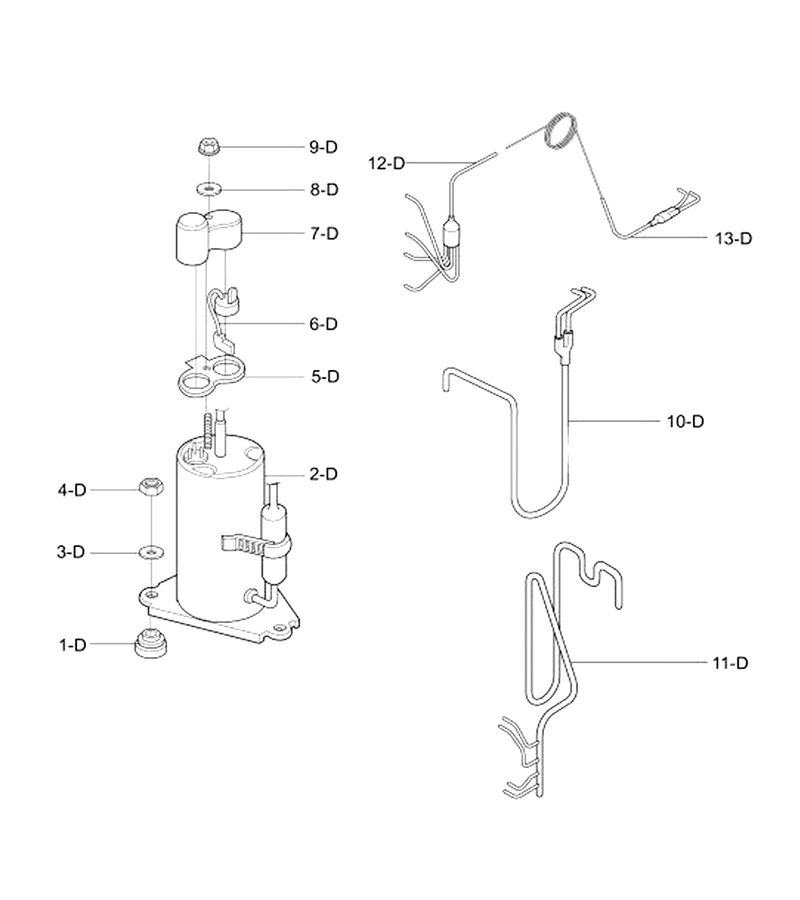

Compressor Parts

...
...
1-D
Bushing L-G-4830AR4335A
...
2-D
Compressor Set,china L-G-TBZ33408801
...
3-D
Bracket L-G-4810AR4155B
...
4-D
Hex Nut L-G-1NHA0801206
...
5-D
Gasket L-G-4986UTL001H
...
6-D
Overload Protector L-G-EAF34140205
...
7-D
Cover L-G-3550UTL006C
...
8-D
Washer,customized L-G-1WZZUTL001A
...
10-D
Tube Assembly,discharge L-G-5211A10074Y
...
11-D
Tube Assembly,suction L-G-AJR59247202
...
12-D
Tube Assembly,evaporator(in) L-G-AJR58762901
...
13-D
Tube Assembly,capillary L-G-AJR66383301

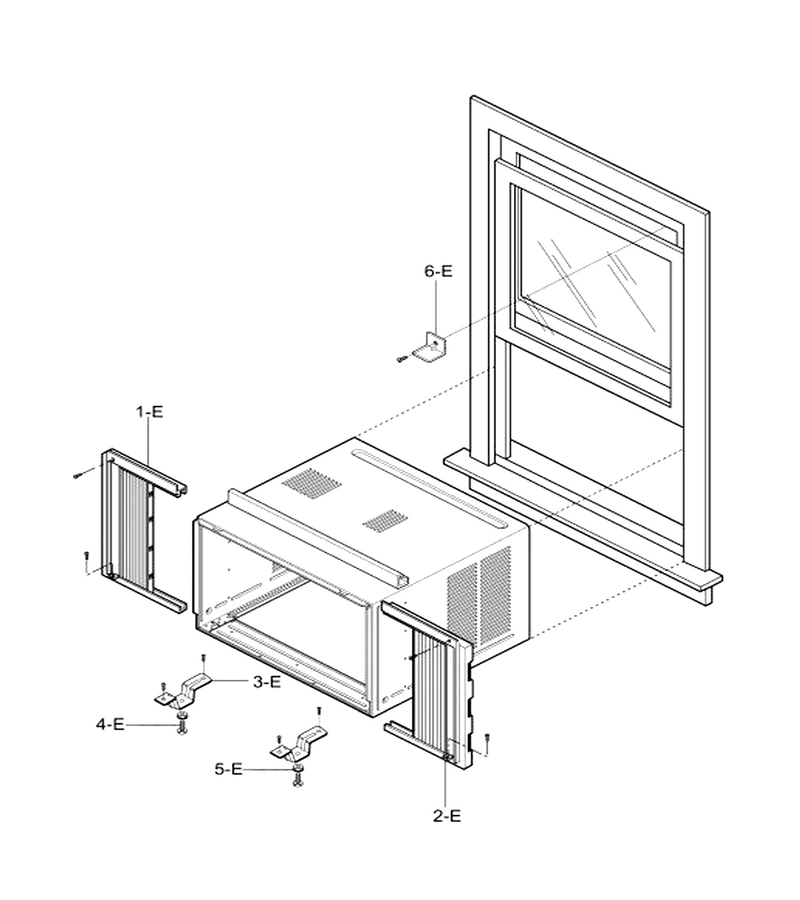

Installation Kit Assembly

...
...
1-E
Curtain Assembly L-G-4959AR3402A
...
2-E
Curtain Assembly L-G-4959AR3402B
...
3-E
Room Air Conditioner Window Support Bracket L-G-4810AR3240A
...
4-E
Bolt,common L-G-1BHD1004006
...
5-E
Nut,common L-G-1NHC1000006
...
6-E
Room Air Conditioner Window Lock Bracket L-G-4H01785B
