LG 35563.ASSEEUS

Model: 35563.ASSEEUS

Save Part Not Listed?

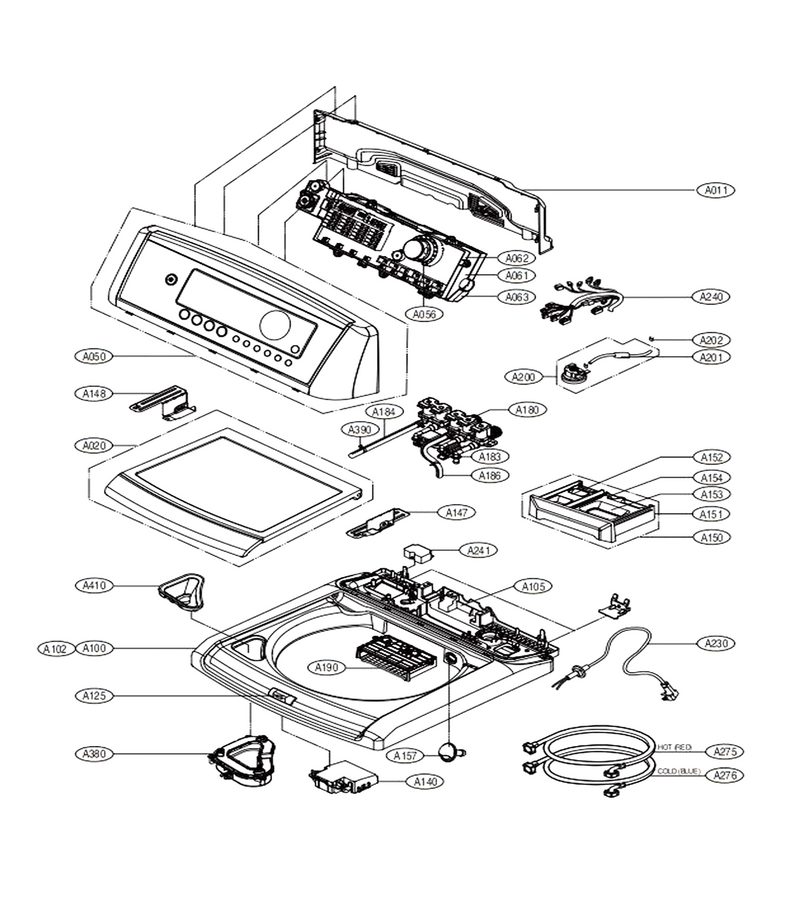

product name

Top Cover Assembly

...
...
A230
Washer Power Cord L-G-EAD40521457
...
A157
Nozzle Assembly L-G-AGB72932401
...
A180
Washer Water Inlet Valve Assembly L-G-AJU73213301
...
A183
Washer Water Valve Connector Assembly L-G-ACJ73350401
...
A184
Washer Dispenser Hose L-G-MEJ61841803
...
A186
Washer Dispenser Drawer Housing Assembly L-G-5214EA3004B
...
A190
Washer Dispenser Drawer Housing Assembly L-G-AEN72910501
...
A200
Washer Water-Level Pressure Switch L-G-6501EA1001R
...
A201
Washer Water-Level Pressure Switch Hose L-G-5210FA3427J
...
A202
Washer Power Cord L-G-3W50012U
...
A011
Rear Panel L-G-MGC61856602
...
A240
Washer Wire Harness L-G-EAD60820210
...
A241
Washer Noise Filter L-G-EAM60930601
...
A275
Hose,inlet L-G-MEJ63224701
...
A276
Inlet Hose L-G-MEJ63224702
...
A380
Washer Bleach Dispenser L-G-ACZ72910401
...
A390
Washer Hose Clamp L-G-3W40106M
...
A410
Washer Bleach Dispenser Bezel L-G-MBL62061401
...
A153
Softener Cap L-G-MBL62061601
...
A020
Washer Lid Assembly L-G-AFG72909506
...
A050
Panel L-G-AGL72929714
...
A056
Knob Assembly L-G-AEZ33665708
...
A061
Washer Electronic Control Board L-G-EBR67466109
...
A062
Washer User Interface L-G-EBR62267111
...
A063
Protector Cover L-G-MCK65833301
...
A100
Cover L-G-MCK62185510
...
A105
Case L-G-MBN61861101
...
A140
Washer Lid Lock And Switch Assembly L-G-EBF61674802
...
A147
Washer Top Panel Bracket, Right L-G-ABA72939701
...
A148
Washer Top Panel Bracket, Left L-G-ABA73249001
...
A150
Detergent Box L-G-AAZ72925602
...
A151
Detergent Box L-G-MAY62020102
...
A152
Washer Fabric Softener Dispenser Cup L-G-MBL62061501
...
A154
Detergent Box L-G-MAY62020202
...
A125
Guide Cover L-G-MCK62185702

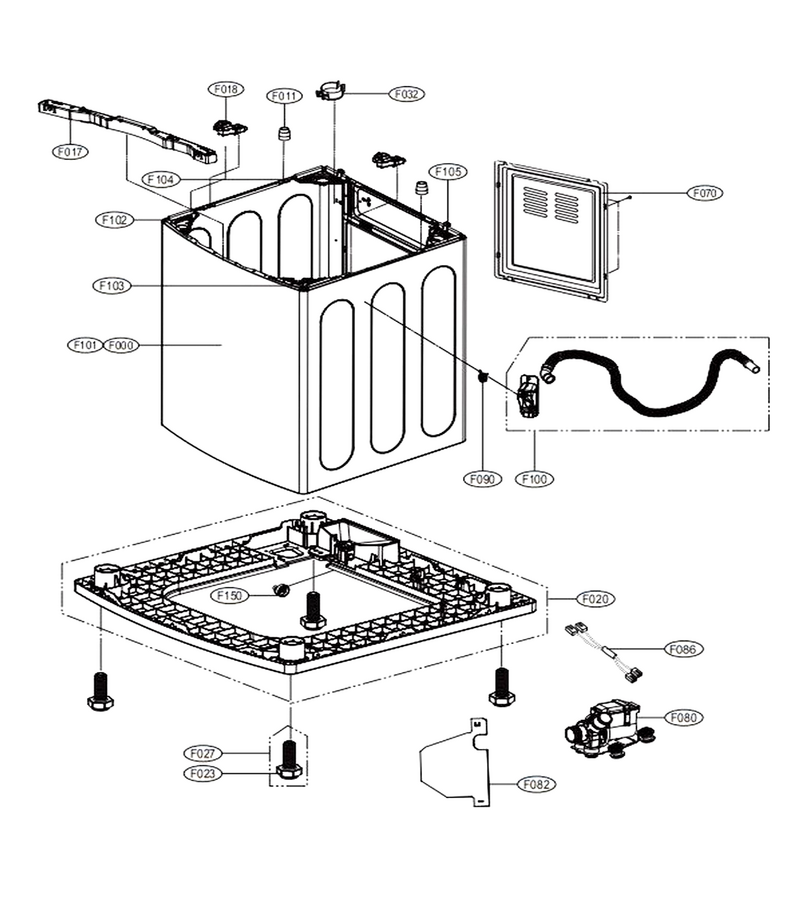

Out Case Assembly

...
...
F082
Protector Cover L-G-3550EA3007C
...
F086
Single Harness L-G-6877EA3001M
...
F090
Hose Clamp L-G-MBU62225402
...
F027
Washer Leveling Leg L-G-4263FA3933C
...
F100
Washer Drain Hose L-G-AEM73732901
...
F101
Cabinet Assembly L-G-ABJ73967207
...
F102
Hanger Pivot L-G-MEC62464902
...
F103
Hanger Pivot L-G-MEC62464901
...
F104
Hanger Pivot L-G-MEC62464904
...
F105
Hanger Pivot L-G-MEC62464903
...
F150
Washer Water-Level Pressure Switch L-G-EBD50360202
...
F070
Rear Cover L-G-3808FA1368F
...
F080
Washer Drain Pump L-G-5859EA1004G
...
F000
Cabinet Assembly L-G-ABJ72919623
...
F011
Holder Assembly L-G-AEJ33026605
...
F017
Bracket Assembly L-G-ABA74451701
...
F018
Holder Assembly L-G-AEJ73820101
...
F020
Washer Base L-G-AAN73431001
...
F023
Damper L-G-5040FA4226B
...
F032
Holder L-G-4930EA3002A

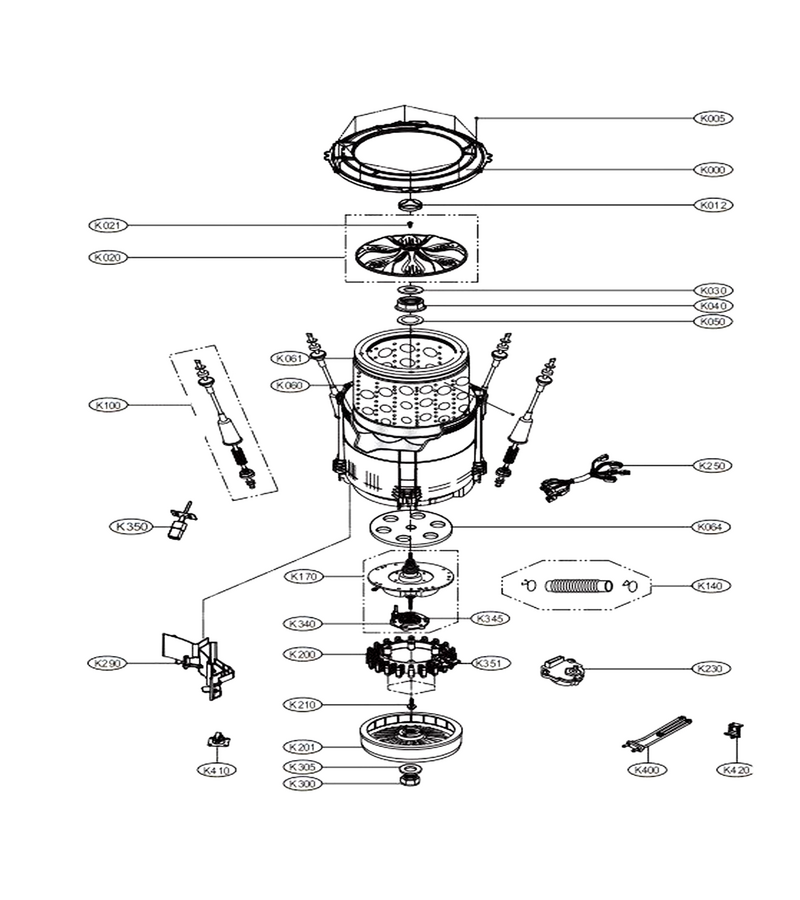

Tub Assebly

...
...
K200
Washer Motor Stator L-G-4417EA1002K
...
K410
Thermostat Assembly L-G-6931EA2001D
...
K201
Washer Motor Rotor L-G-4413EA1004D
...
K210
Washer Bolt L-G-4011FA4353B
...
K230
Washer Brake Actuator L-G-4681EA1009H
...
K250
Washer Wire Harness L-G-6877EA1044H
...
K290
Washer Water Hose Guide L-G-4974EA2004A
...
K300
Nut Washer L-G-1NZZEA4001A
...
K305
Washing Machine Washer L-G-4W50100D
...
K340
Washer Brake Actuator L-G-4323EA2001C
...
K345
Washer Shifter L-G-MCJ61861201
...
K350
Washer Thermistor L-G-6322FR2046G
...
K351
Washer Motor Rotor Position Sensor L-G-6501KW2002A
...
K400
Heater Assembly L-G-5301FR1158Z
...
K170
Washer Drive Shaft And Shifter Assembly L-G-3661EA1009F
...
K140
Washer Drain Hose L-G-AEM73213001
...
K100
Washer Suspension Rod L-G-AJK72909307
...
K064
Washer Tub Mounting Hub L-G-MEL61841401
...
K061
Balance Assembly L-G-AAJ72909602
...
K060
Washer Spin Basket L-G-AJQ73293802
...
K050
Washing Machine Washer L-G-4040FA4045C
...
K040
Nut Washer L-G-4020FA4208J
...
K030
Washing Machine Washer L-G-FAF30369201
...
K021
Washer Screw L-G-FAB30598601
...
K020
Pulsator Assembly L-G-AGZ72909703
...
K012
Washer Washplate Cap L-G-5006EA3009B
...
K005
Washer Tub Ring Screw L-G-FAB32139901
...
K000
Washer Tub Ring L-G-ACQ85605501
