LG 35078.ARUESRS

Model: 35078.ARUESRS

Save Part Not Listed?
product name

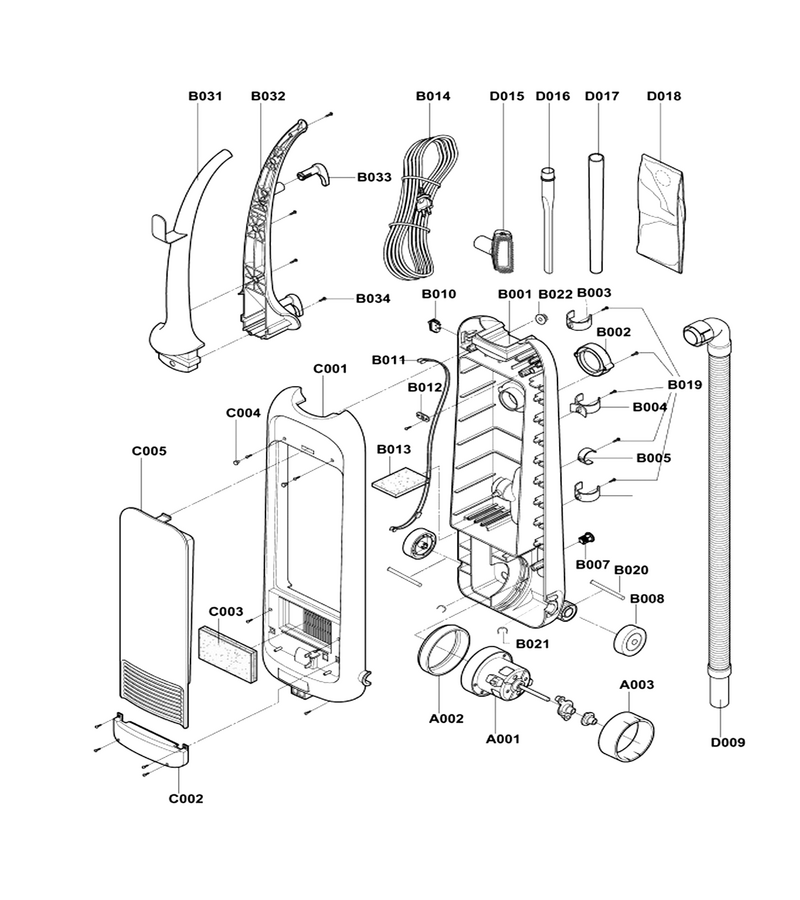

Main 1

...
...
C003
Filter Assembly,exhaust L-G-5231FI3757B
...
B021
E-Ring L-G-4350FI3787A
...
B022
Bush,cord L-G-4830FI3001A
...
B031
Handle,upper L-G-3650FI1503A
...
B032
Handle,lower L-G-3650FI1504A
...
B033
Hanger,cord L-G-4990FI3033A
...
B034
Screw,tapping L-G-1TPL0403116
...
C001
Cover,body L-G-3550FI1674A
...
C002
Cover,top L-G-3550FI2565B
...
A001
Motor Assembly,ac,vacuum Cleaner L-G-4681FI2460R
...
C004
Gasket L-G-3920FI3837A
...
C005
Cover,dust L-G-3550FI1675A
...
D009
Hose Assembly,flexible L-G-5215FI1338A
...
D015
Brush Assembly,dust L-G-5203FI3739A
...
D016
Nozzle,crevice L-G-5058FI2214A
...
D017
Pipe,upper L-G-5062FI2058A
...
D018
Filter Assembly,paper L-G-5231FI2453F
...
B019
Screw L-G-1TPL0402818
...
A002
Damper,motor Mount L-G-3920FI3832A
...
A003
Damper,absorbing L-G-4I23008B
...
B001
Base,body L-G-3040FI1510B
...
B002
Pipe,connector L-G-5200FI3791A
...
B003
Holder,pipe L-G-4930FI3804A
...
B004
Holder,hose L-G-4930FI3803A
...
B005
Holder,accessory L-G-4930FI3805A
...
B008
Wheel L-G-46608I3001A
...
B010
Switch Assembly L-G-6601FI3487C
...
B011
Cable & Wire,unclassified L-G-6631FI2003B
...
B012
Cord L-G-4930FI4669A
...
B013
Filter Assembly,clean L-G-5230FI3749B
...
B014
Power Cord L-G-6411FI2422V
...
B020
Shaft L-G-4370FI3681B
...
B007
Damper Assembly L-G-4970FI3001F

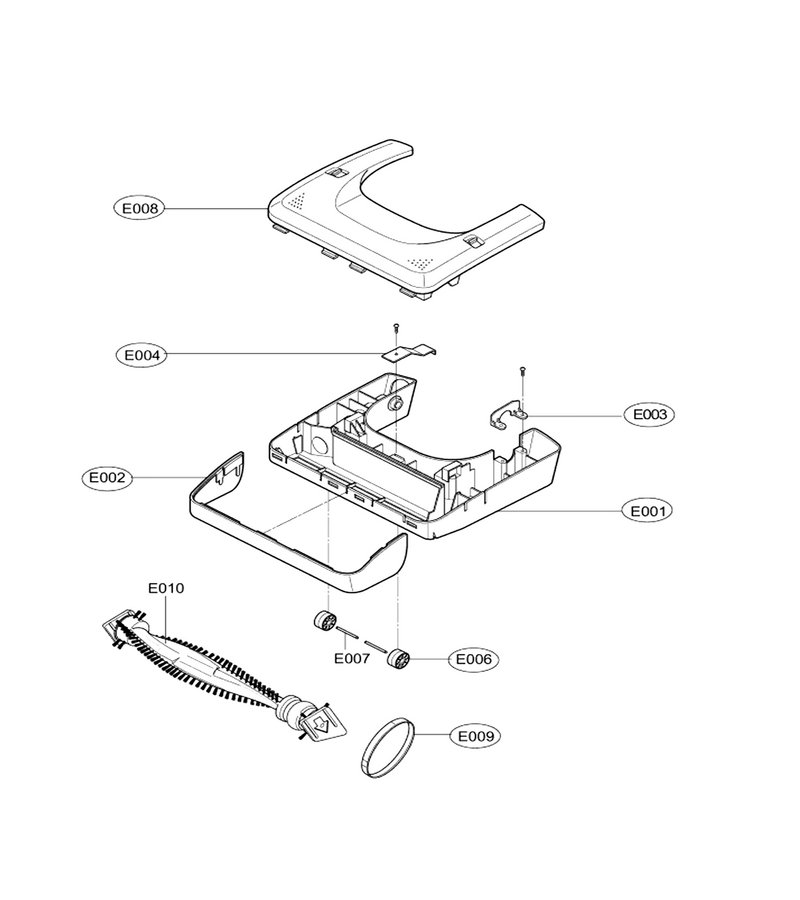

Main 2

...
...
E009
Belt L-G-4400FI3348A
...
E008
Cover Assembly,head L-G-3551FI1598B
...
E007
Shaft,roller L-G-4I22094C
...
E006
Wheel L-G-4660FI4566A
...
E004
Stopper L-G-4620FI3402A
...
E003
Strap,head L-G-4640FI2004A
...
E002
Bumper,head L-G-4820FI2402A
...
E001
Base,head L-G-3040FI1512A
