LG 33289.ARUESRS

Model: 33289.ARUESRS

Save Part Not Listed?
product name

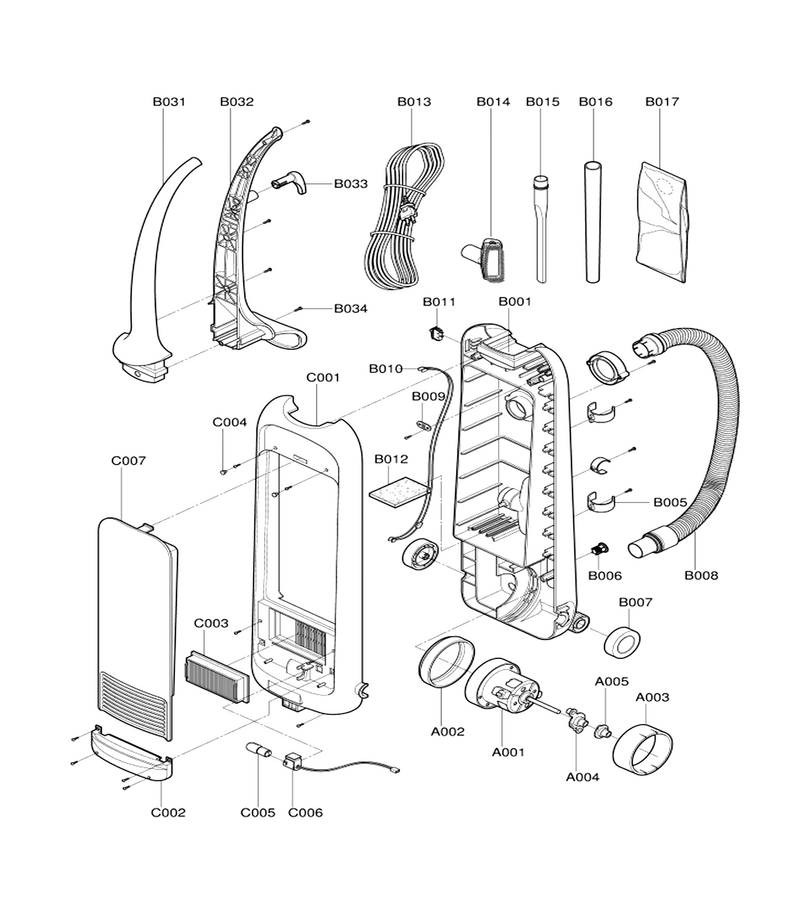

Main 1

...
...
A001
Motor Assembly,ac,vacuum Cleaner L-G-4681FI2460F
...
C007
Cover,dust L-G-3550FI1675A
...
C006
Holder Assembly,lamp L-G-4931FI3688A
...
C005
Bulb Assembly L-G-3525FI4001B
...
C004
Gasket L-G-3920FI3837A
...
C003
Filter Assembly,exhaust L-G-5231FI3789A
...
C002
Cover,top L-G-3550FI2564A
...
C001
Cover,body L-G-3550FI1674A
...
B034
Screw,tapping L-G-1TPL0403318
...
B033
Hanger,cord L-G-4990FI3033A
...
B032
Handle,lower L-G-3650FI1502A
...
B031
Handle,upper L-G-3650FI1501A
...
B017
Frame Assembly,brush L-G-3071FI3001A
...
B016
Pipe,upper L-G-5062FI2058A
...
B015
Nozzle,crevice L-G-5058FI2214A
...
B013
Power Cord L-G-6411FI2422V
...
B014
Brush Assembly,dust L-G-5203FI3739A
...
A002
Damper,motor Mount L-G-3920FI3832A
...
A003
Damper,absorbing L-G-4I23008B
...
A004
Damper,motor L-G-4980FI3751A
...
A005
Gasket L-G-3920FI3833A
...
B001
Base,body L-G-3040FI1510B
...
B005
Holder,pipe L-G-4930FI3772C
...
B006
Damper Assembly L-G-4970FI3001F
...
B007
Wheel Assembly L-G-4661FI3622A
...
B008
Hose Assembly,flexible L-G-5215FI1337A
...
B009
Cord L-G-4930FI4669A
...
B010
Cable & Wire,unclassified L-G-6631FI2003A
...
B011
Switch Assembly L-G-6601FI3487A
...
B012
Filter Assembly,clean L-G-5230FI3749B

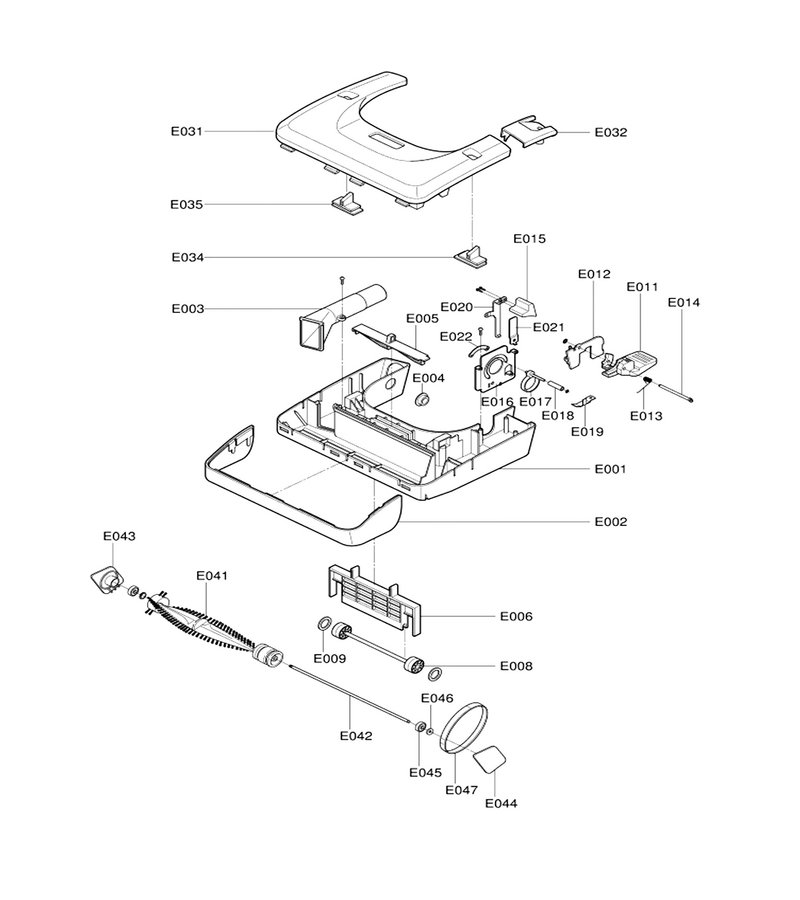

Main 2

...
...
E018
Roller L-G-4580FI3006A
...
E019
Stopper L-G-4620FI3401A
...
E020
Lever,selector L-G-4510FI3611A
...
E021
Cover,safety L-G-3550FI3844A
...
E022
Guide,selector L-G-4974FI3568A
...
E031
Cover,head L-G-3550FI1676A
...
E032
Cover,lever L-G-3550FI3843A
...
E034
Locker L-G-4026FI3685A
...
E035
Locker L-G-4026FI3682A
...
E041
Bar,agitator L-G-4270FI1004A
...
E042
Shaft L-G-4370FI2004A
...
E043
Eyelet L-G-4874FI3013A
...
E044
Eyelet L-G-4874FI3014A
...
E045
Bearing,ball L-G-4280FI4040C
...
E046
Washer,customized L-G-1WZZFI4002F
...
E047
Belt L-G-4400FI3348A
...
E017
Lever,release L-G-4510FI3613A
...
E016
Plate,head L-G-3500FI3629A
...
E015
Lever L-G-3058FI2004A
...
E014
Shaft L-G-4370FI3673A
...
E013
Spring L-G-4970FI4720A
...
E012
Strap,head L-G-4640FI2003A
...
E011
Lever L-G-3058FI2005A
...
E009
Damper,damping L-G-3920FI3829A
...
E008
Roller L-G-4580FI3005A
...
E006
Knob,regulation L-G-4940FI2008A
...
E005
Knob,control L-G-4940FI2007A
...
E004
Holder,fixing L-G-4930FI4671A
...
E003
Pipe,guide L-G-5200FI2499A
...
E002
Bumper,head L-G-4820FI2402A
...
E001
Base,head L-G-3040FI1511A
