LG 33079.ASWESRS

Model: 33079.ASWESRS

Save Part Not Listed?
product name

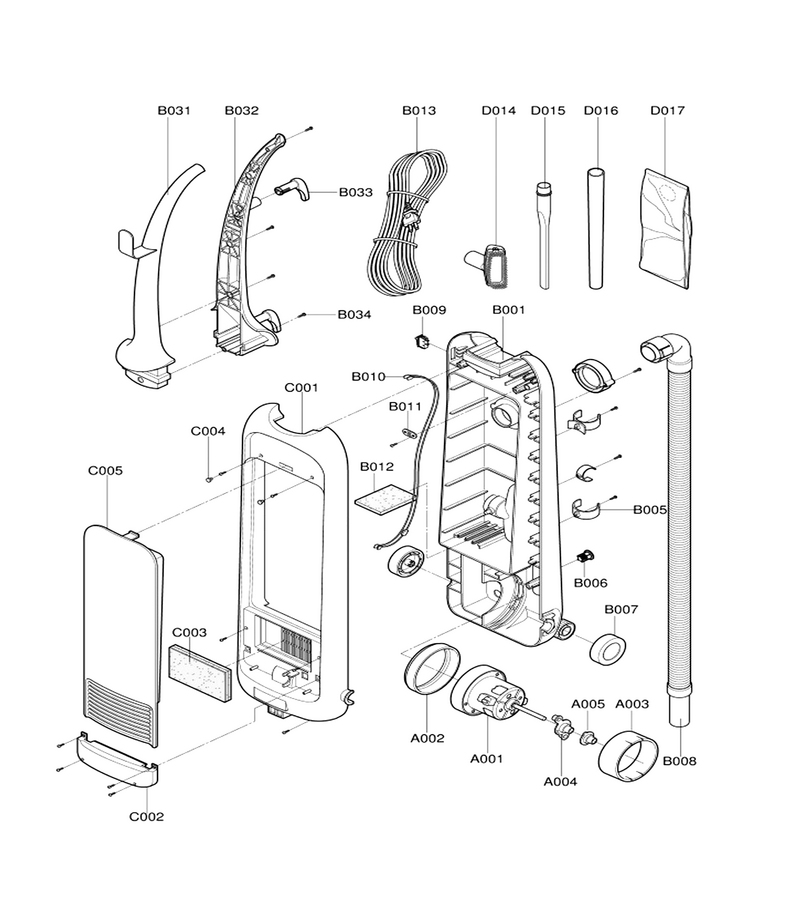

Main 1

...
...
A001
Motor Assembly,ac,vacuum Cleaner L-G-4681FI2460F
...
D017
Filter Assembly,paper L-G-5231FI2453D
...
D016
Pipe,upper L-G-5062FI2058A
...
D015
Nozzle,crevice L-G-5058FI2214A
...
D014
Brush Assembly,dust L-G-5203FI3739A
...
C005
Cover,dust L-G-3550FI1675B
...
C004
Gasket L-G-3920FI3837A
...
C003
Filter Assembly,exhaust L-G-5231FI3757B
...
C002
Cover,top L-G-3550FI2565A
...
C001
Cover,body L-G-3550FI1674A
...
B034
Screw,tapping L-G-1TPL0403318
...
B033
Hanger,cord L-G-4990FI3033A
...
B032
Handle,lower L-G-3650FI1504A
...
B031
Handle,upper L-G-3650FI1503A
...
B013
Power Cord L-G-6411FI2422V
...
B011
Cord L-G-4930FI4669A
...
B012
Filter Assembly,clean L-G-5230FI3749B
...
A002
Damper,motor Mount L-G-3920FI3832A
...
A003
Damper,absorbing L-G-4I23008B
...
A004
Damper,motor L-G-4980FI3736A
...
A005
Gasket L-G-3920FI3818A
...
B001
Base,body L-G-3040FI1510B
...
B005
Holder,pipe L-G-4930FI3804A
...
B006
Damper Assembly L-G-4970FI3001F
...
B007
Wheel L-G-4660FI3752A
...
B008
Hose Assembly,flexible L-G-5215FI1338A
...
B009
Switch Assembly L-G-6601FI3487A
...
B010
Cable & Wire,unclassified L-G-6631FI2003B

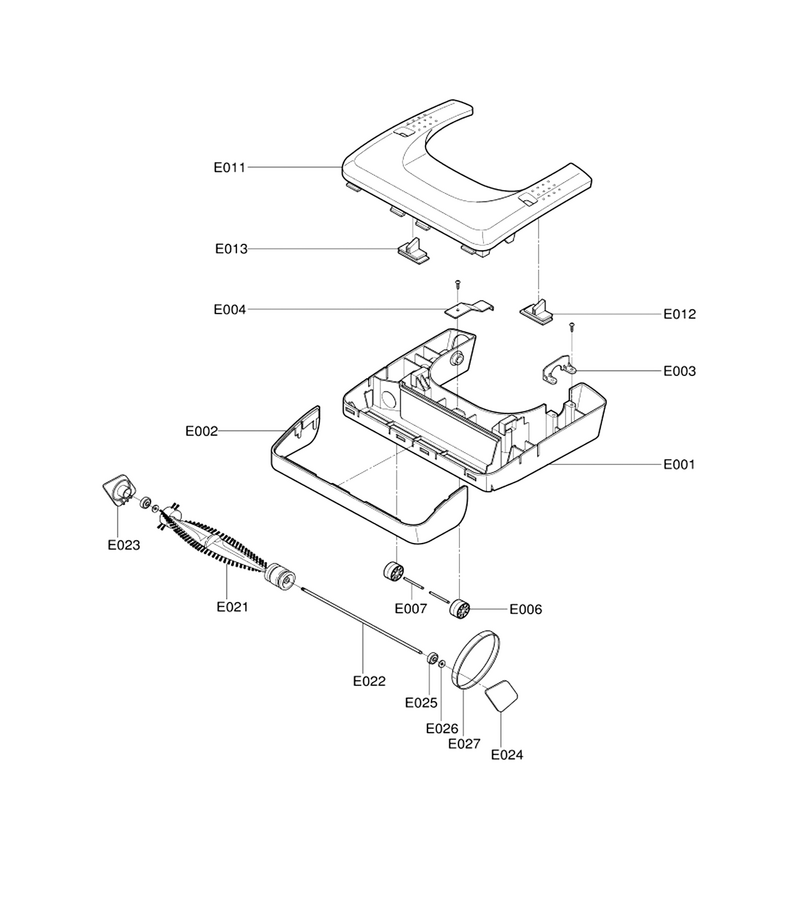

Main 2

...
...
E027
Belt L-G-4400FI3348A
...
E026
Washer,customized L-G-1WZZFI4002F
...
E025
Bearing,ball L-G-4280FI4040C
...
E024
Eyelet L-G-4874FI3014A
...
E023
Eyelet L-G-4874FI3013A
...
E022
Shaft L-G-4370FI2004A
...
E021
Bar,agitator L-G-4270FI1004A
...
E013
Locker L-G-4026FI3682A
...
E012
Locker L-G-4026FI3685A
...
E011
Cover,head L-G-3550FI1677A
...
E007
Shaft,roller L-G-4I22094C
...
E006
Wheel L-G-4660FI4566A
...
E004
Stopper L-G-4620FI3402A
...
E003
Strap,head L-G-4640FI2004A
...
E002
Bumper,head L-G-4820FI2402A
...
E001
Base,head L-G-3040FI1512A
