product name

LG 31552.ABWETEU

Model: 31552.ABWETEU

Save Part Not Listed?

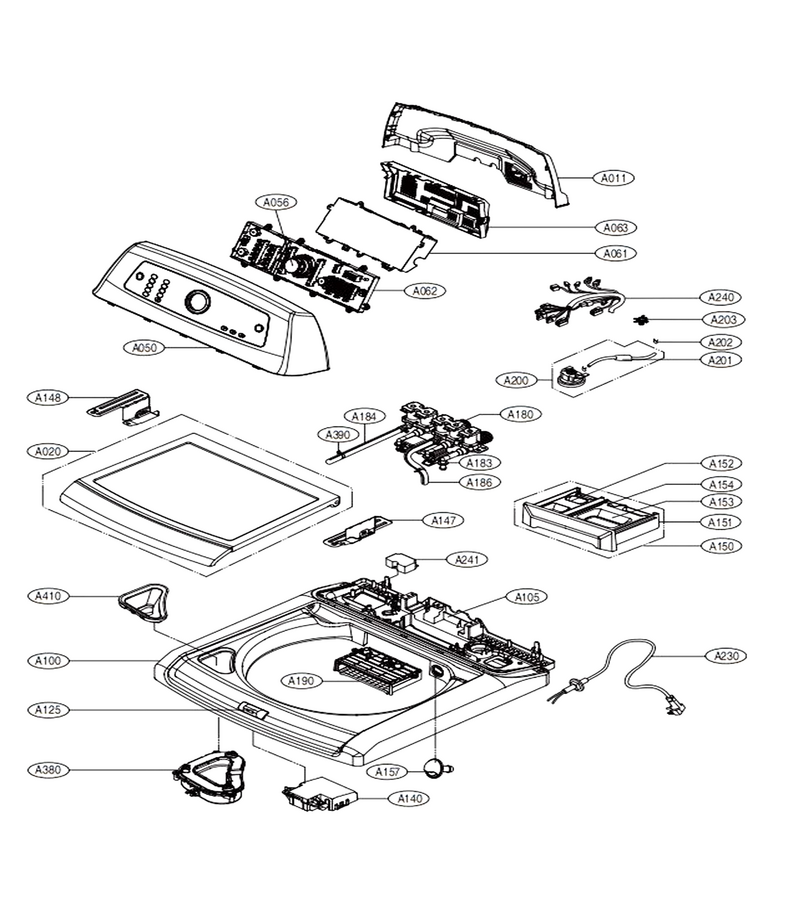

product name

Top Cover Assembly

...
...
A202
Clamp L-G-3W40106R
...
A157
Nozzle Assembly L-G-AGB72932402
...
A180
Valve Assembly,inlet L-G-AJU75152601
...
A183
Connector Assembly L-G-ACJ73350404
...
A184
Washer Dispenser Hose L-G-MEJ62524903
...
A186
Washer Inlet Hose L-G-MEJ62565301
...
A190
Housing Assembly,detergent L-G-AEN72910503
...
A200
Washer Water-Level Pressure Switch L-G-6501EA1001R
...
A201
Washer Water-Level Pressure Switch Hose L-G-5210FA3427J
...
A011
Panel,rear L-G-MGC62002301
...
A203
Holder L-G-MEG64119601
...
A230
Power Cord Assembly L-G-EAD60778447
...
A240
Harness,multi L-G-EAD64129510
...
A241
Filter Assembly L-G-EAM60930604
...
A380
Dispenser Assembly L-G-ACZ72910402
...
A390
Washer Hose Clamp L-G-3W40106M
...
A410
Cap,cover L-G-MBL62061402
...
A153
Cap,softener L-G-MBL65440002
...
A020
Lid Assembly L-G-AFG72909531
...
A050
Panel Assembly,front L-G-AGL73093128
...
A056
Knob Assembly L-G-4941ER3005F
...
A061
Pcb Assembly,main L-G-EBR79203408
...
A062
Pcb Assembly,display L-G-EBR82427001
...
A063
Protector Cover L-G-MCK65833301
...
A100
Cover L-G-MCK62185510
...
A105
Case L-G-MBN61861101
...
A140
Washer Lid Lock And Switch Assembly L-G-EBF61674802
...
A147
Washer Top Panel Bracket, Right L-G-ABA72939701
...
A148
Washer Top Panel Bracket, Left L-G-ABA73249001
...
A150
Box Assembly,detergent L-G-AAZ73855940
...
A151
Box,detergent L-G-MAY65797231
...
A152
Cap,softener L-G-MBL65460502
...
A154
Box,detergent L-G-MAY65797101
...
A125
Guide Cover L-G-MCK62185701

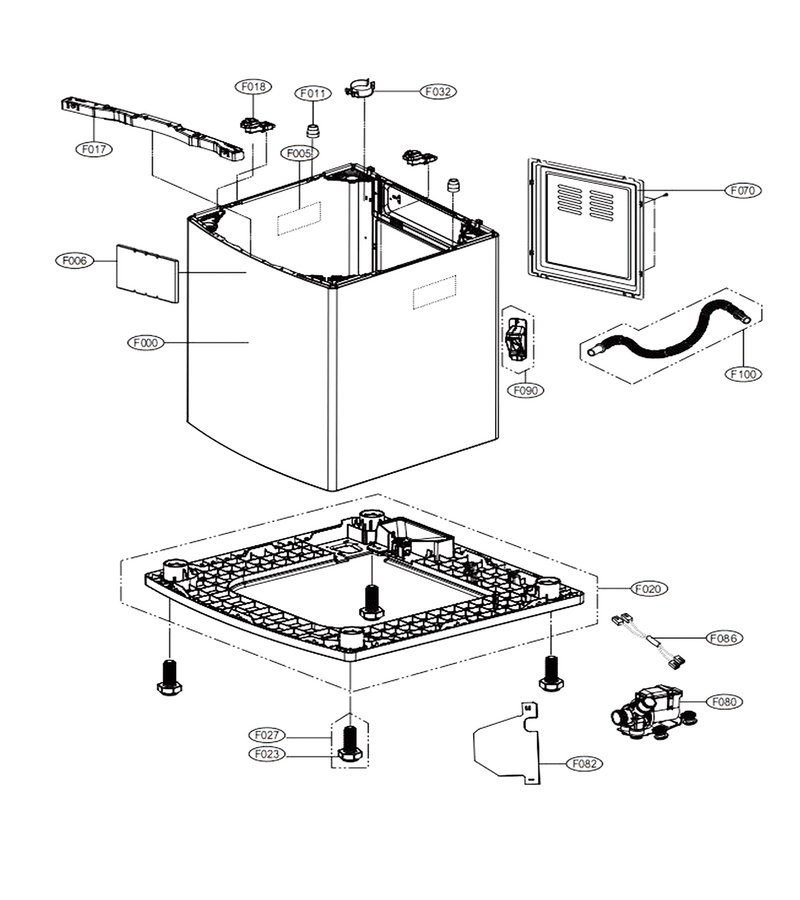

Out Case Assembly

...
...
F027
Washer Leveling Leg L-G-4263FA3933C
...
F032
Holder L-G-4930EA3002A
...
F070
Cover,rear L-G-MCK67652502
...
F017
Top Bracket L-G-MAZ63674302
...
F080
Pump Assembly,drain L-G-5859EA1004X
...
F082
Protector Cover L-G-3550EA3007C
...
F086
Harness,single L-G-EAD64205501
...
F090
Connector,drain Hose L-G-MCD62647002
...
F100
Hose Assembly,drain L-G-AEM73732906
...
F020
Base Assembly,cabinet L-G-AAN73431009
...
F018
Holder Assembly L-G-AEJ73820101
...
F011
Holder Assembly L-G-AEJ33026605
...
F006
Damper L-G-MCQ67395222
...
F005
Damper L-G-MCQ67395221
...
F000
Cabinet Assembly L-G-ABJ72919654
...
F023
Damper L-G-5040FA4226B

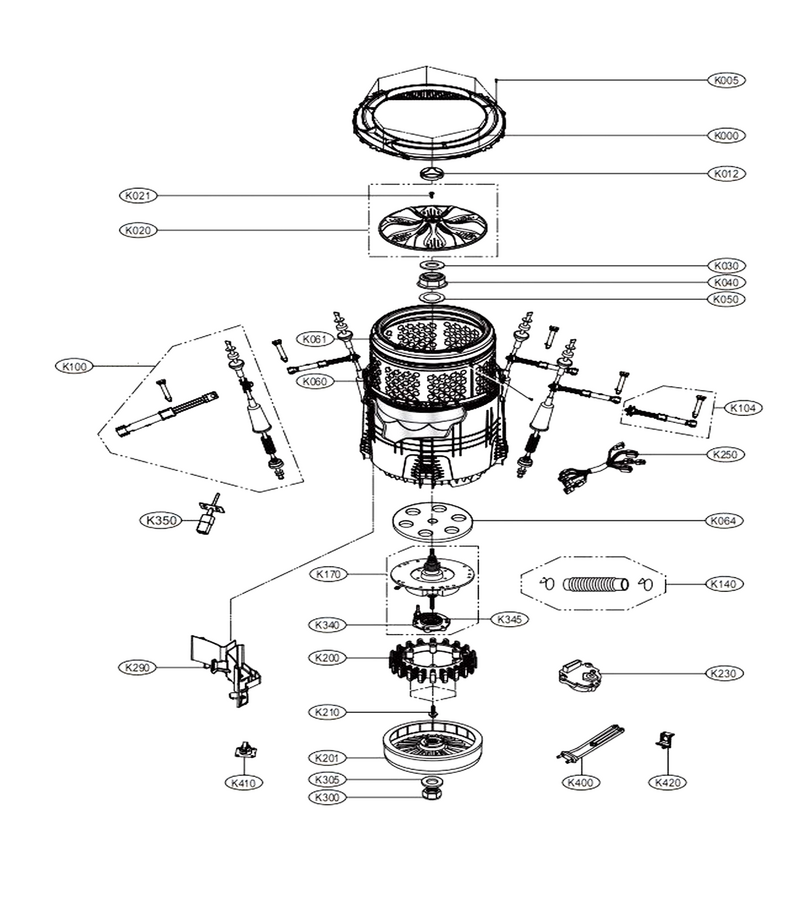

Tub Assembly

...
...
K170
Housing Assembly,clutch Coupling L-G-AEN73651402
...
K410
Thermostat Assembly L-G-6931EA2001E
...
K200
Washer Motor Stator L-G-AJB73816004
...
K201
Washer Rotor Assembly L-G-AHL72914404
...
K210
Bolt,common L-G-FAA30850701
...
K230
Washer Brake Actuator L-G-4681EA1009H
...
K250
Harness,multi L-G-EAD64149702
...
K290
Guide,water L-G-4974EA2004B
...
K300
Nut Washer L-G-1NZZEA4001A
...
K305
Washing Machine Washer L-G-4W50100D
...
K340
Washer Brake Actuator L-G-4323EA2001C
...
K345
Washer Shifter L-G-MCJ61861201
...
K350
Washer Thermistor L-G-6322FR2046G
...
K400
Heater Assembly L-G-5301FR1158Z
...
K140
Washer Drain Hose L-G-AEM73652901
...
K104
Parts Assembly L-G-AGM74269801
...
K100
Suspension L-G-4902EA1002P
...
K064
Hub,tub(inner) L-G-MEL62141608
...
K061
Balance Assembly L-G-AAJ73449902
...
K060
Tub Assembly,inner L-G-AJQ74373804
...
K050
Washing Machine Washer L-G-4040FA4045C
...
K040
Nut,common L-G-4020FA4208N
...
K030
Washing Machine Washer L-G-FAF30369201
...
K021
Washer Screw L-G-FAB30598601
...
K020
Washer Washplate L-G-AGZ72909701
...
K012
Washer Washplate Cap L-G-MBL65219301
...
K005
Screw,tapping L-G-1TTL0403384
...
K000
Tub Cover Assembly L-G-ACQ88516303
