LG 31512.ABWESEU

Model: 31512.ABWESEU

Save Part Not Listed?

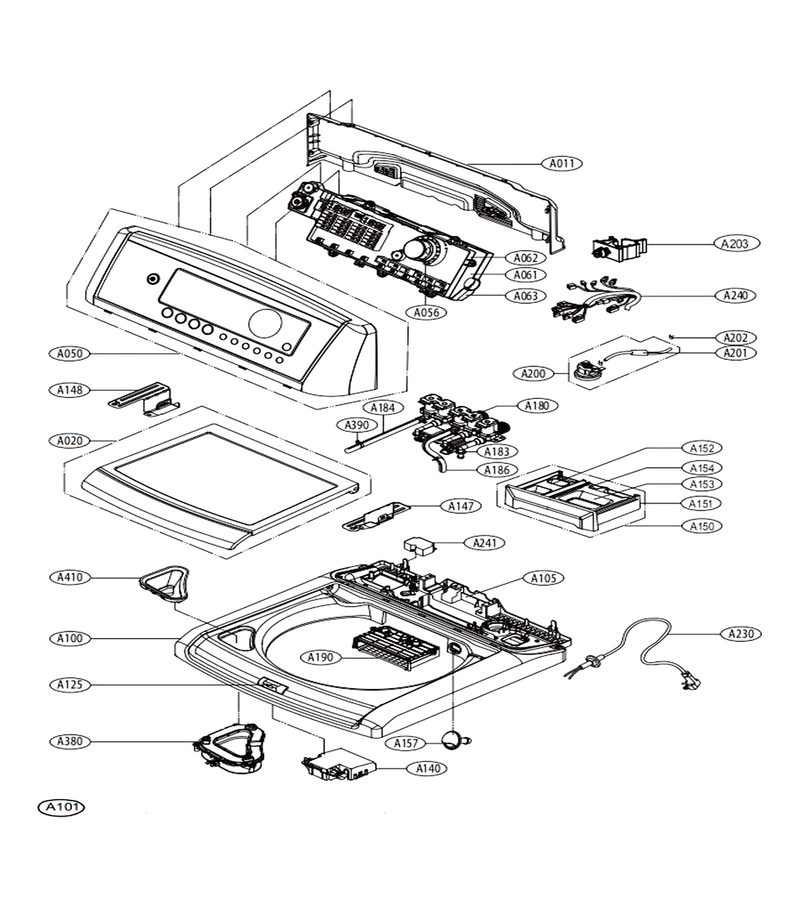

product name

Top Cover Assembly

...
...
A201
Washer Water-Level Pressure Switch Hose L-G-5210FA3427J
...
A154
Box,detergent L-G-MAY65797101
...
A157
Washing Machine,ckd/skd L-G-TAW35818703
...
A180
Washer Water Inlet Valve Assembly L-G-AJU73213301
...
A183
Connector Assembly L-G-ACJ73650201
...
A184
Washer Dispenser Hose L-G-MEJ62524903
...
A186
Washer Inlet Hose L-G-MEJ62565301
...
A190
Housing Assembly,detergent L-G-AEN73471501
...
A200
Washer Water-Level Pressure Switch L-G-6501EA1001R
...
A011
Panel,rear L-G-MGC62002301
...
A202
Washer Power Cord L-G-3W50012U
...
A230
Washer Power Cord L-G-EAD60845618
...
A240
Harness Mullion L-G-EAD62325101
...
A241
Washer Noise Filter L-G-EAM60930601
...
A380
Washer Bleach Dispenser L-G-ACZ73410701
...
A390
Clamp Assembly L-G-4861EN3003A
...
A410
Washing Machine,ckd/skd L-G-TAW35618288
...
A152
Cap,softener L-G-MBL65460502
...
A020
Washer Lid L-G-AFG73129701
...
A050
Panel Assembly,front L-G-AGL74252501
...
A056
Washing Machine,ckd/skd L-G-TAW35798606
...
A061
Pcb Assembly,main L-G-EBR75639504
...
A062
Pcb Assembly,display L-G-EBR75351403
...
A063
Package Assembly,c/skd L-G-TAW35618225
...
A100
Cover L-G-MCK67395505
...
A101
Cover,top L-G-MCK67395501
...
A125
Guide Cover L-G-MCK67634001
...
A140
Washing Machine,ckd/skd L-G-TAW36158136
...
A147
Washer Top Panel Bracket, Right L-G-ABA74468601
...
A148
Washer Top Panel Bracket, Left L-G-ABA74488401
...
A150
Box Assembly,detergent L-G-AAZ73855903
...
A151
Washer Detergent Dispenser L-G-MAY65797201
...
A153
Cap,softener L-G-MBL65440002
...
A105
Case L-G-MBN63002702

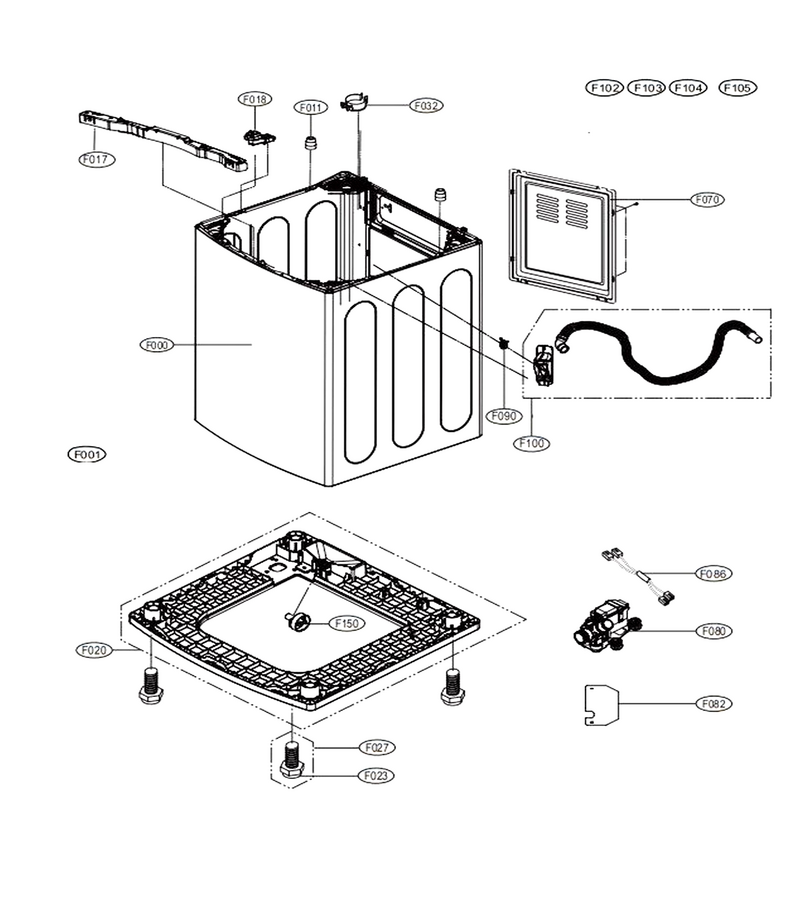

Out Case Assembly

...
...
F080
Washer Drain Pump L-G-AHA74333301
...
F082
Protector Cover L-G-MCK67262401
...
F086
Harness L-G-EAD62285501
...
F090
Hose Clamp L-G-MBU62225402
...
F020
Base Assembly,cabinet L-G-AAN74252501
...
F100
Washer Drain Hose L-G-AEM73732901
...
F102
Hanger Pivot L-G-MEC62464902
...
F103
Hanger Pivot L-G-MEC62464901
...
F104
Hanger Pivot L-G-MEC62464904
...
F105
Hanger Pivot L-G-MEC62464903
...
F150
Washer Water-Level Pressure Switch L-G-EBD50360202
...
F032
Holder L-G-MEG63440201
...
F070
Cover,rear L-G-MCK67867701
...
F000
Cabinet Assembly L-G-ABJ74527101
...
F001
Cabinet Assembly L-G-ABJ73967201
...
F011
Holder Assembly L-G-AEJ73620102
...
F017
Bracket Assembly L-G-ABA74451701
...
F018
Holder Assembly L-G-AEJ74739401
...
F023
Washer Leveling Leg L-G-5040FA4226A
...
F027
Washer Leveling Leg L-G-AFC73529601

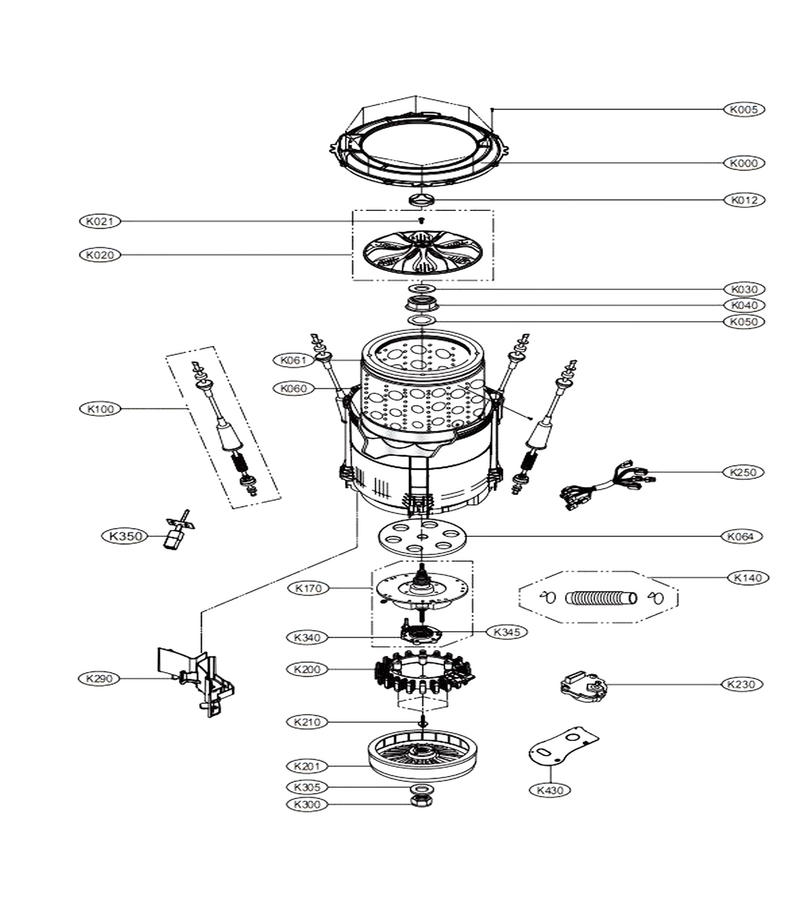

Tub Assembly

...
...
K140
Washer Drain Hose L-G-AEM73652901
...
K350
Washer Thermistor L-G-6322FR2046G
...
K170
Washer Drive Shaft And Shifter Assembly L-G-AEN73131403
...
K200
Washer Motor Stator L-G-4417EA1002K
...
K201
Washer Motor Rotor L-G-4413EA1004D
...
K210
Common Bolt L-G-FAA30970801
...
K230
Package Assembly,c/skd L-G-TAW35618294
...
K250
Washer Wire Harness L-G-EAD62285401
...
K290
Washer Water Hose Guide L-G-MEA63032501
...
K300
Nut Washer L-G-1NZZEA4001A
...
K305
Washing Machine Washer L-G-4W50100D
...
K340
Washer Drive Hub Coupling L-G-ACP72929002
...
K345
Washer Clutch Band L-G-MCJ61941202
...
K100
Washer Suspension Rod L-G-AJK72909307
...
K064
Hub Tub L-G-MEL62141603
...
K061
Washer Basket Balance Ring L-G-AAJ73189801
...
K060
Washer Spin Basket L-G-AJQ73634001
...
K050
Washer L-G-FAF30370601
...
K040
Nut Washer L-G-4020FA4208M
...
K030
Washing Machine Washer L-G-FAF30369201
...
K021
Washer Screw L-G-FAB31741301
...
K020
Pulsator Assembly L-G-AGZ73050601
...
K012
Washer Washplate Cap L-G-MBL65219301
...
K005
Washer Tub Cover Screw L-G-FAB31700102
...
K000
Washer Tub Ring L-G-ACQ86293501
