LG 31433.ASTETEU

Model: 31433.ASTETEU

Save Part Not Listed?

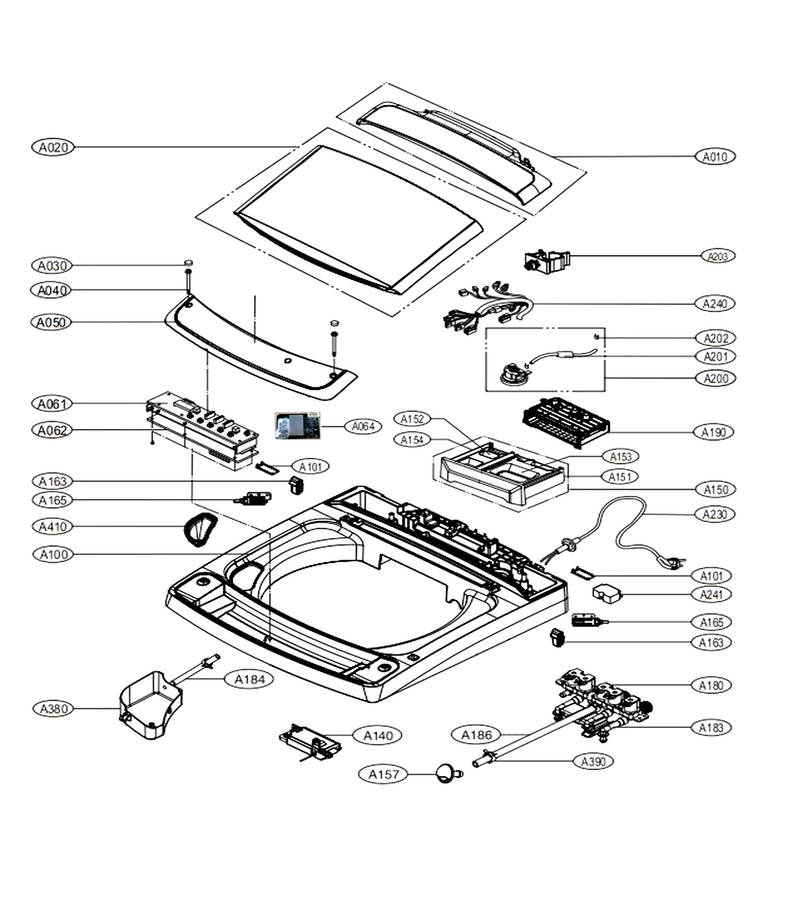

product name

Top Cover Assembly

...
...
A202
Clamp L-G-3W40106R
...
A165
Damper Assembly,friction L-G-ACV73730201
...
A180
Valve Assembly,inlet L-G-AJU75152601
...
A183
Connector Assembly L-G-ACJ73350404
...
A184
Washer Dispenser Hose L-G-MEJ61841803
...
A186
Washer Dispenser Drawer Housing Assembly L-G-5214EA3004B
...
A190
Housing Assembly,detergent L-G-AEN72910503
...
A200
Washer Water-Level Pressure Switch L-G-6501EA1001R
...
A201
Washer Water-Level Pressure Switch Hose L-G-5210FA3427J
...
A010
Panel Assembly,rear L-G-AGL74774233
...
A203
Holder L-G-MEG64119601
...
A230
Power Cord Assembly L-G-EAD60778446
...
A240
Harness,multi L-G-EAD64129602
...
A241
Filter Assembly L-G-EAM60930604
...
A380
Dispenser Assembly L-G-ACZ73270503
...
A390
Washer Hose Clamp L-G-3W40106M
...
A410
Cap,cover L-G-MBL65540805
...
A157
Nozzle Assembly L-G-AGB73672403
...
A020
Lid Assembly L-G-AFG73269716
...
A030
Washer Screw L-G-5006EN4001E
...
A040
Screw,customized L-G-4000FA4196Q
...
A050
Panel Assembly,front L-G-AGL73961682
...
A061
Pcb Assembly,main L-G-EBR80321818
...
A062
Pcb Assembly,display L-G-EBR78309807
...
A064
Pcb Assembly,rf L-G-EBR85031604
...
A100
Pcb Assembly,rf L-G-EBR85031604
...
A101
Cover L-G-MCK67394603
...
A140
Washer Lid Switch L-G-EBF61215202
...
A150
Box Assembly,detergent L-G-AAZ73855930
...
A151
Box,detergent L-G-MAY65797225
...
A152
Softener Cap L-G-MBL65460504
...
A153
Softener Cap L-G-MBL65440004
...
A154
Blc Dispense L-G-MAY65797106
...
A163
Hinge Washer L-G-MEF62462101

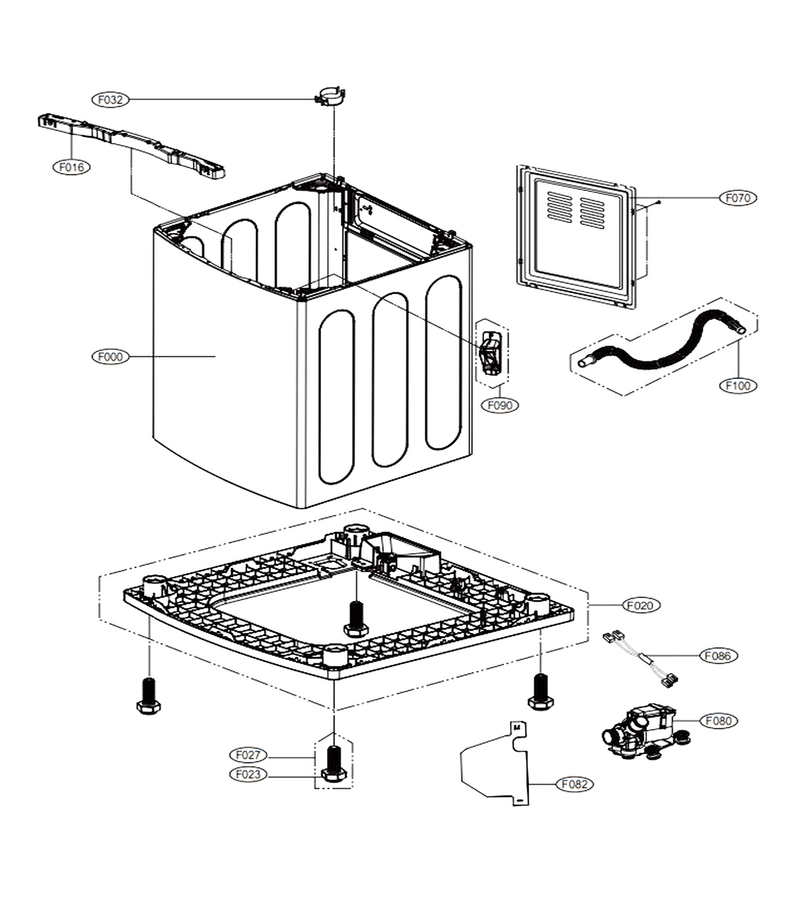

Outer Case Assembly

...
...
F100
Hose Assembly,drain L-G-AEM73732904
...
F090
Connector,drain Hose L-G-MCD62647002
...
F016
Bracket L-G-MAZ63674301
...
F086
Harness,single L-G-EAD64205501
...
F082
Protector Cover L-G-3550EA3007C
...
F080
Pump Assembly,drain L-G-5859EA1004X
...
F070
Cover,rear L-G-MCK67652502
...
F027
Washer Leveling Leg L-G-4263FA3933C
...
F023
Damper L-G-5040FA4226B
...
F020
Base Assembly,cabinet L-G-AAN73431009
...
F000
Cabinet Assembly L-G-ABJ72919657
...
F032
Holder L-G-4930EA3002A

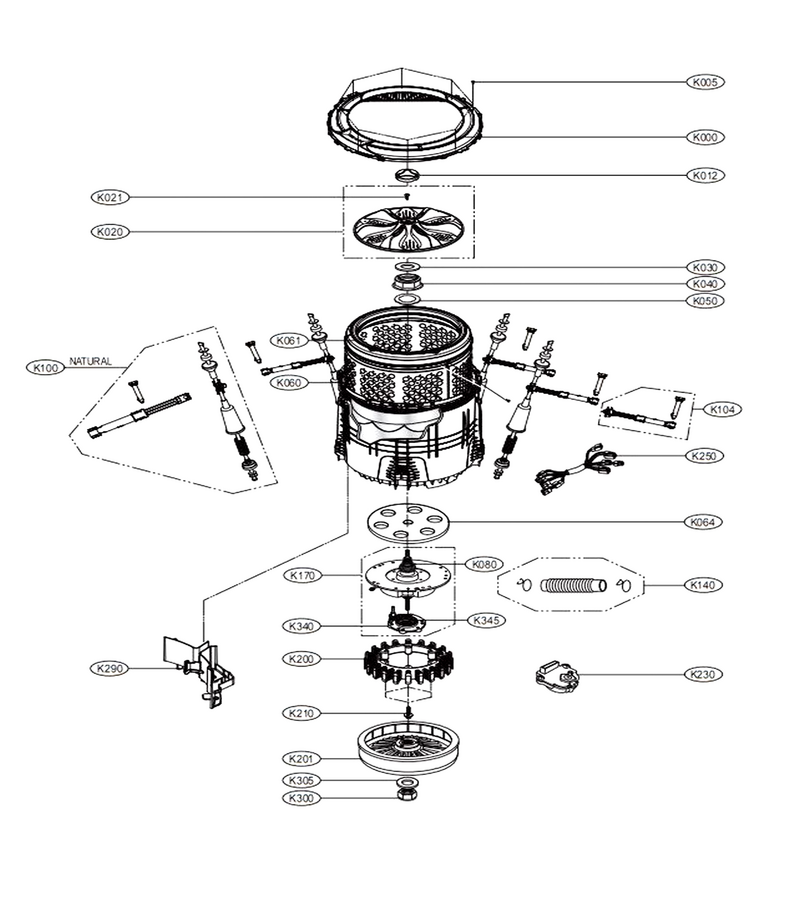

Tub Assembly

...
...
K100
Suspension L-G-4902EA1002P
...
K340
Washer Brake Actuator L-G-4323EA2001C
...
K104
Parts Assembly L-G-AGM74269801
...
K140
Washer Drain Hose L-G-AEM73213001
...
K170
Package Assembly,c/skd L-G-AGF76283892
...
K200
Washer Motor Stator L-G-AJB73816004
...
K201
Washer Rotor Assembly L-G-AHL72914404
...
K210
Bolt,common L-G-FAA30850701
...
K230
Washer Brake Actuator L-G-4681EA1009H
...
K250
Harness,multi L-G-EAD64149701
...
K290
Guide,water L-G-4974EA2004C
...
K300
Nut Washer L-G-1NZZEA4001A
...
K305
Washing Machine Washer L-G-4W50100D
...
K080
Gasket L-G-4036FA4364B
...
K064
Hub,tub(inner) L-G-MEL62141608
...
K061
Balance Assembly L-G-AAJ73170003
...
K060
Tub Assembly,inner L-G-AJQ73614209
...
K050
Washing Machine Washer L-G-4040FA4045C
...
K040
Nut,common L-G-4020FA4208N
...
K030
Washing Machine Washer L-G-FAF30369201
...
K021
Washer Screw L-G-FAB30598601
...
K020
Washer Washplate L-G-AGZ72909701
...
K012
Washer Washplate Cap L-G-5006EA3009B
...
K005
Washer Tub Ring Screw L-G-FAB32139901
...
K000
T-Cover Assembly L-G-ACQ86382201
