product name

LG 31422.ABWEPEU

Model: 31422.ABWEPEU

Save Part Not Listed?

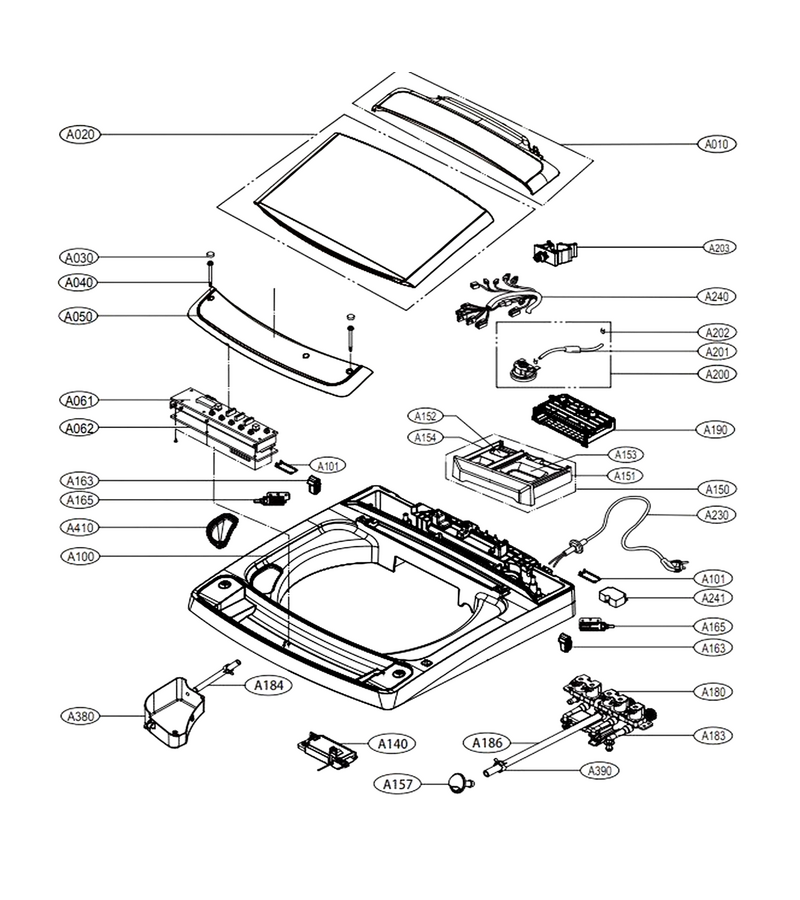

product name

Top Cover Assembly

...
...
A202
Washer Power Cord L-G-3W50012U
...
A165
Friction Double Bracket Damper Washer L-G-AGM73832002
...
A180
Package Assembly,c/skd L-G-TAW35618287
...
A183
Connector Assembly L-G-ACJ73650201
...
A184
Washer Dispenser Hose L-G-MEJ62524903
...
A186
Washer Inlet Hose L-G-MEJ62565301
...
A190
Housing Assembly,detergent L-G-AEN73471501
...
A200
Washer Water-Level Pressure Switch L-G-6501EA1001R
...
A201
Washer Water-Level Pressure Switch Hose L-G-5210FA3427J
...
A010
Panel Assembly,rear L-G-AGL74774204
...
A203
Washing Machine,ckd/skd L-G-TAW36858210
...
A230
Washer Power Cord L-G-EAD60845622
...
A240
Harness,multi L-G-EAD62290508
...
A241
Filter Assembly L-G-EAM60930604
...
A380
Dispenser Assembly L-G-ACZ73410702
...
A390
Clamp Assembly L-G-4861EN3003A
...
A410
Cap,cover L-G-MBL65540803
...
A157
Nozzle Assembly L-G-AGB73672402
...
A020
Lid Assembly L-G-AFG73269704
...
A030
Cap,screw L-G-MBL66197303
...
A040
Screw,customized L-G-1SZZEN4017K
...
A050
Washing Machine,ckd/skd L-G-TAW36300706
...
A061
Pcb Assembly,main L-G-EBR80321803
...
A062
Pcb Assembly,display L-G-EBR79505409
...
A100
Cover L-G-MCK67394604
...
A101
Lower Cover L-G-MCK67634401
...
A140
Package Assembly,c/skd L-G-TAW35818286
...
A150
Box Assembly,detergent L-G-AAZ73855903
...
A151
Washer Detergent Dispenser L-G-MAY65797201
...
A152
Cap,softener L-G-MBL65460502
...
A153
Cap,softener L-G-MBL65440002
...
A154
Box,detergent L-G-MAY65797101
...
A163
Washer Lid Hinge L-G-MEF63582002

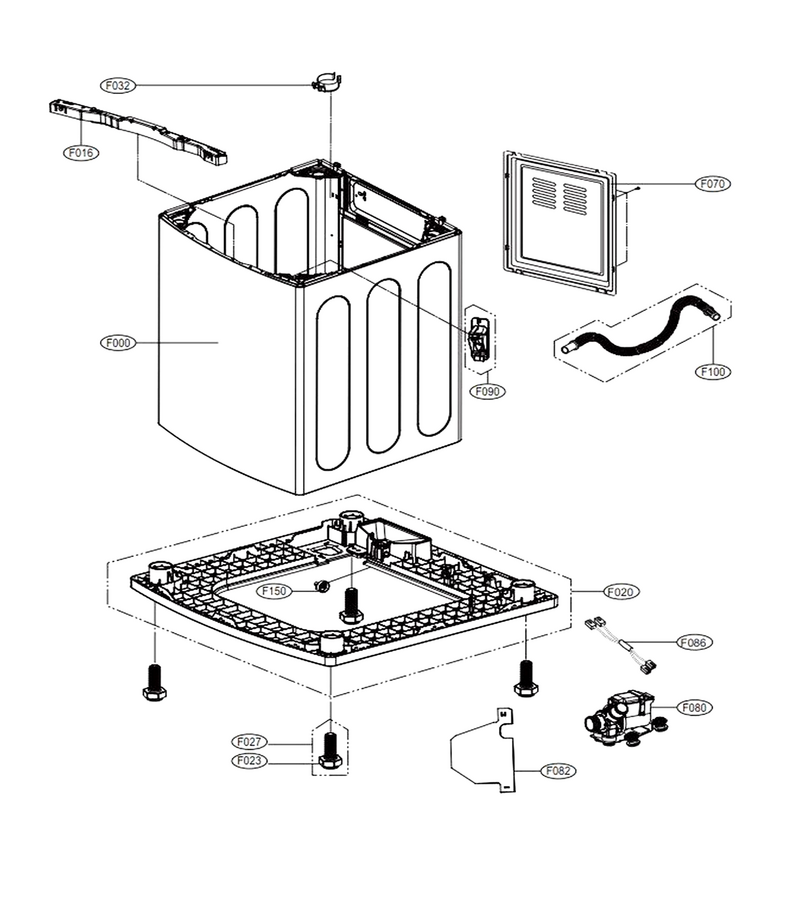

Outer Case Assembly

...
...
F150
Washer Water-Level Pressure Switch L-G-EBD50360202
...
F100
Washer Drain Hose L-G-AEM73732901
...
F090
Hose Clamp L-G-MBU62225402
...
F020
Washer Base L-G-AAN74252505
...
F086
Harness L-G-EAD62285501
...
F082
Protector Cover L-G-MCK67262401
...
F080
Washer Drain Pump L-G-AHA74333301
...
F032
Holder L-G-MEG63440201
...
F027
Leg Assembly L-G-AFC73529602
...
F023
Damper L-G-5040FA4226B
...
F016
Bracket,top L-G-MAZ64266901
...
F000
Cabinet Assembly L-G-ABJ74527104
...
F070
Rear Cover L-G-MCK67447401

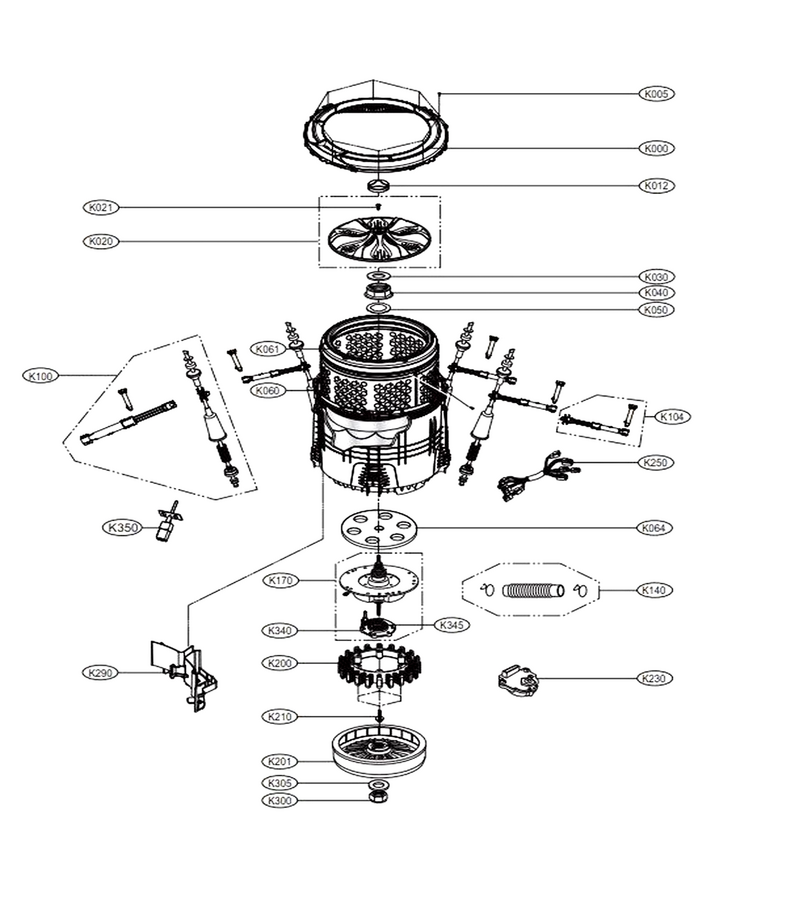

Tub Assembly

...
...
K104
Parts Assembly L-G-AGM74269801
...
K345
Washer Clutch Band L-G-MCJ61941202
...
K140
Washer Drain Hose L-G-AEM73652901
...
K170
Washer Drive Shaft And Shifter Assembly L-G-AEN73131403
...
K200
Washer Motor Stator L-G-AJB73816004
...
K201
Washer Rotor Assembly L-G-AHL72914404
...
K210
Common Bolt L-G-FAA30970801
...
K230
Washer Brake Actuator L-G-4681EA1009H
...
K250
Harness L-G-EAD62285408
...
K290
Washer Water Hose Guide L-G-MEA63032501
...
K300
Nut Washer L-G-1NZZEA4001A
...
K305
Washing Machine Washer L-G-4W50100D
...
K340
Washer Drive Hub Coupling L-G-ACP72929002
...
K100
Washer Suspension Rod Kit L-G-AJK72989702
...
K064
Hub Tub L-G-MEL62141603
...
K061
Washer Basket Balance Ring L-G-AAJ73389801
...
K060
Washer Spin Basket L-G-AJQ74034502
...
K050
Washer L-G-FAF30370601
...
K040
Nut Washer L-G-4020FA4208M
...
K030
Washing Machine Washer L-G-FAF30369201
...
K021
Washer Screw L-G-FAB31741301
...
K020
Pulsator Assembly L-G-AGZ73050601
...
K012
Washer Washplate Cap L-G-MBL65219301
...
K005
Washer Tub Cover Screw L-G-FAB31700102
...
K000
Cover Assembly L-G-ACQ87516401
