LG 295.MWEWPC

Model: 295.MWEWPC

Save Part Not Listed?
product name

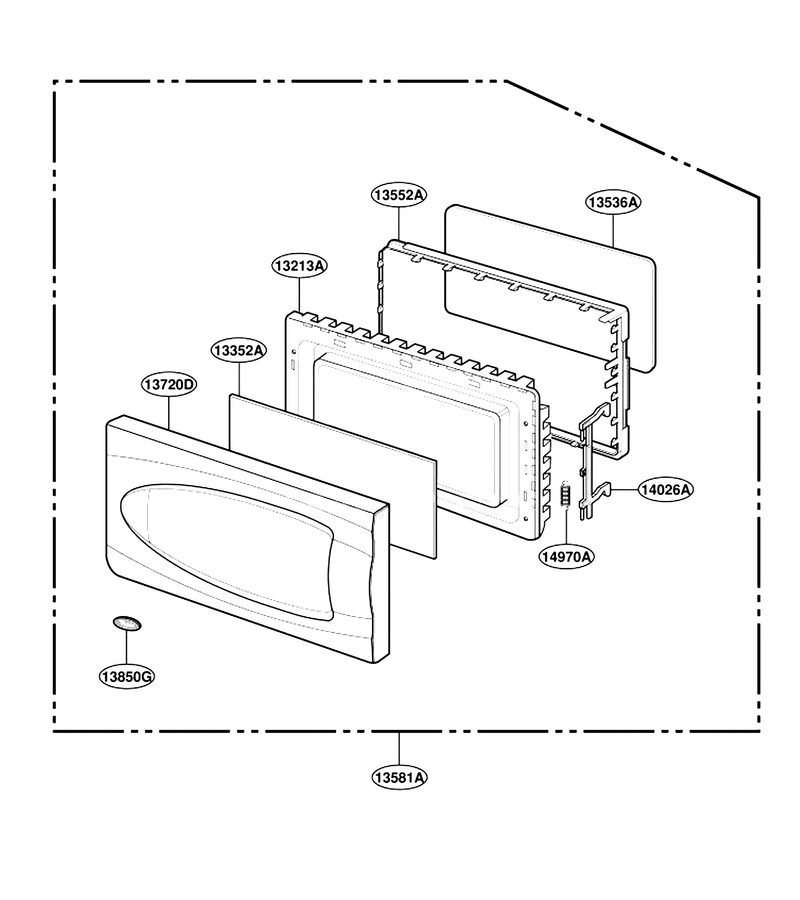

Door Parts

...
...
13213A
Microwave Door Frame L-G-3213W0A001G
...
13352A
Window,screen L-G-3352W1A092F
...
13536A
Seal Tape L-G-3536WRA001Q
...
13552A
Microwave Choke Cover L-G-3552W1A035A
...
13581A
Door Assembly L-G-3581W1A188L
...
13720D
Panel,door L-G-3720W0D128A
...
14026A
Microwave Door Latch Hook L-G-4026W2A015A
...
14970A
Spring L-G-4970WRA001C

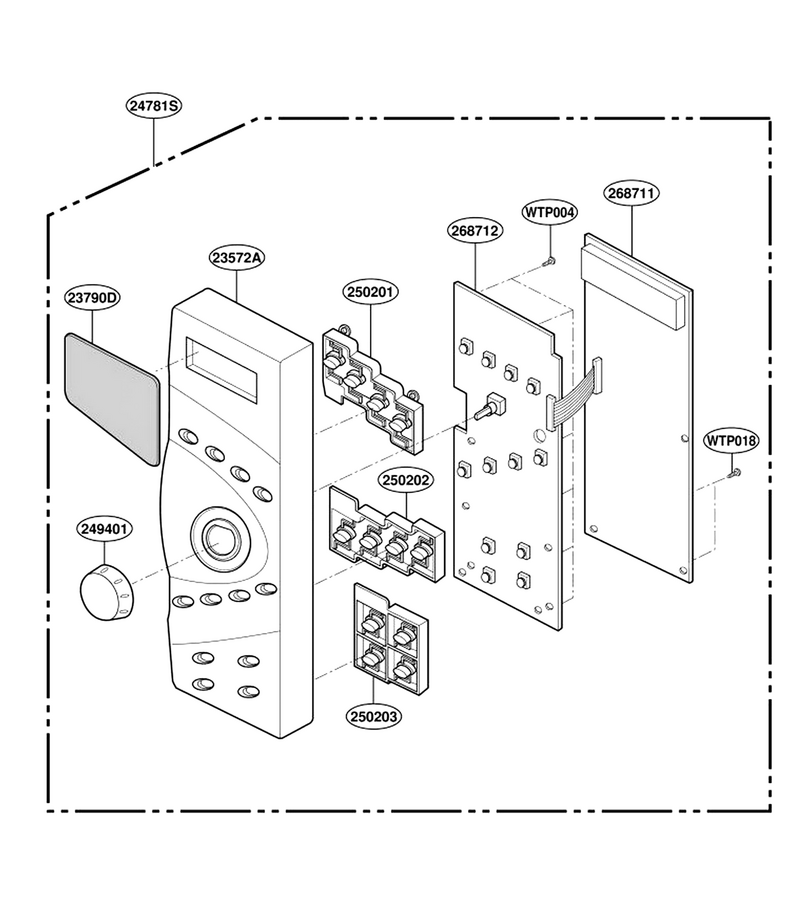

Control Panel Parts

...
...
WTP004
Screw L-G-1TPL0302418
...
WTP018
Screw L-G-1TPL0402818
...
23572A
Panel,control L-G-3572W0A147C
...
23790D
Window,[digitron] L-G-3790W2D021A
...
24781S
Controller Assy,[semi Micom] L-G-4781W1S047E
...
249401
Knob L-G-4940W2A004A
...
250201
Button L-G-5020W2A097A
...
250202
Button L-G-5020W2A098A
...
250203
Button L-G-5020W2A101A
...
268711
Pcb Assembly,sub L-G-6871W2S118B
...
268712
Pcb Assembly,sub L-G-6871W2S117A

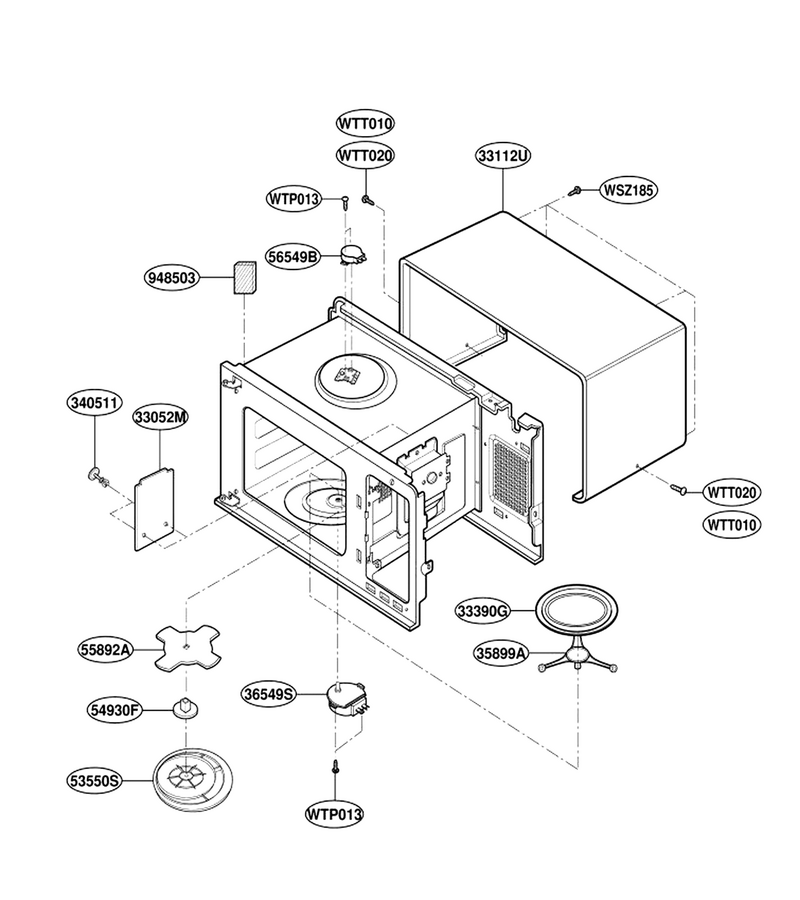

Oven Cavity Parts

...
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT010
Microwave Screw L-G-1TTG0402422
...
33052M
Canopy L-G-3052W3A015A
...
33112U
Case,u Bending L-G-3112W0U028A
...
33390G
Microwave Glass Turntable Tray L-G-3390W1G009C
...
36549S
Motor, Ac Synchronous L-G-6549W1S011C
...
53550S
Stirrer Cover L-G-3550W1A077A
...
54930F
Holder,stirrer Fan L-G-4930W3B026C
...
55892A
Fan L-G-5892W3A002B
...
340511
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
948503
Cushion L-G-3B72244C

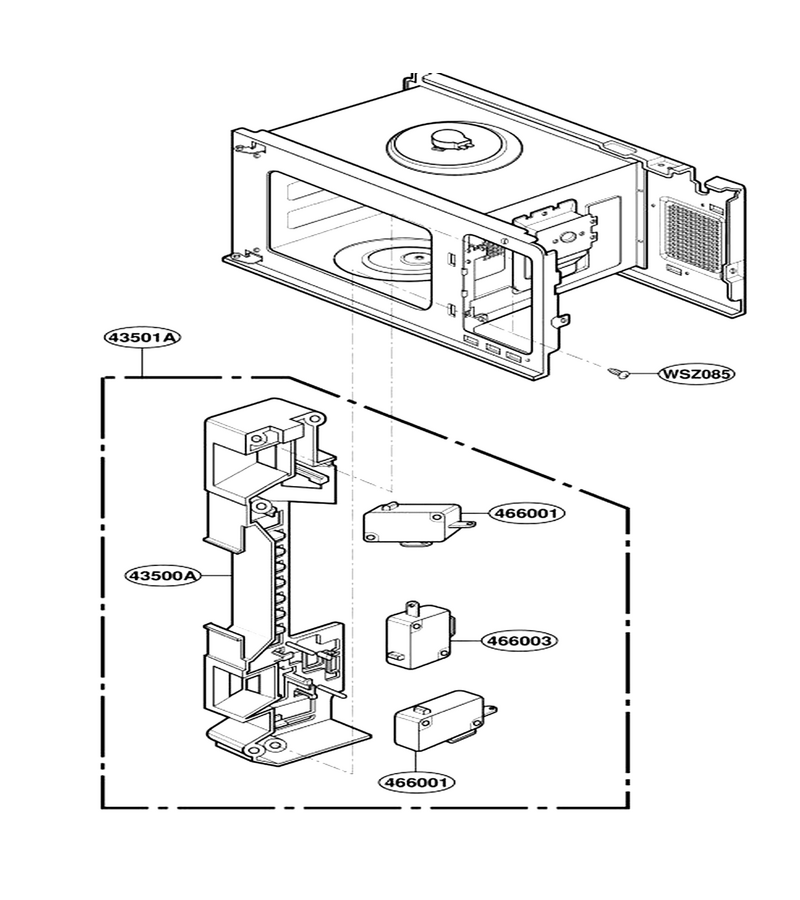

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Microwave Latch Body L-G-3500W1A005A
...
43501A
Latch Board L-G-3501W1A016F
...
466001
Microwave Micro Switch L-G-3B73362F
...
466003
Switch Micro L-G-3B73361E

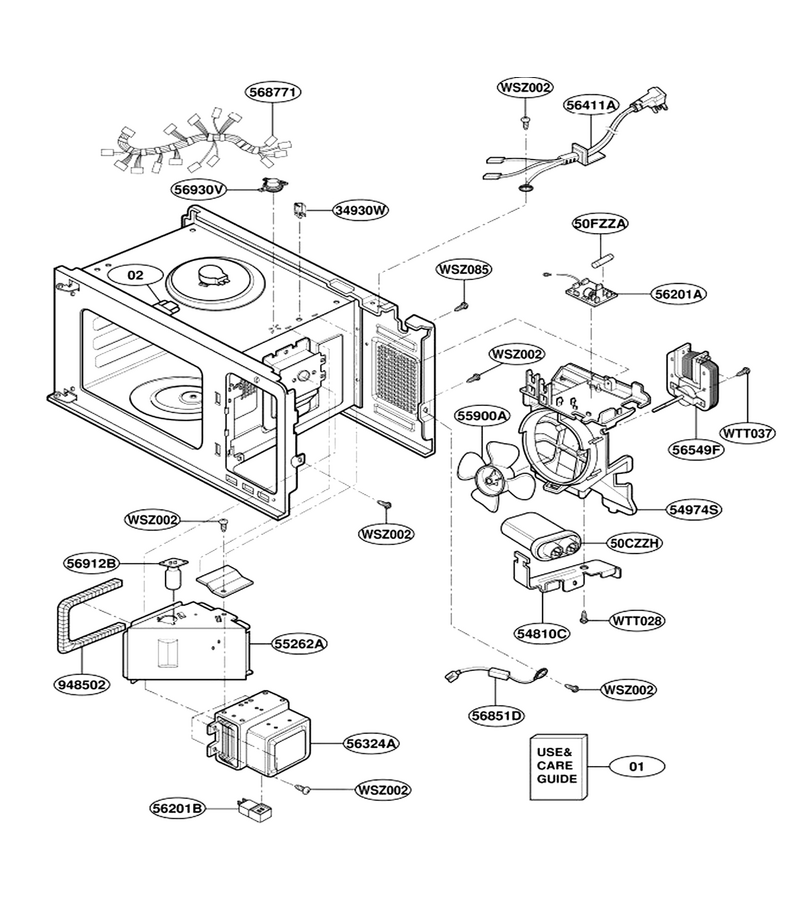

Interior Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
01
Manual,[owners]mwo L-G-3828W5A1570
...
02
Manual,[service] L-G-3828W5S1626
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H003H
...
50FZZA
Fuse[all] L-G-3B74133K
...
54810C
Bracket L-G-4810W4C003A
...
54974S
Guide L-G-4974W1S010A
...
55262A
Air Duct L-G-5262W2A020A
...
55900A
Microwave Cooling Fan Blade L-G-2B72125A
...
56201A
Microwave Noise Filter L-G-2B72130F
...
56324A
Microwave Magnetron L-G-6324W1A001B
...
56411A
Power Cord Assembly L-G-6411W2A002B
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005B
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001M
...
56912B
Microwave Light Bulb L-G-6912W3B002G
...
56930V
Microwave Thermostat L-G-6930W1A001J
...
568771
Connector Assembly L-G-6877W1A282A

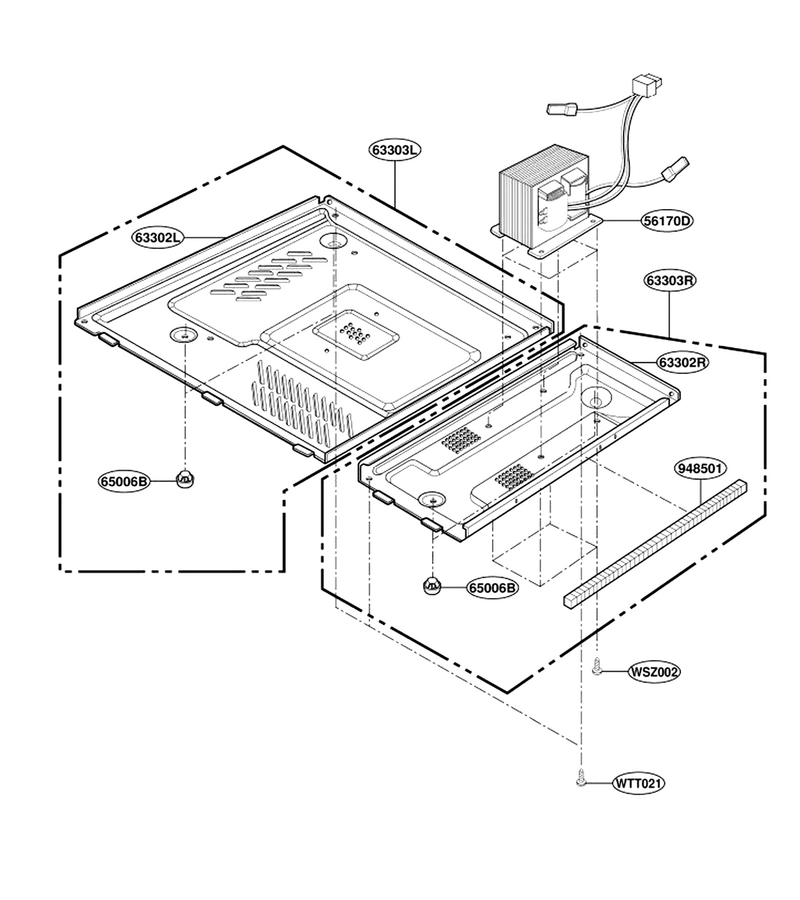

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
56170D
Microwave High-Voltage Transformer L-G-6170W1D023B
...
63302L
Plate L-G-3302W0A014A
...
63302R
Plate,base L-G-3302W1A046A
...
63303L
Plate Assembly L-G-3303W0A010A
...
63303R
Plate Assembly,base L-G-3303W1A040A
...
65006B
Cap L-G-5006W3A016B
...
948501
Cushion L-G-3B72244T

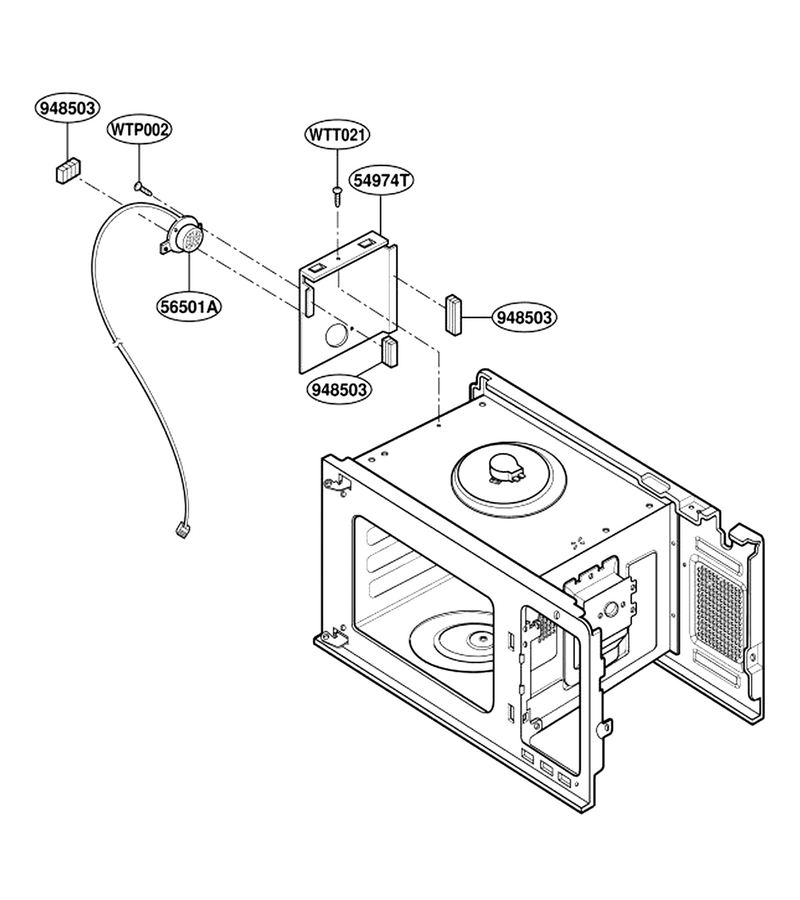

Sensor Parts

...
...
WTP002
Screw L-G-1TPL0302018
...
WTT021
Microwave Screw L-G-1TTL0402418
...
54974T
Guide,sensor L-G-5208W1A001B
...
56501A
Humidity Sensor L-G-6501W1A004A
...
948503
Cushion L-G-3B72244C
