product name

LG 29272.ABWESEU

Model: 29272.ABWESEU

Save Part Not Listed?

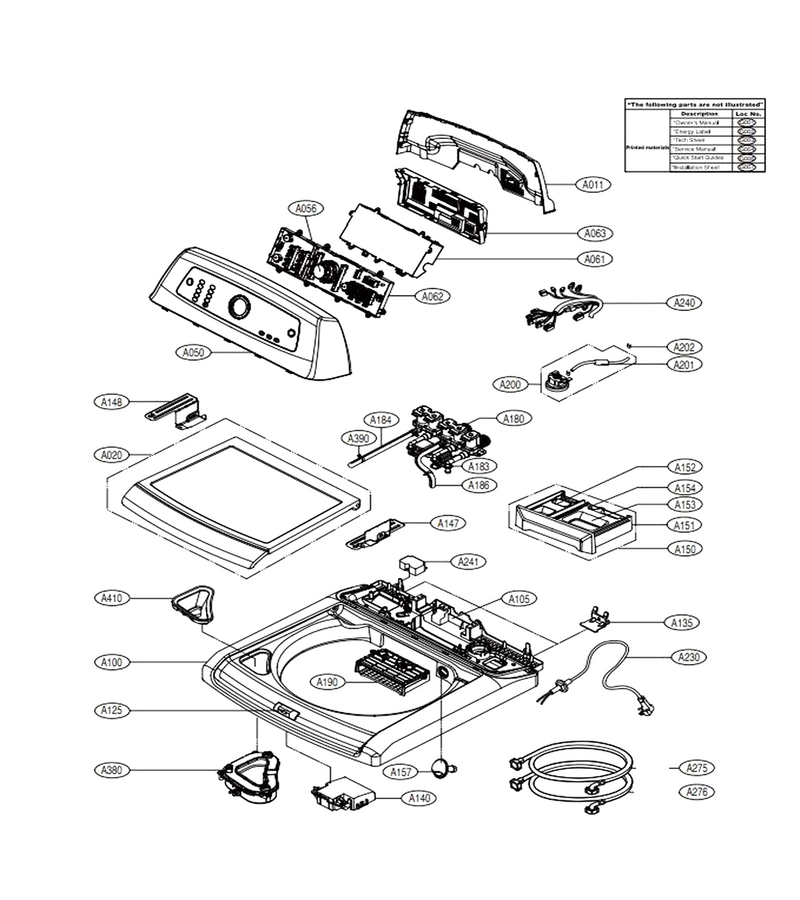

product name

Top Cover Assembly

...
...
A230
Washer Power Cord L-G-EAD40521457
...
A157
Nozzle Assembly L-G-AGB72932402
...
A180
Washer Water Inlet Valve L-G-5221EA1008F
...
A183
Washer Water Valve Connector Assembly L-G-ACJ73350401
...
A184
Washer Dispenser Hose L-G-MEJ61841803
...
A186
Washer Dispenser Drawer Housing Assembly L-G-5214EA3004B
...
A190
Washer Dispenser Drawer Housing Assembly L-G-AEN72910501
...
A200
Washer Water-Level Pressure Switch L-G-6501EA1001R
...
A201
Washer Water-Level Pressure Switch Hose L-G-5210FA3427J
...
A202
Washer Power Cord L-G-3W50012U
...
A011
Panel,rear L-G-MGC62002301
...
A240
Washer Wire Harness L-G-EAD60820201
...
A241
Washer Noise Filter L-G-EAM60930601
...
A275
Washer Fill Hose L-G-5215FD3715U
...
A276
Washer Fill Hose L-G-5215FD3715V
...
A380
Washer Bleach Dispenser L-G-ACZ72910401
...
A390
Washer Hose Clamp L-G-3W40106M
...
A410
Cap,cover L-G-MBL62061402
...
A153
Cap,softener L-G-MBL62061602
...
A020
Lid Assembly L-G-AFG72909503
...
A050
Panel Assembly,front L-G-AGL73093101
...
A056
Knob Assembly L-G-AEZ33665703
...
A061
Pcb Assembly,main L-G-EBR62198103
...
A062
Pcb Assembly,display L-G-EBR67460503
...
A063
Protector Cover L-G-3550EL2003C
...
A100
Cover L-G-MCK62185511
...
A105
Case L-G-MBN61861101
...
A135
Plate L-G-3300ER4002B
...
A140
Washer Lid Lock L-G-EBF60665201
...
A147
Washer Top Panel Bracket, Right L-G-ABA72939701
...
A148
Washer Top Panel Bracket, Left L-G-ABA73249001
...
A150
Box Assembly,detergent L-G-AAZ72925603
...
A151
Washer Detergent Dispenser L-G-MAY62020101
...
A152
Cap,softener L-G-MBL62061502
...
A154
Box,detergent L-G-MAY62020201
...
A125
Guide Cover L-G-MCK62185701

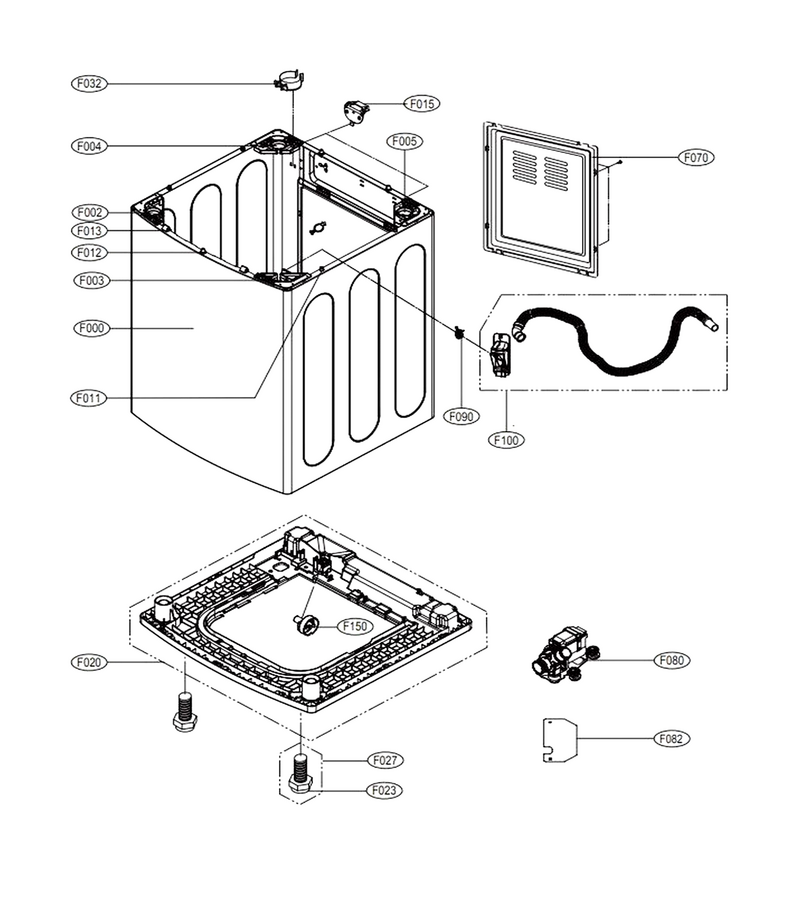

Out Case Assembly

...
...
F023
Washer Leveling Leg L-G-5040FA4226A
...
F027
Washer Leveling Leg L-G-4263FA3933A
...
F032
Holder L-G-4930EA3002A
...
F011
Holder Assembly L-G-AEJ33026605
...
F070
Rear Cover L-G-3808FA1368F
...
F080
Pump Assembly,drain L-G-5859EA1004K
...
F082
Protector Cover L-G-3550EA3007C
...
F090
Hose Clamp L-G-MBU62225402
...
F100
Washer Drain Hose L-G-AEM74053001
...
F150
Washer Water-Level Pressure Switch L-G-EBD50360202
...
F015
Lower Plate L-G-3300ER4003B
...
F020
Washer Base L-G-AAN73431001
...
F000
Cabinet L-G-ABJ72919601
...
F002
Washer Suspension Rod Socket L-G-MEC61841702
...
F003
Hanger Pivot L-G-MEC61841701
...
F004
Hanger Pivot L-G-MEC61841704
...
F005
Hanger Pivot L-G-MEC61841703
...
F012
Holder L-G-4930ER4002B
...
F013
Holder L-G-4930ER4003B

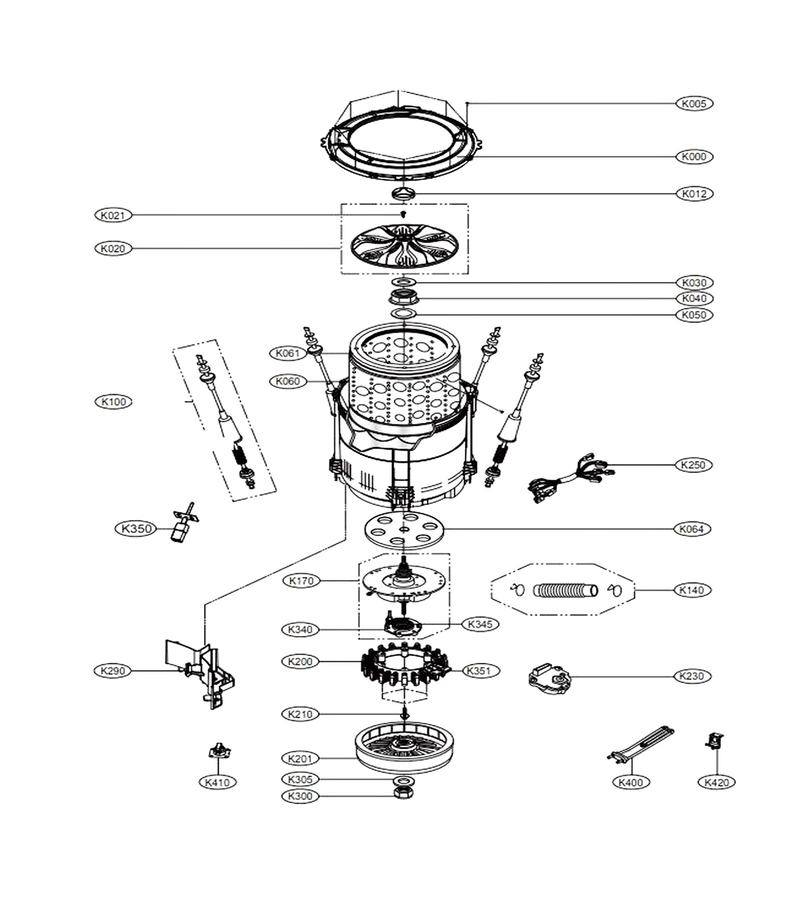

Tub Assebly

...
...
K200
Washer Motor Stator L-G-4417EA1002K
...
K410
Thermostat Assembly L-G-6931EA2001D
...
K201
Washer Motor Rotor L-G-4413EA1004D
...
K210
Washer Bolt L-G-4011FA4353B
...
K230
Washer Brake Actuator L-G-4681EA1009H
...
K250
Washer Wire Harness L-G-6877EA1044H
...
K290
Washer Water Hose Guide L-G-4974EA2004A
...
K300
Nut Washer L-G-1NZZEA4001A
...
K305
Washing Machine Washer L-G-4W50100D
...
K340
Washer Brake Actuator L-G-4323EA2001C
...
K345
Washer Shifter L-G-MCJ61861201
...
K350
Washer Thermistor L-G-6322FR2046G
...
K351
Washer Motor Rotor Position Sensor L-G-6501KW2002A
...
K400
Heater Assembly L-G-5301FR1158Z
...
K170
Washer Clutch L-G-3661EA1009D
...
K140
Washer Drain Hose L-G-AEM73213001
...
K100
Suspension Assembly,suspension L-G-AJK72909309
...
K064
Washer Tub Mounting Hub L-G-MEL61841401
...
K061
Washer Basket Balance Ring L-G-AAJ72909601
...
K060
Washer Spin Basket L-G-AJQ72911902
...
K050
Washing Machine Washer L-G-4040FA4045C
...
K040
Nut Washer L-G-4020FA4208J
...
K030
Washing Machine Washer L-G-FAF30369201
...
K021
Washer Screw L-G-FAB30598601
...
K020
Pulsator Assembly L-G-AGZ72909703
...
K012
Washer Washplate Cap L-G-5006EA3009B
...
K005
Washer Tub Ring Screw L-G-FAB32139901
...
K000
Washer Tub Ring L-G-ACQ73710601
