product name

LG 23295.ANBESRS

Model: 23295.ANBESRS

Save Part Not Listed?

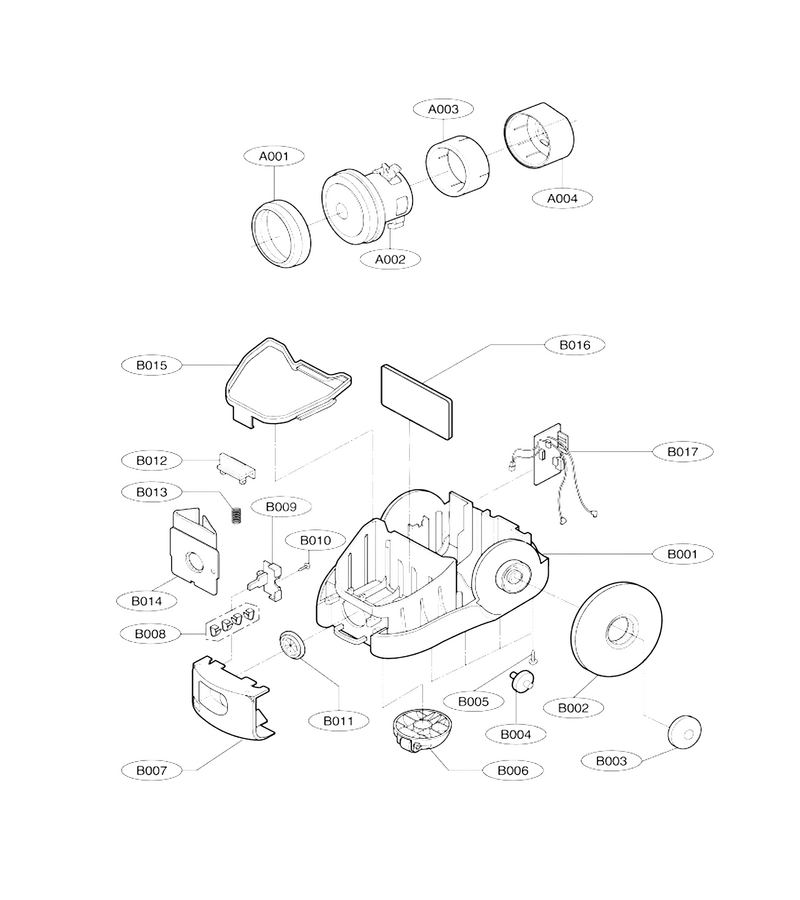

product name

Base Assembly, Body

...
...
A001
Damper,motor Mount L-G-3920FI3766A
...
B017
Pcb Assembly,main L-G-6871FX2125A
...
B016
Filter,motor Safety L-G-5230FI3248A
...
B015
Gasket L-G-3920FI1115A
...
B014
Filter Assembly,paper L-G-5231FI2390J
...
B013
Spring L-G-4I23017A
...
B012
Locker,filter L-G-3I23004B
...
B011
Gasket L-G-4036FI3036A
...
B010
Screw L-G-1TPL0402818
...
B009
Block,terminal L-G-3I23009R
...
B008
Harness,single L-G-6801FI3256C
...
B006
Roller Assembly L-G-4441FI3605J
...
B005
Screw Tapping,pan Head L-G-1TPL0403316
...
B004
Roller L-G-4I22017F
...
B003
Cover,wheel L-G-4660FI3238N
...
B002
Wheel L-G-4660FI1114D
...
B001
Base,body L-G-3040FI1111D
...
A004
Damper Assembly,sound L-G-5041FI2003A
...
A003
Damper,absorbing L-G-3940FI3646A
...
A002
Vacuum Motor L-G-4681FI2451G
...
B007
Cover,front L-G-3550FI1113F

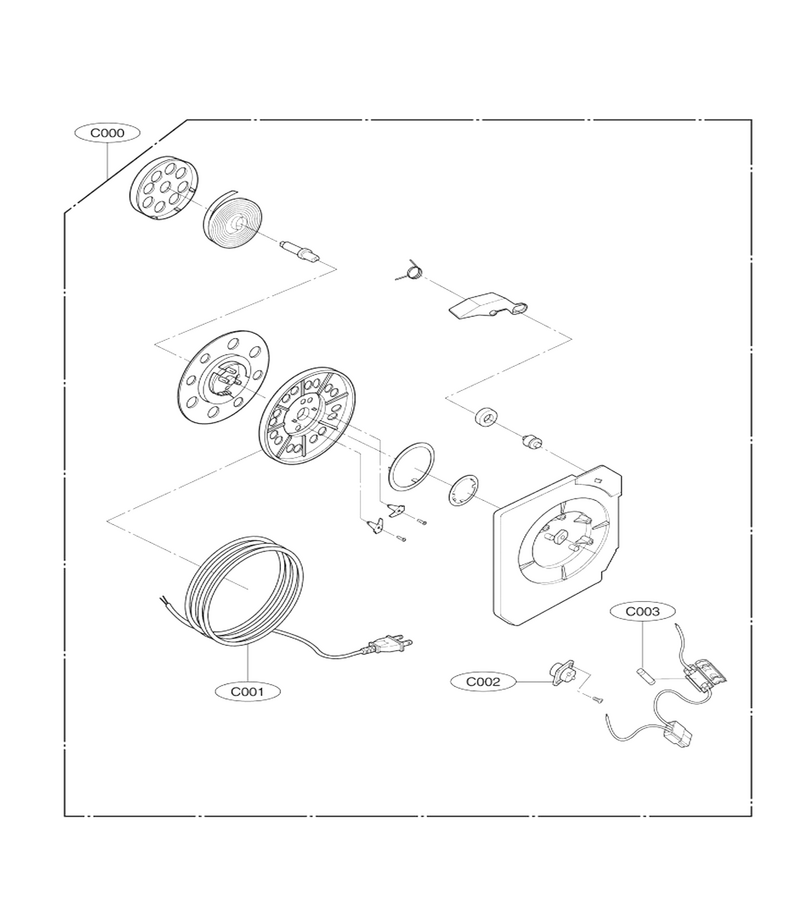

Reel Assembly

...
...
C000
Reel Assembly L-G-6411FI1071W
...
C003
Fuse,time Delay L-G-4I60037W
...
C002
Thermostat L-G-6931FI3523E
...
C001
Power Cord L-G-6411FI2422M

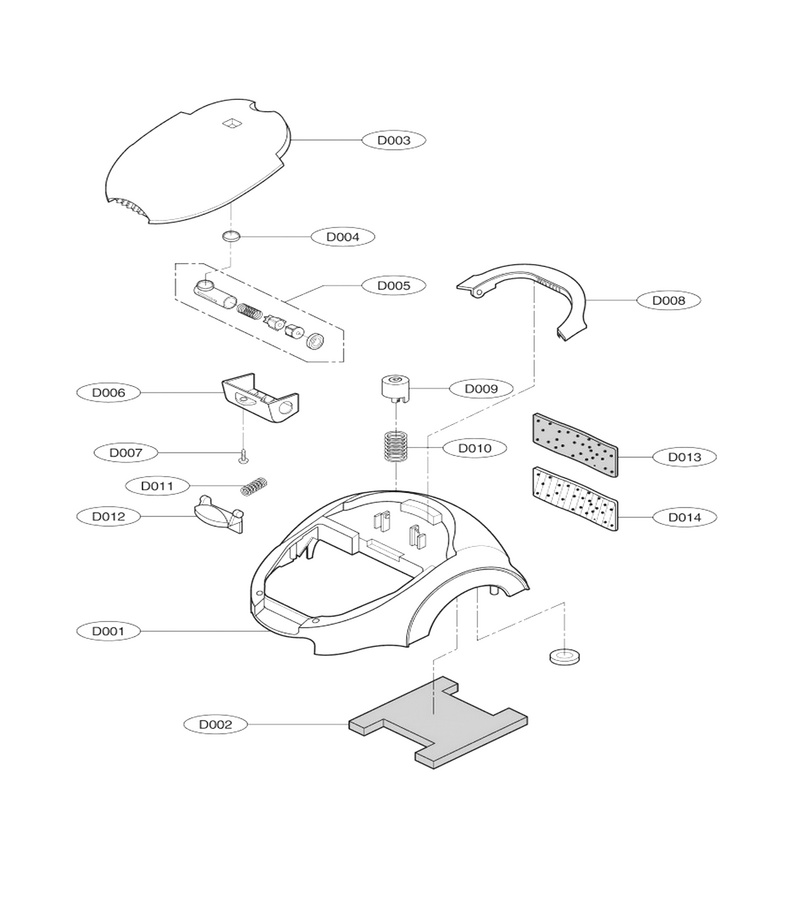

Cover Assembly, Body

...
...
D002
Mop L-G-4766FI3251A
...
D014
Filter,exhaust L-G-3940FI3252A
...
D013
Filter,exhaust L-G-5230FI3558A
...
D012
Locker L-G-4026FI3234A
...
D011
Spring,coil L-G-4970FI4260A
...
D010
Spring,coil L-G-4I70024A
...
D009
Button,cord Reel L-G-5020FI3233N
...
D006
Cover,indicator L-G-3550FI3307G
...
D005
Indicator Assembly L-G-3I23019L
...
D004
Gasket L-G-4036FI4074A
...
D003
Cover,filter L-G-3550FI1551K
...
D008
Handle,carrier L-G-3650FI2132N
...
D001
Cover,body L-G-3070FI1110N

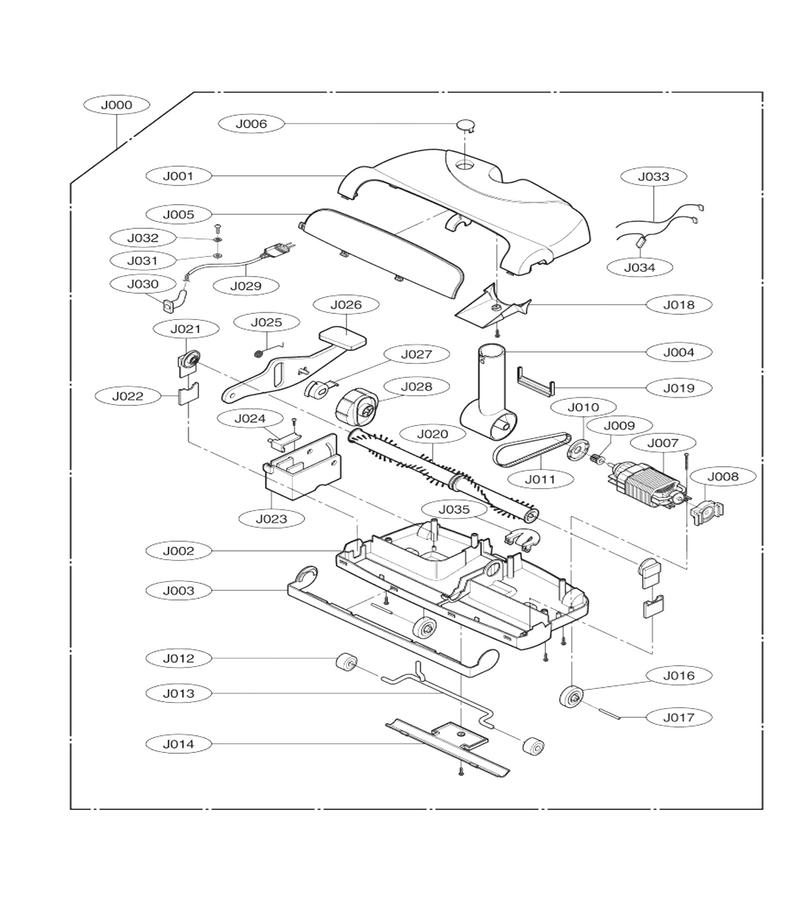

Nozzle Assembly, Power

...
...
J019
Gasket L-G-4036FI3636A
...
J020
Shaft Assembly,agitator L-G-5973FI1005A
...
J021
Eyelet Assembly L-G-4875FI3005A
...
J022
Lever Assembly,selector L-G-4511FI1001A
...
J023
Supporter,lever L-G-4980FI2433A
...
J024
Supporter,pawl L-G-4980FI3745A
...
J025
Spring,coil L-G-4970FI3220A
...
J026
Lever Assembly L-G-3059FI2001A
...
J027
Lever,selector L-G-4510FI3607A
...
J028
Ratchet L-G-4806FI3001A
...
J029
Power Cord L-G-6411FI3298B
...
J030
Bush,cord L-G-3740FI4259A
...
J031
Gasket L-G-4036FI3638A
...
J032
Washer,customized L-G-1WZZFI3001A
...
J033
Cable,assembly L-G-6631FI3139A
...
J034
Fuse,non Time Delay L-G-0FZZFI3001A
...
J035
Lever L-G-3058FI3009A
...
J005
Window,viewing L-G-3790FI1001A
...
J017
Shaft L-G-4370FI3672A
...
J018
Cover,flow L-G-3550FI2542A
...
J000
Nozzle Assembly,power L-G-5249FI1416A
...
J001
Cover,nozzle L-G-3550FI1646A
...
J002
Base,nozzle L-G-3040FI1504A
...
J003
Bumper,nozzle L-G-4820FI1460A
...
J004
Pipe,suction L-G-5200FI1221A
...
J006
Window,viewing L-G-3790FI3003A
...
J007
Motor Assembly,ac,vacuum Cleaner L-G-4681FI2464A
...
J009
Pulley L-G-4560FI3003A
...
J010
Damper,motor L-G-3920FI3820A
...
J011
Belt L-G-4400FI3350A
...
J012
Roller Assembly L-G-4581FI3003A
...
J013
Shaft L-G-4370FI2003A
...
J014
Plate,bottom L-G-3300FI2283A
...
J016
Wheel Assembly L-G-4661FI3617A
...
J008
Bracket L-G-4810FI3001A

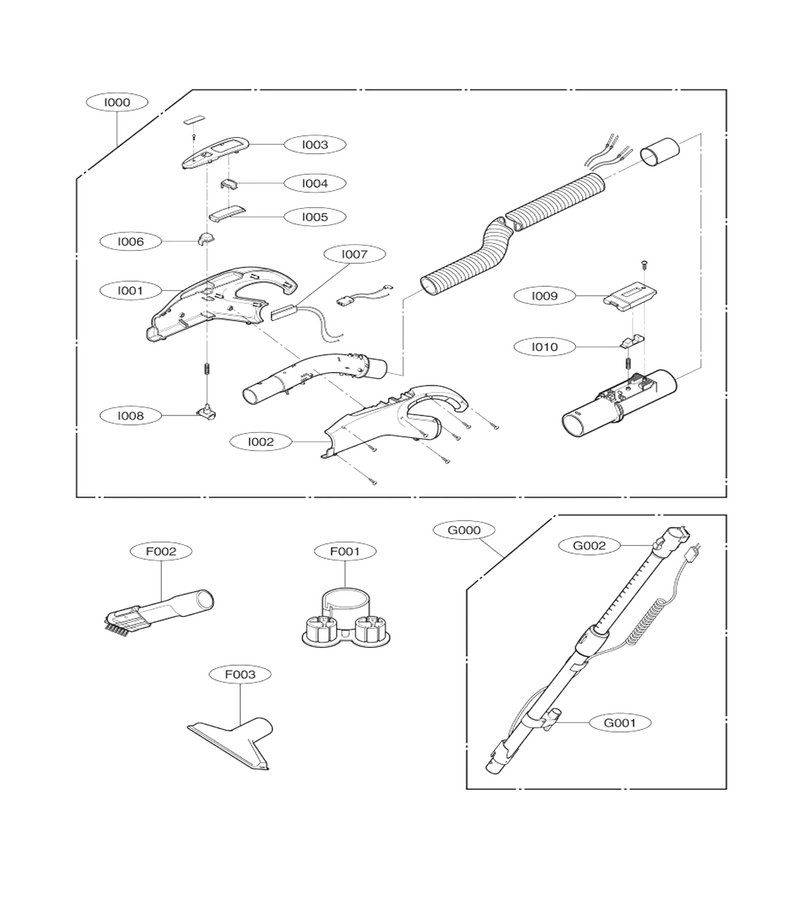

Accessory

...
...
I002
Handle,grip L-G-3650FI1483A
...
I003
Cover,grip L-G-3550FI2496A
...
I004
Knob,control L-G-4940FI3727A
...
I005
Panel,switch L-G-3500FI3619A
...
I006
Button,control L-G-5020FI3765A
...
I007
Slider Assembly,volume L-G-6601FI3486M
...
I008
Switch Assembly L-G-6601FI3472C
...
I009
Cover,pipe L-G-3550FI2501A
...
I010
Locker,connector L-G-3I23013P
...
I001
Handle,grip L-G-3650FI1484A
...
I000
Hose Assembly,flexible L-G-5215FI1316A
...
G002
Button,release L-G-5020FI4513B
...
G001
Holder,pipe L-G-4930FI2231F
...
G000
Pipe Assembly,telescopic L-G-5201FI1002B
...
F003
Nozzle Assembly,upholstery L-G-5248FI2259C
...
F002
Brush Assembly,dust L-G-3I22005N
...
F001
Holder,accessory L-G-4930FI2378B
