LG 23090.AZBESRS

Model: 23090.AZBESRS

Save Part Not Listed?

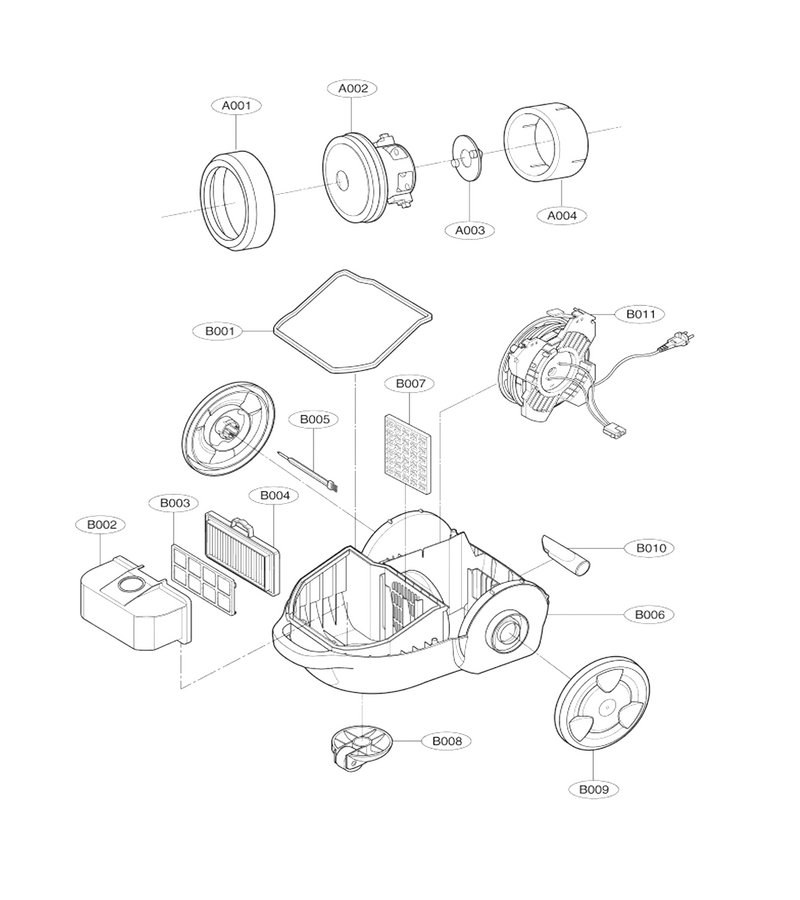

product name

Base Assembly, Body

...
...
A001
Damper,motor Mount L-G-3920FI3600C
...
B011
Reel Assembly L-G-4687FI1477L
...
B010
Nozzle,crevice L-G-3I21007T
...
B009
Wheel L-G-4660FI2412E
...
B008
Roller Assembly L-G-4441FI3605Y
...
B007
Filter,motor Safety L-G-4I70098K
...
B006
Base,body L-G-3040FI1496E
...
B005
Brush Assembly,filter L-G-5203FI3744A
...
B004
Filter Assembly,clean L-G-5231FI4711A
...
B002
Tank,dust L-G-4838FI1403A
...
B001
Gasket L-G-3920FI4718P
...
A004
Damper,absorbing L-G-4I23008B
...
A003
Gasket L-G-3920FI3763B
...
A002
Motor Assembly,ac,vacuum Cleaner L-G-4681FI2373G

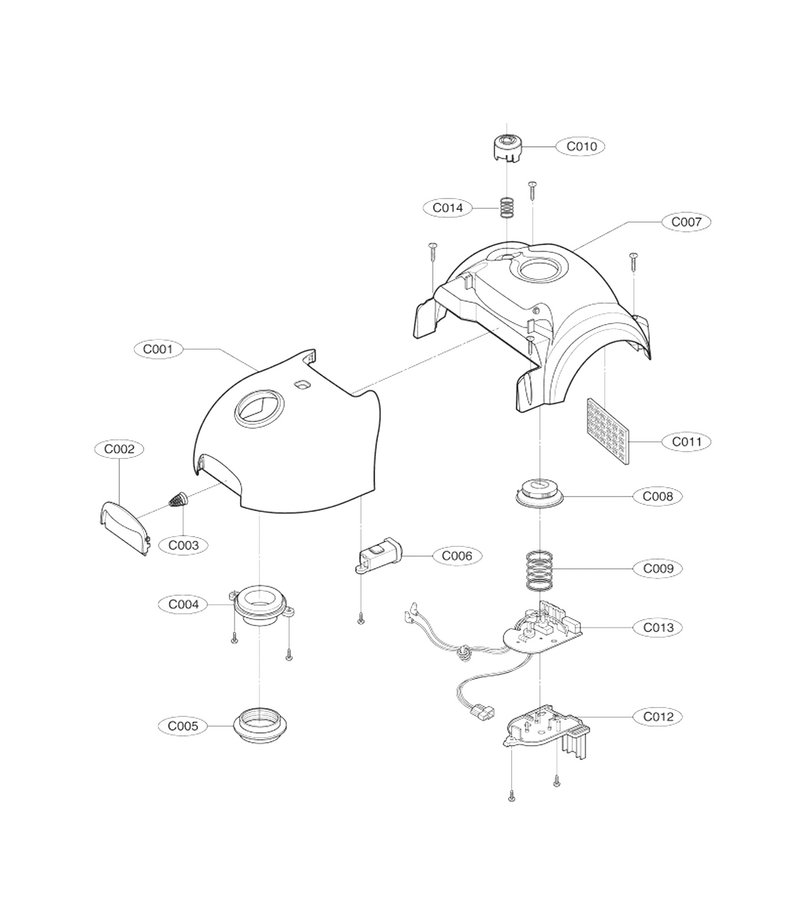

Cover Assembly, Body

...
...
C014
Microwave Screw L-G-1TPL0402618
...
C012
Supporter,board L-G-4980FI2427A
...
C011
Filter,exhaust L-G-5230FI3767A
...
C003
Spring,coil L-G-4970FI4230B
...
C010
Button,cord Reel L-G-5020FI3781E
...
C009
Spring,coil L-G-4970FI3206A
...
C008
Button,control L-G-5020FI3782H
...
C007
Cover,body L-G-3550FI1608E
...
C006
Indicator Assembly L-G-3521FI3703F
...
C005
Gasket L-G-3920FI3734A
...
C004
Ring,connector L-G-4350FI3778K
...
C002
Locker L-G-4026FI3675K
...
C001
Cover,filter L-G-3550FI1607K

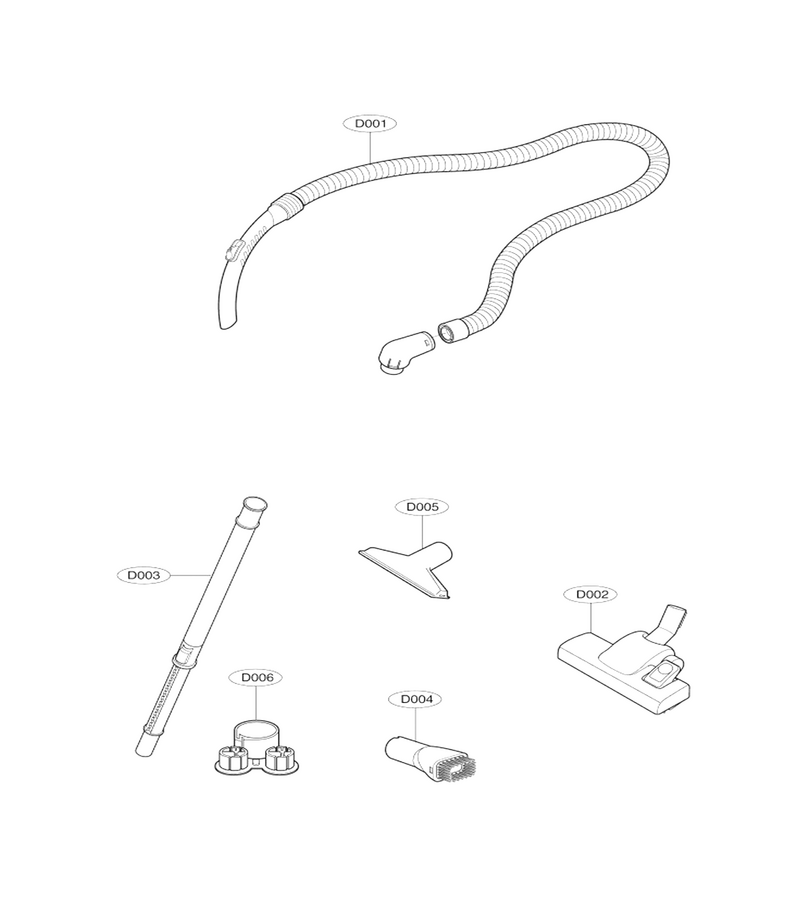

Accessory

...
...
D001
Hose Assembly,flexible L-G-5215FI1306P
...
D002
Nozzle Assembly,floor L-G-5249FI1405K
...
D003
Pipe Assembly L-G-5063FI2350B
...
D004
Brush Assembly,dust L-G-5202FI3474B
...
D005
Nozzle Assembly,upholstery L-G-5248FI2259C
...
D006
Holder,accessory L-G-4930FI2456B
