LG 23083.AZRESRS

Model: 23083.AZRESRS

Save Part Not Listed?
product name

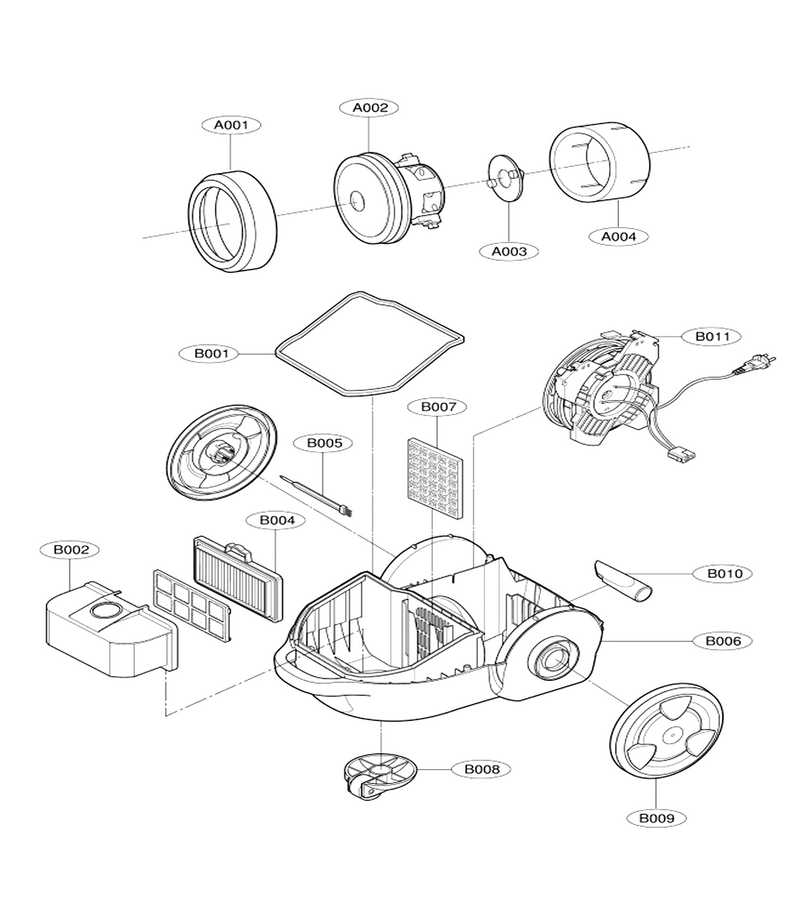

Main 1

...
...
A001
Damper,motor Mount L-G-3920FI3600C
...
B011
Nozzle,crevice L-G-3I21007N
...
B010
Wheel L-G-4660FI2412D
...
B009
Roller Assembly L-G-4441FI3605C
...
B008
Filter,motor Safety L-G-4I70098K
...
B007
Base,body L-G-3040FI1496D
...
B006
Brush Assembly,filter L-G-5203FI3744A
...
B005
Filter Assembly,clean L-G-5231FI4711A
...
B004
Filter Assembly,clean L-G-5231FI4710A
...
B002
Tank,dust L-G-4838FI1403A
...
B001
Gasket L-G-3920FI4718P
...
A004
Damper,absorbing L-G-4I23008B
...
A003
Gasket L-G-3920FI3763B
...
A002
Motor Assembly,ac,vacuum Cleaner L-G-4681FI2373G

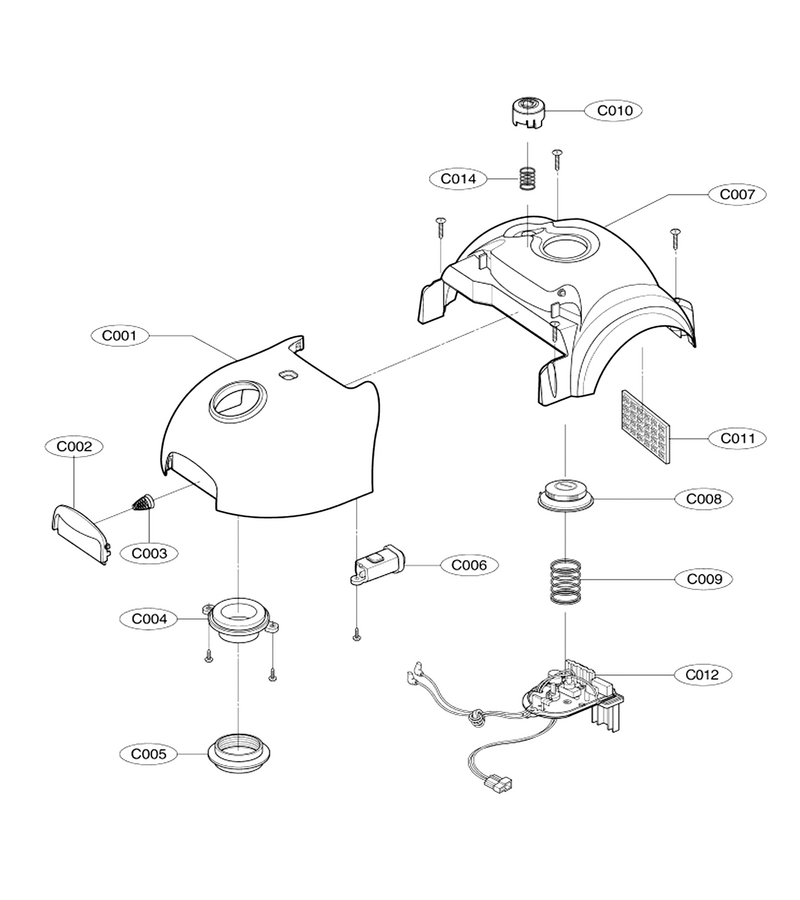

Main 2

...
...
C014
Spring,coil L-G-4I70024A
...
C012
Filter,exhaust L-G-5230FI3767A
...
C011
Button,cord Reel L-G-5020FI3781D
...
C003
Locker L-G-4026FI3675J
...
C010
Spring,coil L-G-4970FI3206A
...
C009
Button,control L-G-5020FI3783F
...
C008
Cover,body L-G-3550FI1608D
...
C007
Indicator Assembly L-G-3521FI3703F
...
C006
Gasket L-G-3920FI3734A
...
C005
Ring,connector L-G-4350FI3778J
...
C004
Spring,coil L-G-4970FI4230B
...
C002
Cover,filter L-G-3550FI1607J
...
C001
Reel Assembly L-G-4687FI1477L

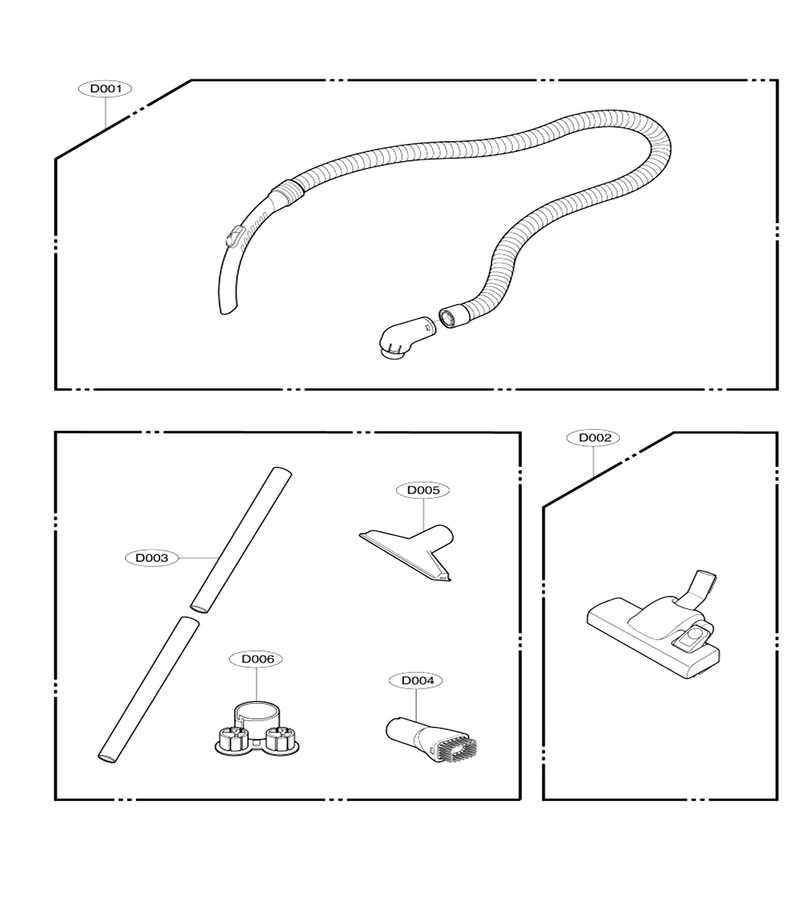

Main 3

...
...
D001
Hose Assembly,flexible L-G-5215FI1306Q
...
D002
Nozzle Assembly,floor L-G-5249FI1405J
...
D003
Pipe Assembly L-G-5063FI2349A
...
D004
Brush Assembly,dust L-G-5202FI3474A
...
D005
Nozzle Assembly,upholstery L-G-5248FI2259A
...
D006
Holder,accessory L-G-4930FI2456A
