LG 21325.ANBESRC

Model: 21325.ANBESRC

Save Part Not Listed?

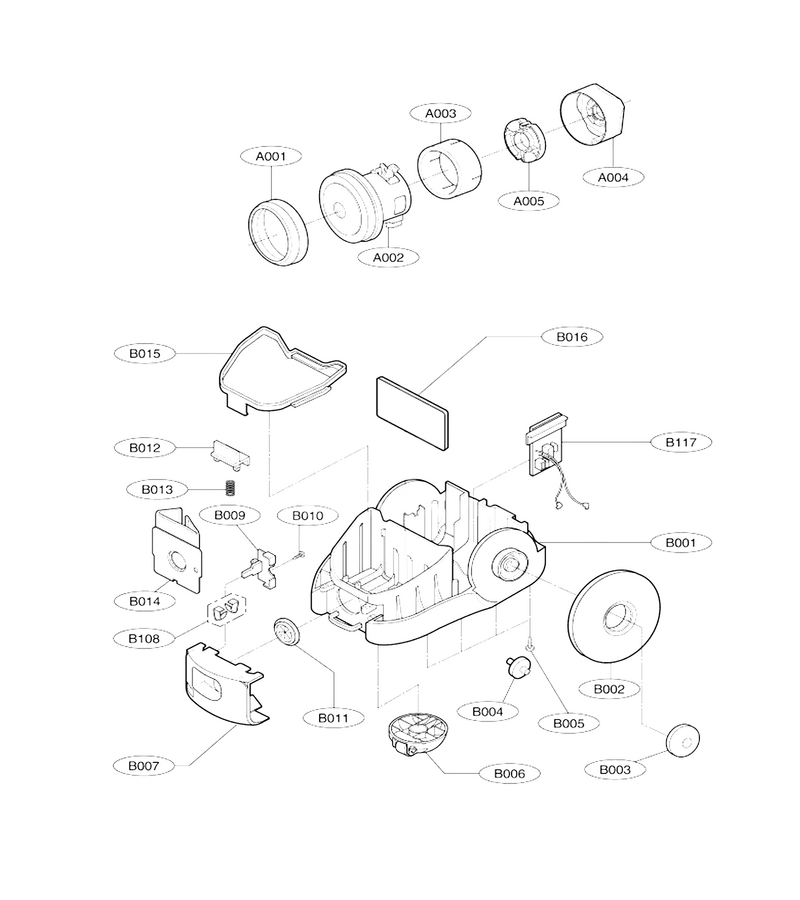

product name

Base Assembly, Body

...
...
A001
Damper,motor Mount L-G-3920FI3600C
...
B117
Pcb Assembly,main L-G-6871FX2125A
...
B108
Harness,single L-G-6801FI3256C
...
B016
Filter,motor Safety L-G-5230FI3248A
...
B015
Gasket L-G-3920FI1115A
...
B014
Filter Assembly,paper L-G-5231FI3018B
...
B013
Spring L-G-4I23017A
...
B011
Gasket L-G-4036FI3036A
...
B010
Screw L-G-1TPL0402818
...
B009
Block,terminal L-G-3I23009R
...
B007
Cover,front L-G-3550FI1113F
...
B005
Screw L-G-1TPL0402818
...
B004
Roller L-G-4I22017F
...
B003
Cover,wheel L-G-4660FI3238N
...
B002
Wheel L-G-4660FI1114D
...
B001
Base,body L-G-3040FI1111D
...
A005
Damper,motor L-G-4980FI3702A
...
A004
Damper,sound L-G-5040FI2449A
...
A003
Damper,absorbing L-G-3940FI3646A
...
A002
Motor Assembly,ac,vacuum Cleaner L-G-4681FI2373G
...
B006
Roller Assembly L-G-4441FI3605B

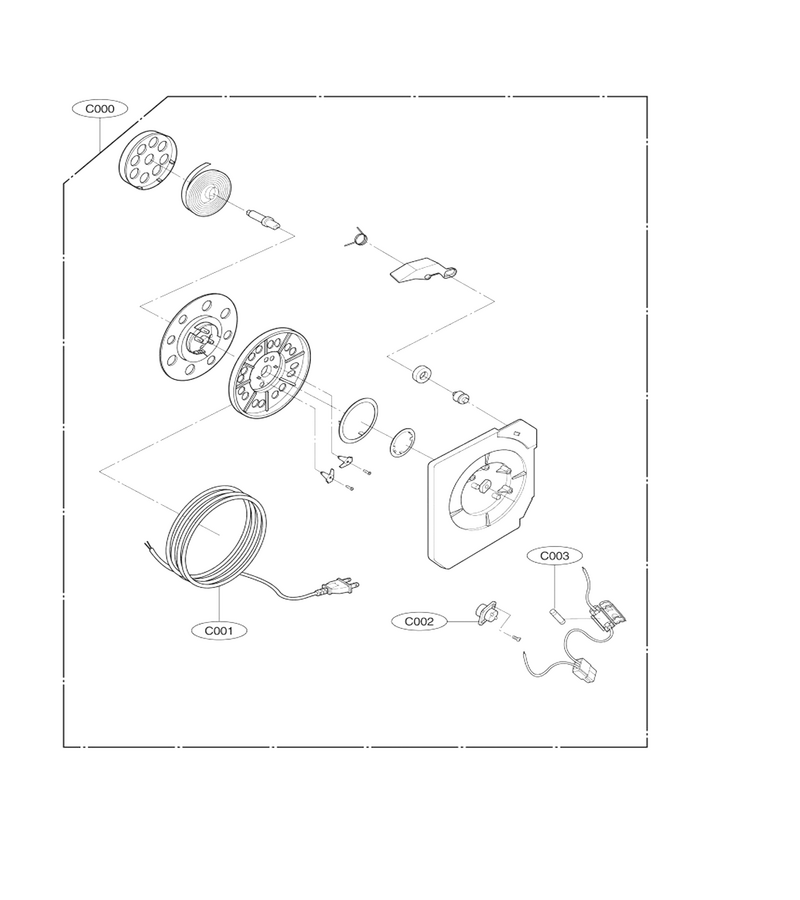

Reel Assembly

...
...
C000
Reel Assembly L-G-6411FI1071W
...
C003
Fuse,time Delay L-G-4I60037W
...
C002
Thermostat L-G-6931FI3523E
...
C001
Power Cord L-G-6411FI2422M

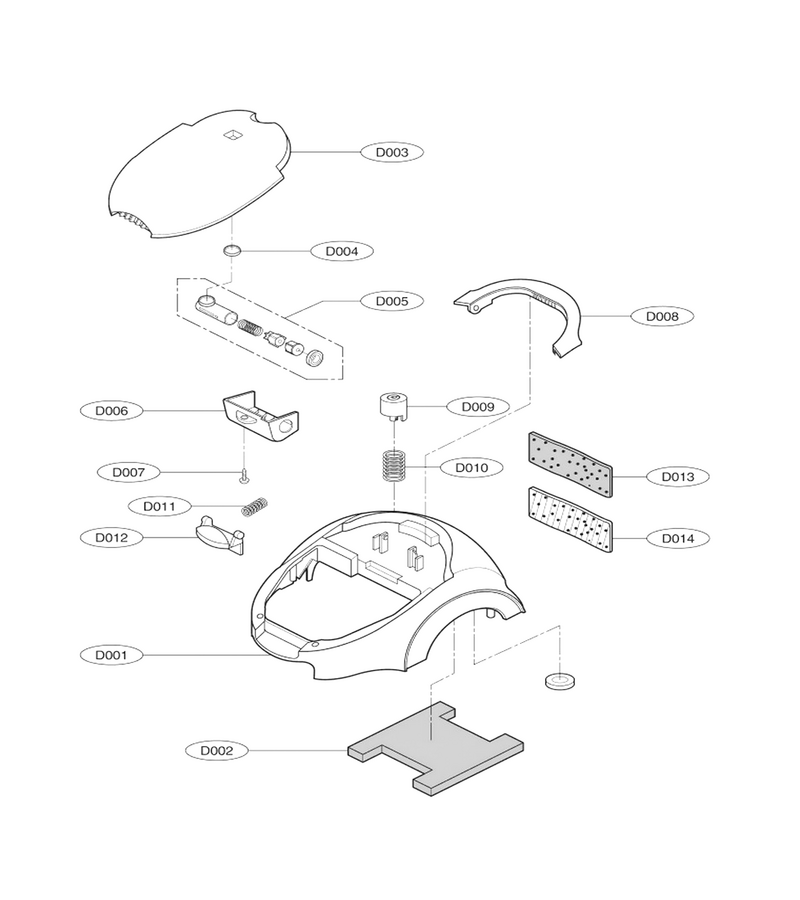

Cover Assembly, Body

...
...
D014
Filter,exhaust L-G-3940FI3252A
...
D013
Filter,exhaust L-G-5230FI3558A
...
D012
Locker L-G-4026FI3234A
...
D011
Spring,coil L-G-4970FI4260A
...
D010
Spring,coil L-G-4I70024A
...
D009
Button,cord Reel L-G-5020FI3233N
...
D008
Handle,carrier L-G-3650FI2132N
...
D005
Indicator Assembly L-G-3I23019L
...
D004
Gasket L-G-4036FI4074A
...
D003
Cover,filter L-G-3550FI1551K
...
D002
Mop L-G-4766FI3251A
...
D001
Cover,body L-G-3070FI1110N
...
D006
Cover,indicator L-G-3550FI3307G

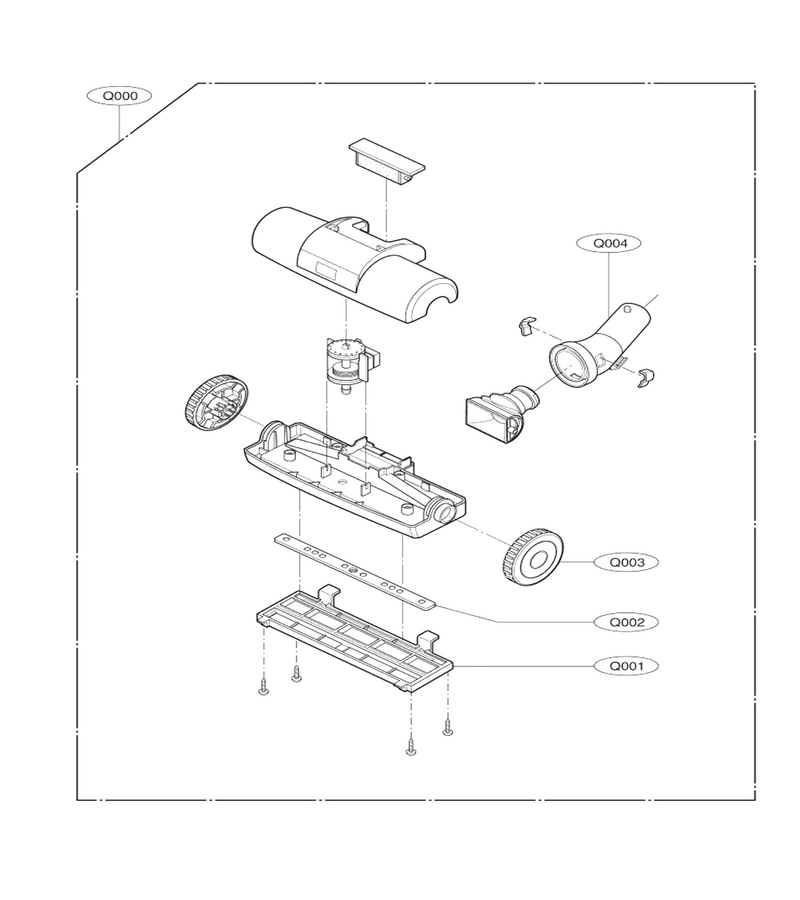

Nozzle Assembly, Power (i)

...
...
Q001
Cover,button L-G-3550FI2462D
...
Q003
Wheel L-G-4660FI3735G
...
Q002
Plate,beater L-G-3300FI4238B
...
Q000
Nozzle Assembly,quilt L-G-5249FI1395J

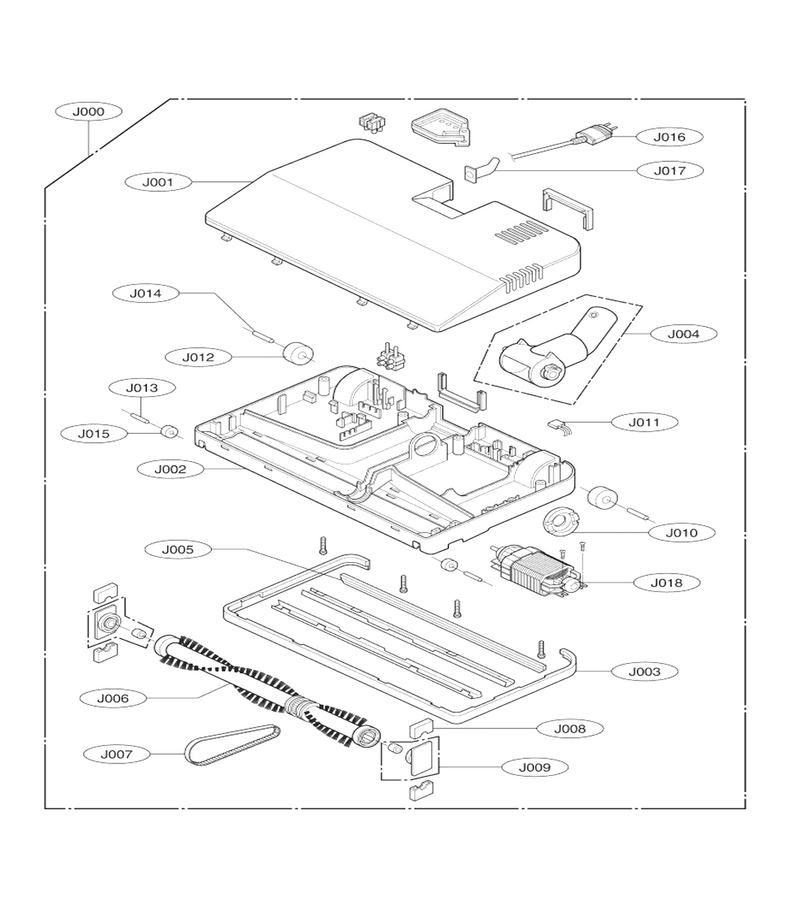

Nozzle Assembly, Power (ii)

...
...
J009
Bearing,ball L-G-4280FI5001A
...
J012
Roller L-G-4580FI5003A
...
J011
Bush,cord L-G-3740FI4259A
...
J010
Damper,motor L-G-3920FI5001A
...
J008
Eyelet L-G-4874FI5001A
...
J007
Belt L-G-4400FI5001A
...
J006
Shaft Assembly,agitator L-G-5973FI5001A
...
J004
Pipe Assembly,suction L-G-5201FI5001A
...
J003
Bumper,nozzle L-G-4820FI5001A
...
J002
Base,nozzle L-G-3040FI5001A
...
J001
Cover,nozzle L-G-3550FI5001A
...
J000
Nozzle Assembly,power L-G-5249FI1400A
...
J005
Sweeper L-G-5882FI5001A

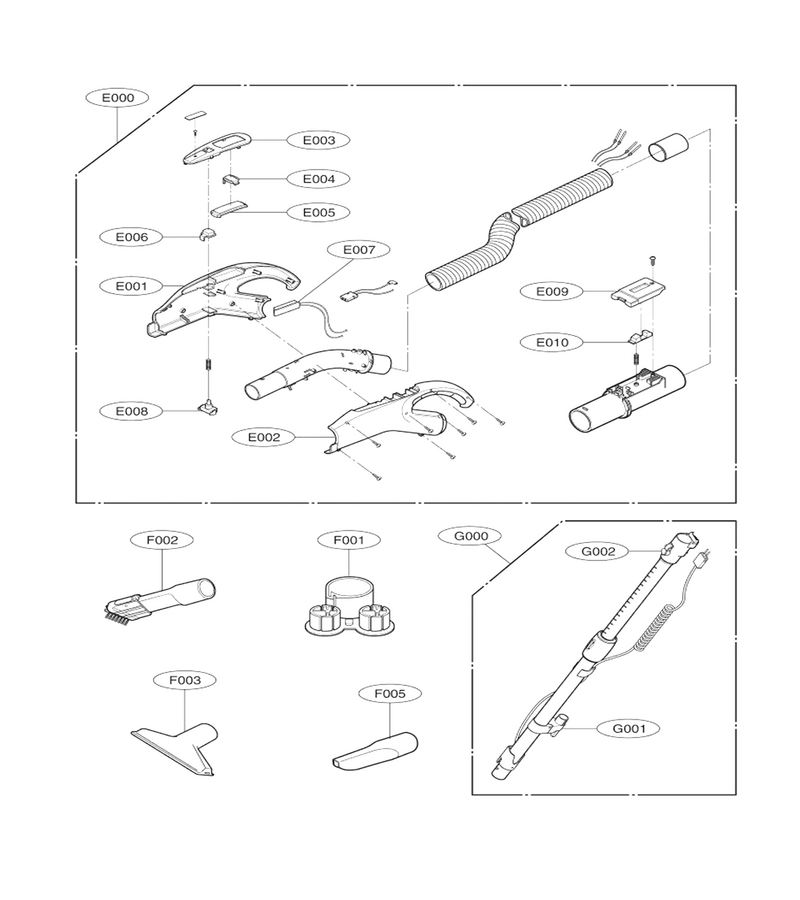

Accessory

...
...
G002
Button,release L-G-5020FI4513B
...
G001
Holder,pipe L-G-4930FI2231F
...
G000
Pipe Assembly,telescopic L-G-5201FI2442A
...
F005
Nozzle,crevice L-G-3I22006M
...
F003
Nozzle Assembly,upholstery L-G-5248FI2259C
...
F002
Brush Assembly,dust L-G-3I22005N
...
F001
Holder,accessory L-G-4930FI2378B
...
E009
Cover,grip L-G-3550FI1377X
...
E008
Cover,pipe L-G-3550FI2358F
...
E007
Locker,connector L-G-3I23013P
...
E006
Spring,coil L-G-4I23028A
...
E005
Hose Assembly,connector L-G-4932FI2360C
...
E004
Screw,tapping L-G-1TPL0302416
...
E003
Knob,control L-G-4940FI3431A
...
E002
Panel,switch L-G-3500FI3616X
...
E001
Handle,grip L-G-3650FI1474C
...
E000
Hose Assembly,flexible L-G-5214FI1453R
