LG 048231364645.ASWAUSL

Model: 048231364645.ASWAUSL

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Capacitor,film,box L-G-0CZZA20007W
...
35211A
Tube Assembly,suction L-G-AJR71449601
...
130411
Base L-G-3041A10042A
...
131400
Cabinet L-G-MBH61856708
...
135312
Grille Assembly,front L-G-AEB36976510
...
144410
Dehumidifier Caster L-G-4441A30001B
...
148391
Tank Assembly,bucket L-G-4839A10002G
...
149980
Shroud L-G-4998A10034B
...
152302
Air Filter L-G-5230A20040A
...
165010
Dehumidifier Sensor Assembly L-G-6877A30013R
...
235512
Dehumidifier User Interface Control L-G-3551A20109D
...
238310
Escutcheon L-G-MDD30271510
...
249950
Case Assembly,control L-G-ABQ36532616
...
264110
Dehumidifier Power Cord L-G-6411A20001Z
...
266010
Dehumidifier Water Bucket Safety Switch L-G-6600A30003C
...
268711-2
Main Pcb Assembly L-G-EBR36909303
...
268711-1
Pcb L-G-6871A20600A
...
330870
Dehumidifier Water Bucket Assembly L-G-3087A10019C
...
346811
Motor Assembly,ac,humidifier L-G-EAU32357509
...
349600
Motor Bracket L-G-4960A20009D
...
352113
Tube Assembly,discharge L-G-AJR71449801
...
354210
Evaporator Assembly,first L-G-ADL36964806
...
359012
Dehumidifier Blower Wheel L-G-5900A20007B
...
435300
Grille,rear L-G-3530A10193F
...
436500
Handle L-G-3650A20004F
...
550140
Damper,compressor L-G-4830A30005B
...
552111
Tube Assembly,capillary L-G-AJR71449904
...
554030
Condenser Assembly,first L-G-ACG72965601
...
554160
Compressor Set,china L-G-TBZ34780701
...
567502
Overload Protector L-G-EAF34140249
...
752140
Connect Hose L-G-5214A20027B

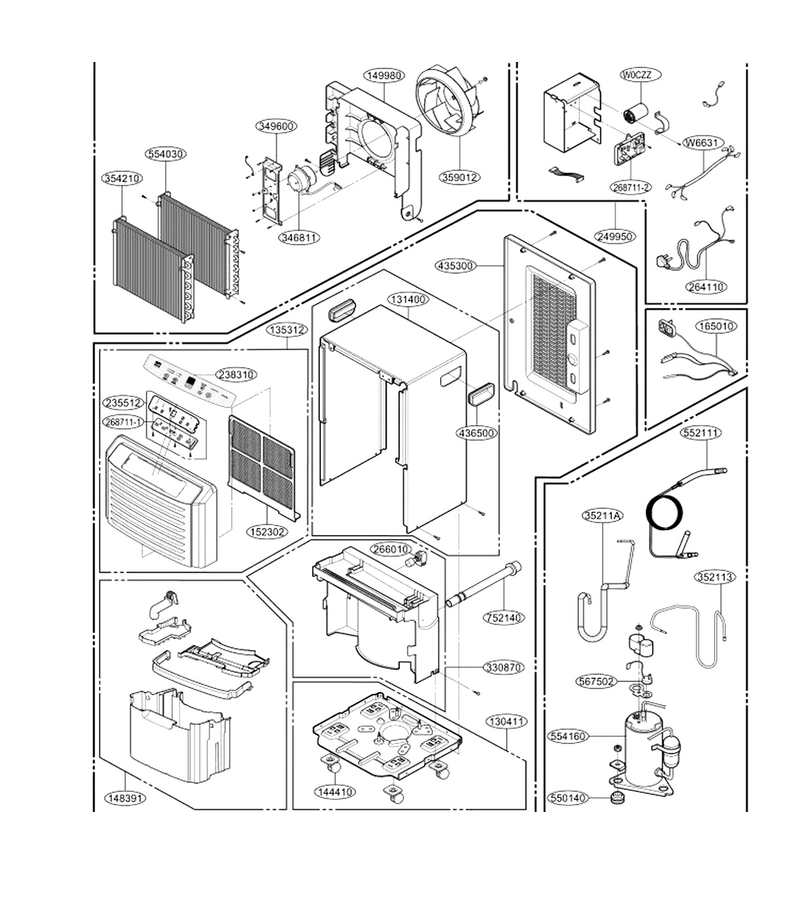

Schematic Image Zoomed
