LG 048231024341.ARDELGA

Model: 048231024341.ARDELGA

Save Part Not Listed?
product name

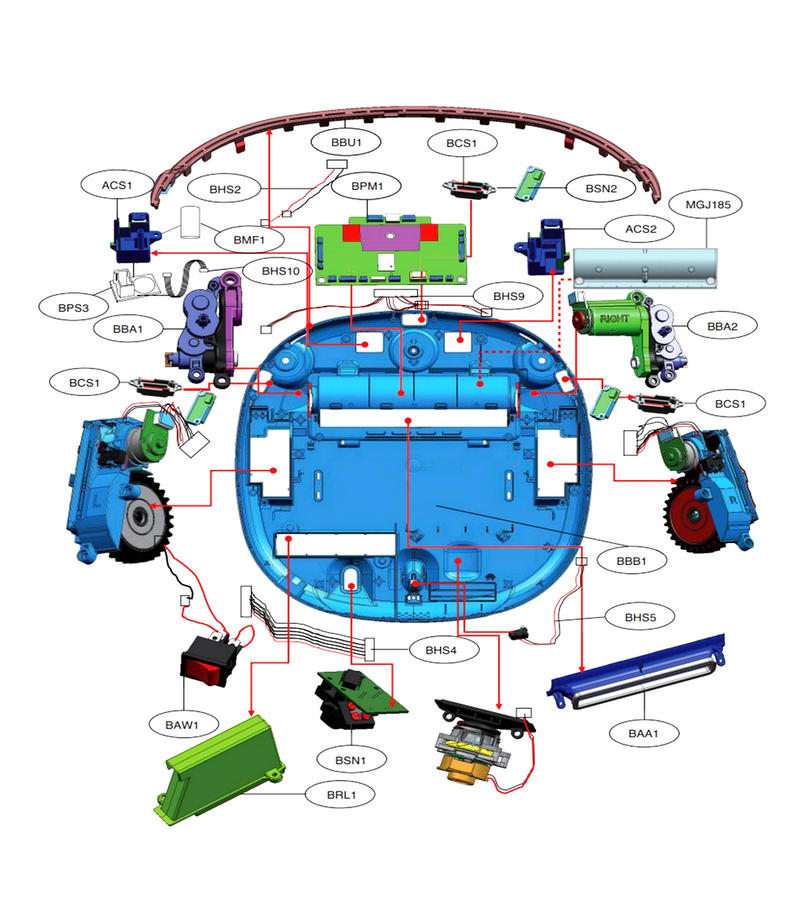

Base Assembly 1

...
...
ACS1
Connector Assembly L-G-ACJ73310202
...
MGJ185
Plate,cover L-G-MGJ65087201
...
BSN2
Sensor Assembly L-G-EBD60661401
...
BSN1
Sensor Assembly L-G-EBD60662502
...
BRL1
Rechargeable Battery,lithium Ion L-G-EAC62218205
...
BPS3
Pcb Assembly,sensor L-G-EBR83726401
...
BPM1
Pcb Assembly,main L-G-EBR81463527
...
BHS9
Harness,single L-G-EAD62085902
...
BHS5
Harness,single L-G-EAD60842112
...
BHS4
Harness,single L-G-EAD60811503
...
BHS10
Harness,single L-G-EAD64030102
...
BCS1
Cover,sensor L-G-MCK67065301
...
BBU1
Bumper,body L-G-MBD62183801
...
BBB1
Base,body L-G-MAM62783901
...
BBA2
Bracket Assembly L-G-ABA74250201
...
BBA1
Bracket Assembly L-G-ABA74252601
...
BAW1
Switch Assembly L-G-EBF61755102
...
BAA1
Guide Assembly,air L-G-AEC73617801
...
ACS2
Connector Assembly L-G-ACJ73310101
...
BHS2
Harness,single L-G-EAD60809905

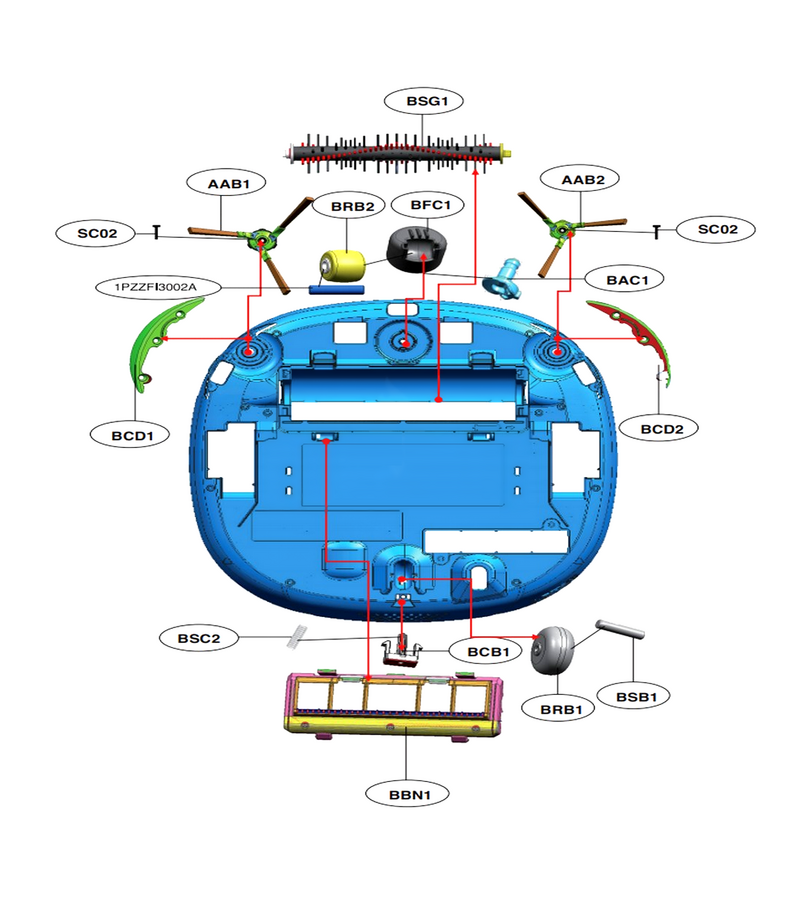

Base Assembly 2

...
...
BSB1
Shaft L-G-MHJ61848501
...
SC02
Screw,machine L-G-FAB31798901
...
BSG1
Shaft Assembly,agitator L-G-AHR73109806
...
BSC2
Spring,coil L-G-4970FI3224T
...
BRB2
Roller Assembly L-G-AHJ73249901
...
BRB1
Roller Assembly L-G-AHJ72909401
...
BCD2
Cover,decor L-G-MCK67046702
...
BCD1
Cover,decor L-G-MCK67144602
...
BAC1
Connector,pi L-G-MCD61842801
...
AAB2
Brush Assembly L-G-ABC73129902
...
AAB1
Brush Assembly L-G-ABC73130002
...
BFC1
Frame,caster L-G-MDQ63196401

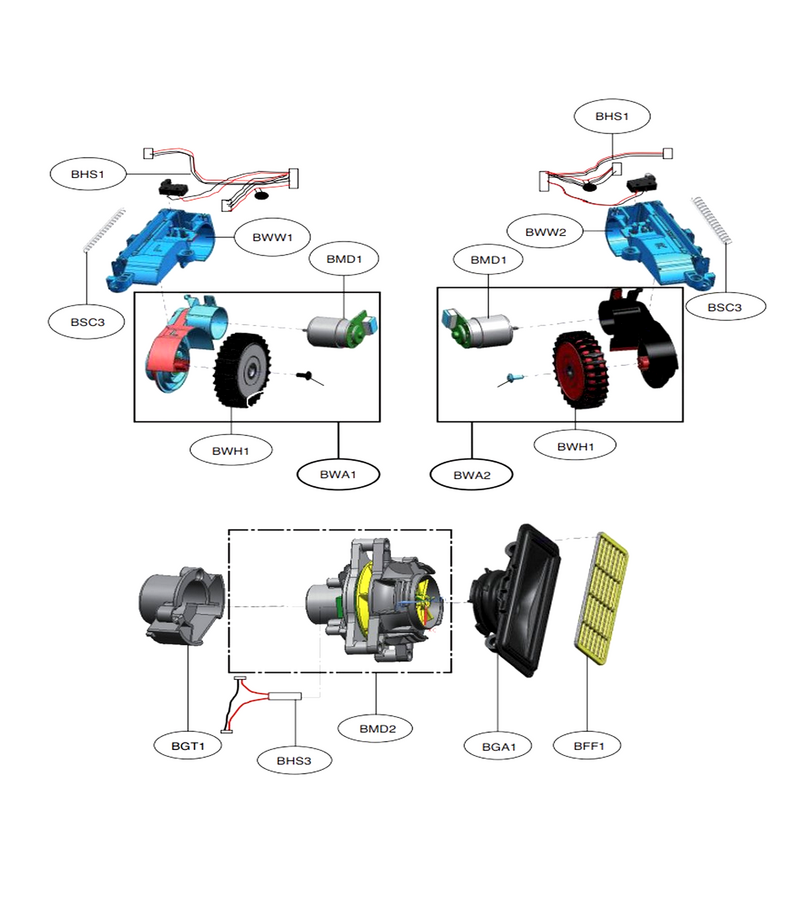

Base Assembly 3

...
...
BHS1
Harness,single L-G-EAD60810506
...
BWW1
Cover,wheel L-G-MCK67066101
...
BWH1
Wheel L-G-MKB62122701
...
BMD2
Motor Assembly,dc,fan L-G-EAU63063602
...
BMD1
Motor Assembly,dc L-G-EAU61804301
...
BHS3
Sensor Assembly L-G-EBD62665202
...
BGT1
Gasket L-G-MDS65130101
...
BGA1
Guide,air L-G-MEA62910001
...
BFF1
Frame,filter L-G-MDQ63236701

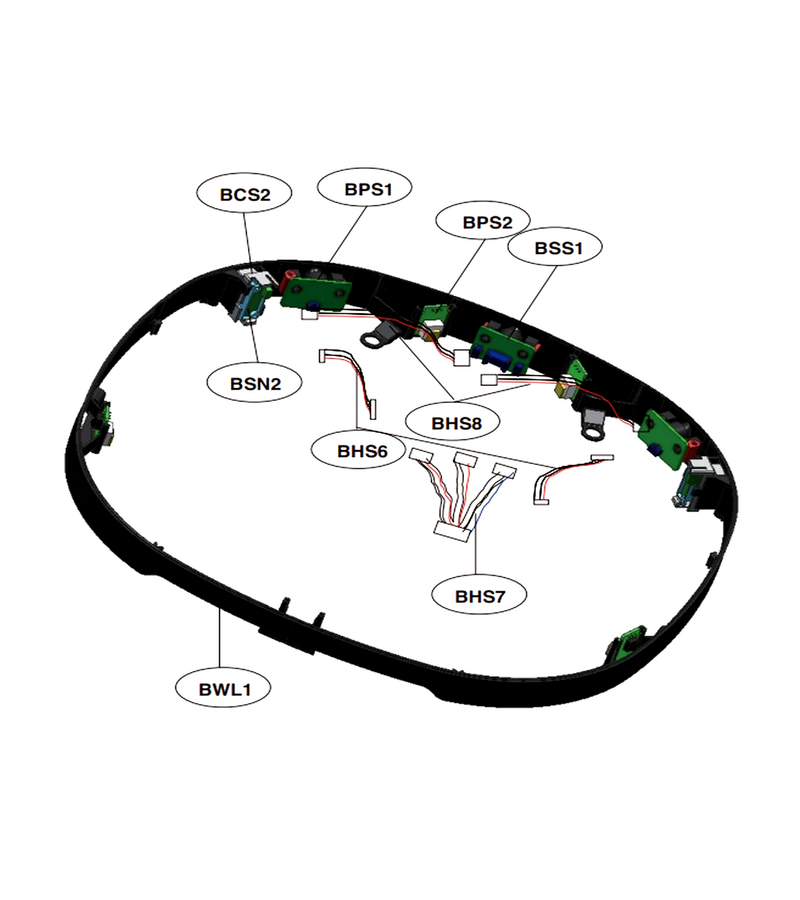

Base Assembly 4

...
...
BWL1
Window,led L-G-MKC64259602
...
BSS1
Pcb Assembly,sub L-G-EBR78503401
...
BSN2
Sensor Assembly L-G-EBD60661401
...
BPS2
Pcb Assembly,sub L-G-EBR74309801
...
BHS8
Harness,single L-G-EAD60810205
...
BHS7
Harness,single L-G-EAD62085803
...
BHS6
Harness,single L-G-EAD60810403
...
BCS2
Cover,sensor L-G-MCK67104901
...
BPS1
Pcb Assembly,sub L-G-EBR78503201

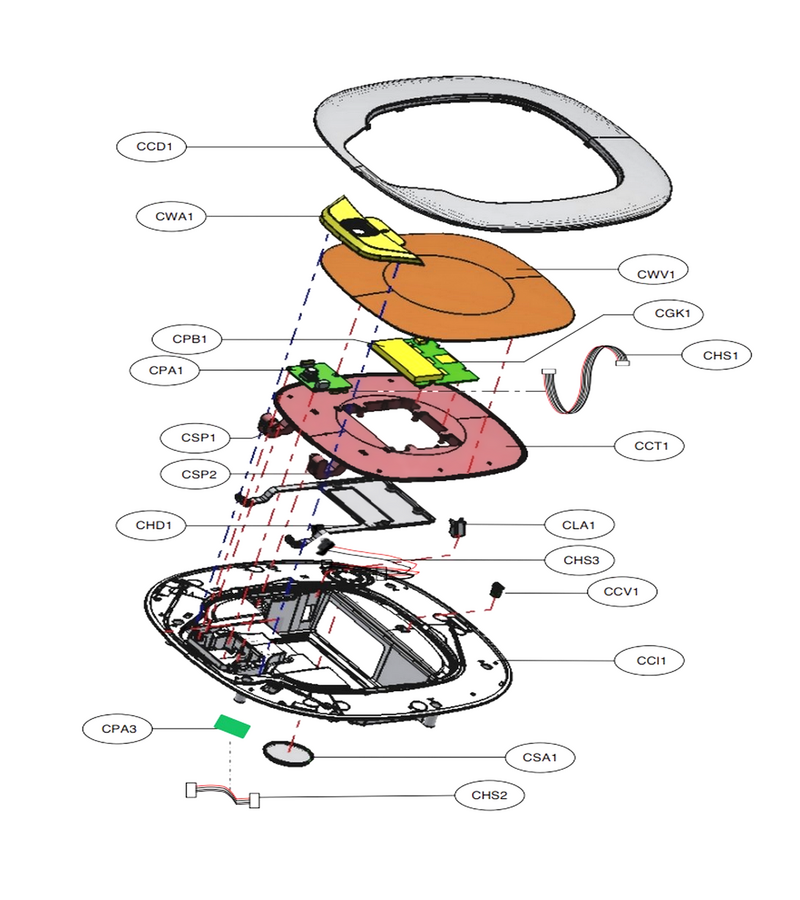

Cover Assembly

...
...
CLA1
Cover,switch L-G-MCK66271101
...
CWV1
Window,viewing L-G-MKC64259497
...
CWA1
Window Assembly L-G-AJX73564902
...
CSP2
Spring L-G-MHY61869606
...
CSP1
Spring L-G-MHY61869605
...
CSA1
Speaker Assembly L-G-EAB62588303
...
CPB1
Pcb Assembly,display L-G-EBR77901603
...
CPA3
Pcb Assembly,module L-G-EBR78541201
...
CPA1
Pcb Assembly,sensor L-G-EBR74755286
...
CHS3
Harness,single L-G-EAD62086002
...
CHS2
Harness,single L-G-EAD61925508
...
CHS1
Harness,single L-G-EAD61925506
...
CHD1
Holder,fixing L-G-MEG63078701
...
CGK1
Gasket L-G-MDS61982205
...
CCV1
Locker Assembly L-G-AFK73049601
...
CCT1
Cover,top L-G-MCK67064801
...
CCI1
Cover,inner L-G-MCK67065110
...
CCD1
Cover,decor L-G-MCK67125601

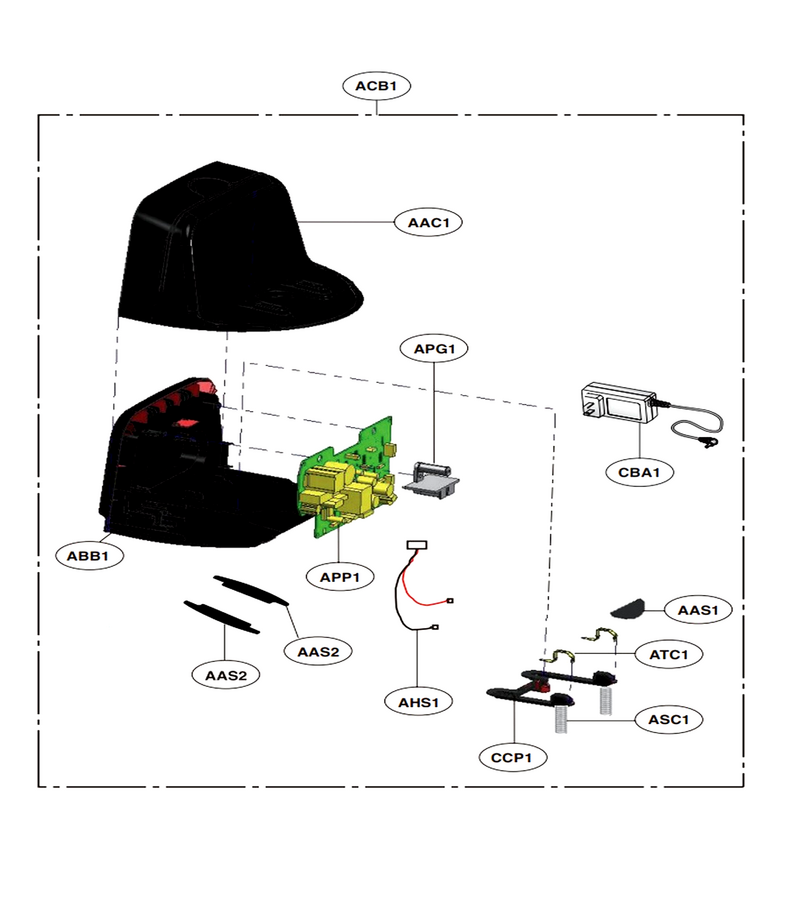

Charger, Assembly

...
...
APG1
Plate,guide L-G-MGJ63301201
...
APP1
Pcb Assembly,power L-G-EBR79724301
...
ASC1
Spring,coil L-G-MHY62904801
...
ATC1
Terminal,contact L-G-MJP62031202
...
CBA1
Adapters L-G-EAY64188601
...
CCP1
Cover,spring L-G-MCK67105101
...
ACB1
Charger,battery L-G-EAY62789244
...
ABB1
Base,body L-G-MAM62784104
...
AAS2
Stopper L-G-MJB63349701
...
AAS1
Stopper L-G-MJB63369701
...
AAC1
Cover,body L-G-MCK69151201
...
AHS1
Harness,single L-G-EAD60813306

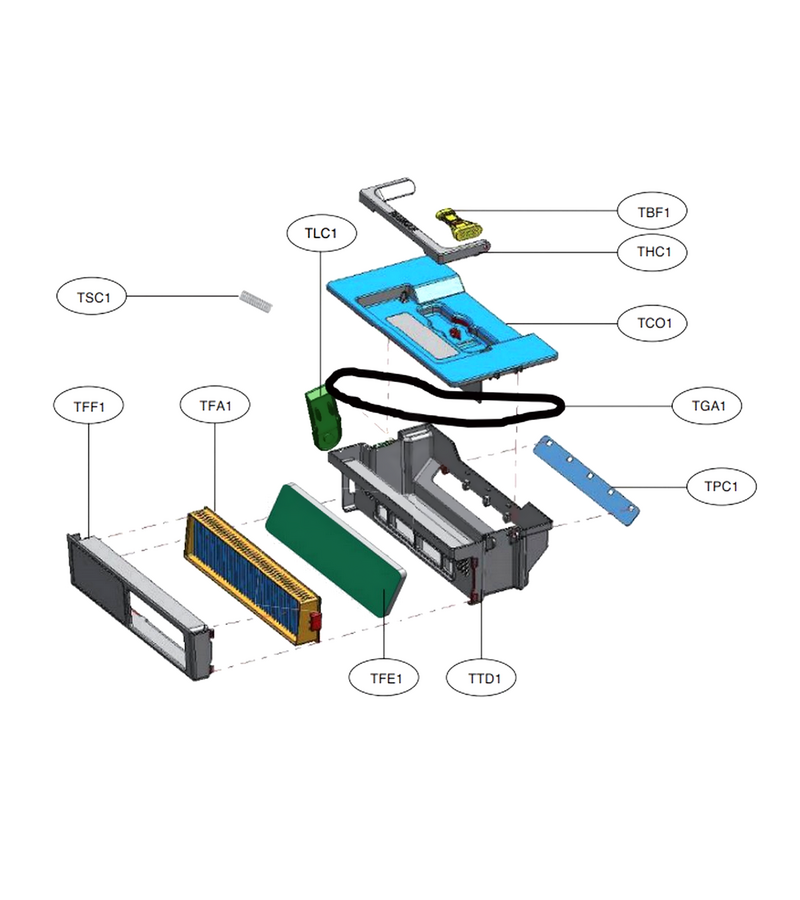

Tank Assemebly, Dust

...
...
TSC1
Spring,coil L-G-4970FI3224F
...
TPC1
Plate,cover L-G-MGJ63261601
...
TLC1
Locker L-G-4026FI3706E
...
THC1
Handle,carrier L-G-MEB62614101
...
TGA1
Gasket L-G-MDS61976904
...
TFF1
Frame,filter L-G-MDQ63216601
...
TFE1
Filter,exhaust L-G-MDJ62305402
...
TFA1
Frame Assembly,filter L-G-ADV74225701
...
TCO1
Cover,dust L-G-MCK67065401
...
TBF1
Brush Assembly,filter L-G-ABC73090101
