LG 048231013635.ASSEEUS

Model: 048231013635.ASSEEUS

Save Part Not Listed?
product name

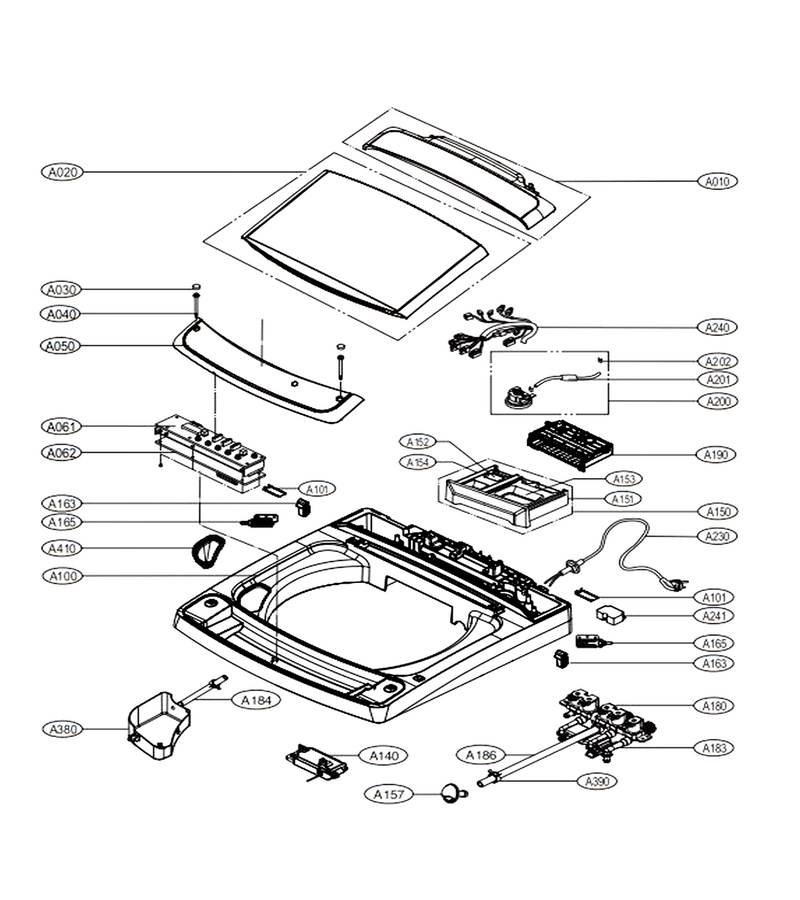

Main

...
...
A030
Cap,screw L-G-MBL65478501
...
A410
Cap Cover L-G-MBL65199101
...
A390
Washer Hose Clamp L-G-3W40106M
...
A380
Dispenser Assembly L-G-ACZ73270501
...
A241
Washer Noise Filter L-G-EAM60930601
...
A240
Harness,multi L-G-EAD61985017
...
A230
Washer Power Cord L-G-EAD49973506
...
A202
Washer Power Cord L-G-3W50012U
...
A201
Washer Water-Level Pressure Switch Hose L-G-5210FA3427J
...
A200
Washer Water-Level Pressure Switch L-G-6501EA1001R
...
A190
Washer Dispenser Drawer Housing Assembly L-G-AEN72910501
...
A186
Washer Dispenser Drawer Housing Assembly L-G-5214EA3004B
...
A184
Washer Dispenser Hose L-G-MEJ61841803
...
A183
Washer Water Valve Connector Assembly L-G-ACJ73350401
...
A180
Washer Water Inlet Valve L-G-5221EA1008F
...
A163
Hinge Washer L-G-MEF62462101
...
A040
Screw,customized L-G-4000FA4196Q
...
A050
Panel Assembly,front L-G-AGL73961602
...
A061
Pcb Assembly,main L-G-EBR75857913
...
A062
Washer Display Control Board L-G-EBR76262201
...
A100
Cover,top L-G-MCK66959006
...
A101
Cover,lower L-G-MCK66959504
...
A140
Washer Lid Switch L-G-EBF61215202
...
A150
Detergent Box L-G-AAZ72925602
...
A151
Detergent Box L-G-MAY62020102
...
A152
Washer Fabric Softener Dispenser Cup L-G-MBL62061501
...
A153
Softener Cap L-G-MBL62061601
...
A154
Detergent Box L-G-MAY62020202
...
A157
Nozzle Assembly L-G-AGB73292401
...
A165
Washer Lid Hinge Damper L-G-AGM73832001

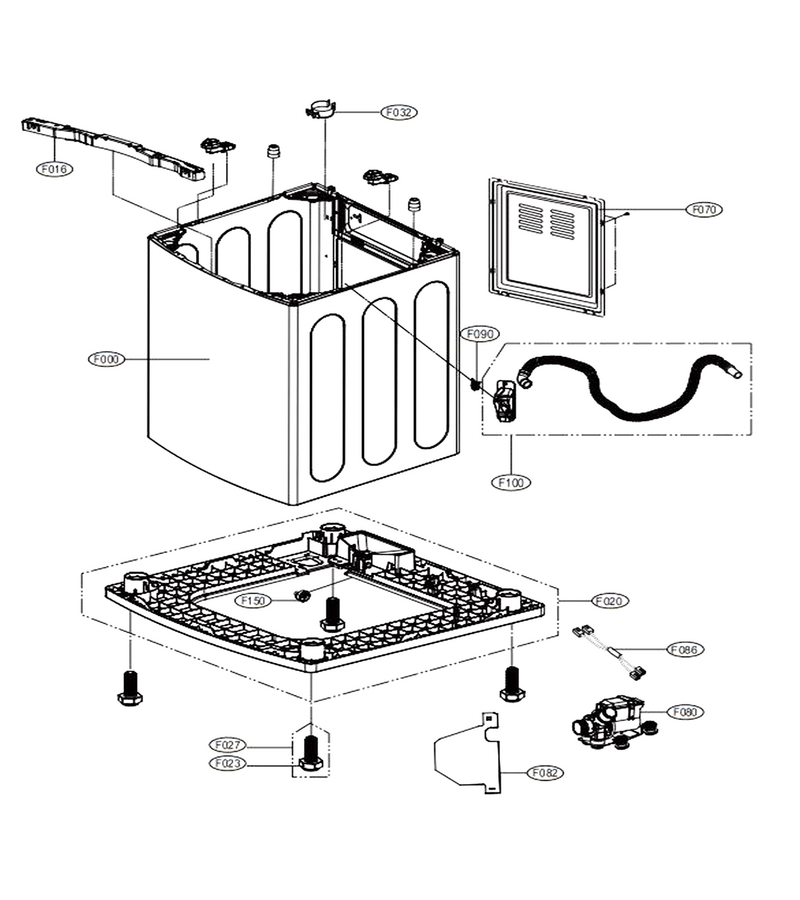

Outer Case Assembly

...
...
F150
Washer Water-Level Pressure Switch L-G-EBD50360202
...
F100
Washer Drain Hose L-G-AEM74053001
...
F016
Bracket L-G-MAZ63674301
...
F090
Hose Clamp L-G-MBU62225402
...
F086
Single Harness L-G-6877EA3001M
...
F082
Protector Cover L-G-3550EA3007C
...
F080
Washer Drain Pump L-G-5859EA1004G
...
F032
Holder L-G-4930EA3002A
...
F027
Washer Leveling Leg L-G-4263FA3933A
...
F023
Holder L-G-4930EA3002A
...
F020
Washer Base L-G-AAN73431001
...
F000
Cabinet Assembly L-G-ABJ72919615
...
F070
Rear Cover L-G-3808FA1368F

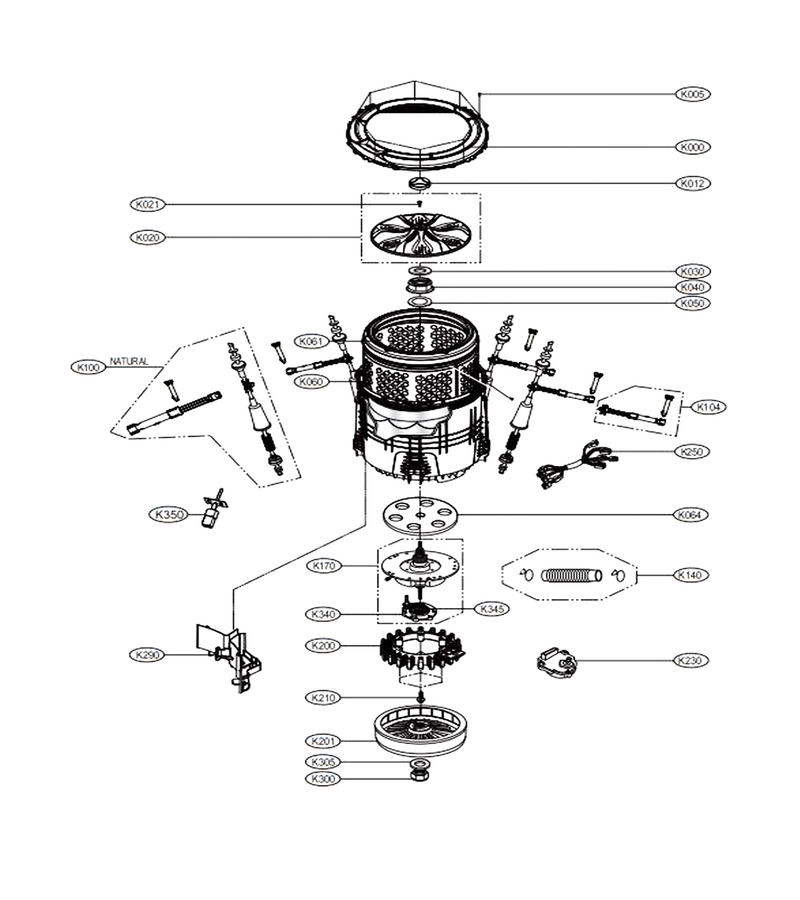

Tub Assembly

...
...
K140
Washer Drain Hose L-G-AEM73213001
...
K350
Washer Thermistor L-G-6322FR2046G
...
K170
Washer Drive Shaft And Shifter Assembly L-G-3661EA1009E
...
K200
Washer Drive Motor L-G-4417EA1002Y
...
K210
Washer Bolt L-G-4011FA4353B
...
K230
Washer Brake Actuator L-G-4681EA1009H
...
K250
Washer Water Hose Guide L-G-4974EA2004A
...
K290
Nut Washer L-G-1NZZEA4001A
...
K300
Washing Machine Washer L-G-4W50100D
...
K305
Washer Brake Actuator L-G-4323EA2001C
...
K340
Washer Shifter L-G-MCJ61861201
...
K100
Washer Suspension Rod L-G-AJK72989701
...
K064
Washer Tub Mounting Hub L-G-MEL61841401
...
K061
Washer Basket Balance Ring L-G-AAJ73170001
...
K060
Washer Spin Basket L-G-AJQ72911906
...
K050
Washing Machine Washer L-G-4040FA4045C
...
K040
Nut Washer L-G-4020FA4208J
...
K030
Washing Machine Washer L-G-FAF30369201
...
K021
Washer Screw L-G-FAB30598601
...
K020
Pulsator Assembly L-G-AGZ72909703
...
K012
Washer Washplate Cap L-G-5006EA3009B
