LE389 Murray - Husqvarna Edger (2006)

Model: LE389

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

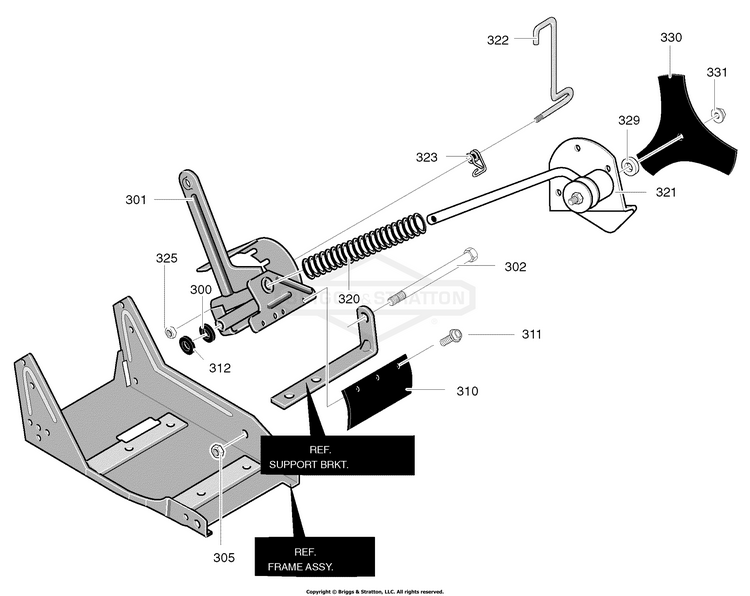

Edger Blade Assembly

...
...
300
Flatwasher BS-601 00 00 21
...
301
Quill Support BS-601 00 21 96
...
302
Bolt, 3/8-16 BS-601 00 22 16
...
305
Nut, 3/8-16 BS-601 00 24 07
...
310
Rubber Deflector BS-601 00 22 17
...
311
Screw, 10-16x1.50 BS-601 00 22 18
...
312
Flatwasher BS-601 00 22 13
...
320
Spring, Compression BS-601 00 23 14
...
321
Quill Assembly BS-601 00 21 97
...
322
Lever, Index BS-601 00 22 44
...
323
Spring, Torsion BS-601 00 22 45
...
325
NUT, 5/16-18 BS-601 00 22 59
...
329
Flatwasher BS-601 00 00 94
...
330
Blade, Edger BS-601 00 22 46
...
331
Nut, 1/2-20 BS-601 00 05 52
...
...
...
...
...
