product name

LE389 Murray - Husqvarna Edger (2006)

Model: LE389

Back To Assemblies

Save
Part Not Listed?Part Not Listed?
product name

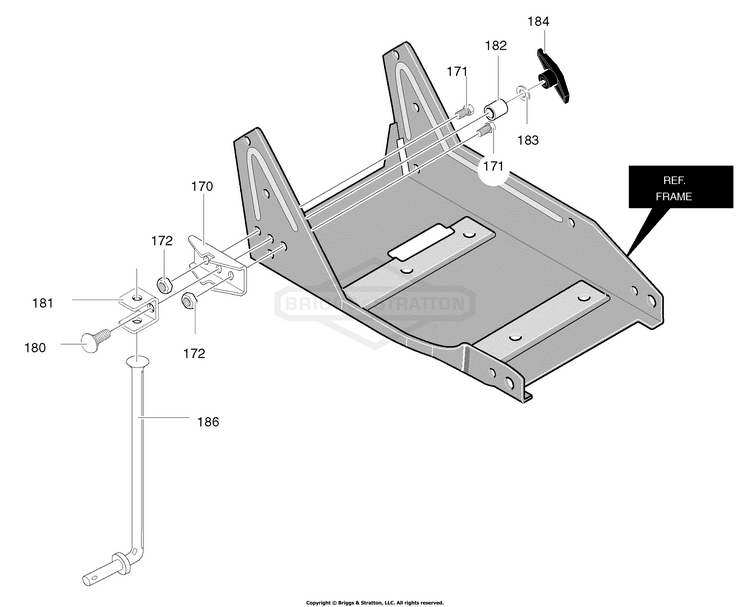

Curb-Hop Assembly

...
...
170
Bracket, Curb Hop Mnt BS-601 00 06 47

...
171
Screw, 5/16-18 x 0.75 BS-601 00 00 73

...
172
Nut, 5/16-18 BS-601 00 00 59

...
180
Bolt, 5/16-18x2.00 BS-601 00 19 70

...
181

...
182
Spacer, Sleeve BS-601 00 19 71

...
183
Flatwasher BS-601 00 00 19

...
184
Knob, Wing 5/16-18 BS-601 00 06 84

...
186
Rod, Wheel Support BS-601 00 19 72
...
...
...
