product name

LE389 Murray - Husqvarna Edger (2006)

Model: LE389

Back To Assemblies

Save
Part Not Listed?Part Not Listed?
product name

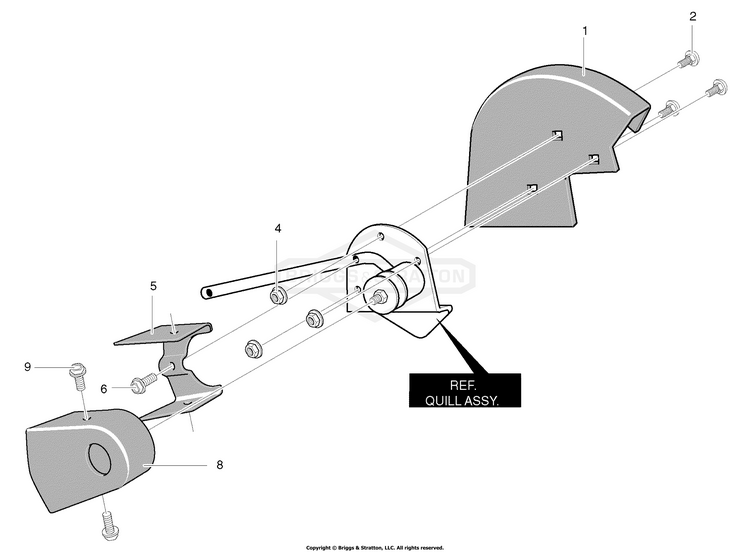

Blade Guard Assembly

...
...
1
Blade Guard BS-601 00 22 10

...
2
Bolt, Carriage 5/16-18x.63 BS-601 00 07 86

...
4
Nut, 5/16-18 BS-601 00 08 67

...
5
Guide, Belt Front BS-601 00 22 11

...
6
Screw, 1/4-20x.50 BS-601 00 21 95

...
8
Cover, Quill Pulley BS-601 00 19 78

...
9
Screw, 10-16x.50 BS-601 00 24 70
...
...
...
