Kohler ZT740-3045 DIXIE CHOPPER ZT740

Model: ZT740-3045 DIXIE CHOPPER

Back To Assemblies

Save Part Not Listed?
product name

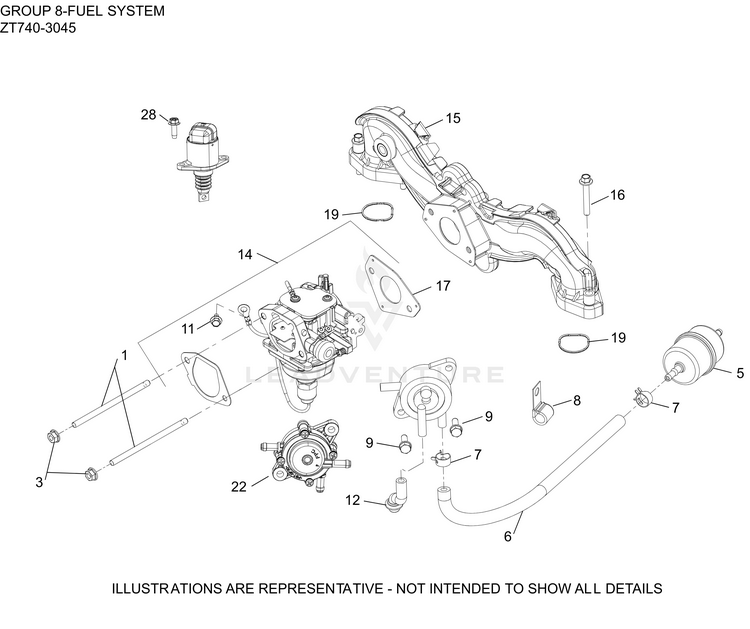

08 Fuel System

...
...
1
STUD KOH-25 072 25-S
...
3
NUT, FLG M6X1.0 KOH-M-641060-S
...
5
FILTER, FUEL KOH-24 050 13-S
...
6
HOSE, FUEL LOW PERMEATION 39" KOH-25 111 81-S
...
7
SPRING CLAMP, HOSE KOH-25 237 37-S
...
8
CLIP, CABLE KOH-47 154 01-S
...
9
SCREW, HEX FLANGE KOH-25 086 786-S
...
11
SCREW, THREAD FORMING KOH-25 086 400-S
...
12
HOSE, PULSE PUMP(STEEL COVERS) KOH-32 326 08-S
...
14
KIT,CARB (KEIHIN) KOH-16 853 01-S
...
15
INTAKE MANIFOLD W/GASKETS KOH-24 164 277-S
...
16
SCREW, FLG M6X1.0X40 KOH-M-651040-S
...
17
GASKET, CARBURETOR (PIM, CV) KOH-24 041 91-S
...
19
O-RING, INTAKE PORT (PIM) KOH-24 153 36-S
...
22
PUMP, FUEL (PULSE)-(#2439316S) KOH-25 393 26-S
...
28
SCREW, THREAD FORMING-(#DSC) KOH-25 086 651-S
...
NI
KIT, HIGH ALT (4K - 8K) 1.12MJ-DISC. KOH-32 755 16-S
...
NI
REPAIR SERVICE CHOKE KOH-32 757 07-S
...
NI
REPAIR SERVICE GASKET KOH-32 757 08-S
...
NI
REPAIR FLOAT-(#DSC) KOH-32 757 09-S
...
NI
REPAIR SOLENOID VALVE-(#DSC) KOH-32 757 10-S
...
NI
REPAIR OVERHAUL KOH-32 757 11-S
