Kohler ZT740-3045 DIXIE CHOPPER ZT740

Model: ZT740-3045 DIXIE CHOPPER

Back To Assemblies

Save Part Not Listed?
product name

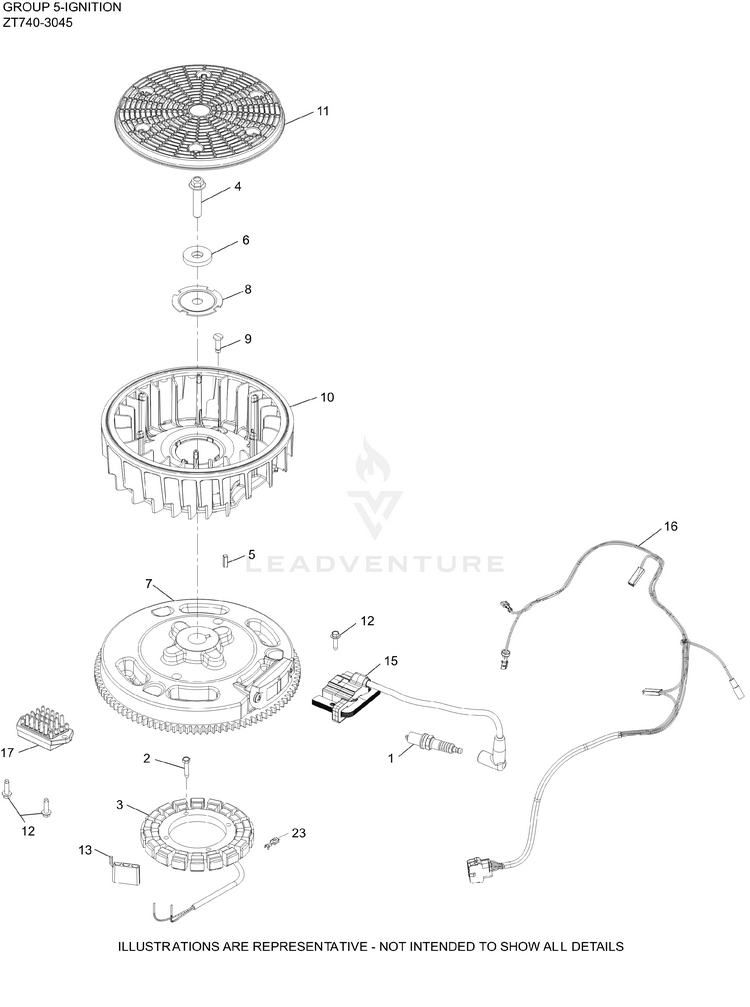

05 Ignition/Charging

...
...
1
PLUG, SPARK-(#2513213S) KOH-25 132 23-S
...
2
SCREW, THREAD FORMING KOH-25 086 402-S
...
3
KIT, 15 / 20 AMP STATOR KOH-237878-S
...
4
SCREW, HEX FLANGE KOH-25 086 361-S
...
5
KEY, SQUARE KOH-25 340 04-S
...
6
WASHER, FLAT KOH-25 468 09-S
...
7
FLYWHEEL ASSEMBLY KOH-32 025 21-S
...
8
PLATE, FAN MOUNTING KOH-20 146 05-S
...
9
RETAINER, FLYWHEEL FAN KOH-32 018 03-S
...
10
FAN KOH-32 157 04-S
...
11
SCREEN, GRASS KOH-32 162 03-S
...
12
SCREW, THREAD FORMING KOH-25 086 473-S
...
13
CONNECTOR KOH-25 155 41-S
...
15
MODULE,MAGNETO DIGITAL IGN-(#3258436S) KOH-32 584 25-S
...
16
HARNESS, WIRING ASSY-(#3217651S) KOH-32 176 33-S
...
17
KIT, REGULATOR RECTIFIER KOH-25 403 47-S
...
23
TERMINAL KOH-25 452 01-S
Schematic Image Zoomed
