Kohler ZT730-3005 MARKETING Engine

Model: ZT730-3005 MARKETING

Back To Assemblies

Save Part Not Listed?
product name

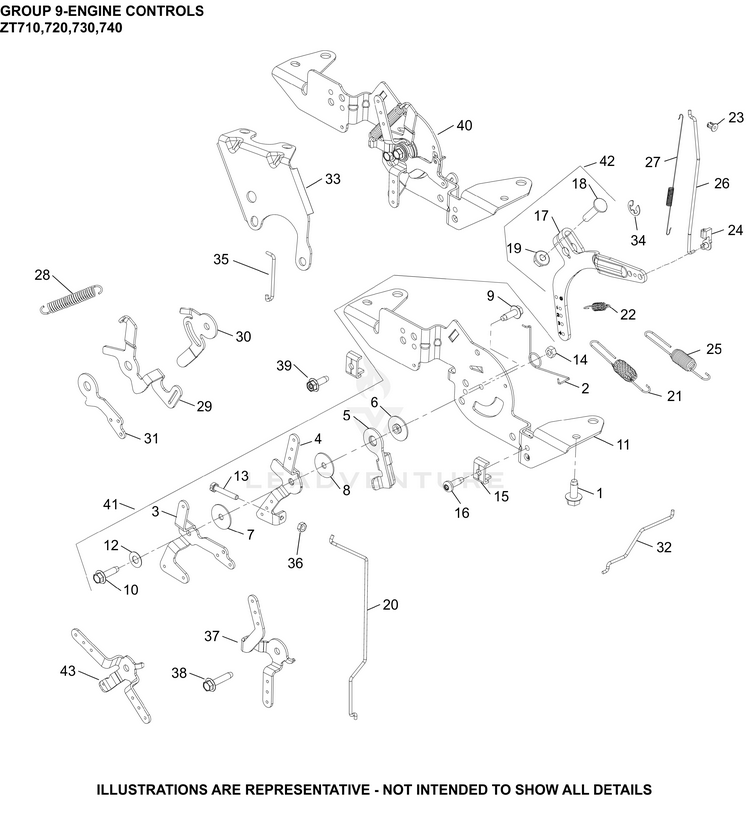

09 Engine Controls

...
...
1
SCREW, THREAD FORMING KOH-25 086 397-S
...
15
CLAMP, CABLE CABLE KOH-25 237 53-S
...
17
LEVER, GOVERNOR ASSEMBLY KOH-24 090 69-S
...
18
BOLT, RD HD SQ NECK M6X1.0X25 KOH-24 211 03-S
...
19
NUT, FLG M6X1.0 KOH-M-641060-S
...
20
LINKAGE, CHOKE KOH-24 079 22-S
...
21
SPRING, GOVERNOR (ORANGE) KOH-24 089 25-S
...
22
SPRING, GOVERNED IDLE KOH-24 089 55-S
...
23
BUSHING, LINKAGE RETAINING KOH-25 158 08-S
...
24
BUSHING, THROTTLE LINKAGE KOH-25 158 11-S
...
27
SPRING, LINKAGE KOH-32 089 11-S
...
32
LINKAGE, THROTTLE KOH-24 079 04-S
...
34
CLIP, RETAINER GOVERNOR SHAFT KOH-32 154 03-S
...
39
SCREW, THREAD FORMING-(#DSC) KOH-25 086 651-S
