Kohler XTX775-3106 CHONGQING Engine

Model: XTX775-3106 CHONGQING

Back To Assemblies

Save Part Not Listed?
product name

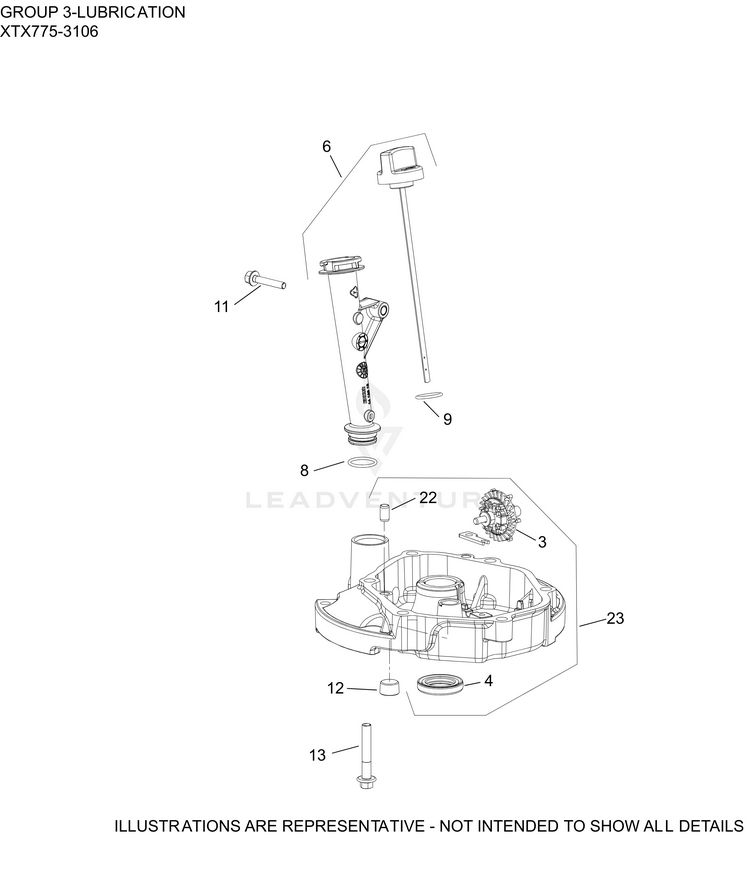

03 Lubrication

...
...
3
GEAR ASSEMBLY, GOVERNOR KOH-14 310 02-S
...
4
OIL SEAL KOH-14 032 07-S
...
6
DIPSTICK AND TUBE ASSY KOH-14 123 14-S
...
8
O-RING, OIL FILL TUBE KOH-14 153 03-S
...
9
O-RING (CAP) KOH-14 153 05-S
...
11
SCREW, HEX FLANGE (M6) KOH-25 086 435-S
...
12
PLUG, PIPE (W/SEALANT) KOH-14 139 02-S
...
13
SCREW, HEX FLANGE (M8) KOH-25 086 456-S
...
22
PIN, DOWEL (8mm) KOH-14 380 12-S
...
23
KIT, OIL PAN KOH-14 199 37-S
