Kohler XTX675-3112 Ardisam Engine

Model: XTX675-3112 Ardisam

Back To Assemblies

Save Part Not Listed?
product name

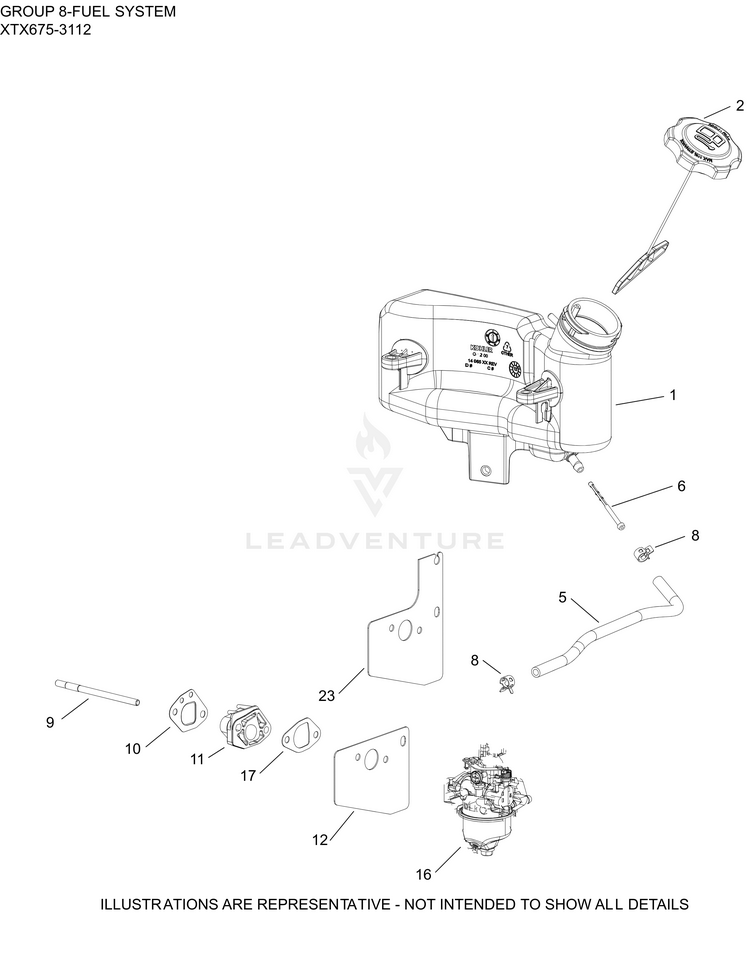

08 Fuel System

...
...
1
TANK, FUEL KOH-14 065 64-S
...
2
FUEL CAP ASSEMBLY KOH-14 227 26-S
...
5
HOSE, FUEL LOW-PERMEATION (CKY) KOH-25 111 69-S
...
6
FILTER, FUEL IN-NIPPLE KOH-14 050 14-S
...
8
CLAMP, HOSE KOH-14 237 10-S
...
9
STUD, M6X1.0X93.8MM KOH-14 072 07-S
...
9
STUD,M6X1.0X100.2MM KOH-14 072 23-S
...
10
KIT, CARBURETOR HEAT SHIELD GASKET KOH-14 041 31-S
...
11
SPACER, CARBURETOR KOH-14 112 27-S
...
12
KIT, CARBURETOR HEAT SHIELD GASKET KOH-14 041 31-S
...
16
KIT, CARBURETOR COMPLETE KOH-14 853 116-S
...
17
KIT, INTAKE GASKET KOH-17 041 03-S
...
23
GASKET, CARBURETOR KOH-14 041 35-S
...
NI
KIT, HIGH ALT (4000-8000 FT) KOH-14 755 08-S
...
NI
KIT, CARBURETOR REPAIR (RUIXING) KOH-14 757 03-S
