Kohler XTX675-3091 Ardisam Engine

Model: XTX675-3091 Ardisam

Back To Assemblies

Save Part Not Listed?
product name

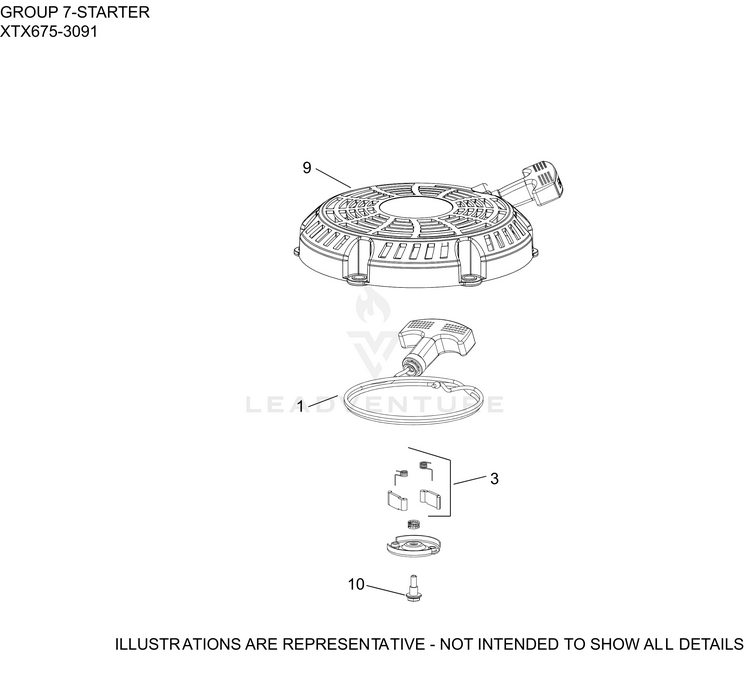

07 Starting

...
...
1
KIT, STARTER ROPE W/HANDLE KOH-14 160 01-S
...
3
KIT, PAWL REPAIR KOH-14 379 01-S
...
9
STARTER ASSY-RETRACT BLACK GLOSSY KOH-14 165 14-S
...
10
SCREW, SHOULDER (M5)-DISCONTINUED KOH-25 086 139-S
