Kohler XTX675-3091 Ardisam Engine

Model: XTX675-3091 Ardisam

Back To Assemblies

Save Part Not Listed?
product name

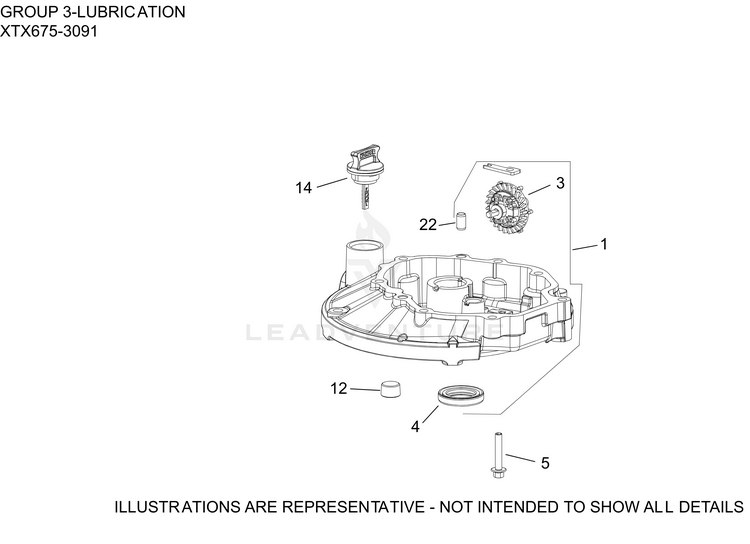

03 Lubrication

...
...
1
KIT PAN, OIL KOH-14 199 34-S
...
3
GEAR ASSEMBLY, GOVERNOR KOH-14 310 02-S
...
4
OIL SEAL KOH-14 032 07-S
...
5
SCREW, HEX FLANGE (M6) KOH-25 086 434-S
...
12
PLUG, PIPE (W/SEALANT) KOH-14 139 02-S
...
14
DIPSTICK ASSEMBLY KOH-14 038 08-S
...
22
PIN, DOWEL (8mm) KOH-14 380 12-S
