Kohler XTX675-3081 Ningbo Supow Engine

Model: XTX675-3081 Ningbo Supow

Back To Assemblies

Save Part Not Listed?
product name

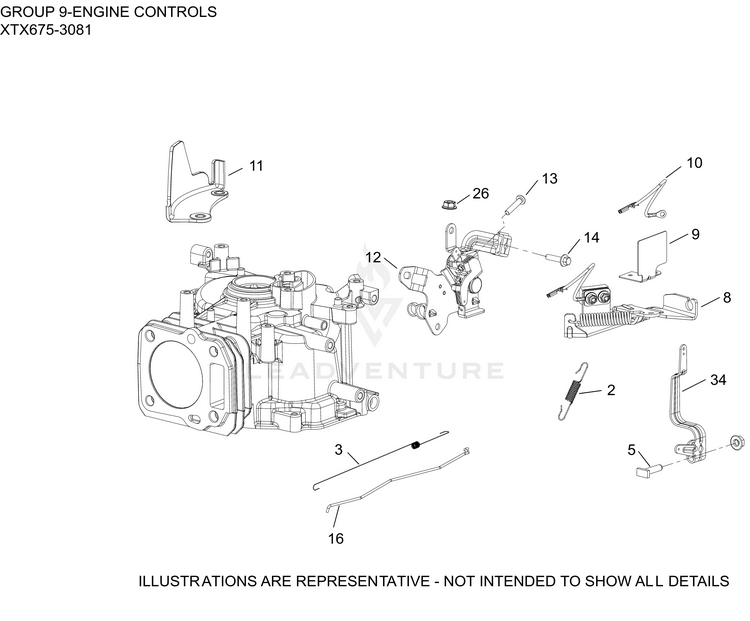

09 Engine Controls

...
...
2
SPRING, GOV (2800-3300 RPM) KOH-14 089 14-S
...
3
SPRING, LINKAGE KOH-14 089 63-S
...
5
SCREW, RECTANGLE HEAD (M6) KOH-25 086 166-S
...
8
BRAKE ASSEMBLY KOH-14 219 21-S
...
9
GUARD, BRAKE (FINGER PROTECTION)-DISC. KOH-14 314 30-S
...
10
LEAD, KILL (BRAKE TO IGN. MODULE) KOH-14 518 29-S
...
11
GUARD, FINGER KOH-14 314 25-S
...
12
CONTROL ASSEMBLY (VAR. SPEED) KOH-14 536 08-S
...
13
SCREW, #25 6-LOBE PAN HD (M5) KOH-25 086 165-S
...
14
SCREW, (M5) HEX FLANGE KOH-25 086 232-S
...
16
LINKAGE, GOVERNOR KOH-14 079 27-S
...
26
NUT, HEX FLANGE LOCK (M6) KOH-14 100 09-S
...
34
LEVER, GOVERNOR-(#DSC) KOH-14 090 33-S
