Kohler XTX675-3081 Ningbo Supow Engine

Model: XTX675-3081 Ningbo Supow

Back To Assemblies

Save Part Not Listed?
product name

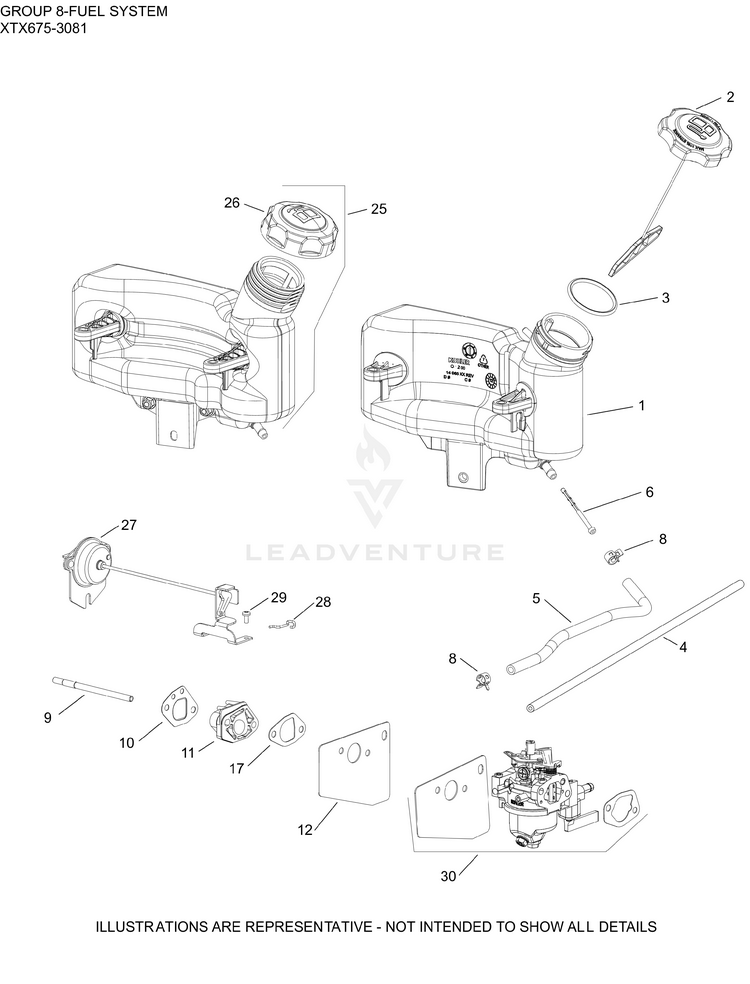

08 Fuel System

...
...
1
TANK, FUEL After S/N 5005700001 KOH-14 065 63-S
...
2
CAP ASSEMBLY, FUEL After S/N 5005700001 KOH-14 227 20-S
...
3
SEAL, FUEL CAP- (#DSC) After S/N 5005700001 KOH-14 032 10-S
...
4
HOSE, EVAPORATIVE After S/N 5005700001 KOH-24 326 143-S
...
5
HOSE, FUEL LOW-PERMEATION (CKY) KOH-25 111 69-S
...
6
FILTER, FUEL IN-NIPPLE KOH-14 050 14-S
...
8
CLAMP, HOSE KOH-14 237 10-S
...
9
STUD,M6X1.0X100.2MM KOH-14 072 23-S
...
10
KIT, CARBURETOR HEAT SHIELD GASKET KOH-14 041 31-S
...
11
SPACER, CARBURETOR KOH-14 112 27-S
...
12
KIT, CARBURETOR HEAT SHIELD GASKET KOH-14 041 31-S
...
17
KIT, INTAKE GASKET KOH-17 041 03-S
...
25
FUEL TANK KIT Before S/N 5005700011 KOH-14 065 62-S
...
26
CAP, FUEL ASSEMBLY Before S/N 5005700011 KOH-14 227 11-S
...
27
ARM ASSEMBLY, AUTO CHOKE KOH-14 187 14-S
...
28
LINKAGE, WIRE CHOKE KOH-14 079 25-S
...
29
SCREW, M4 THREAD FORMING KOH-25 086 439-S
...
30
KIT, CARBURETOR COMPLETE KOH-14 853 115-S
...
NI
KIT, HIGH ALT (4000-8000 FT) KOH-14 755 08-S
...
NI
KIT, CARBURETOR REPAIR (RUIXING) KOH-14 757 03-S
