Kohler XT775-3028 Viking Engine

Model: XT775-3028 Viking

Save Part Not Listed?

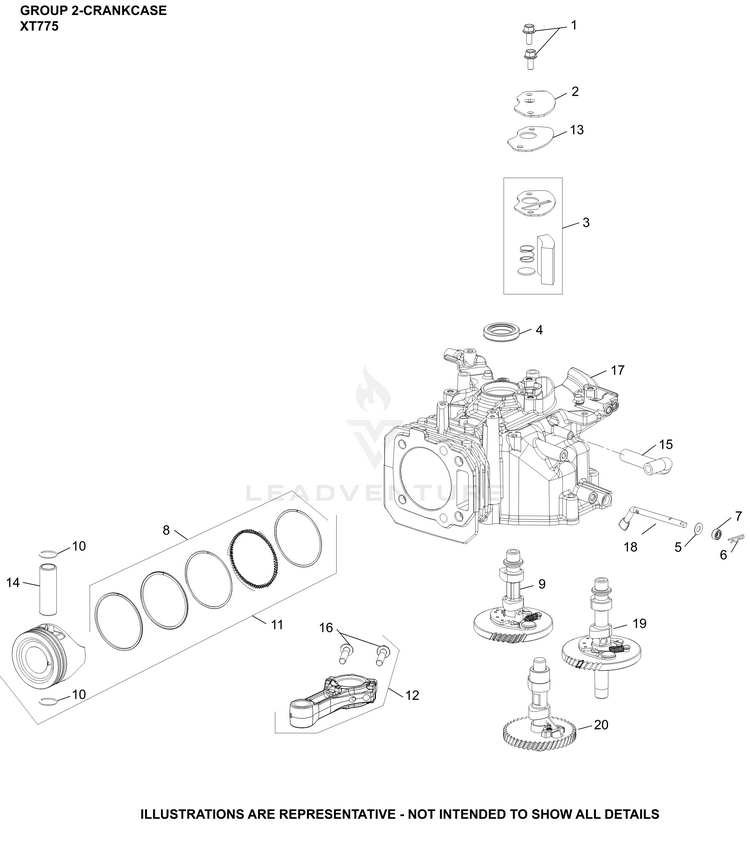

02 CrankCase

SCREW, HEX FLANGE (M6)-USE 25 086 159-S KOH-25 086 433-S

COVER, BREATHER KOH-14 096 125-S

KIT, BREATHER FILTER KOH-14 050 01-S

SEAL, CCASE/FLYWHEEL KOH-14 032 02-S

WASHER, FLAT (DIA 13mm O.D.) KOH-14 468 30-S

CLIP, GOVERNOR SHAFT KOH-14 154 01-S

SEAL, OIL KOH-14 032 04-S

RING SET KOH-14 108 02-S

CAMSHAFT ASSEMBLY KOH-14 010 13-S

RETAINER, PISTON PIN KOH-14 018 03-S

KIT, PISTON KOH-14 874 03-S

CONNECTING ROD KOH-14 067 01-S

GASKET, BREATHER COVER KOH-14 041 30-S

PIN, PISTON KOH-14 380 04-S

HOSE, BREATHER KOH-14 123 05-S

SCREW, HEX FLANGE (M7) KOH-25 086 150-S

CRANKCASE KOH-14 561 17-S

SHAFT, GOVERNOR CROSS KOH-14 144 02-S
