Kohler XT675-0023 Viking Engine

Model: XT675-0023 Viking

Back To Assemblies

Save Part Not Listed?
product name

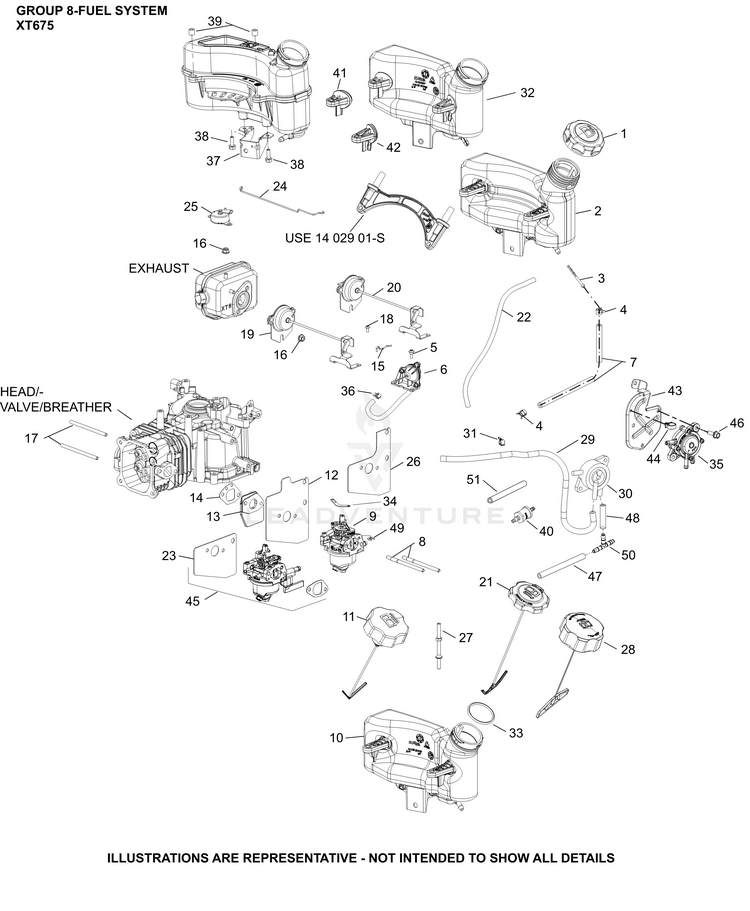

08 Fuel System

...
...
3
FILTER, FUEL IN-NIPPLE KOH-14 050 14-S
...
4
CLAMP, HOSE KOH-14 237 10-S
...
5
SCREW, SHOULDER KOH-25 086 440-S
...
6
DIAPHRAGM, ASSEMBLY KOH-14 268 04-S
...
7
HOSE, FUEL LOW-PERMEATION (CKY) KOH-25 111 69-S
...
8
STUD,M6X1.0X100.2MM KOH-14 072 23-S
...
9
KIT, CARBURETOR KOH-14 853 49-S
...
10
TANK, FUEL KOH-14 065 72-S
...
12
KIT, CARBURETOR HEAT SHIELD GASKET KOH-14 041 31-S
...
13
KIT, SPACER KOH-14 112 25-S
...
14
KIT, CARBURETOR HEAT SHIELD GASKET KOH-14 041 31-S
...
15
LINKAGE, AUTO CHOKE KOH-14 079 26-S
...
18
SCREW, M4 THREAD FORMING KOH-25 086 439-S
...
19
ARM ASSEMBLY, AUTO CHOKE KOH-14 187 16-S
...
21
CAP ASSEMBLY, FUEL KOH-14 227 20-S
...
22
HOSE, EVAPORATIVE KOH-25 326 28-S
...
33
SEAL, FUEL CAP- (#DSC) KOH-14 032 10-S
...
36
CLAMP, HOSE KOH-14 237 05-S
...
37
BRACKET, FUEL TANK (LOWER) KOH-14 126 16-S
...
38
SCREW, HEX FLANGE KOH-25 086 786-S
...
39
SPACER - DISCONTINUED KOH-14 112 05-S
...
NI
KIT, HIGH ALT (4000-8000 FT) KOH-14 755 07-S
...
NI
KIT, CARBURETOR REPAIR (RUIXING) KOH-14 757 03-S
