Kohler XT650-3032 HOP XT650

Model: XT650-3032 HOP

Back To Assemblies

Save Part Not Listed?
product name

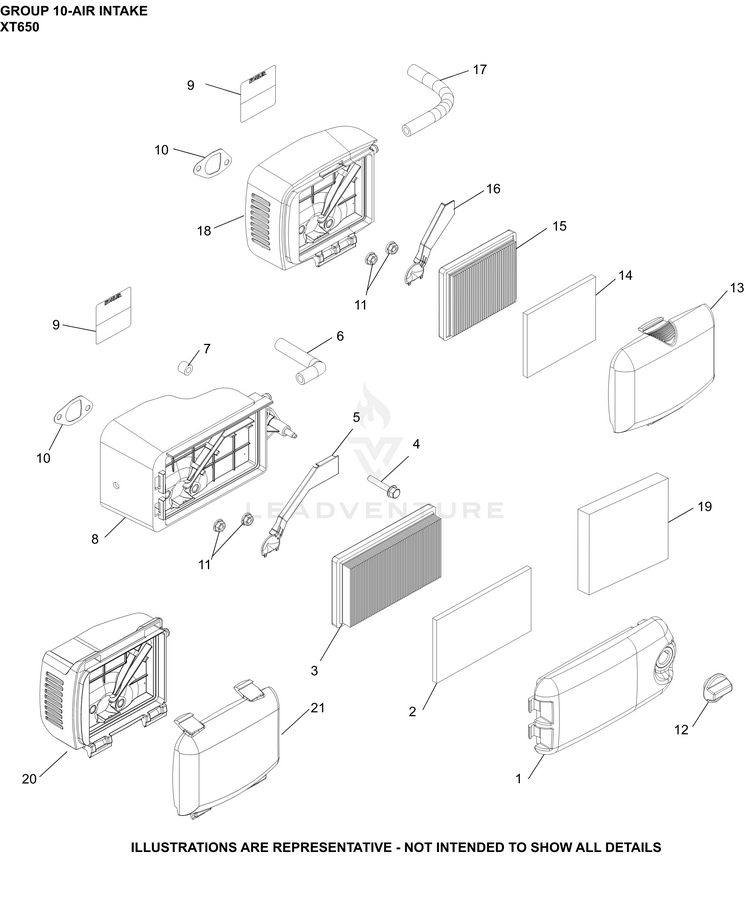

10 Air Intake

...
...
10
KIT, INTAKE GASKET KOH-17 041 03-S
...
15
ELEMENT, AIR FILTER KOH-14 083 22-S
...
16
COVER KOH-14 096 118-S
...
17
HOSE, BREATHER KOH-14 123 19-S
...
20
BASE, AIR CLEANER KOH-14 094 32-S
...
21
COVER, AIR CLEANER KOH-14 096 133-S
