Kohler XT650-3025 Basic Engine

Model: XT650-3025 Basic

Back To Assemblies

Save Part Not Listed?
product name

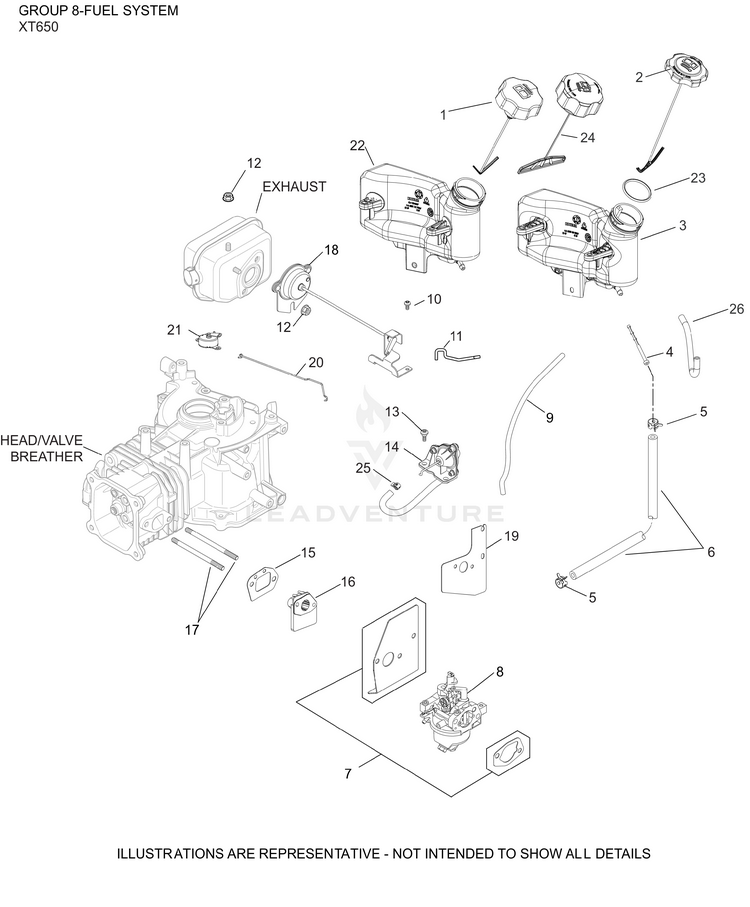

08 Fuel System

...
...
2
CAP ASSEMBLY, FUEL KOH-14 227 20-S
...
3
TANK, FUEL KOH-14 065 63-S
...
4
FILTER, FUEL IN-NIPPLE KOH-14 050 14-S
...
5
CLAMP, HOSE KOH-14 237 10-S
...
6
HOSE, FUEL LOW-PERMEATION (CKY) KOH-25 111 69-S
...
7
KIT, CARBURETOR HEAT SHIELD GASKET KOH-14 041 31-S
...
8
KIT,CARB (HUAYI) 12MM A. C KOH-14 853 68-S
...
9

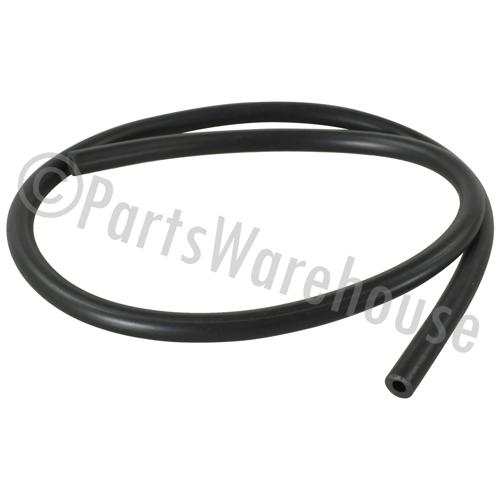

HOSE, EVAPORATIVE KOH-24 326 143-S
...
15
KIT, CARBURETOR HEAT SHIELD GASKET KOH-14 041 31-S
...
16
SPACER, CARBURETOR KOH-14 112 27-S
...
17
STUD,M6X1.0X100.2MM KOH-14 072 23-S
...
20
LINKAGE, AUTO CHOKE KOH-14 079 32-S
...
21
ARM ASSEMBLY, AUTO CHOKE KOH-14 187 22-S
...
23
SEAL, FUEL CAP- (#DSC) KOH-14 032 10-S
...
NI
KIT, HIGH ALT (4000-8000 FT) KOH-14 755 30-S
