Kohler XT149-0219 SHENZHEN EON

Model: XT149-0219 EON

Back To Assemblies

Save Part Not Listed?
product name

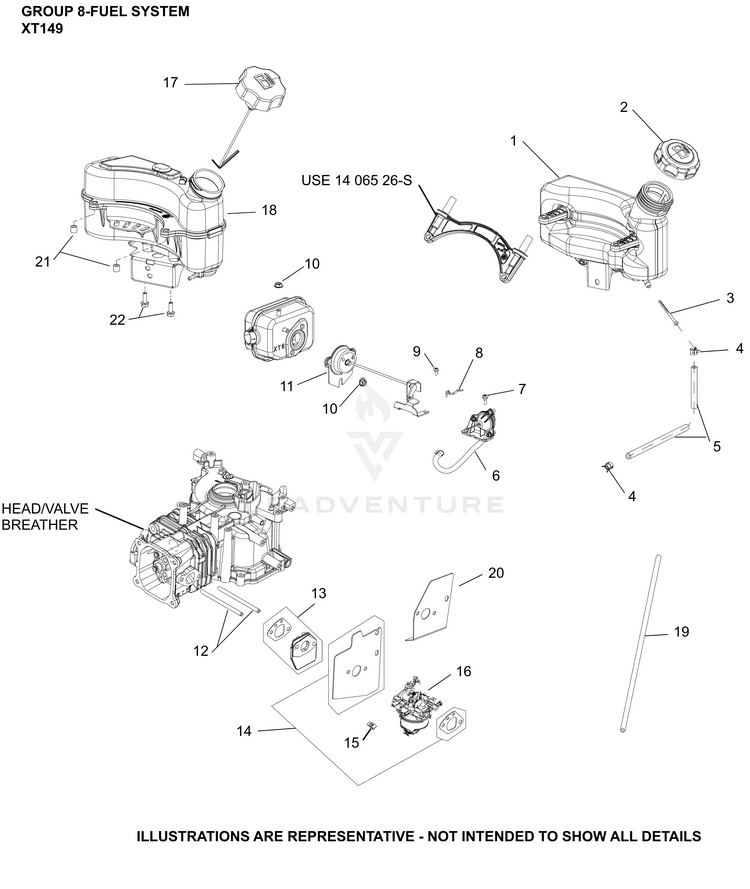

08 Fuel System

...
...
1
TANK ASSEMBLY, NON-CALIFORNIA KOH-14 065 26-S
...
2
CAP, FUEL ASSEMBLY KOH-14 227 11-S
...
3
FILTER, FUEL IN-NIPPLE KOH-14 050 14-S
...
4
CLAMP, HOSE KOH-14 237 10-S
...
5
HOSE, FUEL LOW-PERMEATION (CKY) KOH-25 111 69-S
...
6
DIAPHRAGM, ASSEMBLY KOH-14 268 04-S
...
7
SCREW, SHOULDER KOH-25 086 440-S
...
8
LINKAGE, AUTO CHOKE KOH-14 079 26-S
...
9
SCREW, M4 THREAD FORMING KOH-25 086 439-S
...
11
ARM ASSY KOH-14 187 04-S
...
12
STUD, M6X1.0X93.8MM KOH-14 072 07-S
...
12
STUD,M6X1.0X100.2MM KOH-14 072 23-S
...
13
KIT, SPACER KOH-14 112 25-S
...
14
KIT, CARBURETOR HEAT SHIELD GASKET KOH-14 041 31-S
...
14
KIT, CARBURETOR HEAT SHIELD GASKET KOH-14 041 31-S
...
15
CLAMP, HOSE KOH-14 237 05-S
...
NI
KIT, HIGH ALT (4000-8000 FT) KOH-14 755 07-S
...
NI
KIT, CARBURETOR REPAIR (RUIXING) KOH-14 757 03-S
...
NI
KIT, CARBURETOR-DISCONTINUED KOH-14 853 50-S
